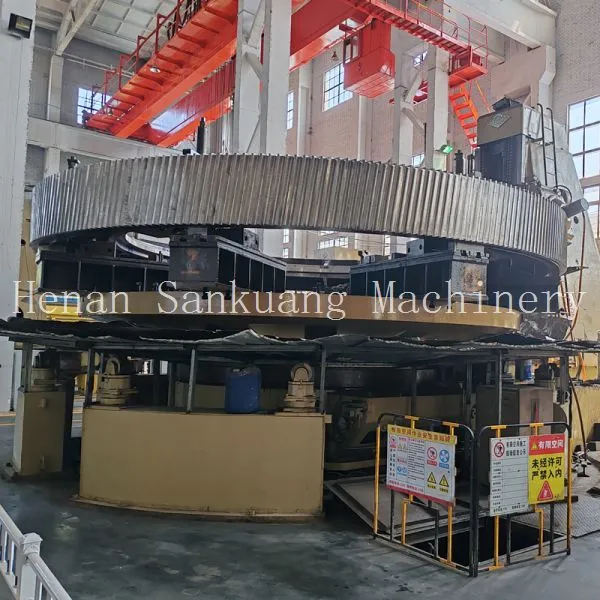

As a specialized manufacturer with a decade of experience in heavy machinery components, Henan San Kuang Machinery Technology is proud to offer our premium Wear Resistant Split Gear Ring. Designed specifically for the demanding environments of rotary dryers and lime kilns, this component is engineered to deliver unmatched durability and reliability, directly addressing the high-maintenance challenges faced by industrial operators. Our commitment to precision manufacturing under stringent quality systems ensures that every gear ring provides a robust solution for continuous, high-torque applications, helping to maximize your equipment's uptime and operational efficiency.
This gear ring stands out due to its thoughtful design and superior material science. Below are its key characteristics and the tangible benefits they bring to your operation:
- Superior Wear Resistance: The gear ring undergoes specialized surface hardening treatments, such as induction hardening or carburizing, which significantly enhance its surface hardness. This creates a tough, abrasion-resistant outer layer while maintaining a tough, shock-absorbing core, dramatically extending service life even under constant friction and heavy loads.
- Innovative Split Design: Unlike traditional one-piece gears, our split configuration is a game-changer for maintenance. It allows for installation and replacement without the need for extensive disassembly of the entire rotary drum or kiln shaft, leading to substantial reductions in downtime and labor costs.
- High-Strength Material Construction: Fabricated from high-grade alloy steels, the gear ring possesses excellent mechanical properties, including high tensile strength and good impact toughness. This ensures it can withstand the sudden load variations and high stresses common in mineral processing and thermal applications.
- Precision Machining: Each gear ring is machined to exacting tolerances, ensuring perfect tooth profile geometry and bore accuracy. This precision guarantees smooth meshing with the pinion gear, minimizes vibration and noise, and promotes even load distribution across the teeth, preventing premature failure.
- Customization Flexibility: We understand that rotary equipment comes in various sizes. Therefore, we offer fully customizable gear rings. Customers can specify the module, number of teeth, pitch diameter, bore size, and face width to achieve a perfect fit for their specific dryer or kiln model.
To provide a clearer overview, here are some typical specifications (customizations are available upon request):
| Parameter | Specification / Description |
|---|---|
| Common Materials | 42CrMo, 35CrMo, or other high-strength alloy steels |
| Heat Treatment | Surface hardening (e.g., induction hardened) + tempering |
| Hardness (Surface) | Typically HRC 50-60 |
| Split Configuration | Usually split into 2 or 4 segments |
| Connection Method | Bolted flanges with precision-machined mating surfaces |
| Key Applications | Rotary Dryers, Lime Kilns, Cement Kilns, Coolers, Granulators |
| Main Advantage | Drastic reduction in maintenance time and replacement cost |
The benefits of integrating our Wear Resistant Split Gear Ring into your operation are direct and measurable. You will experience fewer unplanned shutdowns, lower spare part inventory costs (as the gear lasts longer), and increased overall equipment effectiveness (OEE). The ease of installation translates to faster maintenance turnarounds, keeping your production line running and profitable.
Backed by Henan San Kuang Machinery Technology's solid reputation, our gear rings are produced in a modern facility spanning 10,000-30,000 square meters, adhering to the ISO9001 quality management system. With an annual export value ranging between US$2.5 Million and US$5 Million, our products have gained the trust of a global clientele across North America, South America, Southeast Asia, Europe, and Africa. Our strategic location with access to major ports like Shanghai, Qingdao, and Tianjin ensures reliable and efficient logistics for your orders. Choose our gear ring not just as a component, but as a strategic investment in the resilience and productivity of your rotary processing equipment. Contact us today to discuss your specific requirements and receive a tailored solution.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a split design over a solid gear ring?
A: The primary advantage is vastly simplified maintenance. A solid gear requires removing the entire rotary drum shaft for replacement, which is time-consuming and costly. The split ring can be installed around the existing shaft, saving significant downtime and labor.
Q2: How do you ensure the two halves of the split gear align perfectly?
A: The mating flanges of each segment are precision-machined. When bolted together with high-strength bolts according to our specified torque procedure, they form a single, rigid unit with accurate tooth alignment, ensuring performance equivalent to a one-piece gear.
Q3: Can you manufacture a gear ring to match my existing, worn-out gear?
A: Yes, we can. We typically request the original drawings or detailed measurements of your current gear (e.g., module, number of teeth, pitch diameter, bore size, face width). If the original is unavailable, our engineers can work from the equipment model to determine the correct specifications.
Q4: What factors most affect the wear life of the gear ring?
A> Key factors include the operating environment (abrasiveness of material, presence of dust), alignment with the pinion gear, lubrication quality and schedule, and the magnitude of shock loads. Proper installation and maintenance are crucial for achieving maximum lifespan.
Q5: Do you provide installation instructions or technical support?
A: Absolutely. We provide detailed installation manuals with bolt torque specifications and alignment guidelines. Our technical team is also available for consultation to ensure a successful installation and optimal operation.
Q6: What is your typical lead time for a custom gear ring order?
A: Lead time depends on the size, material, and complexity of the gear. For standard sizes and materials, it can be as short as 4-6 weeks. For large, highly customized orders, it may take 8-12 weeks. We provide a firm timeline upon order confirmation.
Q7: How does the surface hardening treatment improve performance?
A: The treatment creates an extremely hard, wear-resistant surface layer on the gear teeth, which directly contacts the pinion. Meanwhile, the core of the gear remains tough and ductile to absorb impacts and prevent catastrophic brittle fracture, offering an optimal combination of hardness and toughness.
Q8: What information do I need to provide to get an accurate quotation?
A> To provide a precise quote, please share the equipment make/model, gear drawings (if available), or key dimensions (module, teeth number, pitch diameter, bore, face width). Also, inform us about the operating conditions (load, speed, environment) for material recommendation.
