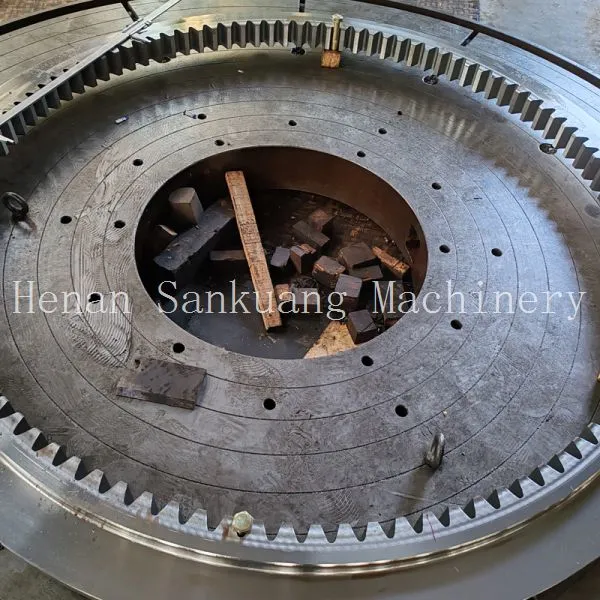

Henan San Kuang Machinery Technology Co., Ltd. proudly presents our Quenched Tempered Internal Gear Ring – a high-strength ring gear engineered specifically for speed reducer assembly. With over a decade of precision manufacturing experience and a 10,000-30,000 m² factory, we produce gear rings that deliver exceptional durability, wear resistance, and dimensional stability. This product is the core component for reducing vibration and ensuring smooth power transmission in demanding industrial applications.
Our internal gear rings undergo a rigorous quenched and tempered heat treatment process, achieving an optimal balance of hardness and toughness. This ensures reduced deformation under heavy loads and prolonged service life. Designed for easy integration into speed reducers, the gear ring offers high concentricity and precise tooth geometry, minimizing backlash and noise. Whether for new assemblies or replacement parts, our gear rings meet diverse customer requirements.
Backed by ISO9001 and other management system certifications, each ring is manufactured under strict quality control. We serve global markets including North America, Europe, and Southeast Asia, with annual export value exceeding 2.5 million USD. Choose our quenched tempered internal gear ring for reliable performance in your speed reducer systems.
Key Features & Technical Specifications
- Advanced Heat Treatment: Quenched and tempered process ensures hardness of HRC 58-62 with excellent core toughness, preventing premature tooth wear.
- High Strength Materials: Available in alloy steels like 20CrMnTi, 40Cr, or 42CrMo, offering superior tensile strength and fatigue resistance.

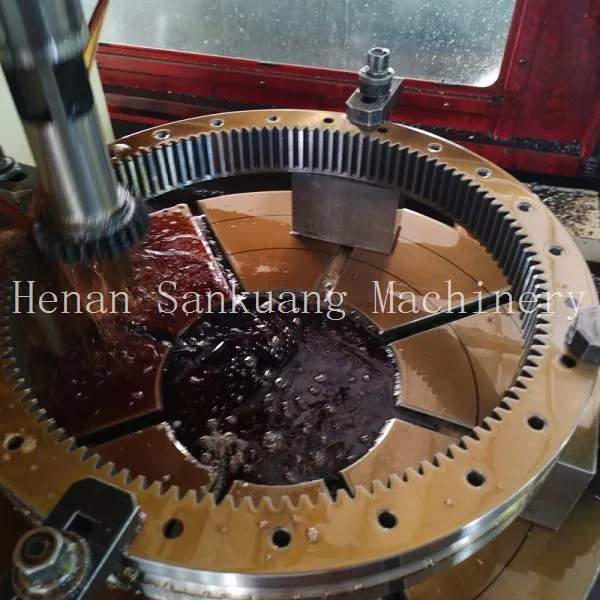

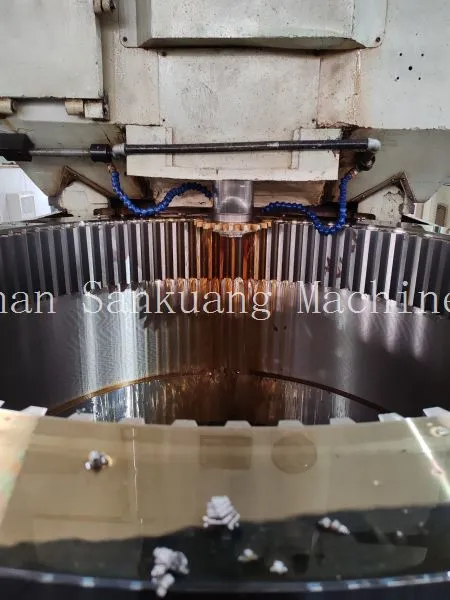

- Precision Machining: CNC hobbing and grinding achieve precision grades from DIN 6 to DIN 8, ensuring smooth meshing and low noise operation.
- Flexible Customization: Module from 1.5 to 10, tooth count from 20 to 200, inner/outer diameters tailored to your speed reducer design.
- Consistent Quality: 100% dimensional inspection and hardness testing per batch guarantee uniform performance.
- Surface Protection: Optional black oxide or phosphating coating provides corrosion resistance during storage and transport.
| Parameter | Typical Range | Notes |
|---|---|---|
| Material Grade | 20CrMnTi, 42CrMo, etc. | Customizable per requirement |
| Hardness (HRC) | 58 – 62 | After quenching and tempering |
| Module (m) | 1.5 – 10 | Other modules available upon request |
| Tooth Count (z) | 20 – 200 | Custom design supported |
| Inner Diameter | 50 – 500 mm | Tolerance ±0.02 mm |
| Outer Diameter | 80 – 600 mm | Custom larger sizes available |
| Precision Grade | DIN 6 / DIN 7 / DIN 8 | AGMA Q8-Q10 equivalent |
Advantages for Speed Reducer Assembly
Our quenched tempered internal gear ring directly contributes to the overall efficiency and longevity of the speed reducer. The high strength-to-weight ratio reduces parasitic loads, while the precise tooth profile minimizes energy loss. Customers benefit from lower maintenance frequency, reduced downtime, and consistent torque transmission even under cyclic loading.
Compared to standard untreated gears, the quenched tempered ring exhibits 30-50% higher wear resistance, extending the service interval of the entire assembly. The through-hardened structure also prevents surface pitting and case crushing, common failure modes in high-load applications.
Company Strength & Trust
Since 2014, Henan San Kuang Machinery Technology Co., Ltd. has grown into a recognized manufacturer with a 10,000-30,000 m² facility and 51-100 skilled employees. Our annual export value of US$2.5M–US$5M reflects global acceptance. We hold multiple certifications including ISO9001, ISO14000, OHSAS18001, and more, demonstrating our commitment to quality, environment, and safety.
Our main markets span North America, Europe, Southeast Asia, and Oceania, with convenient shipping from Shanghai, Lianyungang, Qingdao, and Tianjin ports. Every gear ring is traceable and backed by rigorous testing. We invite you to contact us for a quotation or to discuss your custom requirements. Let our high-strength internal gear ring elevate your speed reducer performance.
Frequently Asked Questions
-
Q: What materials are available for the internal gear ring?
A: Common materials include 20CrMnTi, 40Cr, and 42CrMo. We can also source other alloys based on your application needs. Please provide your performance requirements. -
Q: Can you manufacture non-standard tooth profiles?
A: Yes, we support custom tooth profiles including involute, cycloidal, or modifications. Provide your design drawings or parameters for evaluation. -
Q: What is the typical lead time for a custom order?
A: Lead time depends on complexity and quantity. Generally, it ranges from 20 to 45 working days for first orders. Repeat orders can be faster. -
Q: Do you offer heat treatment only or also machining services?
A: We provide integrated services from forging, machining, heat treatment to final grinding. You can order raw rings or fully finished components. -
Q: How do you ensure quality consistency for large batches?
A: We implement SPC (Statistical Process Control) during production and perform 100% hardness checks, dimensional inspection, and magnetic particle crack detection on critical parts. -
Q: What surface treatments are recommended for corrosive environments?
A: We offer black oxide, phosphating, zinc plating, and DLC coating. Please specify environmental conditions for optimal recommendation. -
Q: Do you have an MOQ for standard sizes?
A: Standard sizes may have an MOQ of 10 pieces; for non-standard or large diameters, MOQ can be discussed. Sample orders are welcome. -
Q: What certifications do your products carry?
A: Our manufacturing process is certified under ISO9001, ISO14001, OHSAS18001, etc. Product-specific certificates can be provided upon request for material and hardness.
