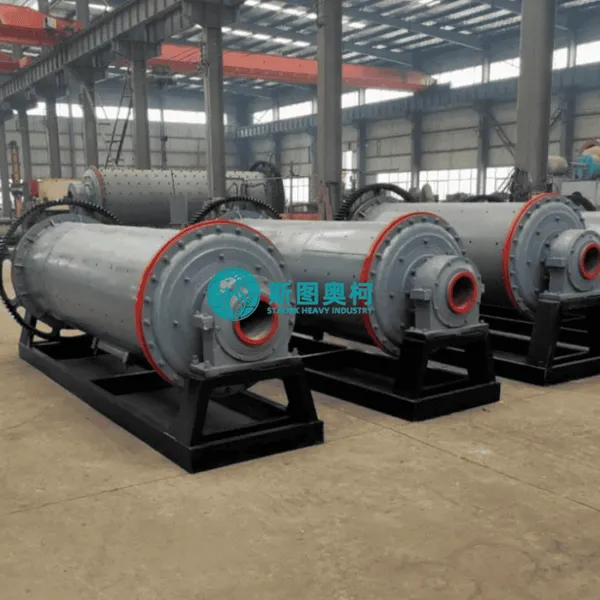

Help CenterT/H Capacity Chemical Barrel Ball Mill Machine
Product Spotlights
Related Products
-
Mining Ore Lead Manganese Iron Slag Sliver Aluminum Zinc Cement Powder Grinding Wet Gold Copper Ball MillNegotiableMOQ: 1 Set -
High-Performance Ball Mill for Precision Fine Powder GrindingNegotiableMOQ: 1 Set
-
Professional Mineral Grinding Machine Ball Mill for Gold Ore, Copper Ore, Iron Ore, SlagNegotiableMOQ: 1 Set
-
Reliable Quartz Ball Mill With Wear-Resistant Parts for Mining IndustryNegotiableMOQ: 1 Set
-
Customizable Ball Mill Solution for Various Mineral Processing, Ball Grinding Mill MachineNegotiableMOQ: 1 Set
Product Overview
Optimize your large-scale chemical processing with our industrial-grade T/H Capacity Chemical Barrel Ball Mill Machine. Specifically engineered to deliver high tons-per-hour (T/H) throughput, this heavy-duty rotary barrel mill is the premier solution for fine-grinding, blending, and dispersing raw chemicals, industrial minerals, and hazardous materials.
Unlike standard mining mills, this specialized chemical barrel ball mill features advanced structural engineering designed to prevent batch contamination, resist chemical corrosion, and withstand the continuous, high-volume demands of modern chemical manufacturing plants.
Key Applications
This high-capacity milling system is perfectly optimized for a wide range of chemical sectors:
Industrial Chemicals: Pulverizing raw materials for fertilizers, pigments, ceramics, and advanced chemical compounds.
Hazardous Materials: Grinding volatile, reactive, or highly acidic chemical powders under sealed, controlled environments.
Advanced Metallurgy & Batteries: Micron-sizing specialized chemical powders for battery materials, catalysts, and fine coatings.
Core Engineering Advantages
Scalable Tons-Per-Hour (T/H) ThroughputBuilt for industrial scale, our barrel mills are customized to meet precise T/H volume requirements. The optimized length-to-diameter ratio ensures maximum material retention time, delivering high-capacity fine powder production without sacrificing particle consistency.
Corrosion & Contamination ResistanceTo safeguard pure chemical formulations, the interior barrel can be lined with specialized non-reactive materials such as high-alumina ceramics, polyurethane, rubber, or premium stainless steel. This prevents metal contamination and resists aggressive chemical corrosion.
Explosion-Proof & Secure EngineeringSafety is paramount in chemical processing. This machine is fully compatible with explosion-proof motors (ATEX/IECEx certified), spark-resistant drive components, and completely sealed, dust-tight barrel hatches to contain toxic vapors or fine explosive dust.
Energy-Efficient Continuous OperationEquipped with a high-torque electric motor, double-row self-aligning roller bearings, and an automated lubrication station, the mill minimizes structural friction. This translates to severe reduction in energy consumption during continuous, 24/7 industrial runs.
Technical Highlights & Options
Atmosphere-Controlled Milling: Supports vacuum sealing or inert gas purging (such as Nitrogen or Argon) inside the barrel to process air-sensitive or reactive chemical powders safely.
Smart PLC Automation: Seamlessly integrates with plant-wide control systems to monitor barrel temperature, inner pressure, rotation speed, and bearing status in real time.
Turnkey Global Logistics: We provide comprehensive engineering layouts, foundation drawings, on-site installation supervision, and a lifetime supply of chemical-grade grinding media (ceramic/alumina/steel balls).
Technical Specifications
| Model | Cylinder RPM (r/min) | Ball Load (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Motor Model | Power (kW) | Weight (t) |
| MQG600*1800 | 45.5 | 0.5 | ≤ 10 | 0.074-0.5 | 0.2-0.5 | Y160M-6 | 7.5 | 2.5 |
| MQG900*1800 | 38 | 1.8 | ≤ 20 | 0.074-0.6 | 0.8-2 | Y180L-6 | 15 | 5.8 |
| MQG900*3000 | 37.4 | 2.7 | ≤ 20 | 0.074-0.3 | 0.8-3 | Y200L2-6 | 22 | 7.5 |
| MQG1200*2400 | 32 | 4.8 | ≤ 25 | 0.074-0.6 | 1.5-4 | Y225M-6 | 30 | 9.8 |
| MQG1200*4500 | 30 | 5.2 | ≤ 25 | 0.074-0.6 | 1.5-6 | Y280S-6 | 45 | 13.2 |
| MQG1300*4000 | 36 | 5.8 | ≤ 25 | 0.074-0.6 | 2-6 | Y280S-8 | 45 | 14.8 |
| MQG1500*3500 | 28.8 | 8.3 | ≤ 25 | 0.074-0.6 | 3-6 | YR280M-8 | 90 | 17.6 |
| MQG1500*4500 | 28.8 | 10 | ≤ 25 | 0.074-0.4 | 4-8 | JR125-8 | 95 | 22.3 |
| MQG1500*5700 | 28.8 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR126-8 | 110 | 26.7 |
| MQG1500*6400 | 28.8 | 13 | ≤ 25 | 0.074-0.4 | 8-12 | JR127-8 | 130 | 29.2 |
| MQG1830*3600 | 24.5 | 12 | ≤ 25 | 0.074-0.4 | 5-10 | JR127-8 | 130 | 31.4 |
| MQG1830*5400 | 24.5 | 15 | ≤ 25 | 0.074-0.4 | 5-20 | JR137-8 | 210 | 33.6 |
| MQG1830*6400 | 24.5 | 19 | ≤ 25 | 0.074-0.4 | 6-25 | JR137-8 | 210 | 36.5 |
| MQG1830*7000 | 24.5 | 20 | ≤ 25 | 0.074-0.4 | 8-30 | JR138-8 | 245 | 39.6 |
| MQG2100*3600 | 24.1 | 21 | ≤ 25 | 0.074-0.6 | 8-20 | YR355L1-8 | 210 | 43.2 |
| MQG2100*4500 | 24.57 | 26 | ≤ 25 | 0.074-0.6 | 8-35 | JR138-8 | 280 | 53.6 |
| MQG2200*3600 | 21.8 | 22 | ≤ 25 | 0.074-0.6 | 9-25 | JR138-8 | 245 | 47.8 |
| MQG2200*4500 | 21.4 | 27 | ≤ 25 | 0.074-0.6 | 10-30 | JR138-8 | 280 | 54.7 |
| MQG2200*7500 | 21.8 | 35 | ≤ 25 | 0.074-0.6 | 10-40 | JR158-8 | 380 | 68.4 |
| MQG2200*9000 | 21.4 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 76.5 |
| MQG2400*3600 | 21.26 | 26 | ≤ 25 | 0.074-0.6 | 10-40 | JR138-8 | 280 | 63.8 |
| MQG2400*7000 | 21.8 | 36 | ≤ 25 | 0.074-0.6 | 10-45 | JR1510-8 | 475 | 82.4 |
| MQG2400*8000 | 21.8 | 42 | ≤ 25 | 0.074-0.6 | 13-50 | JR630-8 | 560 | 85.7 |
| MQG2400*10000 | 21 | 65 | ≤ 25 | 0.074-0.6 | 15-60 | YR560-8 | 710 | 88.6 |
| MQG2600*8000 | 19.6 | 52 | ≤ 25 | 0.074-0.6 | 16-70 | JR1512-8 | 630 | 97.8 |
| MQG2700*3600 | 21.4 | 39 | ≤ 25 | 0.074-0.4 | 13-75 | JR158-8 | 380 | 86.8 |
| MQG2700*4500 | 21.4 | 43 | ≤ 25 | 0.074-0.4 | 13-90 | JR1510-8 | 475 | 91.8 |
| MQG3000*5400 | 19 | 58 | ≤ 25 | 0.074-0.6 | - | TDMK-30 | 630 | 119.7 |
| MQG3000*9000 | 18.3 | 78 | ≤ 25 | 0.074-0.4 | 20-90 | YR1000-8/1180 | 1000 | 152.4 |
| MQG3000*11000 | 18 | 100 | ≤ 25 | 0.074-0.6 | 30-90 | YR6306-8 | 1120 | 166.7 |
| MQG3200*3600 | 18.6 | 56.5 | ≤ 25 | 0.074-0.6 | 20-80 | YR6302-8 | 630 | 127.4 |
| MQG3200*4500 | 18.6 | 65 | ≤ 25 | 0.074-0.6 | 20-90 | YR6302-8 | 800 | 138.6 |
| MQG3200*5400 | 18 | 72 | ≤ 25 | 0.074-0.6 | 30-100 | YR1000-8 | 1000 | 146.7 |
| MQG3200*9000 | 18 | 85 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 168.6 |
| MQG3600*4500 | 18 | 86 | ≤ 25 | 0.074-0.6 | 30-100 | YR6302-8 | 1250 | 158.7 |
| MQG3600*6000 | 18 | 117 | ≤ 25 | 0.074-0.6 | 45-180 | - | 14000 | 195.6 |
| MQG4000*6000 | 16.9 | 145 | ≤ 25 | 0.074-0.6 | 60-230 | - | 1800 | 221.7 |
| MQG4500*6000 | 15.6 | 180 | ≤ 25 | 0.074-0.6 | 80-300 | - | 2300 | 269.6 |
