HZS-20A Three-Channel Transformer DC Resistance Tester
Manufacturer: Wuhan Hertz Power Equipment Co., Ltd.
1. Product Overview
Transformer DC resistance test is a mandatory item for semi-finished/finished factory inspection, installation handover test and preventive test of power transformers. It can effectively detect manufacturing defects such as coil material faults, loose welding joints, broken strands and hidden operational hazards.
This tester integrates three-phase synchronous measurement (Yn/Y/Δ winding) and built-in automatic degaussing function. Equipped with a high-resolution industrial color touch screen, it features intuitive operation, fast testing speed, high accuracy and wide measuring range, ideal for DC resistance measurement of large power transformers.
2. Core Features & Functions
Supports three-phase synchronous testing for Yn, Y and Δ type windings, automatically calculates three-phase unbalance rate.
Max output test current up to 20A, measuring range 0~200Ω; built-in degaussing function eliminates residual magnetism hazards caused by high-current testing.
Automatically calculates resistance change rate within 5s/15s/30s to judge data stability and avoid misreading.
Multi-protection design: back EMF protection, wire break protection and power-off protection.
Built-in thermal printer, local storage for 200 groups of test data, supports U-disk mass data storage.
7-inch industrial color touch screen with simple human-machine interface for easy operation.
3. Technical Specifications
| Item | Parameter |
|---|---|
| Output Current | Single-phase: 20A / 10A / 5A / 1A / 0.1AThree-phase: 10A+10A / 5A+5A / 1A+1A / 0.1A+0.1A |
| Measuring Range | Single-phase20A gear: 0.5mΩ ~ 1Ω10A gear: 1.0mΩ ~ 2Ω5A gear: 10mΩ ~ 4Ω1A gear: 0.1Ω ~ 20Ω0.1A gear: 2.0Ω ~ 200ΩThree-phase10A+10A gear: 0.5mΩ ~ 0.8Ω5A+5A gear: 10mΩ ~ 1.6Ω1A+1A gear: 0.1Ω ~ 8.0Ω0.1A+0.1A gear: 2.0Ω ~ 80Ω |
| Accuracy | ±(0.2% reading + 2 digits) |
| Power Supply | AC220V±10%, 50/60Hz |
| Operating Temperature | -10℃ ~ 50℃ |
| Relative Humidity | ＜90%, non-condensing |
| Dimension | 400×315×223mm |
| Net Weight | 9kg |
4. Product Advantages
Portable compact design, small size & light weight (only 9kg).
Simple touch operation, greatly improve field test efficiency.
High measurement precision & stable performance, low failure rate.
Complete documents provided: technical datasheet, operation manual (hard copy & electronic copy), operation video, factory test report, certificate, third-party calibration report.
1-year full warranty, lifetime maintenance.
2-hour quick service response, 24-hour online technical support; on-site technical guidance available.
Free supporting materials: test report template, power test standards, training PPT, operation guidance documents.
Spare equipment available for urgent projects.
5. After-sales Commitment
1-year free repair for quality defects after delivery; lifelong paid maintenance with only material cost charged for damaged parts caused by improper operation.
Free pre-sales technical selection consultation, factory inspection support.
Dedicated VIP service group for order tracking, logistics update and regular technical sharing.
Local on-site service within 24 hours, cross-province on-site service within 48 hours.
Free technical training, equipment calibration coordination service.

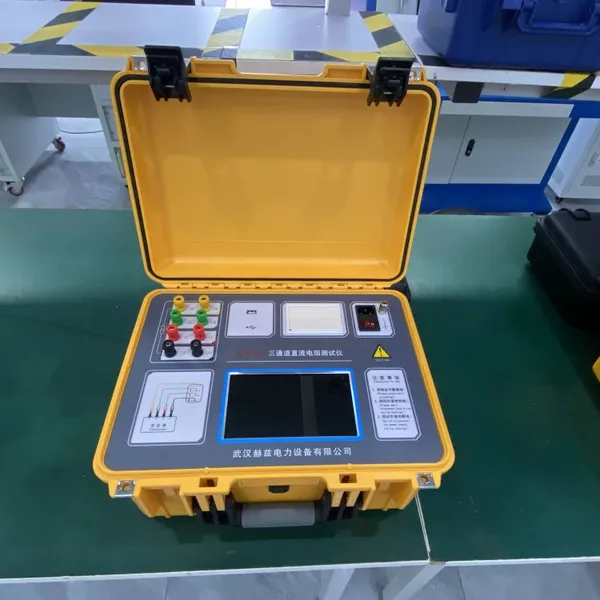

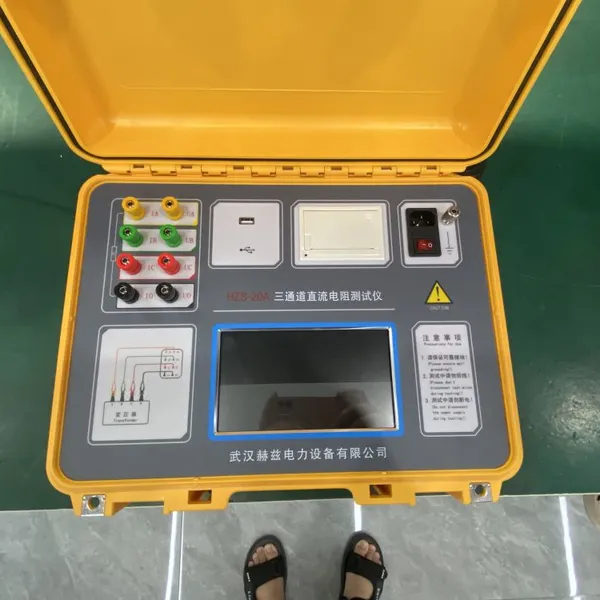

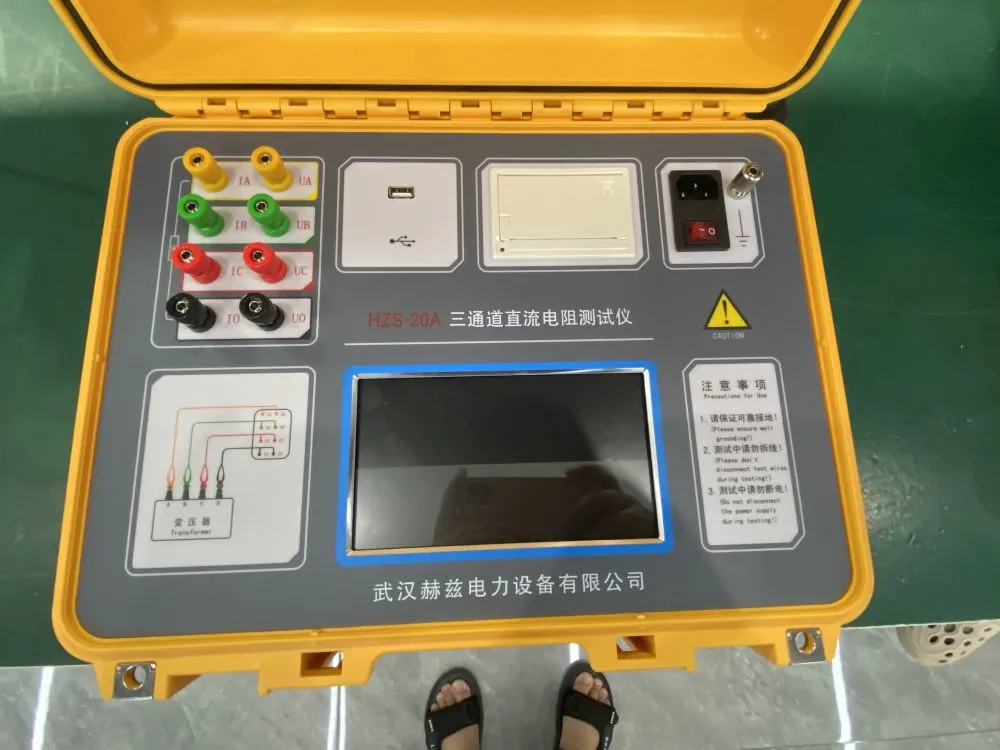

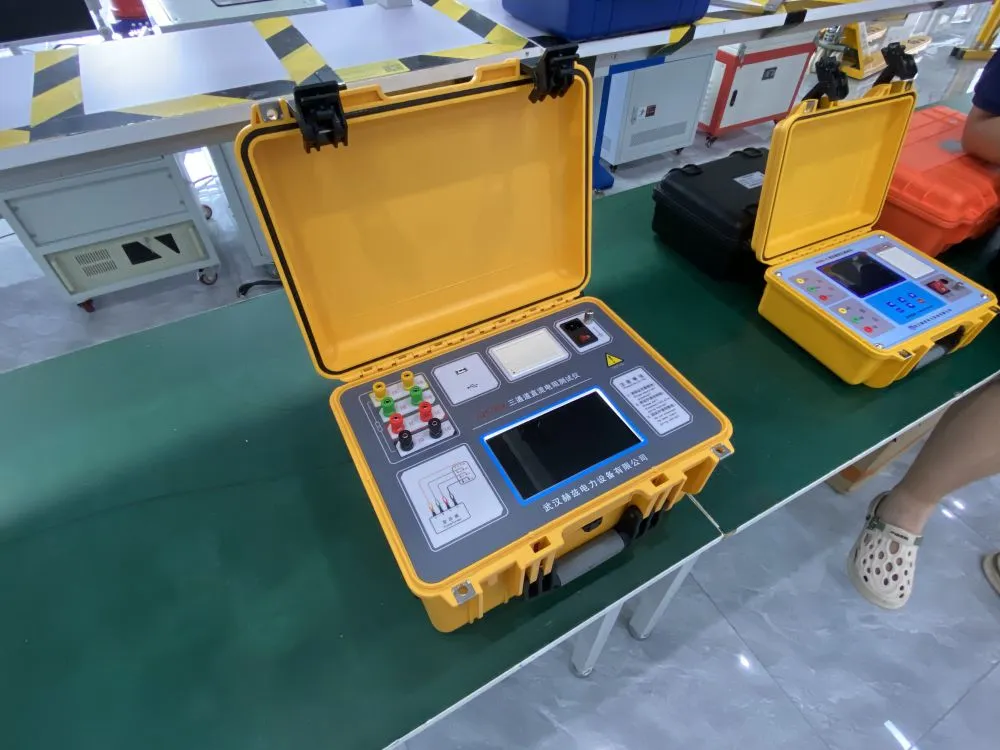

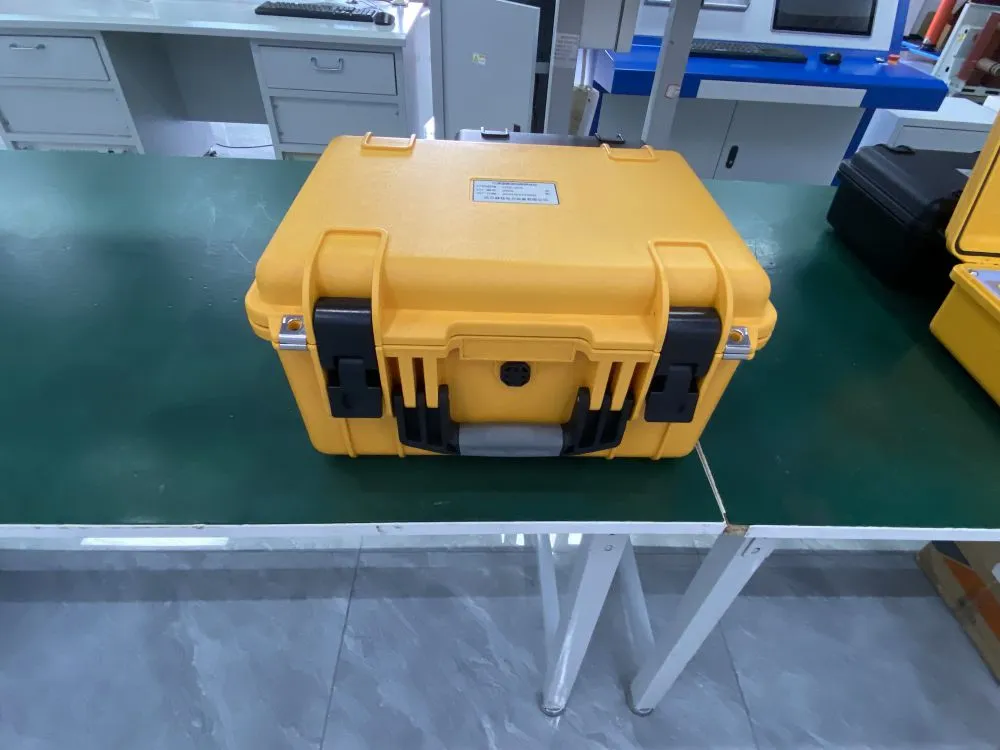

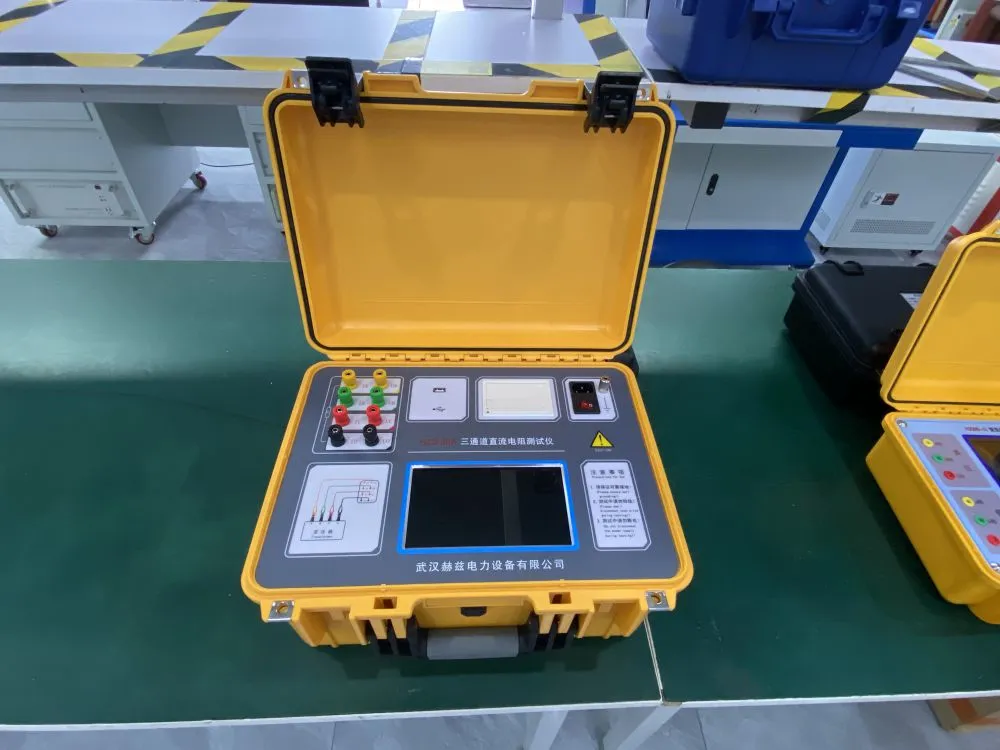

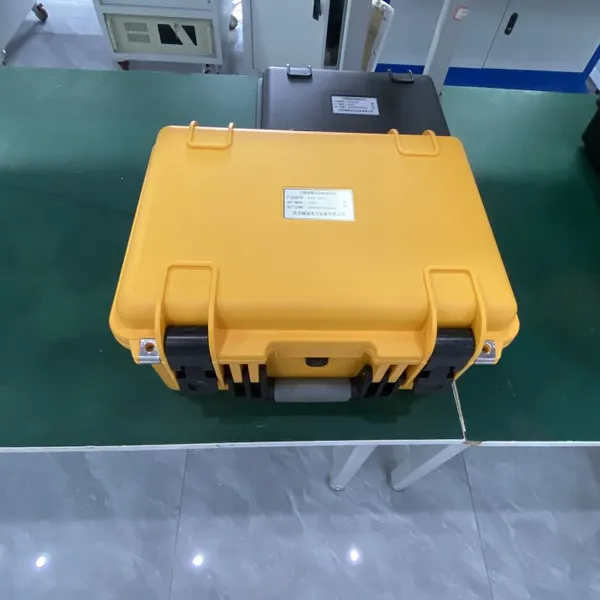

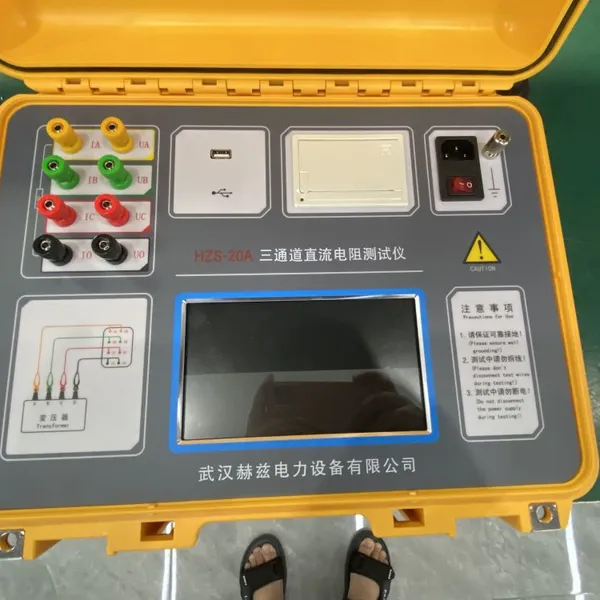

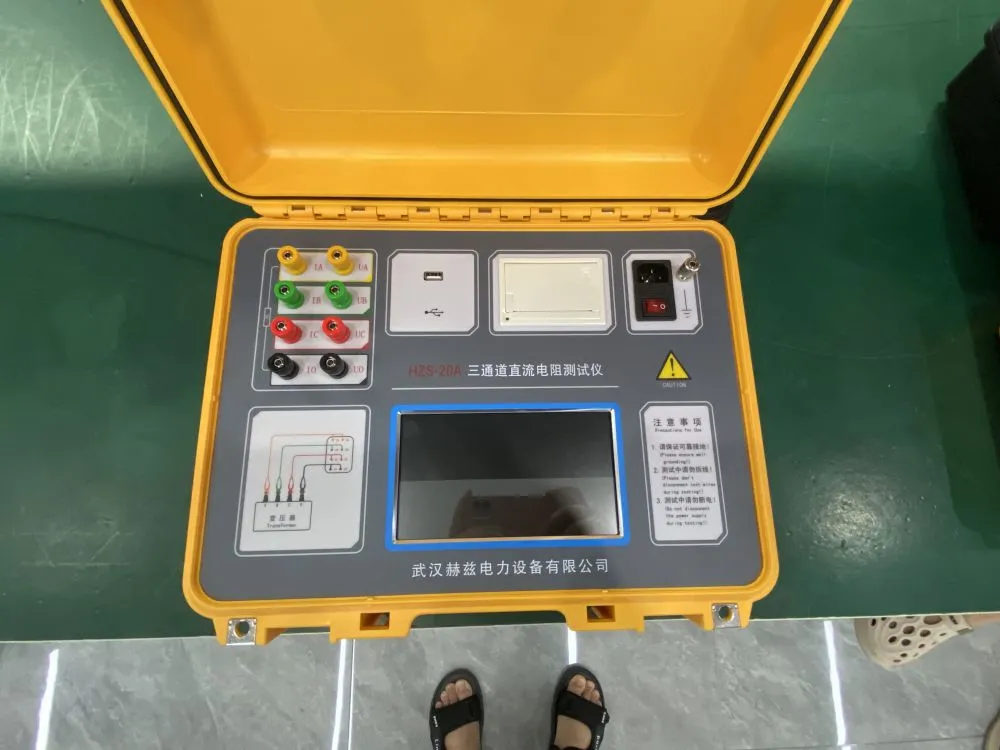

Product Picture Reference
