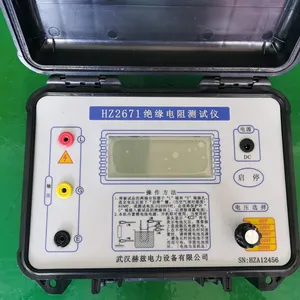

HZ2671 High Voltage Insulation Tester 200GΩ for Transformer Cable Motor
Product Description
The HZ2671 Digital Insulation Resistance Tester is a high-precision, industrial-grade testing instrument designed for professional power system inspection and maintenance. It supports five optional test voltages of 500V, 1000V, 2000V, 2500V and 5000V, fully covering routine and preventive insulation tests for various electrical equipment.
Equipped with a high short-circuit current above 1.6mA, the tester can quickly charge capacitive loads such as power cables, transformers and generators, ensuring efficient and stable testing. It provides a wide measuring range from 1MΩ to 200GΩ with accurate test results of ±(5% reading + 2 digits), meeting strict industry testing standards.
Built-in PI and DAR automatic calculation functions effectively help engineers evaluate the aging degree and insulation quality of motor and transformer windings. Adopting guard ring and low-pass filter design, the instrument features strong anti-interference ability and maintains stable data even in complex electromagnetic field environments on site.
With a durable aluminum alloy shell and ultra-lightweight body, the device is easy to carry and suitable for outdoor field operations and high-altitude testing. Powered by a 12V rechargeable lithium battery with low power consumption, it supports long-time continuous work without external power supply, making it an ideal testing tool for substations, power plants, industrial enterprises and electrical engineering contractors.

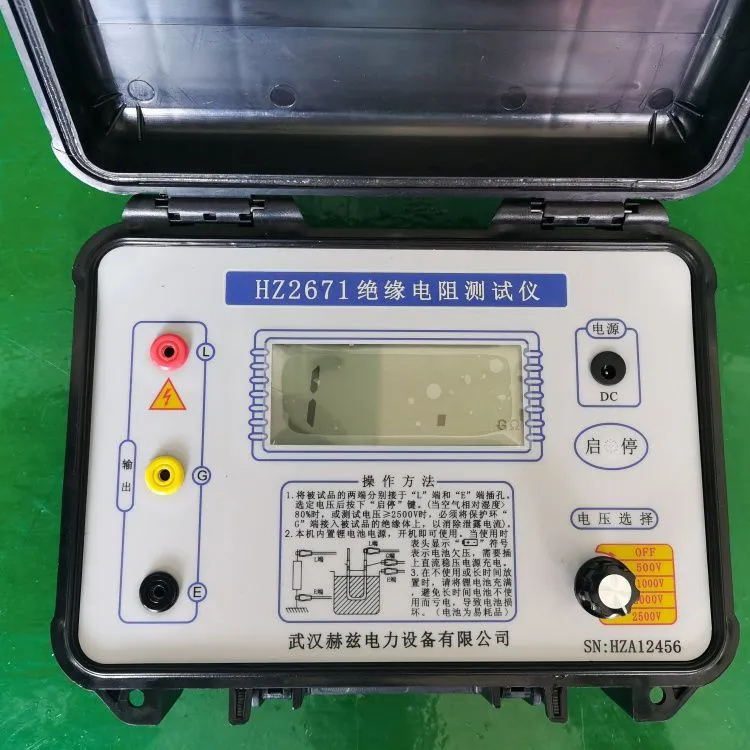

2500V HZ2671 Megohmmeter Digital Insulation Resistance Meter with PI/DAR
I.Core Selling Points
5-in-1 Multi-Voltage: 500V/1000V/2000V/2500V/5000VOne unit covers all common insulation test voltages for power equipment.
High Short-Circuit Current ≥1.6mACharges capacitive loads (cables, transformers) fast; voltage rises quickly to rated value.
Wide Measurement Range: 1MΩ～200GΩAccurate for both low and very high insulation resistance.
High Accuracy: ±(5% RDG + 2d)Professional-grade precision for substations, utilities, and industrial maintenance.
PI & DAR (Polarization Index / Dielectric Absorption Ratio)Built-in automatic calculation for transformer/motor winding quality assessment.
Strong Anti-Interference & Aluminum Alloy HousingWith guard ring & 4th-order low-pass filter; stable readings even in strong EM fields.
Lightweight & Portable (≈1kg, 260×180×100mm)Easy for field work, climbing, and long-site testing.
-
Rechargeable Li-battery (DC12V) & Low Power ConsumptionLong working time; suitable for outdoor/no-power environments.

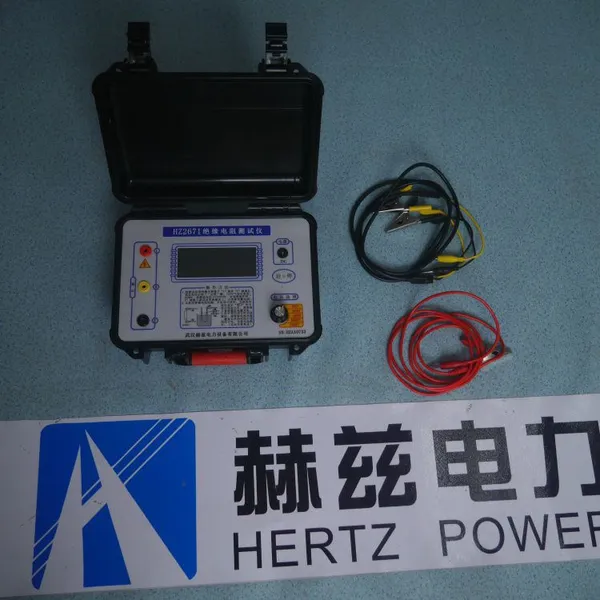

HZ2671 Portable Insulation Resistance Test Kit 500/1000/2000/2500V
2500V insulation tester
Technical Advantages
Test Voltage: 500V / 1000V / 2000V / 2500V / 5000V
Resistance Range: 1MΩ～1999MΩ / 2GΩ～200GΩ
Accuracy: ±5% at low range, ±10% at high range
Short-circuit Current: ≥1.6mA
Display: Large LCD, backlight optional
Power: DC12V Li-battery, ≤150mA
Environment: -10℃～+50℃, ≤85%RH
Safety: 3kV AC withstand, guard (G) terminal for surface leakage elimination

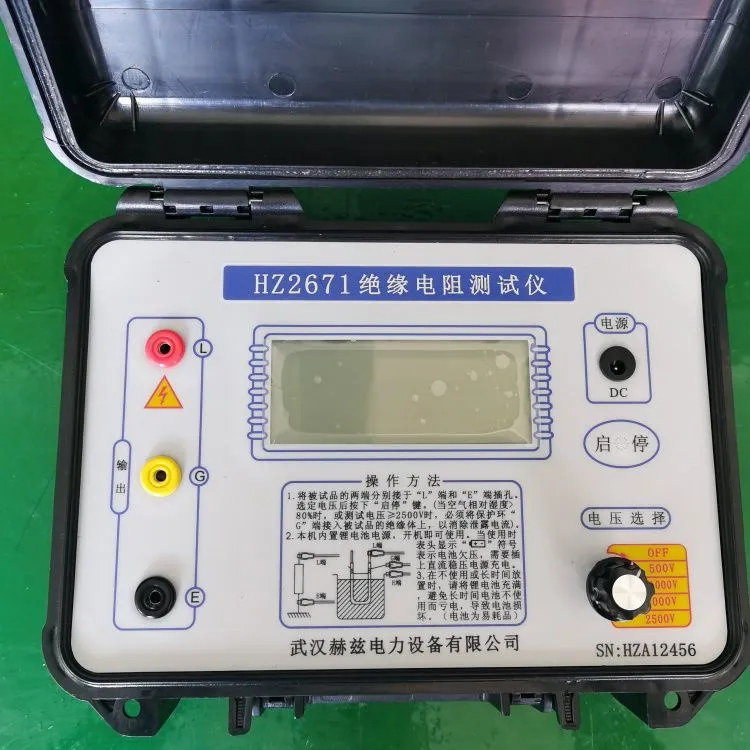

HZ2671 Industrial Insulation Resistance Tester Short Circuit Current ≥1.6mA\
digital megohmmeter
Application Scenarios
Transformers, Motors, Generators – Winding insulation & PI/DAR tests
Power Cables (LV/MV) – Insulation resistance before/after laying
Switchgears, GIS, Bushings – Routine maintenance & troubleshooting
Substations & Power Plants – Daily/annual preventive testing
Industrial Equipment – Pumps, compressors, electrical machinery insulation check

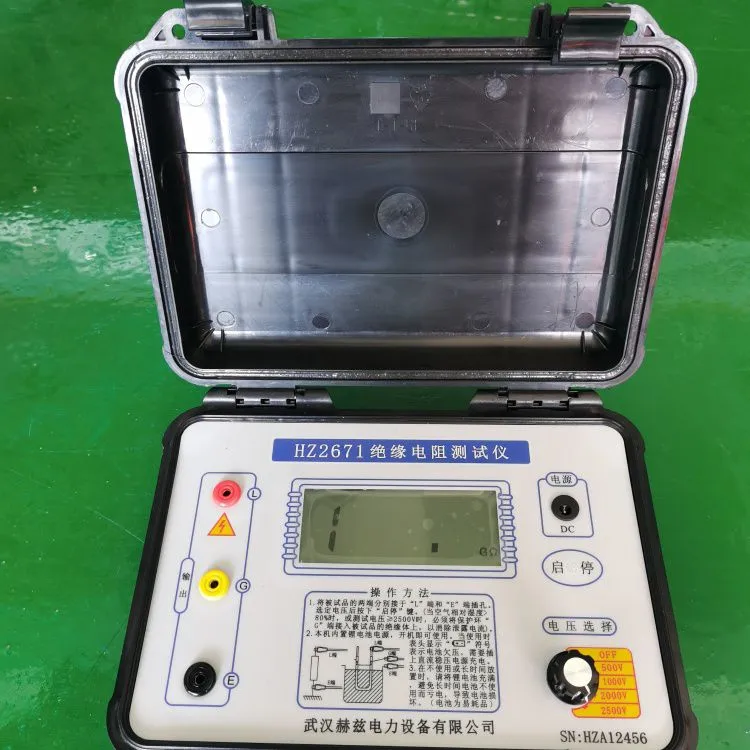

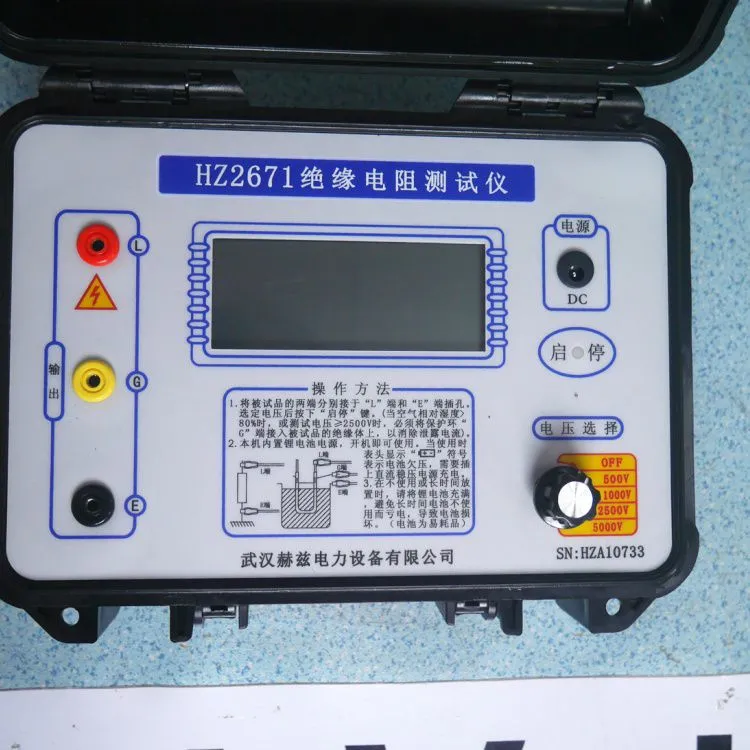

HZ2671 insulation resistance tester
HZ2671 megohmmeter
HZ2671 500V 1000V 2500V
HZ2671 PI DAR tester
HZ2671 transformer insulation tester
One-Line Taglines
HZ2671 2500V Digital Insulation Resistance Tester with PI/DAR, 1.6mA Short-Circuit Current
Heavy-Duty 500V–5000V Megohmmeter for Transformer & Cable Insulation Testing
-
Portable High-Voltage Insulation Tester, 200GΩ Range, Industrial Grade Accuracy
transformer insulation test
cable insulation resistance tester
motor winding insulation tester
high voltage test equipment
power substation insulation tester
HZ2671 Digital Insulation Resistance Tester 500V/1000V/2000V/2500V Megohmmeter for Transformer Cable Motor
HZ2671, insulation resistance tester, megohmmeter, 2500V insulation tester, transformer insulation test, cable insulation tester
Support IEC,ISO,CNAS,...
Fully compliant with international IEC/IEEE standards as well as domestic DL/GB power industry standards; CE certification, CNAS calibration certificates, and comprehensive third-party test reports are available upon request.
