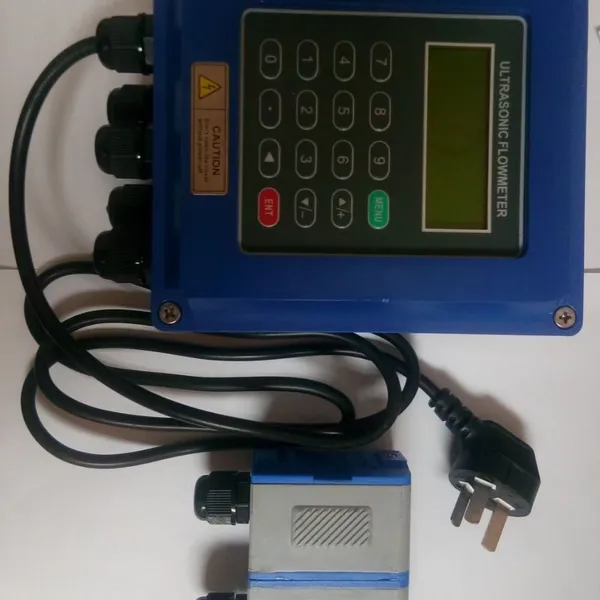

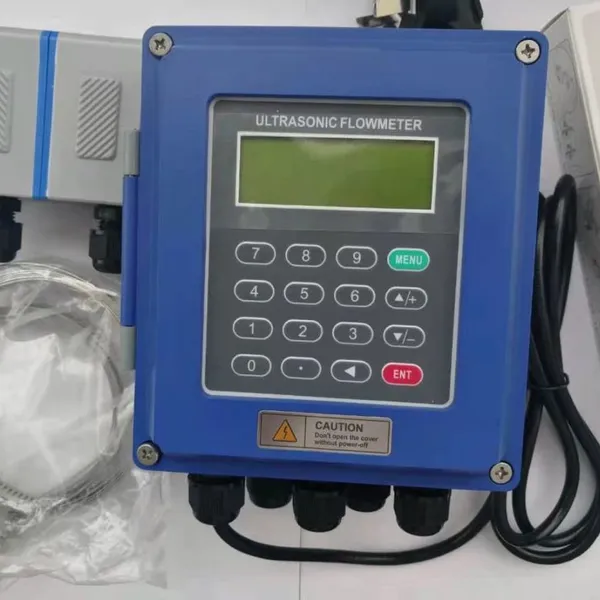

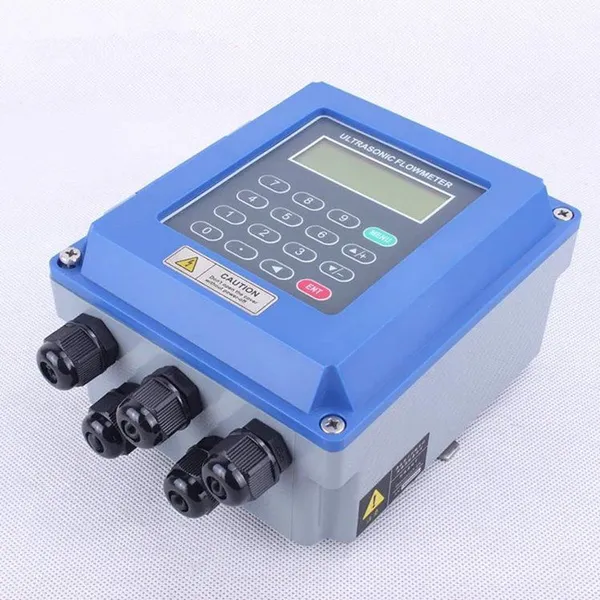

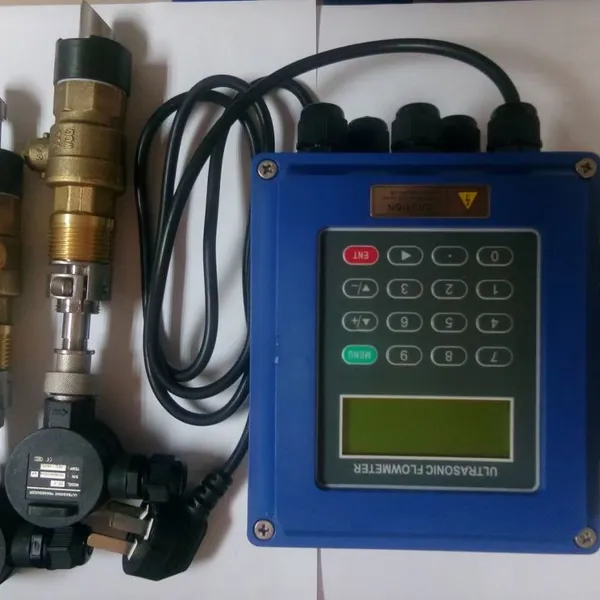

Help CenterClamp on or Plug in Ultrasonic Flow Meter Suitable for Any Pipes
Related Products
-
Plastic, Brass Body Sts Ultrasonic Water Meter for ResidentialUS$ 20.5 - 22MOQ: 1 Piece -
Lorawan Nb-Iot Wireless Communication Residential and Industry Ultrasonic Water Meter Class C R160 to R400US$ 20.5 - 22MOQ: 1 Carton
-
Lorawan Nb-Iot Wireless Communication Residential and Industry Ultrasonic Water MeterUS$ 20.5 - 22MOQ: 1 Carton
-
STS Prepaid Valve Control Lora Smart Ultrasonic Water Meter With AMRUS$ 20.5 - 22MOQ: 1 Piece
-
Smart Gas Meter With Prepaid Remote Control and Lorawan / 4G / Nb, G1.6/G2.5/G4US$ 13 - 15MOQ: 1 Carton
Company profile
China J-L smart meter Co., Ltd. was founded in 2008 and is located in Zhangjiakou City, Hebei Province, China. The factory was covering 20 acres, an area of 20,000 square meters. Our company is a high-tech enterprise integrating R&D, production, sales, and after-sales. The main products are water meters, electric meters, gas meters, heat meters, other metering instruments, and NB-IoT/Wireless remote transmission modules. In addition, we can also provide customers with overall renovation plans and suggestions for instrument projects. The company has successively passed the EU market CE product certification, FC certification, ISO9001:2015 quality system certification, ISO14001:2015 environmental management system certification, ISO45001:2018 occupational health and safety management system certification, computer software copyright registration certificate, multiple patents Certificate and high-tech enterprise certificate, and won the title of well-known enterprise in Zhangjiakou. The company has offices and subsidiaries in important cities such as Beijing, Tianjin, Xi'an, and Hangzhou. We have 25 R&D personnel, more than 200 employees, and an annual output of 1.5 million sets of various meters. Our company's aim is to put product quality and service first and provide each partner with competitive products and services for long-term win-win results.
Products Features
The features of this series of SMART ultrasonic water meters are summarized as follows:
1. Unlimited installation Angle;
2. Wide range ratio(R160/R200/R250/R400), High accuracy level, good stability;
3. Multi-transmission methods: Photoelectric, RS-485, M-Bus, LoRa, NB-IoT, etc.
4.No mechanical transmission parts,wear-free.
5.Low startup flow rate(Startup flow rate can reach 0.0015m³/h).
6. With water temperature measurement function.
7. The whole water meter is designed with IP68, which can work underwater for a long time.
8. Micro-power technology, battery power (measurement cycle 1s, battery theoretical work more than a decade).
9. Highly intelligent self-checking capability, monitoring common problems such as empty pipes, air bubbles, transducer aging, battery Undervoltage, abnormal water temperature (too high or too low), abnormal water volume (leaking or running water), and other problems (above functions are Optional), can adopt NB-IoT technology, and push information to users at the first time.
Technical Parameters
Item |
Unit |
Parameter |
||||
Nominal diameter |
mm |
15 |
20 |
25 |
32 |
40 |
Overload Q4 |
m³/h |
3.125 |
5 |
7.875 |
12.5 |
20 |
Permanent flowQ3 |
m³/h |
2.5 |
4.0 |
6.3 |
10 |
16 |
Range ratioQ3/Q1 |
R=200/R250/R400(The standard R is R160 ), also can be customized. |
|||||
Transitional flow-rateQ2 |
m³/h |
0.02 |
0.032 |
0.05 |
0.08 |
0.128 |
Min flowQ1 |
m³/h |
0.0125 |
0.02 |
0.0315 |
0.05 |
0.08 |
Accuracy |
Class 2 |
|||||
Temperature class |
T30/T90 |
|||||
Nominal pressure |
1.0MPa(Default ),1.6MPa,2.5MPa(Customized ) |
|||||
Pressure loss class |
p63 |
|||||
Flow profile sensitivity level |
U10/D5 |
|||||
Climatic and mechanical environmental level |
Class B |
|||||
Installation method |
Horizontal installation or vertical installation (under water inlet) |
|||||
Battery |
34615 battery (default )/26500battery |
|||||
Packing
