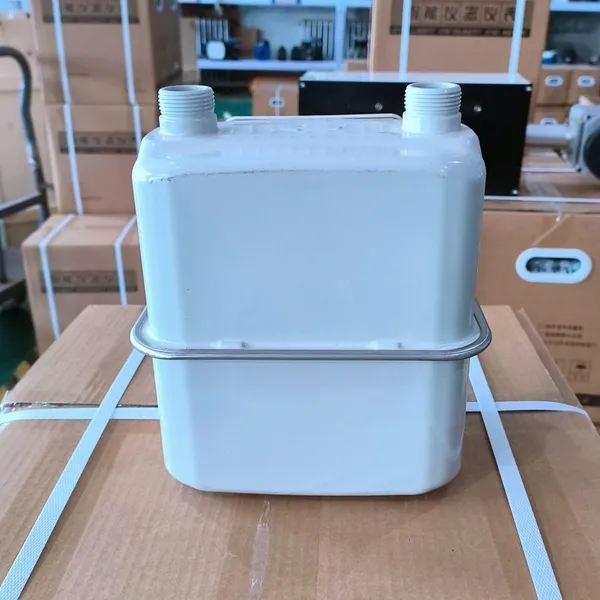

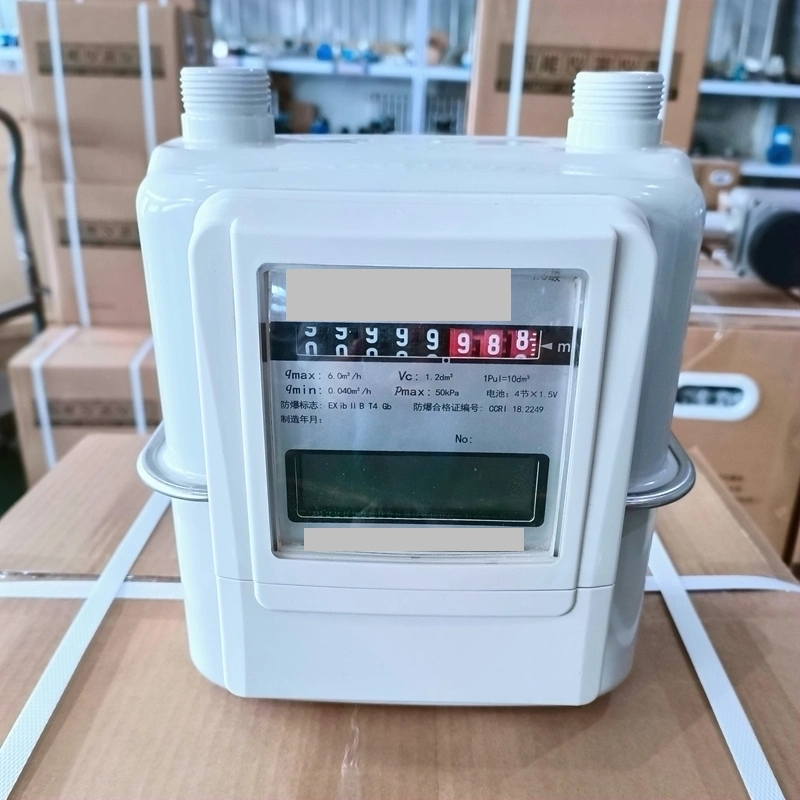

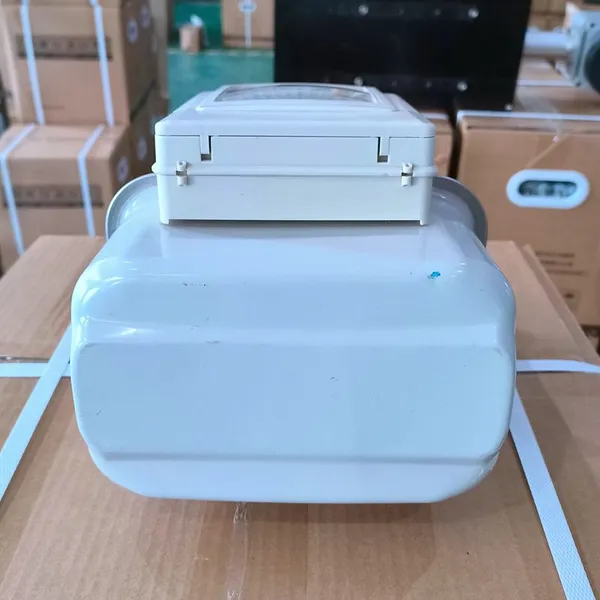

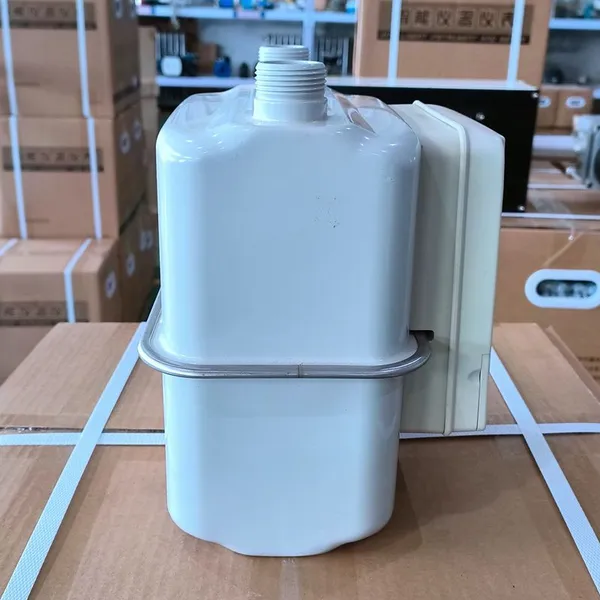

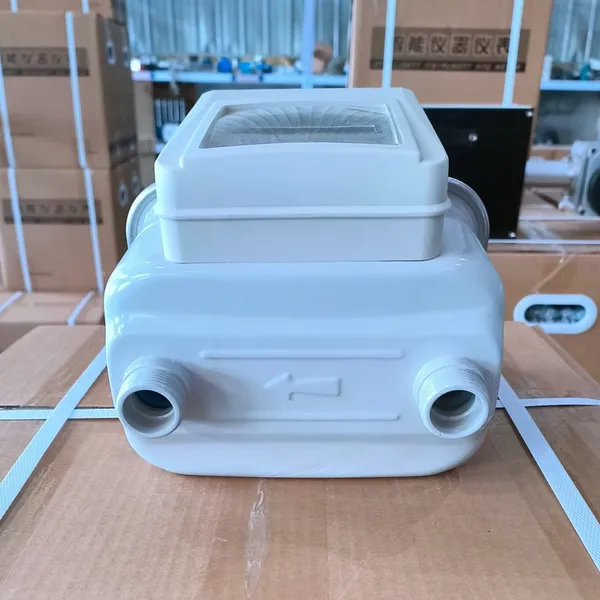

Help CenterSmart Gas Meter With Prepaid Remote Control and Lorawan / 4G / Nb, G1.6/G2.5/G4
Related Products
-
Premium Brass Mini Motorized Ball Valve for Efficient Water ControlUS$ 10 - 12MOQ: 1 Carton -
Easy Installation Water Flow Meter Digital Liquid Electromagnetic FlowmeterUS$ 200 - 230MOQ: 50 Cartons
-
DN15 DN20 DN25 Multi-Jet Dry Dial Class B/C R160 Horizontal Water Meter Brass BodyUS$ 5 - 7MOQ: 1 Carton
-
Single-Jet Dry Type Small Size Brass Stainless Steel Iron Water MeterUS$ 3 - 5MOQ: 1 Carton
-
Bluetooth Mobile Phone Controlled Valve Water MeterUS$ 23 - 25MOQ: 1 Carton
Company profile
China J-L smart meter Co., Ltd. was founded in 2008 and is located in Zhangjiakou City, Hebei Province, China. The factory was covering 20 acres, an area of 20,000 square meters. Our company is a high-tech enterprise integrating R&D, production, sales, and after-sales. The main products are water meters, electric meters, gas meters, heat meters, other metering instruments, and NB-IoT/Wireless remote transmission modules. In addition, we can also provide customers with overall renovation plans and suggestions for instrument projects. The company has successively passed the EU market CE product certification, FC certification, ISO9001:2015 quality system certification, ISO14001:2015 environmental management system certification, ISO45001:2018 occupational health and safety management system certification, computer software copyright registration certificate, multiple patents Certificate and high-tech enterprise certificate, and won the title of well-known enterprise in Zhangjiakou. The company has offices and subsidiaries in important cities such as Beijing, Tianjin, Xi'an, and Hangzhou. We have 25 R&D personnel, more than 200 employees, and an annual output of 1.5 million sets of various meters. Our company's aim is to put product quality and service first and provide each partner with competitive products and services for long-term win-win results.
Products Features
This product uses the pressure difference between the two ends of the air inlet and the air outlet to push the diaphragm and generate continuous movement through the double crank rocker mechanism, so as to measure the gas volume. This product is manufactured in strict accordance with GB/T6968-2011 "Membrane Gas Meter". 2.Paramete This series of products is an independent movement structure. The outer body is stretched from high-quality cold-rolled steel plate, and the all-plastic core body is injection-molded with imported engineering plastics at one time, which reduces the number of parts; the rotary slide valve cover is used, which has a small friction coefficient and high sensitivity; The valve seat and valve cover are made of high-grade phenolic and other synthetic resins, which have higher wear resistance. Well-designed, precisely manufactured and strictly tested gas meters are widely used in the measurement of natural gas, artificial gas, liquefied petroleum gas and other gases.
Size
MODEL |
H mm |
W mm |
D mm |
E mm |
A mm |
GS 1.6 |
224 |
195 |
165 |
69 |
110/130 |
GS 2.5 | |||||
GS 4 |
Technical Parameters
ITEM |
UNIT |
MODEL |
|||
GS1.6 |
GS2.5 |
GS4 |
|||
Nominal flow-rate(qn) |
m3/h |
1.6 |
2.5 |
4 |
|
Maximum flow-rate(qmax) |
m3/h |
2.5 |
4 |
6 |
|
Minimum flow-rate(qmin) |
m3/h |
0.016 |
0.025 |
0.040 |
|
Total pressure absorption |
Pa |
||||
Operation pressure range |
kPa |
0.5~50 |
|||
Cyclic volume |
dm3 |
1.2 |
|||
Permissible error |
qmin≤qqmax |
% |
±3 |
||
0.1qmax≤q≤qmax |
% |
±1.5 |
|||
Min.recording readings |
dm3 |
0.2 |
|||
Max.recording readings |
m3 |
99999.999 |
|||
Operation ambient temperature |
℃ |
-10～+40 |
|||
Storage temperature |
℃ |
-20～+50 |
|||
Connection thread |
M30×2 (or by customized) |
||||
Packing
