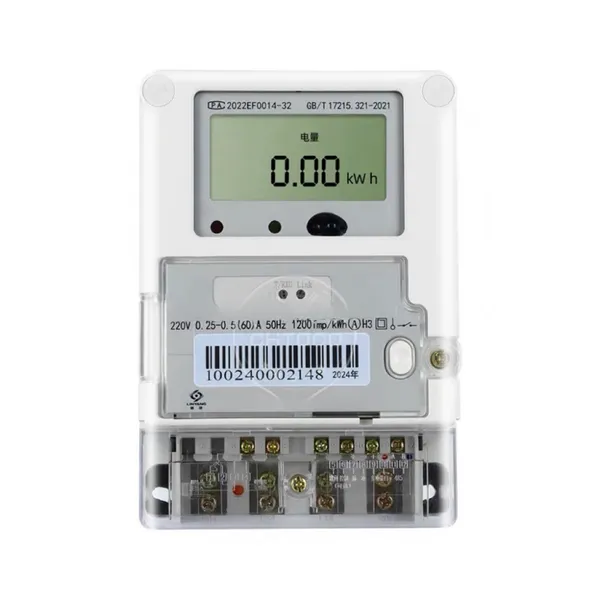

Prepaid Electricity Meter 220V 50A With SMS Alert and Remote Disconnect
Product Spotlights
This 220V 50A prepaid electricity meter features remote disconnect/reconnect and real-time SMS alerts for proactive energy management. It ensures upfront revenue collection, reduces operational costs via remote control, and offers accurate Class 1.0 measurement. Built with a GSM module for communication and a user-friendly LCD, it's ideal for utilities and property managers seeking a reliable, modern solution for efficient electricity distribution and billing.
US$ 37
≥10 Units
Key Specifications
Get Latest Price
Rated Voltage:
220V AC
Rated Current:
50A
Communication Method:
SMS/GPRS (GSM Module)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GSM Single Phase Prepaid Meter for Household 220V 50A LoadUS$ 37MOQ: 10 Units -
Single Phase Prepaid Meter GSM Module 220V 50A With Tamper DetectionUS$ 37MOQ: 10 Units
-
Single Phase Prepaid Energy Meter 220V 50A With GSM CommunicationUS$ 37MOQ: 10 Units
-
Household Energy Meter 220V 50A Prepaid System With GSM ConnectivityUS$ 37MOQ: 10 Units
-
DT-50 Cable Lug With 1-Year Warranty for 50mm² National Standard WireUS$ 0.01MOQ: 100 Units
Rated Voltage
220V AC
Rated Current
50A
Communication Method
SMS/GPRS (GSM Module)
Key Functions
Prepayment, Remote Disconnect/Reconnect, SMS Alert
Display
LCD Screen
Installation Type
DIN Rail Mount
Operating Temperature
-25°C to +55°C
Accuracy Class
Class 1.0
Payment Mode
Prepaid (Token/Credit)
Standards Compliance
IEC 62053-21, IEC 62052-11
As a leading manufacturer in the electrical metering industry, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce our advanced Prepaid Electricity Meter 220V 50A with SMS Alert and Remote Disconnect. Designed for utility companies, property managers, and commercial facility operators, this smart meter transforms traditional electricity management into a modern, efficient, and user-friendly system. Our solution directly addresses challenges in revenue collection, energy monitoring, and operational control, offering a robust tool to enhance cash flow and optimize energy distribution. With years of expertise and a commitment to quality backed by our ISO 9001 management system, we deliver reliable products that meet the evolving demands of global markets from North America to Southeast Asia.
This prepaid electricity meter integrates cutting-edge technology to provide seamless energy management. Below are its standout features and benefits:
- Advanced Prepayment System: Users must purchase electricity credits in advance, which are loaded into the meter via secure tokens or codes. This system ensures timely revenue collection and eliminates billing disputes and collection costs.
- Real-Time SMS Alerts: The built-in GSM module sends automatic SMS notifications to both the utility/provider and the end-user for critical events such as low credit balance, successful recharge, power disconnection, or system faults, enabling proactive management.
- Remote Disconnect/Reconnect Function: Authorized operators can instantly disconnect or reconnect the power supply remotely via SMS command or a central management software, significantly reducing the need for on-site visits and improving response times.
- Accurate Energy Measurement: With a high accuracy class of 1.0, the meter ensures precise measurement of active energy consumption (kWh), complying with international standards like IEC 62053-21 for reliable billing.
- User-Friendly LCD Interface: A clear LCD screen displays vital information including remaining credit, total consumption, voltage, current, and system status, making it easy for users to monitor their usage.
- Robust Construction & Wide Compatibility: Designed for DIN rail mounting, it operates reliably in a broad temperature range from -25°C to 55°C and is suitable for various single-phase applications up to 50A.
The technical specifications of the meter are detailed in the following table:
| Parameter | Specification |
|---|---|
| Rated Voltage | 220V AC |
| Rated Current | 50A |
| Meter Constant (Imp/kWh) | 1600 |
| Accuracy Class | Class 1.0 |
| Communication | SMS via GSM (2G/3G/4G module optional) |
| Display | Backlit LCD |
| Operating Temperature | -25°C to +55°C |
| Installation | DIN Rail (35mm) |
| Standards | IEC 62053-21, IEC 62052-11 |
| Dimensions (LxWxH) | Approx. 126mm x 88mm x 65mm (customizable) |
Choosing our prepaid meter provides tangible advantages for your business:
- Improved Cash Flow: Prepayment ensures revenue is collected upfront, enhancing financial stability.
- Reduced Operational Costs: Remote management capabilities minimize manual meter reading and on-site disconnection/reconnection efforts.
- Enhanced Customer Service: SMS alerts keep end-users informed, reducing confusion and complaint calls.
- Energy Conservation: Real-time usage visibility encourages consumers to use electricity more wisely.
- Scalable Solution: The system can be integrated into larger AMI (Advanced Metering Infrastructure) networks as needed.
Trust in Jinhua Dika Electrical Equipment is built on a solid foundation. With an annual export value ranging between US$1 Million and US$1.5 Million, we serve a diverse clientele across continents including North America, South America, Eastern Europe, Southeast Asia, and Africa. Our dedicated team of 11-50 professionals ensures stringent quality control, supported by a comprehensive quality management system. Our products are shipped efficiently from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring reliable delivery. This prepaid electricity meter embodies our commitment to innovation and reliability. It is a proven tool for modernizing your electricity distribution network, securing revenue, and empowering both providers and consumers. Contact us today to discuss how this solution can be tailored to your specific project requirements and experience the Dika difference.
Frequently Asked Questions (FAQ)
-
Q: How does the prepayment system work?
A: The system operates on a credit-based model. End-users purchase electricity credits, which are converted into a secure token or code. This token is entered into the meter via a keypad or SMS, adding the credit to the meter. Power is supplied until the credit is exhausted, at which point the meter can disconnect automatically. -
Q: Is a SIM card required for the SMS alerts, and who provides it?
A: Yes, a standard GSM SIM card from a local mobile network operator is required for the meter's communication module. The SIM card and associated data plan are typically sourced and managed by the customer/utility in their region to ensure optimal network coverage and cost control. -
Q: Can the remote disconnect function be overridden locally?
A: For safety and security reasons, the remote disconnect is a controlled function managed by the utility or authorized administrator. Local override is generally not available to prevent tampering, but authorized personnel can perform local operations using specific tools or passwords if required. -
Q: What happens if there is a network failure? Will the meter still function?
A: The meter's core energy measurement and prepayment functions are independent of the GSM network. It will continue to measure consumption and control power based on available credit. However, SMS alerts and remote commands will be unavailable until network connectivity is restored. -
Q: Is this meter suitable for outdoor installation?
A: The standard meter is designed for indoor or protected outdoor installations (within an enclosure). Its operating temperature range is -25°C to +55°C. For direct outdoor exposure, additional protective enclosures with suitable IP ratings are recommended and can be discussed. -
Q: Can the system handle multiple tariffs or time-of-use billing?
A: The standard model focuses on single-rate prepayment. However, multi-tariff or time-of-use (TOU) functionality is available as a customizable option. Please inquire about specific firmware requirements for your project. -
Q: How is the meter installed and configured?
A: Installation involves standard electrical wiring and DIN rail mounting. Initial configuration, such as setting tariff rates and communication parameters, is done via the meter's interface or through configuration software provided by the manufacturer. Detailed manuals and technical support are available. -
Q: What kind of after-sales support and warranty do you offer?
A: We provide a standard warranty period, typically one to two years, against manufacturing defects. Comprehensive technical documentation, software tools for management, and responsive customer support are part of our service to ensure smooth operation throughout the product lifecycle.
