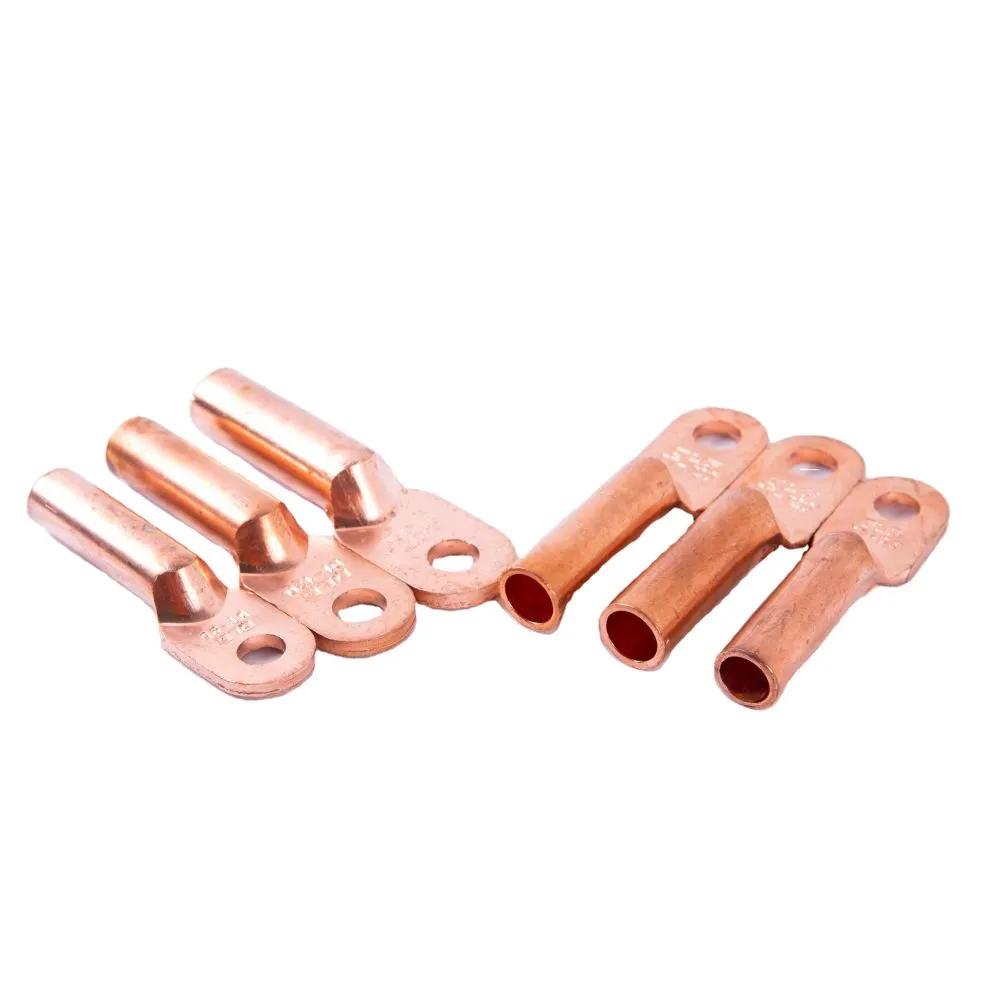

Jinhua Dika Electrical Equipment Co., Ltd. presents the DT-50 Cable Lug, a premium termination solution designed specifically for 50mm² national standard wire. Manufactured in our ISO9001-certified facility in Jinhua, Zhejiang, China, this cable lug combines high-purity copper with precision engineering to ensure reliable electrical connections in power distribution, industrial control, and renewable energy systems. With over a decade of export experience and annual export value exceeding US$1 million, we deliver products that meet rigorous quality standards while offering competitive pricing. Each DT-50 lug comes with a 1-year warranty, reflecting our commitment to customer satisfaction.
Our cable lugs are produced using oxygen-free copper (copper content ≥99.9%) and undergo strict quality checks including tensile strength tests, conductivity measurements, and salt spray corrosion resistance tests. The DT-50 model is specifically engineered to accept 50mm² stranded wire while providing a secure mechanical grip and maximum electrical conductivity. Whether used in switchboards, motor connections, or junction boxes, this lug ensures low contact resistance and long service life even under high current loads.
Key Features & Technical Specifications
- Material: High-purity T2 copper (≥99.9%) – ensures excellent conductivity and ductility.
- Surface Finish: Available in bare copper or tin-plated finish. Tin plating provides superior corrosion resistance and solderability.
- Wire Size: Designed for 50mm² (≈1/0 AWG) stranded copper wire, following national standard dimensions.
- Barrel Design: Precision-machined barrel with chamfered edges for easy wire insertion; internal groove prevents wire pull-out.
- Pal Nut: Smooth, burr-free pal nut ensures safe crimping and eliminates sharp edges that could damage insulation.
- Voltage Rating: Suitable for up to 1kV installations (as per typical application).
- Temperature Range: -40°C to +105°C (depending on cable insulation).
- Standards Compliance: Manufactured in accordance with GB/T 14315-2008 national standard for cable lugs, compatible with international standards like IEC 61238-1.
| Parameter | Value |
|---|---|
| Total Length (L) | 80 mm ± 2 mm |
| Barrel Length (B) | 25 mm |
| Barrel Inner Diameter (d) | 10.5 mm (for 50mm² wire) |
| Pal Nut Width (W) | 16 mm |
| Pal Nut Hole Diameter (F) | 10.5 mm (for M10 bolt) |
| Pal Nut Thickness (T) | 3.0 mm |
| Weight per piece | Approx. 35 g |
The DT-50 lug is color-coded (red ring on insulation or packaging label) for easy identification of 50mm² size. Each unit is individually wrapped to prevent oxidation and damage during transport. Our quality control team performs 100% visual inspection and random sampling for electrical conductivity tests (resistance
Customer Benefits
- Reliable Connection: The precise barrel diameter and grooved design ensure a tight crimp that withstands vibration and thermal cycling.
- Easy Installation: Chamfered barrel and smooth inner walls allow quick wire insertion without strand damage.
- Long Service Life: Tin-plated option provides corrosion resistance in humid or industrial environments.
- Cost-Effective: Direct factory pricing with no middlemen – save up to 15% compared to imported brands.
- Certified Quality: Our factory holds ISO9001 quality management system certification (since 2008), ensuring consistent production standards.
Jinhua Dika Electrical Equipment Co., Ltd. has been a trusted manufacturer for over 15 years, supplying cable lugs to customers in North America, Europe, Southeast Asia, and the Middle East. Our annual export volume exceeds $1 million, and we maintain a 98% on-time delivery rate. With a dedicated team of 11–50 skilled employees, we offer customization options such as special barrel lengths, non-standard hole diameters, and custom packaging. All DT-50 lugs are backed by a 1-year warranty against manufacturing defects – if you encounter any issue, we will replace or refund promptly.
Choose the DT-50 Cable Lug for your next project and experience the combination of precision manufacturing, competitive pricing, and responsive customer service. Contact us today for a quote or sample request. We ship from Shanghai, Ningbo, Tianjin, or Guangzhou ports within 5–7 working days after order confirmation.
Frequently Asked Questions
-
Q: Is the DT-50 lug suitable for aluminum wire?
A: This lug is designed for copper wire. For aluminum wire, we recommend our DT-50A series with bimetallic transition. Contact us for details. -
Q: What crimping tool should I use?
A: We recommend a hexagonal or indent-style crimping tool with a die size corresponding to 50mm² (e.g., die mark 50). The lug accommodates standard crimping profiles. -
Q: Does the lug come with a plastic insulation sleeve?
A: The standard DT-50 is bare (no insulation). Insulated versions (with PVC sleeve) are available upon request under model DT-50I. -
Q: What is the maximum current rating for this lug?
A: Based on 50mm² copper wire at 70°C ambient, the typical current rating is 150–180A in air. Final rating depends on installation conditions. -
Q: Do you provide samples before bulk order?
A: Yes, we offer free samples (customer pays shipping) for evaluation. Lead time is 3–5 days. -
Q: Can I get the lug with a different hole diameter?
A: Yes, we can customize the pal nut hole size (e.g., M8, M12) for a minimum order quantity of 500 pcs. -
Q: How is the product packaged for export?
A: Standard packaging: 100 pcs per poly bag, 10 bags per carton, or packed according to your requirement. -
Q: What certifications does your factory hold?
A: Our factory is ISO9001 certified, and our products comply with GB/T 14315-2008. Specific product certifications (e.g., CE, UL) are available upon request for custom orders.
