Help CenterBronze or Brass Thrust Washer
Related Products

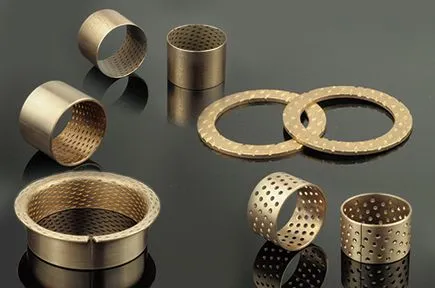

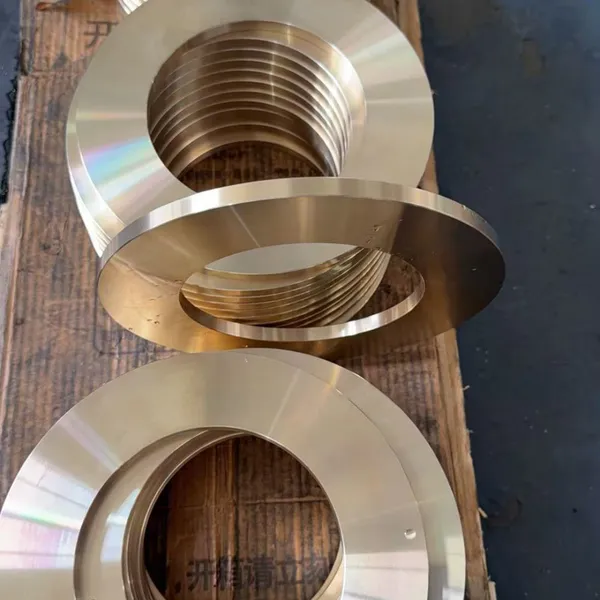

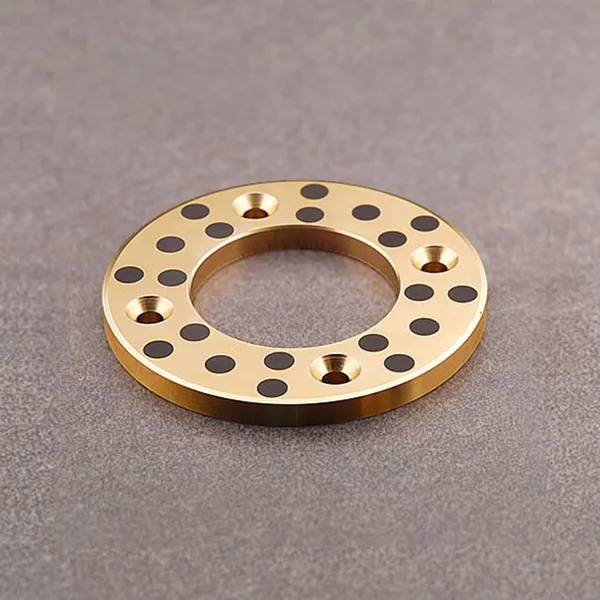

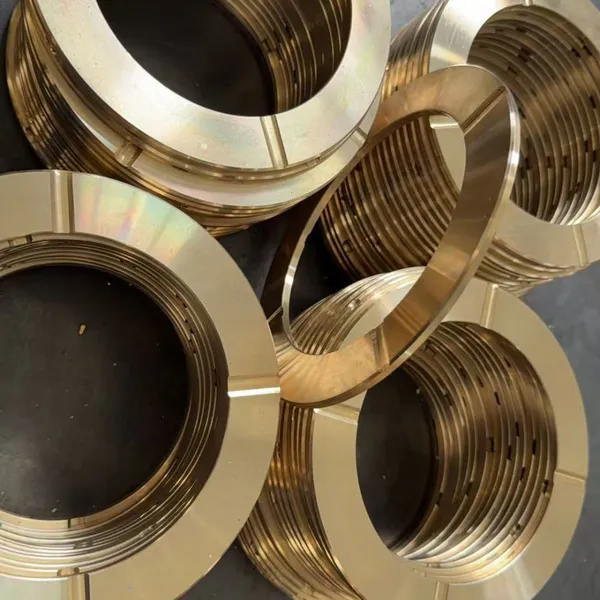

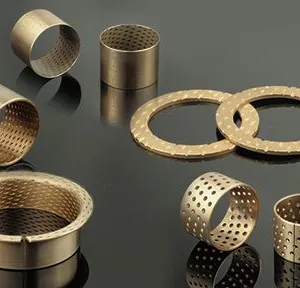

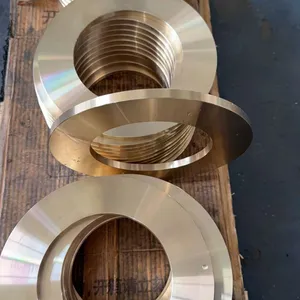

The thrust washer is a flat, disc-shaped washer that can be used to reduce friction between rotating and stationary parts and absorb axial loads. Its material is usually hardened steel or bronze, their important applications are in automotive engines, gear systems, and industrial machinery and so on.
The following is a table for your reference:
Unit:mm |
Part No. |
Recommended Shaft Dia. |
Size of Washer |
Size for Installation |
|||||
d+0.250 |
D0-0.25 |
T0 -0.05 |
M±0.125 |
h+0.4+0.1 |
t±0.2 |
D1 +0.120 |
||
SF-20W10 |
8 |
10 |
20 |
1.5 |
15 |
1.5 |
1 |
20 |
SF-20W12 |
10 |
12 |
24 |
18 |
24 |
|||
SF-20W14 |
12 |
14 |
26 |
20 |
2 |
26 |
||
SF-20W16 |
14 |
16 |
30 |
23 |
30 |
|||
SF-20W18 |
16 |
18 |
32 |
25 |
32 |
|||
SF-20W20 |
18 |
20 |
36 |
28 |
3 |
36 |
||
SF-20W22 |
20 |
22 |
38 |
30 |
38 |
|||
SF-20W24 |
22 |
24 |
42 |
33 |
42 |
|||
SF-20W26 |
24 |
26 |
44 |
35 |
44 |
|||
SF-20W28 |
26 |
28 |
48 |
38 |
4 |
48 |
||
SF-20W32 |
30 |
32 |
54 |
43 |
54 |
|||
SF-20W38 |
36 |
38 |
62 |
50 |
62 |
|||
SF-20W42 |
40 |
42 |
66 |
54 |
66 |
|||
SF-20W48 |
46 |
48 |
74 |
2 |
61 |
1.5 |
74 |
|
SF-20W52 |
50 |
52 |
78 |
65 |
78 |
|||
SF-20W62 |
60 |
62 |
90 |
76 |
90 |
| Other sizes can be made to order at our company |
Established in the year 2009, as an export-oriented company, We, Jiashan Shuguang Sliding Bearing Co.,Ltd , have established ourselves in China as a professional manufacturer of all kinds of self-lubricating bearings, sliding bearings, bronze bushings ,brass bushes,etc. Our mainly products: DU, DU-B, PAP081010 P10, PCM 060806 E self-lubricating bushes and bushings, DX boundary lubricating bush , bi-metal bearing , FB090&FB092(FBB090, BK090, WB802, WB702, BMT10) wrapped bronze bearing and , FZ steel ball retainers,650 (JDB500, SOB, SPB oil-less 500, SPW), and wear plates, solid-lubricant-inlaid bearing, FD PTFE straps, FR PTFE soft strapped bearing, and excavator bucket bearing, guide bushes, mold components, die set, wear plates. brass liners, solid-lubricant-inlaid bearings, ball retainer bearings, copper based sintered bearings,deep groove ball bearings, angular contact ball bearings, self-aligning ball bearings, thrust ball bearings, pillow block bearings, needle bearings, taper roller bearings, cylindrical roller bearings,slewing bearings, linear bearings,etc. etc.
The raw materials of our products are as follows: Phosphorus Bronze(C5100, C52100, C52400, C53400, C5400), Leaded Tin Bronze(C9200, C92300, C92500, C92600, C92700, C92800), Aluminium Bronze (C61000, C61300, C61400, C61800, C62300, C62400, C62500, C63000, C63020, C63200, C63400, C63600, C64200), Naval Bronze, Tin Bronze(C90200, C90300, C90500, C90700, C91000, C91100) and Gun Metal.
Our mainly export markets are Japan, Korea, Singapore, India, Taiwan, New Zealand, Spain, Italy, Switzerland and so on. We should be appreciated it if you could send your drawings or samples for our quotation. Your special sizes can be made to order at our company
