Eaton Auxiliary Brake/water Brake, Auxiliary Clutch, Wear Plate 508459, Friction Block 508725, WCB124, WCB224, WCB324, WCB236, WCB336, WCB436
Product Spotlights
Eaton axiliary brauke/water brake, auxiliary clutch, Wear Plate 508459, Friction Block 508725, WCB124, WCB224, WCB324, WCB236, WCB336, WCB436
US$ 100
≥1 Blade
Key Specifications
Get Latest Price
Location:
Jinan, Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
15 days
Related Products
-
Eaton Wcb Water-Cooled Brakes/Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436 508459 513985-01US$ 100MOQ: 1 Unit -
WCB Eaton Auxiliary Brake Wear PlateUS$ 100MOQ: 1 Unit
-
We Firmly Believe That People's Character Creates the Cause and the High-quality ZJ50, Z16140000029AA, P0300158AAUS$ 100MOQ: 1 Unit
-
Pneumatic Push Type ATD224 WPT224 Drilling Rig ClutchUS$ 100MOQ: 1 Unit
-
Pneumatic Push Type ATD224 Atd324 Atd227 Atd327 Atd327 Atd230 Atd330 Drilling Rig ClutchUS$ 100MOQ: 1 Unit
Auxiliary brake Eaton WCB124, WCB224, WCB324, WCB236, WCB336, WCB436.

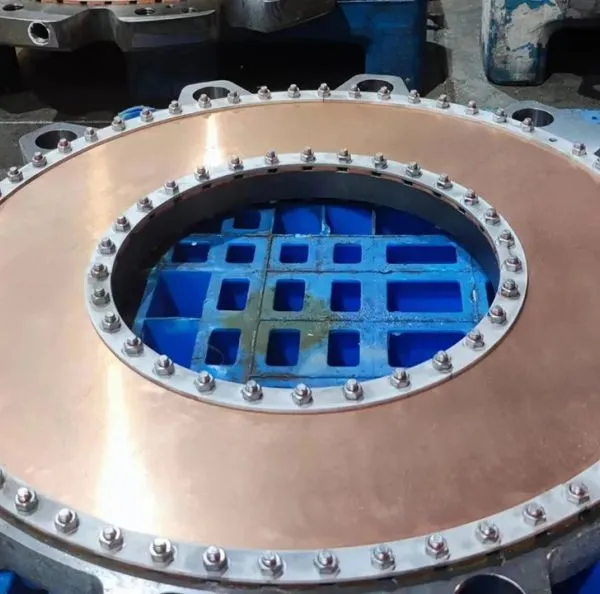

Water-cooled WCB brakes are designed for braking under conditions of continuous slip and high temperatures. Water-cooled brakes feature pneumatic control, a closed or open cooling system, and a coolant flow. A copper friction plate provides long-term wear protection and heat transfer. The WCB series is available in two categories based on actuation type: air tube type and piston type.
The main commonly used models are: WCB124, WCB224, WCBWCB324, WCB424, WCB136, WCB236, WCB336, WCB436.
| Oil rigs, well workover, mobile drilling rigs, commonly used models: 124WCB2, 224WCB2, 324WCBWCB2, 424WCB2, 136WCB2, 236WCB2, 336WCB2, 436WCB2 | |||||
| No. | Parts (standard) | 124WCB2 146465A(514825) |
224WCB2 146466A(514826) |
324WCB2 146467A(514827) |
424WCB2 146468A(514828) |
| Name | Part No. | Part No. | Part No. | Part No. | |
| 1 | Mounting flange half-assembly | 513348-01 | 513348-01 | 513348-01 | 513348-01 |
| 2 | Mounting flange | 513337 | 513337 | 513337 | 513337 |
| 3 | Wear plate | 508459 | 508459 | 508459 | 508459 |
| 4 | Pin | 000245*0069 | 000245*0069 | 000245*0069 | 000245*0069 |

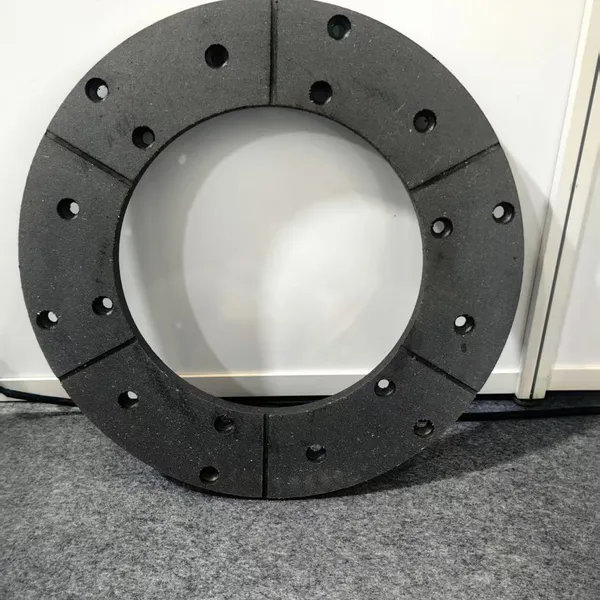

| 5 | Friction disc | 508725 | 508725 | 508725 | 508725 |
| 6 | Friction disc core | 510745 | 510745 | 510745 | 510745 |
| 7 | Clamp pipe | 306542-05 | 306542-20 | 306542-23 | 306542-24 |
| 8 | Pressure plate half-assembly | 513348-03 | 513348-03 | 513348-03 | 513348-03 |
| 9 | Pressure plate | 513345 | 513345 | 513345 | 513345 |
| 10 | Flat washer | 000153*0641 | 000153*0641 | 000153*0641 | 000153*0641 |
| 11 | Lock-nut | 000110*0073 | 000110*0073 | 000110*0073 | 000110*0073 |
| 12 | Cylinder | 513264 | 513264 | 513264 | 513264 |
| 13 | Edge seal (internal) | 000402*0023 | 000402*0023 | 000402*0023 | 000402*0023 |
| 14 | Edge seal (external) | 000402*0024 | 000402*0024 | 000402*0024 | 000402*0024 |
| 15 | Broadcast | 411672 | 410970 | 412433 | 413195 |
| 16 | Wear washer | N/A | 308396 | 308396 | 308396 |
| 17 | Reactive plate semi-assembly | N/A | 513348-02 | 513348-02 | 513348-02 |
| 18 | Reactive plate | N/A | 513343 | 513343 | 513343 |
| 19 | Piston | 513317 | 513317 | 513317 | 513317 |
| 20 | Return spring | 416751-02 | 416751-02 | 416751-02 | 416751-02 |
| 21 | Inner support ring | 413107 | 413107 | 413107 | 413107 |
| 22 | Outer support ring | 413108 | 413108 | 413108 | 413108 |
| 23 | Countersunk head screw | 000294*407 | 000294*407 | 000294*407 | 000294*407 |
| 24 | Pipe plug | 000077*0021 | 000077*0021 | 000077*0021 | 000077*0021 |
| No. | Oil rigs, well workover, mobile drilling rigs, commonly used models: 124WCB2, 224WCB2, 324WCBWCB2, 424WCB2, 136WCB2, 236WCB2, 336WCB2, 436WCB2 | ||||
| 1 | Parts (standard) | 136WCB2 | 236WCB2 | 336WCB2 | 436WCB2 |
| 2 | Name | Part No. | Part No. | Part No. | Part No. |
| 3 | Mounting flange half-assembly | 513985-01 | 513985-01 | 513985-01 | 513985-01 |
| 4 | Mounting flange | 513986 | 513986 | 513986 | 513986 |
| 5 | Wear plate | 416527 | 416527 | 416527 | 416527 |
| 6 | Pin | 307111-04 | 307111-10 | 307111-05 | 307111-07 |
| 7 | Friction disc half assembly | 513990 | 513990 | 513990 | 513990 |
| 8 | Friction disc | 513658 | 513658 | 513658 | 513658 |
| 9 | Friction disc core | 513667 | 513667 | 513667 | 513667 |
| 10 | Clamp pipe | 308204-07 | 513985-03 | 308204-04 | 308204-05 |
| 11 | Pressure plate half-assembly | 513985-03 | 513985-03 | 513985-03 | 513985-03 |
| 12 | Pressure plate | 512860 | 512860 | 512860 | 512860 |
| 13 | Flat washer | 000067*0042 | 000067*0042 | 000067*0042 | 000067*0042 |
| 14 | Lock-nut | 000110*0075 | 000110*0075 | 000110*0075 | 000110*0075 |
| 15 | Cylinder | 513988 | 513988 | 513988 | 513988 |
| 16 | Edge seal (internal) | 000402*0005 | 000402*0005 | 000402*0005 | 000402*0005 |
| 17 | Edge seal (external) | 000402*0006 | 000402*0006 | 000402*0006 | 000402*0006 |
| 18 | Broadcast | 416538 | 416538 | 416538 | 416538 |
| 19 | Wear washer | N/A | 308397 | 308397 | 308397 |
| 20 | Reactive plate semi-assembly | N/A | 513985-02 | 513985-02 | 513985-02 |
| 21 | Reactive plate | N/A | 513989 | 513989 | 513989 |
| 22 | Piston | 512858 | 512858 | 512858 | 512858 |
| 23 | Return spring | 416751-01 | 416751-01 | 416751-01 | 416751-01 |
| 24 | Inner support ring | 414032-01 | 414032-01 | 414032-01 | 414032-01 |
| 25 | Outer support ring | 414033-01 | 414033-01 | 414033-01 | 414033-01 |
| 26 | Countersunk head screw | 000294*407 | 000294*407 | 000294*407 | 000294*407 |
| 27 | Pipe plug | 000077*0021 | 000077*0021 | 000077*0021 | 000077*0021 |
