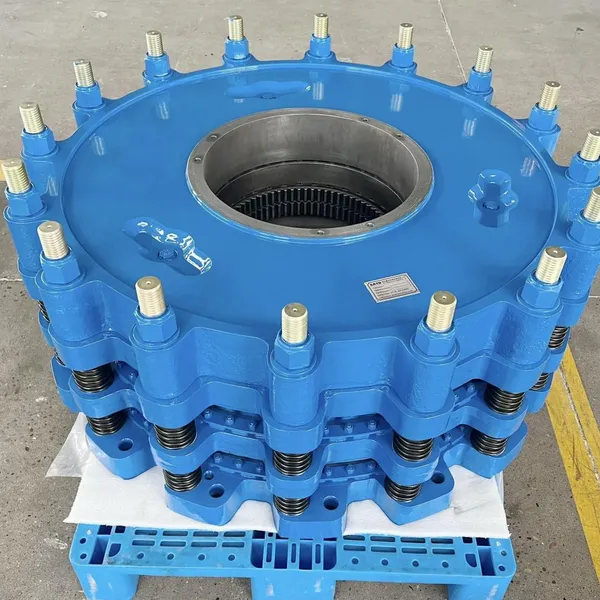

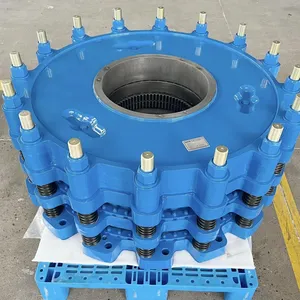

Eaton Wcb Water-Cooled Brakes/Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236
Product Spotlights
WPT Power manufactures quality Water Cooled Brakes for the oil & gas, marine and offshore industries. Water-cooled brakes available are air-actuated, spring set or a dual actuated for heavy-duty braking and holding applications. Our Dual Actuated WCB combines air applied control and spring applied, fail-safe features such as emergency stop or parking features when necessary.
US$ 100
≥1 Piece
Key Specifications
Get Latest Price
Location:
Jinan, Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
15 days
Related Products
-
Eaton Auxiliary Brake/water Brake, Auxiliary Clutch, Wear Plate 508459, Friction Block 508725, WCB124, WCB224, WCB324, WCB236, WCB336, WCB436US$ 100MOQ: 1 Blade -
Eaton Wcb Water-Cooled Brakes/Auxiliary Brake Wcb124, Wcb224, Wcb324, Wcb236, Wcb336, Wcb436 508459 513985-01US$ 100MOQ: 1 Unit
-
WCB Eaton Auxiliary Brake Wear PlateUS$ 100MOQ: 1 Unit
-
We Firmly Believe That People's Character Creates the Cause and the High-quality ZJ50, Z16140000029AA, P0300158AAUS$ 100MOQ: 1 Unit
-
Pneumatic Push Type ATD224 WPT224 Drilling Rig ClutchUS$ 100MOQ: 1 Unit
| Name | Part numbering | Name | Part numbering |
| Mounting flange half-assembly | W24-04-304 | Mounting flange half-assembly | W36-04-307 |
| Half-knot friction disc core | W24-08-304 | Half-knot friction disc core | W36-08-303 |
| Half-knot friction disc core | W24-08-305 | Half-knot friction disc core | W36-08-304 |
| Gear hub | W24-01-304 | Gear hub | W36-01-302 |
| Gear hub | W24-01-305 | Gear hub | W36-01-303 |
| Gear hub | W24-01-306 | Gear hub | W36-01-304 |
| Gear hub | W24-01-307 | Gear hub | W36-01-307 |
| Spring | W00-33-928 | Spring | W00-33-942 |
| Reactive plate semi-assembly | W24-11-308 | Reactive plate semi-assembly | W36-11-313 |
| Pressure plate half-assembly | W24-11-309 | Pressure plate half-assembly | W36-11-314 |
| Self-locking nuts | X20-20-030 | Self-locking nuts | X20-20-043 |
| Double bolt | X20-01-002 | Double bolt | X20-01-011 |
| Flat washer | X20-27-001 | Flat washer | X20-27-010 |
| Fixed cylinder disc | W24-02-304 | Fixed cylinder disc | W36-01-301 |
| Pressure plate | W24-03-305 | Pressure plate | W36-03-901 |
| Balloon | W25-09-900 | Balloon | W36-20-901 |
| Guide tape | W24-09-302 | Guide tape | W36-09-301 |
| Wear washer | W24-33-300 | Wear washer | W36-33-300 |
| Friction disc core | W24-08-303 | Friction disc core | W36-08-302 |
| Friction disc | W24-08-302 | Friction disc | W36-07-301 |
| Friction disc | W24-07-301 | Friction disc | W36-07-302 |
| Bolt | W20-07-027 | Bolt | W20-07-027 |
| Reactive plate | W24-11-305 | Reactive plate | W36-11-303 |
| Bolt | X20-08-054 | Bolt | X20-08-123 |
| screw | X20-20-004 | screw | X20-20-016 |
| Wear plate | W24-11-307 | Wear plate | W36-11-301 |
| Inner support ring | W24-50-304 | Inner support ring | W36-50-302 |
| Outer support ring | W24-50-305 | Outer support ring | W36-50-302 |
| Edge seal (internal) | X12-70-376 | Edge seal (internal) | X12-70-374 |
| Edge seal (external) | X12-70-375 | Edge seal (external) | X12-70-373 |
| Pressure plate | W24-11-306 | Pressure plate | W36-11-302 |
| Mounting flange | W24-04-305 | Mounting flange | W36-04-301 |
