High Connection Strength.

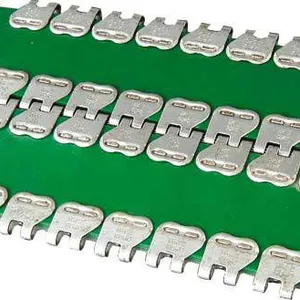

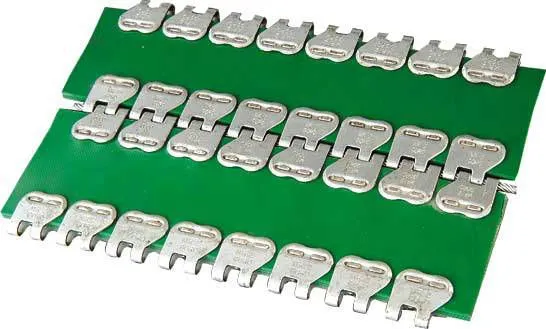

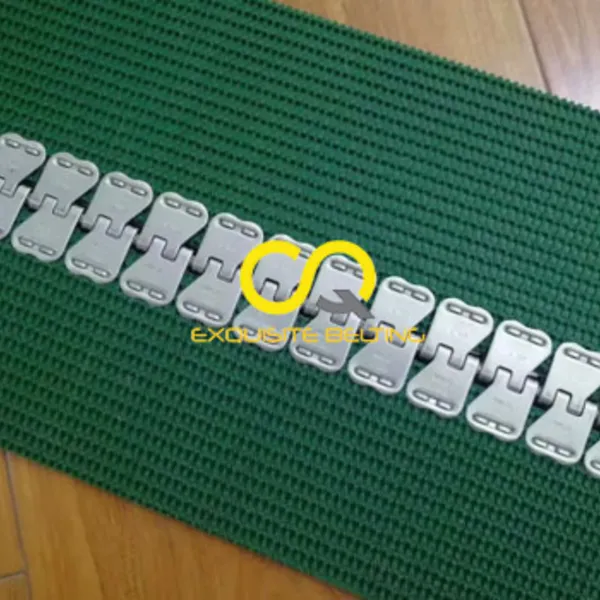

Butterfly Buckle typically consist of multiple sets of steel plates and stainless steel pins, clamping the two endsof the conveyor belt together and capable of withstanding significant tensile force. Their joint strength can typically reach 50%-65% of the belt's own strength, which is perfectly sufficient for low to medium load applications.
Easy Installation and High Efficiency.
This is one of its biggest advantages.
No complex equipment is required; only basic tools such as a hammer, punch, and wrench are needed for operation.
The installation steps are simple.
Align both ends of the belt -> Insert the pins -> Fasten the plates -> Tighten with a hammer.
The entire process is quick and can be completed on-site, greatly reducing downtime.
Highly flexible and repairable on-site.
The entire conveyor belt doesn't need to be disassembled; splicing or repair can be performed directly on-site,
making it particularly suitable for emergency repairs and situations with limited space.
For partial damage, only the damaged buckle plate needs to be replaced, without replacing the entire splice.
Disassembled and reusable.
This is the biggest difference from vulcanized splices. When adjusting belt length, replacing a portion of the belt,
or relocating equipment, the butterfly buckle can be removed and reinstalled in the new location, saving costs.
Low cost.
The price of the butterfly buckle itself is significantly lower than the equipment and labor costs of hot vulcanized splices.
Its economic advantages are particularly outstanding for equipment with limited budgets or that is not intended for long-term operation.
Uniform splice thickness.
Compared to some other mechanical splices, the thickness increase at the butterfly buckle joint is minimal,
resulting in relatively smooth operation and less impact on the cleaner.
