Features of Diamond-Patterned PVC Conveyor Belts 3mm.
This is a very common and widely used industrial conveyor belt. Its core feature is a raised diamond pattern embossed
or cast onto a PVC (polyvinyl chloride) cover layer.
Diamond-patterned PVC conveyor belts combine the inherent properties of PVC material with the structural advantages of the diamond pattern.
Key features include:
1. Excellent Anti-Slip and Grip Capabilities.
• Core Advantage: The raised diamond pattern significantly increases the friction between the belt surface and the conveyed material,
effectively preventing slippage, rolling, or backflow during inclined conveying. This is its most significant feature.
• High Inclination Angle Conveying: Compared to smooth conveyor belts, it allows for greater inclination angles, saving equipment space.
2. Good Drainage and Chip Removal.
• The grooves between the patterns provide flow channels for water, oil, or other liquids, as well as fine debris,
preventing water accumulation and material adhesion. This makes it particularly suitable for humid environments or cleaning processes.
3. Guiding and Stabilizing Effect.
The diamond-patterned design provides a similar guiding effect to the herringbone pattern,
helping to prevent belt misalignment and maintain stable operation.
4. Good Flexibility and Easy Molding.
PVC material itself has a certain degree of flexibility, making it easy to form structures such as sidewalls
and guide strips to meet different conveying needs (e.g., preventing material spillage from the sides).
5. Durable and Economical:
• Abrasion and Tear Resistance: PVC material has good abrasion and tear resistance, resulting in a long service life.
• Corrosion Resistance: It has good resistance to most acids, alkalis, and salts, making it suitable for various industrial environments.
• Cost-Effectiveness: Compared to rubber, PVC conveyor belts are generally cheaper and more economical.
6. Easy to Clean and Maintain:
• The smooth surface and relatively simple pattern structure make it less prone to dirt accumulation and easier to clean.
Main Application Areas
Based on the above characteristics, diamond-patterned PVC conveyor belts are widely used in applications requiring anti-slip
and inclined conveying:
1. Logistics and Express Sorting Systems
• On express parcel and carton sorting lines, the diamond pattern effectively prevents packages from slipping on inclines,
ensuring accurate and efficient sorting.

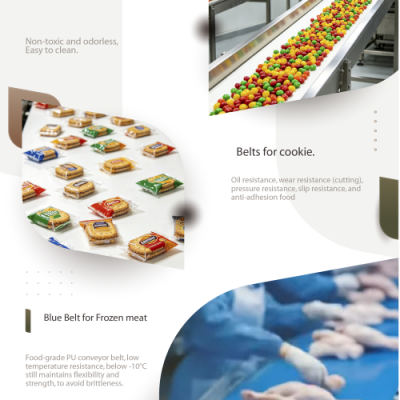

2. Food Processing Industry
• Inclined Conveying: Used for conveying bagged and boxed grains, snacks, beverages, etc.
• Cleaning Processes: Conveying vegetables, fruits, and aquatic products that require cleaning; the grooved pattern facilitates drainage.
• Frozen Foods: Preventing food packaging bags from slipping during the conveying process before and after freezing.
3. Packaging and Filling Industry
• Conveying bottles, cans, cartons, etc., ensuring the stability of the packaged goods and preventing slippage on inclines.
4. Electronic Manufacturing and Assembly
• Conveying circuit boards, electronic components, etc., providing smooth transport on assembly lines and preventing precision parts from slipping.
5. General Manufacturing
• Used for conveying various bagged, boxed, or loose products, such as hardware, plastic products, and textiles.
6. Agriculture
• Used for conveying bagged materials such as grains, feed, and fertilizers.
In summary, the diamond-patterned PVC conveyor belt is a cost-effective and widely applicable industrial component.
It is typically a reliable and economical choice when your conveying application involves inclined surfaces, requires anti-slip properties,
or has drainage needs.
