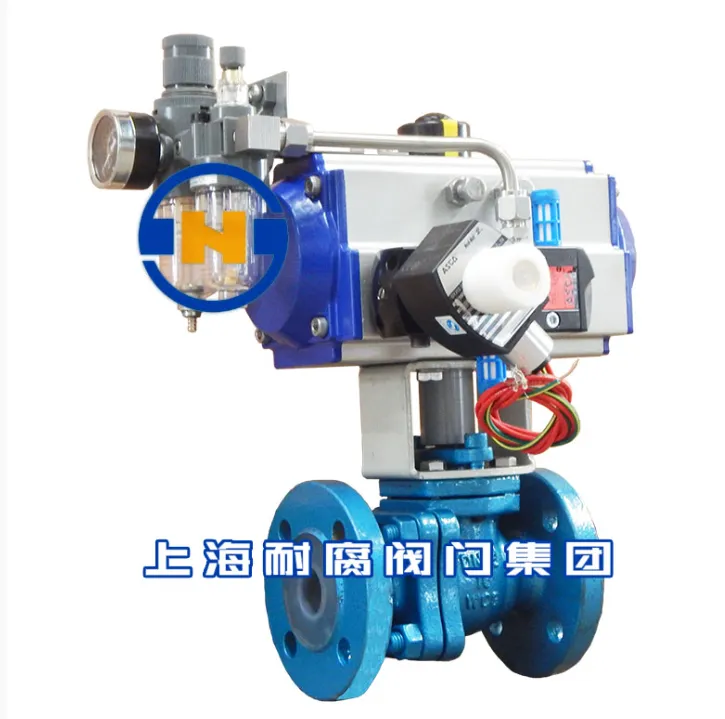

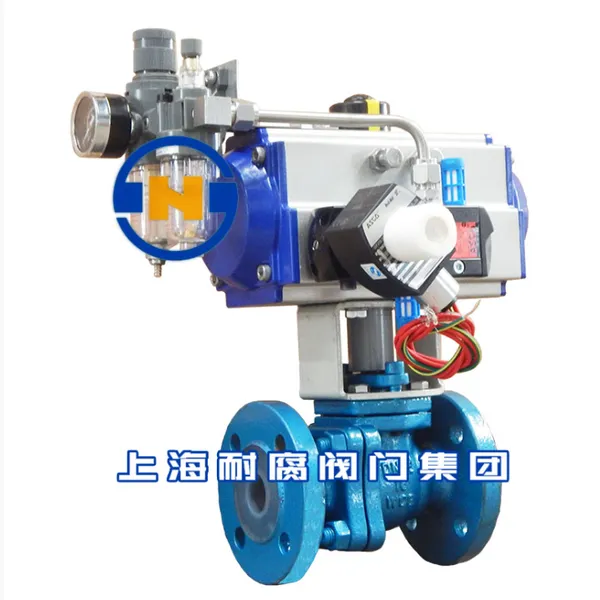

Explosion proof pneumatic fluorine lined ball valve, fluorine lined valve
Explosion-proof pneumatic fluorine-lined ball valve: In these valves, the ball rotates around the valve body's centerline along with the stem to open and close the valve.
I. The company's ball valve series is primarily the Q41F46 model, available in two structural forms: two-piece and three-piece. In addition to the standard advantages of ball valves—such as low fluid resistance, rapid opening/closing, and simple construction—they feature the following: 1. Valves featuring an FEP lining offer high chemical stability, making them suitable for handling virtually any highly corrosive medium, with the exception of molten alkali metals and elemental fluorine.
2. Utilizing a full-bore, floating ball design, the valve ensures leak-free shutoff across its entire pressure range, facilitating smooth pipeline flow and easier maintenance.
3. The ball (the opening/closing element) and the stem are cast or forged as a single unit; this eliminates the risk of the stem being blown out of the pressure-retaining assembly due to pressure fluctuations, fundamentally ensuring operational safety.
4. The design is compact and rational, with minimal internal cavity space to reduce medium retention. Excellent sealing integrity—combined with a chevron-style PTFE packing arrangement—enables zero-leakage performance.
5. The two-piece and three-piece configurations accommodate diverse pipeline systems and operating conditions; notably, the three-piece design allows the main body to be separated from the side bodies, enabling rapid in-line replacement and maintenance.
II. Actuation methods: Manual, worm gear, pneumatic, and electric.
Fluorine-lined valves (valves lined with fluoroplastics) offer excellent corrosion resistance. This category includes fluorine-lined ball valves, flanged butterfly valves, wafer butterfly valves, gate valves, globe valves, check valves, diaphragm valves, and control valves. These valves can be equipped with worm gear, electric, or pneumatic actuators to enable automated control.
Specification
| NO. | Part Name | Material | Optional Material |
|
| 1 | Body | DI | CI, WCB, Stainless Steel | |
| 2 | Down Bearing | F4 | Bronze | |
| 3 | Seat | NBR | EPDM, FKM | |
| 4 | Disc | Plated Ductile Iron | ASTM A351 CF8/CF8M, B148 C954/C958 | |
| 5 | Shaft | ASTM A276 416 | 304, 316, 17-4PH | |
| 6 | Middle Bearing | F4 | Bronze | |
| 7 | Upper Bearing | F4 | Bronze | |
| 8 | O Ring | NBR | EPDM, FKM | |
| 9 | Pin | ASTM A276 416 | 316, 17-4PH, Monel |
Dimensions data(mm)
| DN | A | B | C | H | ΦE | ΦF | N-ΦK | Φd | G | EN1092-2 PN10 | EN1092-2 PN16 | ANSI CLASS 125 | ||||||
| ΦD | n-Φd1 | n-M | ΦD | n-Φd1 | n-M | ΦD | n-Φd1 | n-M | ||||||||||
| DN40 | 120 (140) | 75 | 33 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 110 | 4-Φ19 | 4-M16 | 110 | 4-Φ19 | 4-M16 | 98.5 | 4-Φ16 | 4-1/2" |
| DN50 | 124 (161) | 80 | 43 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 125 | 4-Φ19 | 4-M16 | 125 | 4-Φ19 | 4-M16 | 120.5 | 4-Φ19 | 4-5/8" |
| DN65 | 134 (175) | 89 | 46 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 145 | 4-Φ19 | 4-M16 | 145 | 4-Φ19 | 4-M16 | 139.5 | 4-Φ19 | 4-5/8" |
| DN80 | 141 (181) | 95 | 46 | 32 | 90 | 50 | 4-Φ7 | 12.6 | 9.5 | 160 | 8-Φ19 | 8-M16 | 160 | 8-Φ19 | 8-M16 | 152.5 | 4-Φ19 | 4-5/8" |
| DN100 | 156 (200) | 114 | 52 | 32 | 90 | 70 | 4-Φ10 | 15.8 | 11.1 | 180 | 8-Φ19 | 8-M16 | 180 | 8-Φ19 | 8-M16 | 190.5 | 8-Φ19 | 8-5/8" |
| DN125 | 168 (213) | 127 | 56 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 12.7 | 210 | 8-Φ19 | 8-M16 | 210 | 8-Φ19 | 8-M16 | 216 | 8-Φ22 | 8-3/4" |
| DN150 | 184 (226) | 140 | 56 | 32 | 90 | 70 | 4-Φ10 | 18.92 | 12.7 | 240 | 8-Φ23 | 8-M20 | 240 | 8-Φ23 | 8-M20 | 241.5 | 8-Φ22 | 8-3/4" |
| DN200 | 213 (260) | 175 | 60 | 45 | 125 | 102 | 4-Φ12 | 22.1 | 15.9 | 295 | 8-Φ23 | 8-M20 | 295 | 12-Φ23 | 12-M20 | 298.5 | 8-Φ22 | 8-3/4" |
| DN250 | 244 (292) | 220 | 68 | 45 | 125 | 102 | 4-Φ12 | 28.45 | 22 | 350 | 12-Φ23 | 12-M20 | 355 | 12-Φ28 | 12-M24 | 362 | 12-Φ25 | 12-7/8" |
| DN300 | 283 (337) | 255 | 78 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 24 | 400 | 12-Φ23 | 12-M20 | 410 | 12-Φ28 | 12-M24 | 432 | 12-Φ25 | 12-7/8" |
| DN350 | 368 | 267 | 78 | 45 | 150 | 125 | 4-Φ14 | 31.6 | 24 | 460 | 16-Φ23 | 16-M20 | 470 | 16-Φ28 | 16-M24 | 476 | 12-Φ29 | 12-1" |
| DN400 | 400 | 323 | 102 | 50 | 150 | 125 | 4-Φ14 | 33.15 | 27 | 515 | 16-Φ28 | 16-M24 | 525 | 16-Φ31 | 16-M27 | 539.5 | 16-Φ29 | 16-1" |
| DN450 | 422 | 342 | 114 | 50 | 210 | 140 | 4-Φ18 | 37.95 | 27 | 565 | 20-Φ28 | 20-M24 | 585 | 20-Φ31 | 20-M27 | 578 | 16-Φ32 | 16-1 1/8" |
| DN500 | 479 | 373 | 127 | 60 | 210 | 140 | 4-Φ18 | 41.12 | 32 | 620 | 20-Φ28 | 20-M24 | 650 | 20-Φ34 | 20-M31 | 635 | 20-Φ32 | 20-1 1/8" |
| DN600 | 562 | 467 | 154 | 70 | 210 | 165 | 4-Φ22 | 50.62 | 36 | 725 | 20-Φ31 | 20-M27 | 770 | 20-Φ37 | 20-M33 | 749.5 | 20-Φ35 | 20-1 1/4" |
| DN700 | 624 | 524 | 165 | 72 | 300 | 254 | 8-Φ18 | 63.35 | KEY 2-18 | 840 | 24-Φ31 | 24-M27 | 840 | 24-Φ37 | 24-M33 | 863.6 | 28-Φ35 | 28-1 1/4" |
| DN800 | 652 | 589 | 190 | 100 | 300 | 254 | 8-Φ18 | 63.35 | KEY 2-18 | 950 | 24-Φ34 | 20-M30 | 950 | 24-Φ41 | 20-M36 | 977.9 | 28-Φ41 | 28-1 1/2" |
