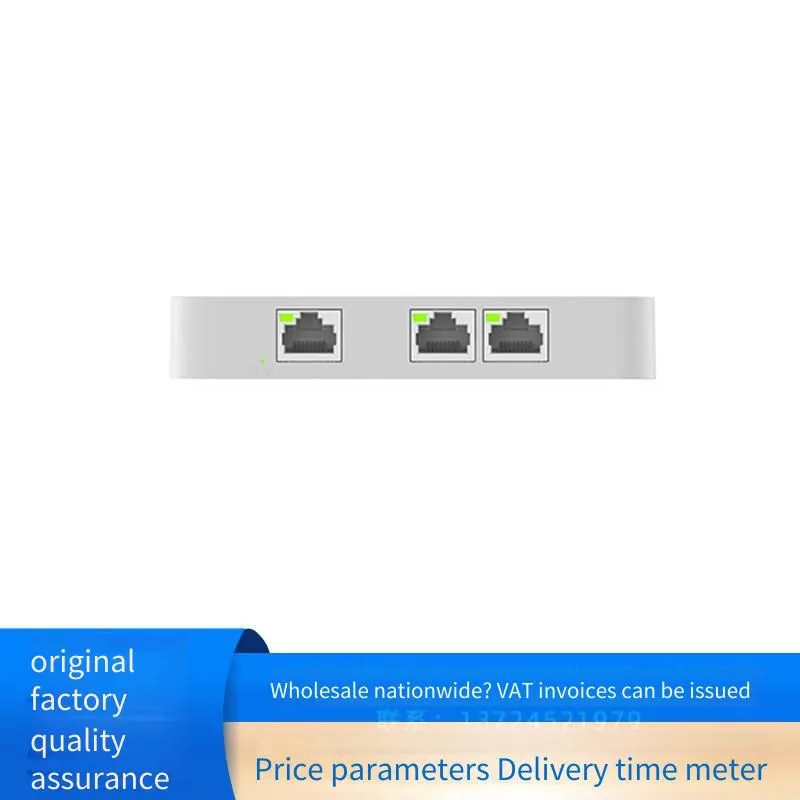

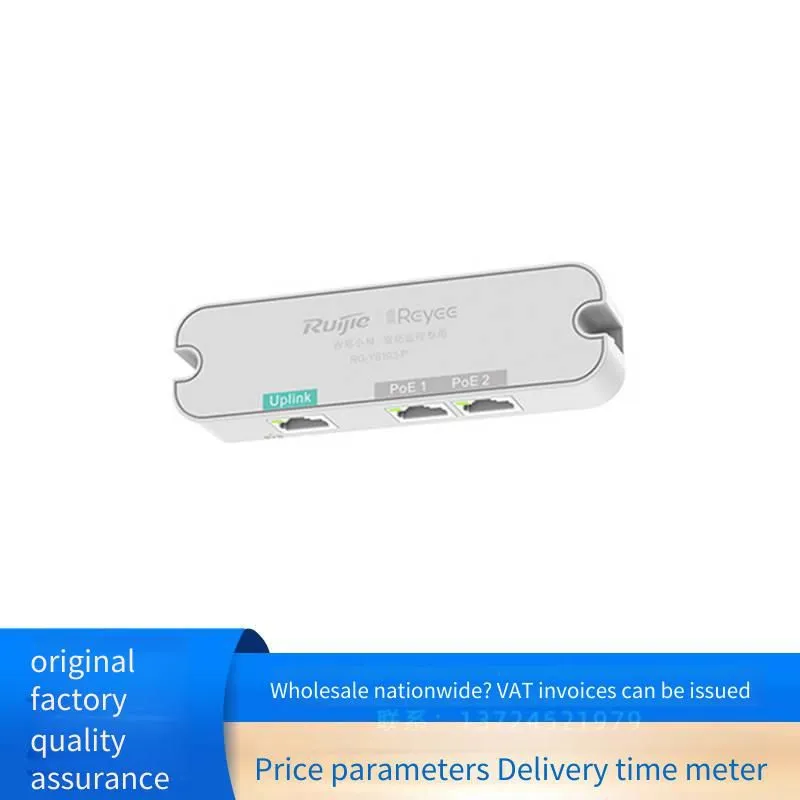

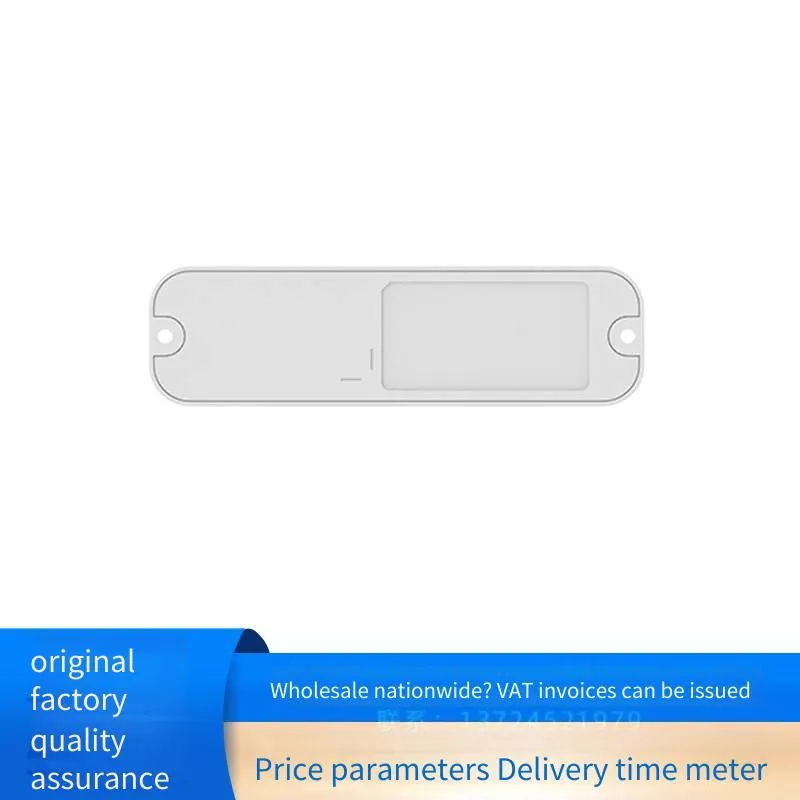

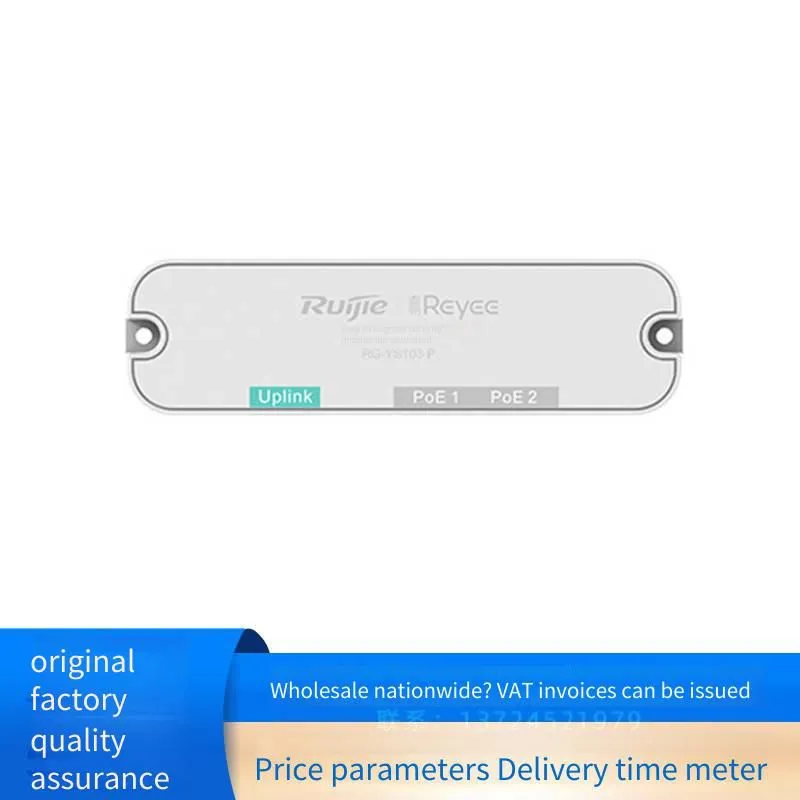

Help CenterRuijie Rg-ys103-p 3-port 100mbps Non-managed Home Poe Ethernet General Switch
Related Products
-
Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof CameraNegotiableMOQ: 0 Unit -
Dahua dh - P40a2 - wt - pv 4 - Megapixel Network Surveillance High - Definition Infrared CameraNegotiableMOQ: 0 Unit
-
Seagate St1000dm014 1tb Storage Hard Drive for Surveillance Dvrs and Security EquipmentNegotiableMOQ: 0 Piece
-
Ruijie Rg-yst250f Single-frequency 2.4g 300m Elevator Bridge With Single-frequency 12v Power SupplyNegotiableMOQ: 0 Unit
-
H3c Ls-5130s-28s-hpwr-ei-ac 24-port Gigabit Managed Layer 2 Enterprise SwitchNegotiableMOQ: 0 Unit
Technical parameters
Power receiving type
PoE/HPoE Ethernet power supply
Indicator lights
1 x System indicator light
3 x Network port indicator lights
PoE power supply wire pairs
1-2 (+), 3-6 (-)
Fan
No fan design
Cable hot-swapping
Both service interfaces and power interfaces support cable hot-swapping
Total switching capacity of the whole machine
0.6 Gbps(bit/s)
Total packet forwarding rate of the whole machine
0.45 Mpps
MAC table capacity
2K
PoE power supply standard
IEEE 802.3af/at (PoE/PoE+)
Single-port PoE output power
30W
Total PoE output power of the whole machine
30W
Number of PoE power supply interfaces
2
Product weight
0.05kg (excluding packaging materials)
Product dimensions (width x depth x height)
120mm x 34mm x 20.5mm
Heat dissipation method
Natural heat dissipation
Power input
PoE/HPoE Ethernet power supply: Meets the 802.3af/at Ethernet power supply standard
Power monitoring
Module monitoring: Not supported
Fault alarm: Not supported
Intelligent power-on: Not supported
Total power consumption of the whole machine
30W (PoE full load)
2.5W (without PoE load)
Mean time between failures (MTBF)
200000 hours (about 22 years)
Switching cache
768Kbit
Electrostatic immunity
Air discharge: 6kV
Contact discharge: 4kV
Temperature monitoring
Not supported
Fan monitoring
Not supported
EMC regulations
GB/T 9254.1-2021
Operating environment temperature
0℃~40°C
Storage environment temperature
-40℃~70°C
Operating environment humidity
10%RH~90%RH (no condensation)
Storage environment humidity
5%RH~95%RH (no condensation)
Altitude
Operating altitude: -500m~5000m
Storage altitude: -500m~5000m
Installation method
Desktop installation, wall-mounted installation
Product type
Box-type chassis (host)
100Mbps Ethernet port
3
Total number of Ethernet ports
3
Forwarding delay
RoHS
Supported
Safety regulations
GB 4943.1-2022
Shell material
Plastic shell
Network cable type
CAT5e
Lightning protection
Power interface: Common mode ±4kV, differential mode ±4kV
Service interface: Common mode ±4kV
Dust and water protection level
IP20
Host
1 unit
Quick installation guide
1 copy
