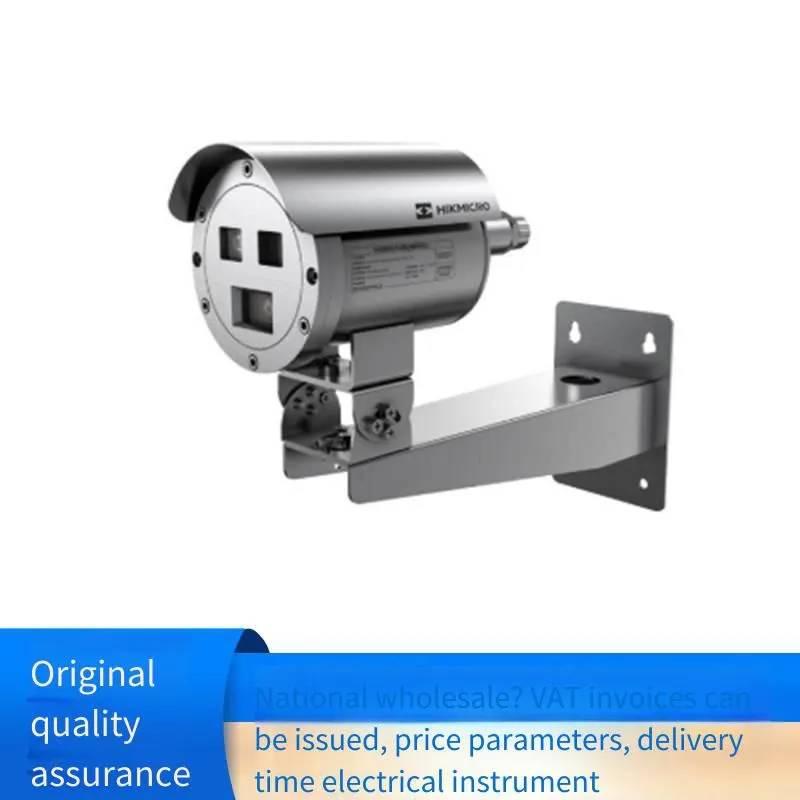

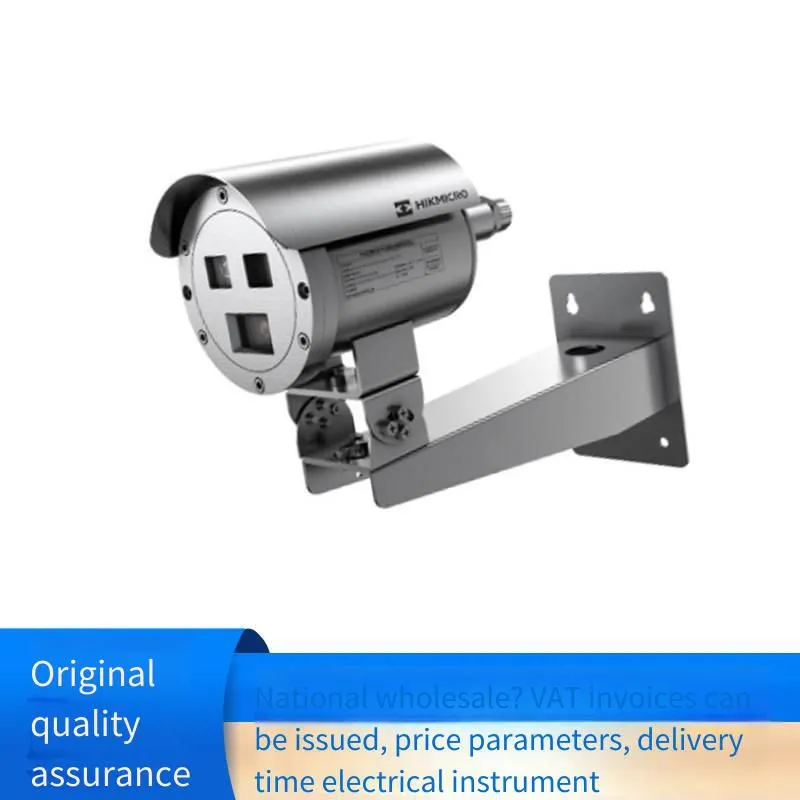

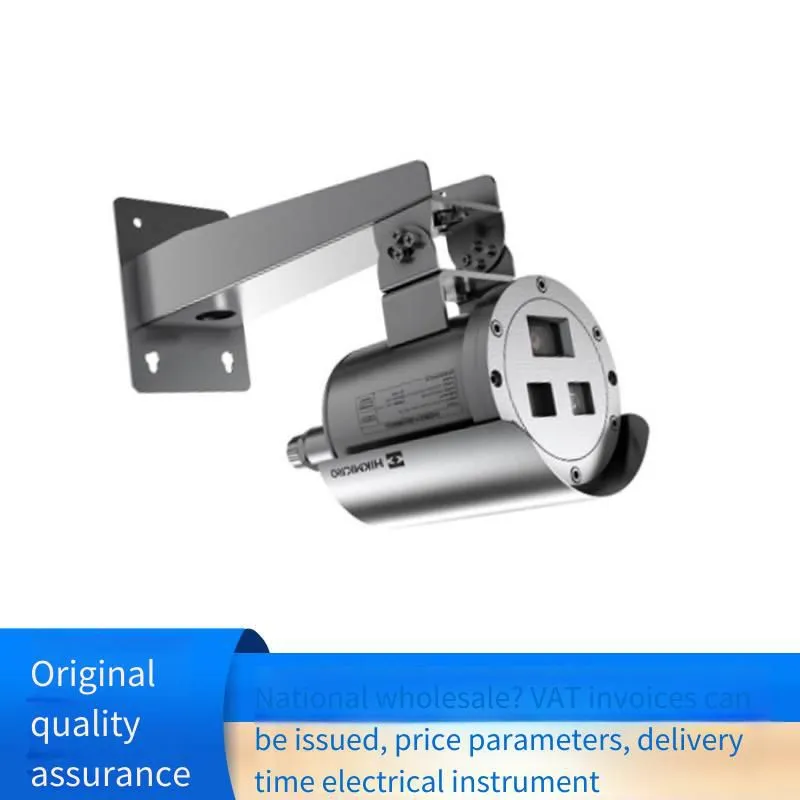

Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof Camera

Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof Camera photo-1
Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof Camera photo-2
Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof Camera photo-3

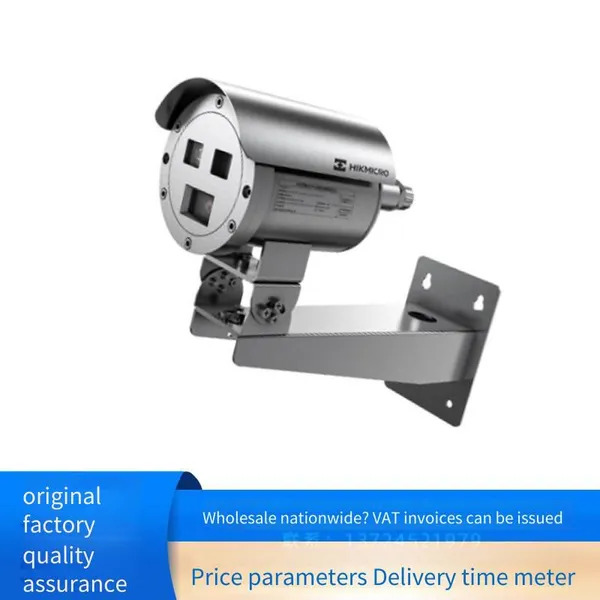

Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof Camera photo-4
Hikvision Hm-td2528t-3/q 4-megapixel Starlight-level Thermal Imaging Explosion-proof Camera photo-5
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Dongguan, Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
  • Thermal imaging

  • Thermal imaging sensor type: Vanadium oxide uncooled detector

  • Thermal imaging resolution: 256 × 192

  • Thermal imaging pixel size: 12 μm

  • Thermal imaging response band: 8~14 μm

  • Thermal imaging focal length: 3.6 mm

  • Thermal imaging field of view: 50.0°(H) × 37.3°(V)

  • Minimum temperature measurement distance of the target (based on 0.1×0.1 m): 0.5m

  • Maximum temperature measurement distance of the target (based on 0.1×0.1 m): 4.5m

  • Temperature measurement range: -20 °C~150 °C, 0°C~650°C

  • Temperature measurement accuracy: ±2°C or ±2% of the range (whichever is greater)

  • Visible light

  • Visible light sensor type: 4-megapixel starlight-level 1/2.7" Progressive Scan CMOS

  • Visible light resolution: 2688 × 1520@2μm

  • Visible light focal length: 4.27 mm

  • Visible light field of view: 83.7°(H) x43°(V)

  • Interface

  • Alarm input: Support for 2 channels of DC 0~5 V alarm input

  • Alarm output: Support for 2 channels of normally open relay output

  • Audio input: 1 channel of 3.5mm audio input (Line in)

  • Audio output: 1 channel, Impedance: 600 Ω

  • Ethernet port: 1 channel of RJ45 interface, 10/100 M adaptive Ethernet port

  • System parameters

  • Power input: AC220V or PoE (802.3af)

  • Power: max 8 W

  • Operating temperature and humidity: -40 °C~60 °C, <95% RH

  • Protection level: IP66/IP68(2m/2h)

  • Shell material: 316L




Product Tags: Hikvision cameras , Explosion-proof cameras , Thermal imaging cameras , Starlight-level cameras , HM-TD2528T-3/Q
