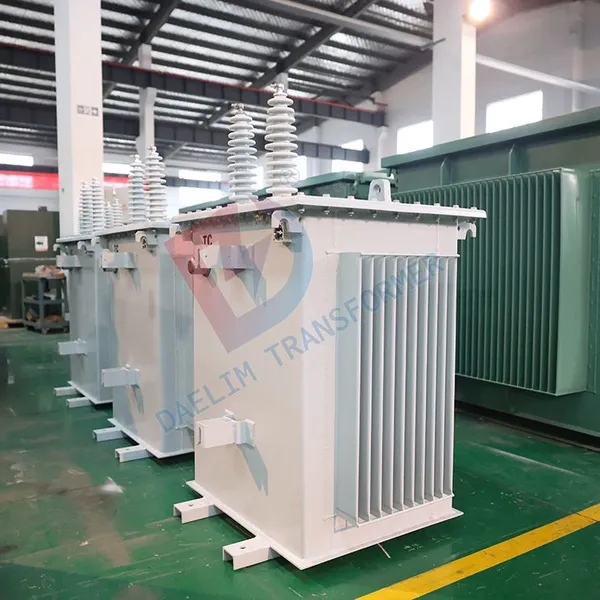

Single Phase Transformer 15kVA 25kV With Copper Windings and Mill Test Report
Product Spotlights
A 15kVA single-phase transformer designed for 25kV applications, featuring high-efficiency copper windings for reduced losses and superior durability. Includes a Mill Test Report for material traceability and quality assurance. Ideal for reliable power distribution in utility, commercial, and light industrial settings, offering customizable options and dry-type safety.
US$ 2000
≥1 Unit
Key Specifications
Get Latest Price
Rated Capacity:
15 kVA
High Voltage Rating:
25 kV
Winding Material:
Copper
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10kVA Oil Immersed Transformer for 11kV Rural Electrification ApplicationsUS$ 2000MOQ: 1 Unit -
10kv Transformer 200KVA New Style Hot Selling Energy Saving Solutions Offered by Advanced Distribution Transformer DesignsUS$ 1200 - 1500MOQ: 1 Piece
-
Single Phase Oil Pole Mounted Transformer High Voltage 7620v/13200v 120v/240v 10kva 15kva 25kva 37.5kva 50kva 100kvaUS$ 999 - 1399MOQ: 1 Piece
-
10kv Transformer 200kvKVA New Style Hot Selling Energy Saving Solutions Offered by Advanced Distribution Transformer DesignsUS$ 8000 - 10000MOQ: 1 Piece
-
Mva Transformer Single Phase 200kva/ 25kv/ 230v 50hz Electric Power Low Voltage Outdoor TransformerUS$ 1360 - 1560MOQ: 1 Piece
Rated Capacity
15 kVA
High Voltage Rating
25 kV
Winding Material
Copper
Phase Configuration
Single Phase
Certification Documentation
Mill Test Report Provided
Application
Power Distribution, Industrial Use
Cooling Method
Dry Type, Air Cooled
Insulation Class
Class H or Higher (Customizable)
Mounting Type
Pad Mounted or Pole Mounted (Optional)
Standards Compliance
IEEE, ANSI, IEC (Available upon request)
As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-quality electrical components for a global clientele. Our Single Phase Transformer 15kVA 25kV is engineered for reliable performance in demanding power distribution applications. Built with premium copper windings and backed by comprehensive documentation, this transformer offers a robust solution for stepping down high voltage to usable levels with exceptional efficiency and longevity.
This transformer is designed to meet the needs of various industries, providing a critical link in electrical infrastructure. Its construction prioritizes safety, durability, and consistent operation, making it a dependable choice for utilities, industrial plants, and commercial facilities worldwide.
Core Features and Technical Advantages:
- Premium Copper Windings: Utilizes high-conductivity copper for the windings, which results in lower resistance, reduced energy losses (I²R losses), better heat dissipation, and superior overload capacity compared to aluminum alternatives.
- High Voltage Handling: Rated for 25 kV on the high-voltage side, making it suitable for connection to medium-voltage distribution lines, commonly found in utility and industrial power networks.
- Robust Insulation System: Features advanced insulation materials (e.g., Nomex, epoxy resin) capable of withstanding high thermal and electrical stresses, ensuring long-term reliability and safety.
- Efficient Cooling Design: As a dry-type transformer, it uses natural or forced air cooling, eliminating the risks and maintenance associated with liquid coolants. This makes it ideal for indoor installations or environmentally sensitive areas.
- Customizable Configurations: Available in various mounting styles (pad or pole), insulation classes (Class H, F, B), and with optional features like protective enclosures (IP ratings), taps for voltage adjustment, and temperature monitoring devices.
- Comprehensive Quality Assurance: Each unit undergoes rigorous testing, including turns ratio, insulation resistance, polarity, and induced potential tests. The provided Mill Test Report details the raw material specifications and factory test results, offering full traceability.
Detailed Technical Specifications:
| Parameter | Specification |
| Rated Capacity | 15 kVA |
| High Voltage (HV) | 25 kV |
| Low Voltage (LV) | 120/240V, 240/480V, or Customizable |
| Frequency | 50 Hz / 60 Hz |
| Winding Material | Copper |
| Cooling Type | AN (Air Natural) or AF (Air Forced) |
| Insulation Class | Class H (180°C) Standard |
| Noise Level | Below 55 dB(A) (Typical) |
| Standards | IEEE C57.12.01, ANSI, IEC 60076 (Compliant) |
Benefits for Your Operation:
- Enhanced Energy Efficiency: Lower losses translate to reduced operating costs over the transformer's lifespan, contributing to a more sustainable and cost-effective power system.
- Reduced Maintenance: The dry-type, copper-wound design minimizes the need for frequent maintenance checks and eliminates fluid handling, lowering total cost of ownership.
- Improved System Reliability: High-quality materials and stringent manufacturing processes ensure stable voltage transformation and minimize the risk of unexpected downtime.
- Safety and Environmental Friendliness: No flammable oil means a safer installation, especially indoors, and eliminates soil contamination risks.
- Global Compliance: Manufactured with international standards in mind, facilitating easier integration into diverse regional power grids.
Frequently Asked Questions (FAQ):
-
Q: What is the primary application of this 15kVA, 25kV single-phase transformer?
A: It is primarily used in single-phase power distribution networks to step down medium voltage (25kV) from utility lines to lower utilization voltages (e.g., 120/240V or 240/480V) for residential complexes, small commercial buildings, farmsteads, and light industrial equipment. -
Q: Why are copper windings specified, and what are their advantages?
A: Copper windings offer higher electrical conductivity, better mechanical strength, superior resistance to corrosion, and higher short-circuit withstand capability. This leads to a more compact design, higher efficiency, and longer operational life compared to aluminum windings. -
Q: What exactly is included in the Mill Test Report?
A: The Mill Test Report (MTR) is a certificate from the raw material supplier (e.g., copper mill). It verifies the chemical composition, physical properties (tensile strength, conductivity), and confirms that the copper used meets specified standards, providing traceability and quality assurance. -
Q: Can this transformer be used for both 50Hz and 60Hz systems?
A: Yes, the core and winding design can be optimized for either 50Hz or 60Hz operation. It is crucial to specify your required system frequency when ordering to ensure optimal performance. -
Q: Is an enclosure available for outdoor or harsh environment installation?
A: Yes, we offer optional protective enclosures with specified IP (Ingress Protection) ratings (e.g., IP23, IP54) to shield the transformer from dust, moisture, and weather conditions for outdoor or challenging indoor environments. -
Q: What are the typical delivery lead times?
A: Lead times vary based on order quantity and customization. Standard configurations typically have shorter lead times. We provide estimated timelines upon receipt of your detailed requirements. -
Q: Do you provide installation and commissioning guidance?
A: Yes, we supply detailed installation manuals, wiring diagrams, and operation guidelines. Remote technical support is also available to assist with commissioning and troubleshooting. -
Q: Are spare parts readily available?
A: As the manufacturer, we maintain an inventory of key components and spare parts for our transformer models, ensuring availability for maintenance and repair needs.
Jinhua Dika Electrical Equipment Co., Ltd. brings over a decade of manufacturing expertise to every product, supported by a robust quality management system evidenced by our ISO 9001 certification among others. With an annual export value ranging between US$1 Million and US$1.5 Million and a dedicated team of 11-50 professionals, we have successfully supplied reliable electrical equipment to diverse markets across North America, South America, Europe, Asia, Africa, and Oceania. Our strategic location in Zhejiang, China, coupled with multiple shipping ports (Shanghai, Tianjin, Guangzhou, Ningbo), ensures efficient logistics and timely delivery. This Single Phase Transformer 15kVA 25kV embodies our commitment to quality, performance, and customer satisfaction. Its proven design, backed by verifiable documentation like the Mill Test Report, offers you a trustworthy component for your critical power infrastructure. Contact us today to discuss your specific requirements or to request a detailed quotation.
