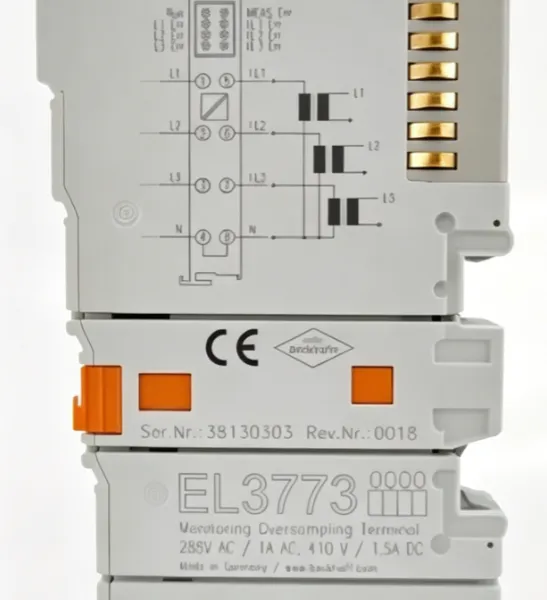

The Beckhoff EL3773 EtherCAT Terminal is a professional power monitoring and energy measurement module developed for three-phase electrical systems. The terminal simultaneously acquires voltage and current waveforms across all phases with 16-bit resolution and transfers the data to the control system through EtherCAT communication.
Based on EtherCAT oversampling technology, the EL3773 provides measurement intervals as short as 100 μs and supports up to 10,000 samples per second, enabling highly accurate power quality monitoring and real-time energy analysis. It supports both AC and DC measurements and can be synchronized with other EtherCAT devices using Distributed Clocks technology.
Key Features
3 voltage inputs and 3 current inputs
High-speed oversampling measurement
16-bit resolution for precise data acquisition
Simultaneous multi-channel measurement
Supports AC and DC monitoring
Distributed Clocks synchronization
True RMS and power calculation support via TwinCAT
Compact DIN-rail mounting design
Suitable for industrial energy management systems
Applications
Energy Monitoring Systems
Power Quality Analysis
Smart Manufacturing
Industrial Automation
Building Energy Management
Electrical Distribution Monitoring
Renewable Energy Systems
Factory Power Consumption Analysis
Supply Capability: Original Beckhoff EtherCAT Modules, Global Shipping Support, Technical Documentation Available Upon Request.
