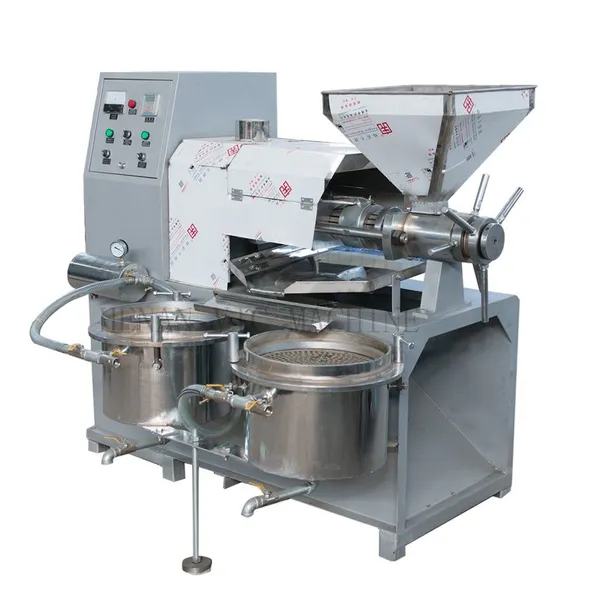

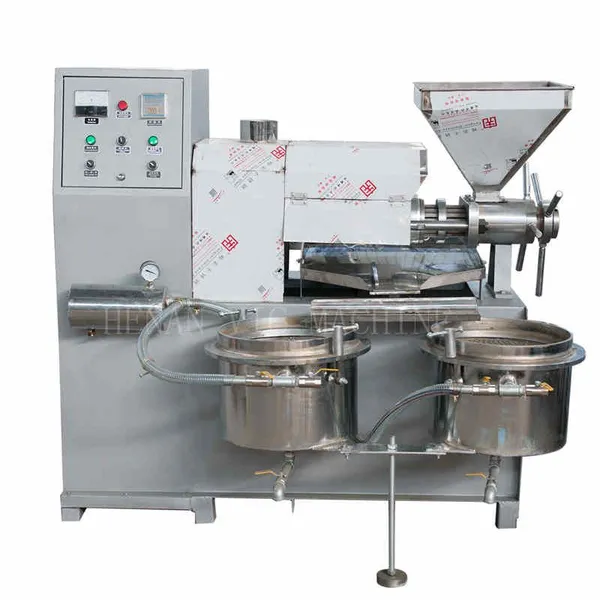

Factory supply automatic peanut sesame sunflower seeds oil making rapeseed avocado combined screw oil press machine with vacuum filter
Application:

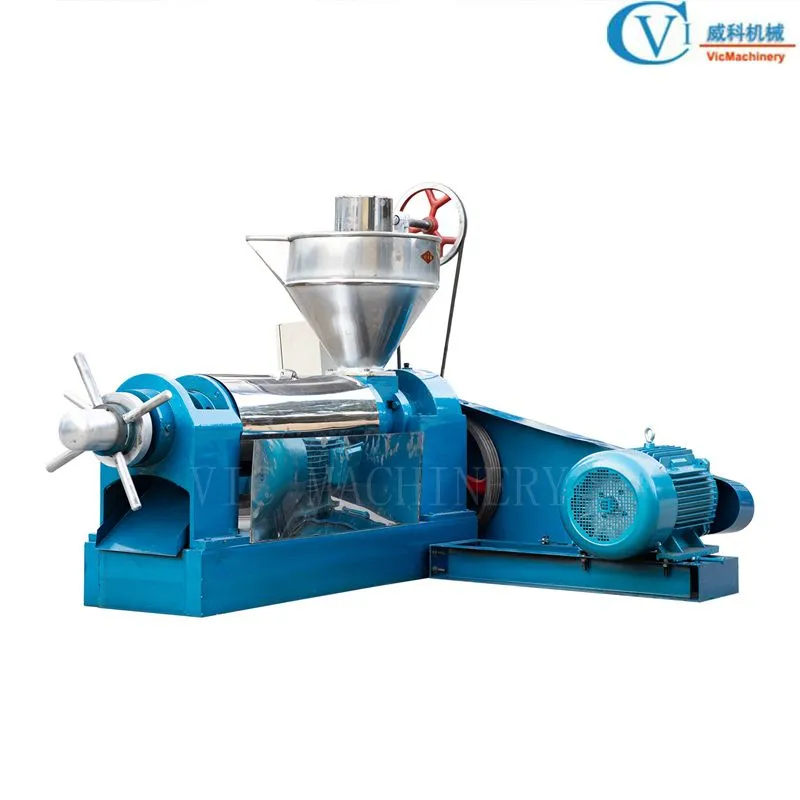

6YL-T screw oil press machine with oil filter is a new type oil press produced to meet customers' requirement for raw oilseeds pressing both hot press and cold press.
The screw oil press machine is characterized by its reasonable structural design, advanced performance and features.
The integrated screw oil press machine is suitable for both direct pressing with pre-processing or not from oil crops such as rape seed, peanut, sunflower seed etc depends on oil seeds.
The screw oil press machine with oil filter is more advanced up to now with large throughput, high output rate, the finaly oil is pure without impurity and foam.
If its equipped with our automatic feeding machine could completely realize automatic production.
Advantage:
1.Simple and easy operation,one key to start without other operating
2.Residual oil rate below 6%.
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance
9.The vacuum filter system makes the oil quality better, the stainless steel filter tank is clean and sanitary
Technical data:
| Model | 6YL-80T | 6YL-100T | 6YL-120T |
| Processing capacity | 120-150kg/h | 200-250kg/h | 300-350kg/h |
| Pressing screw dia | Φ80mm | Φ100mm | Φ120mm |
| Pressing screw speed | 60r/min | 40r/min | 36r/min |
| Round ring dia | Φ82mm | Φ102mm | Φ122mm |
| Power | Y112M-6 5.5KW | Y132M-6 7.5KW | Y160M-6 11KW |
| Heating | 3KW | 3.5KW | 4KW |
| Weight | 780kg | 980kg | 1500kg |
| Size | 1680x1300x1550mm | 1950x1350x1610mm | 2050x1550x1800mm |

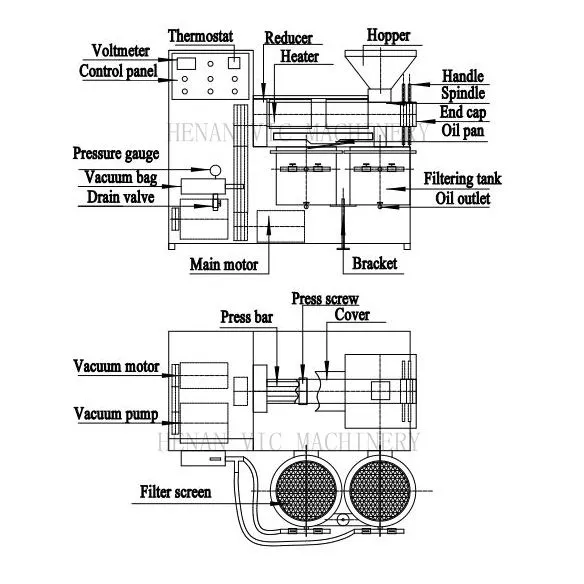

More picture and details about the screw oil press machine with oil filter

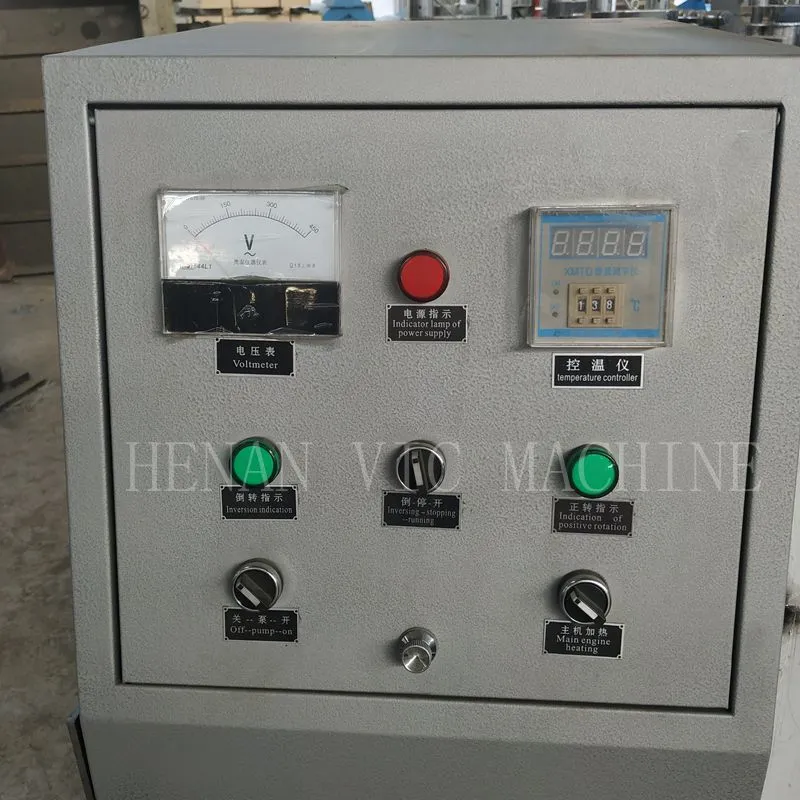

Intelligent control panel with temperature controller and voltmeter

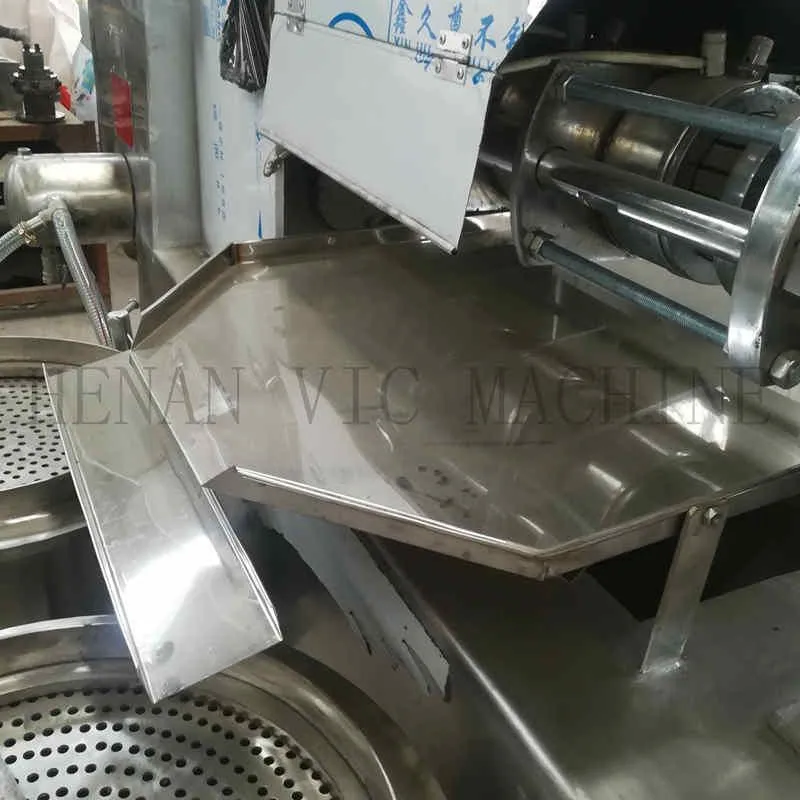

Stainless steel feeding hopper,oil guide pan and cover are clean and sanitary

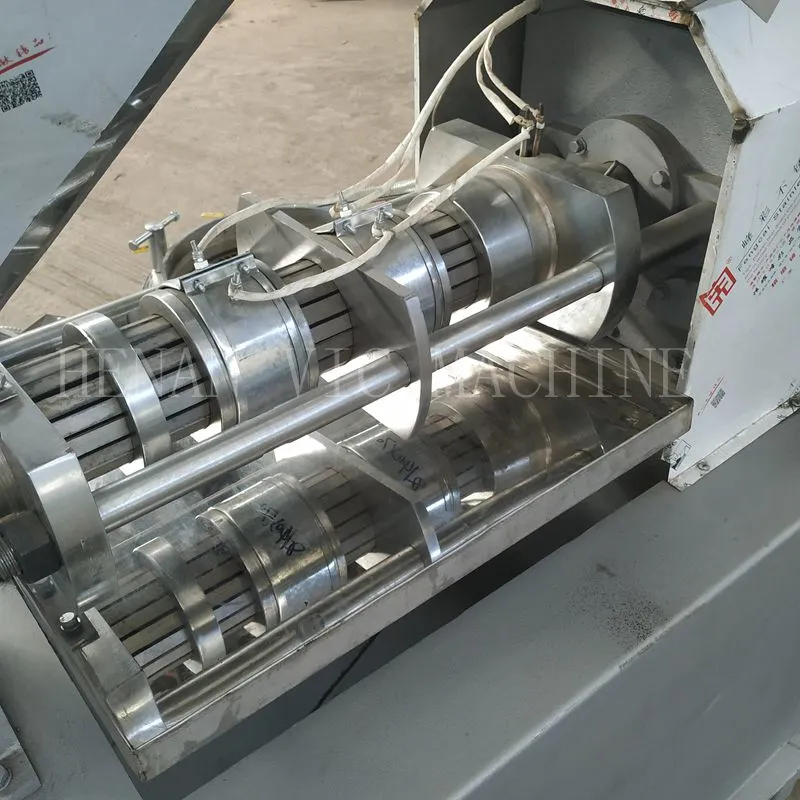

Press bar and heating unit for higher oil yield

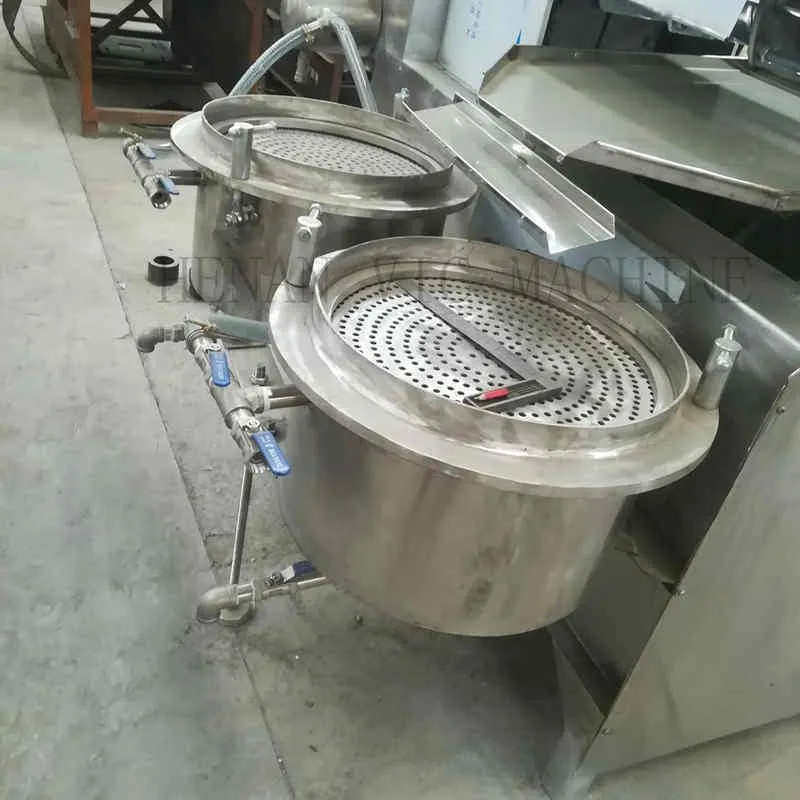

Double vacuum filtering unit with 2 tanks:

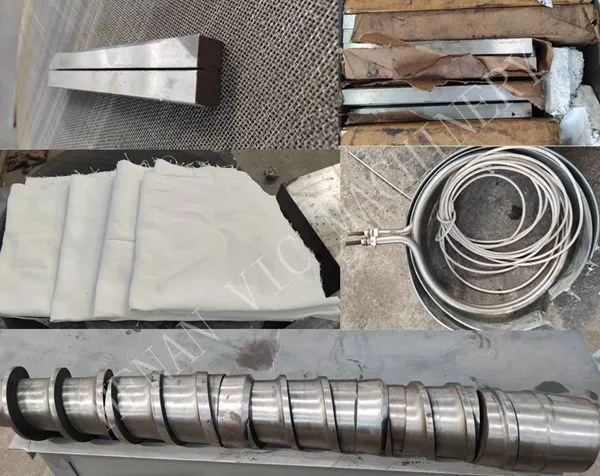

Spare parts

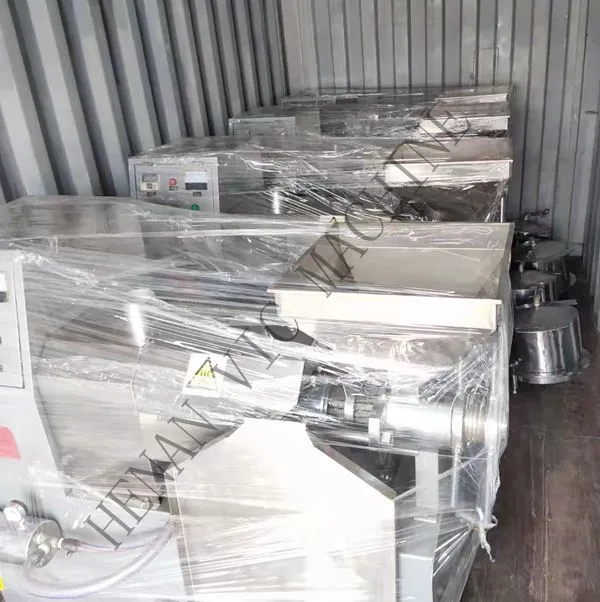

Package pictures about oil pressers
Other screw oil press machine 6YL-160A

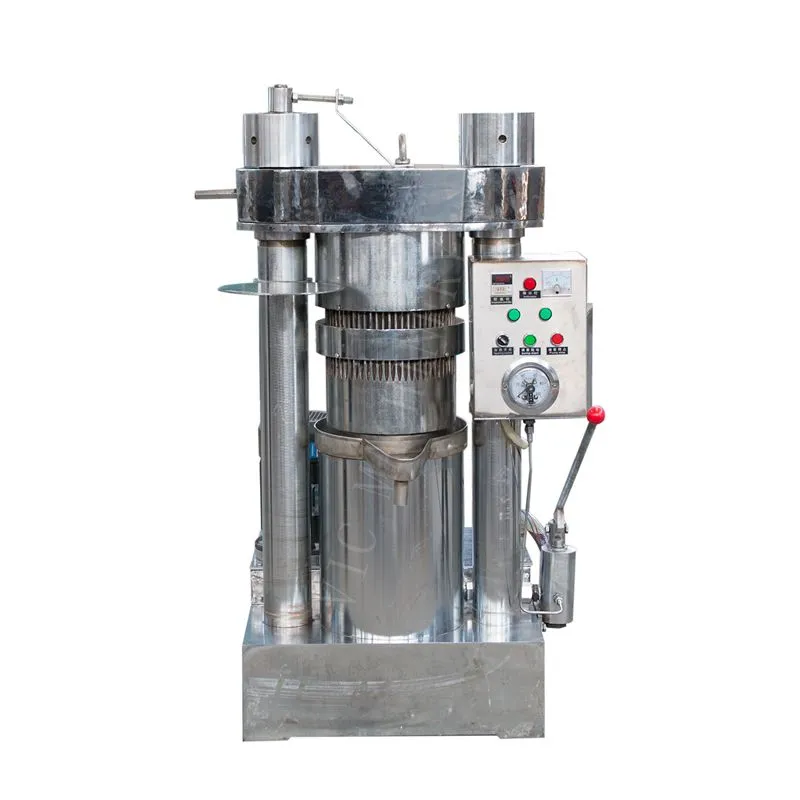

Other hydraulic oil press machine

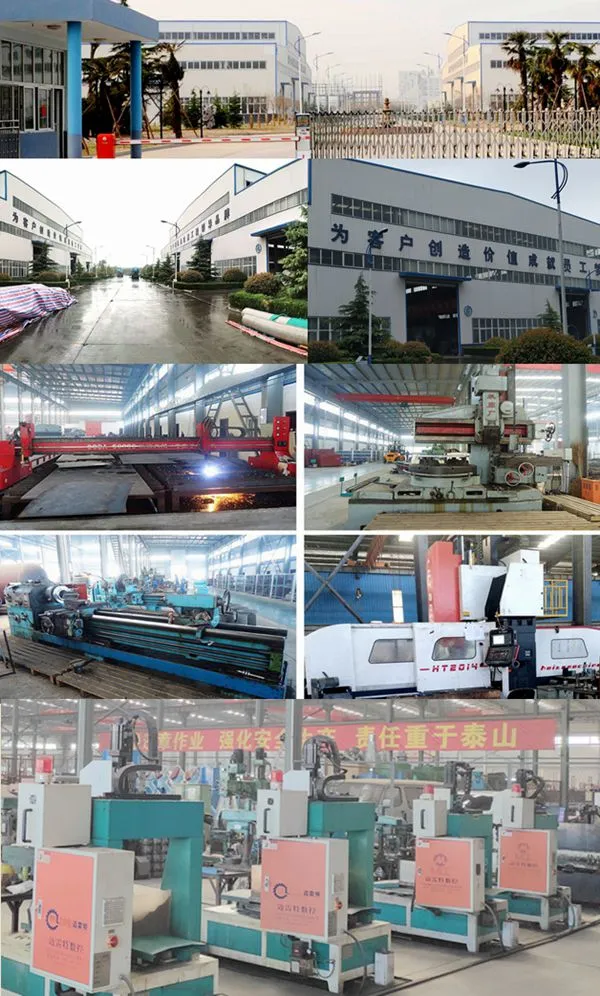

Our Factory
