Hubei Bilantian Bolai Construction Co., Ltd. is a manufacturer mainly engaged in the research and development of steel structure supporting products, and has a certain influence and popularity in the domestic steel structure market. The company has advanced domestic floor deck production lines, aluminum-magnesium-manganese roofing system production lines, special wall color steel profiled sheets, and professional equipment for antique color steel glazed tiles.
The company is located beside Jiangbei Road in Tuanfeng Chengnan Industrial Park. The business logistics is very convenient. We welcome customers from all over to visit. The company will welcome guests from all directions with high-quality products, affordable prices, solid services, and a sincere and responsible attitude.
Bilantian Floor DeckThe models are as follows:
Floor deck thickness:0.7mm~1.5mm |
Floor decks (profiled steel sheets) are divided into: open-type floor decks, closed-type floor decks, and dovetail-type floor decks |
Open-type floor deck models: YX51-240-720 YX51-250-750 YX76-344-688 YX76-305-915 YX51-305-915 YX75-293-880 YX38-152-914 YX75-200-600 YX75-230-690 YX75-280-840 YX51-340-1025 |

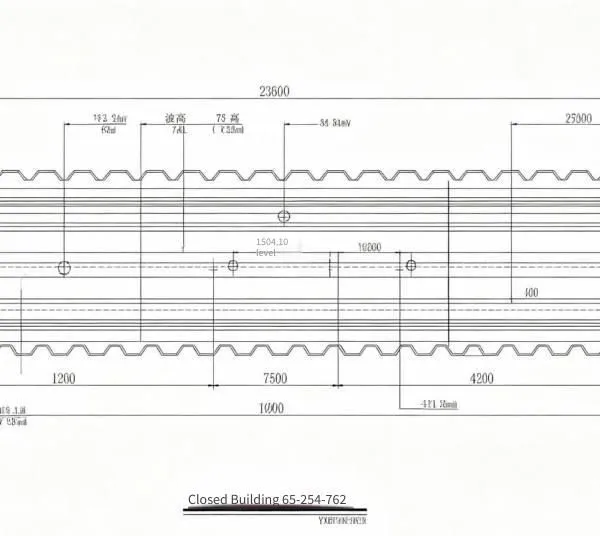

Closed-type floor decking models: YXB65-185-555 YXB65-170-510 YXB65-236-710 YXB65-254-762 YX60-180-540 YX60-185-555 YX60-200-600 YX60-253-760 YX65-240-720 |
|
Dovetail-type floor decking models:YX51-200-600 YX51-200-800 YX51-190-760
|

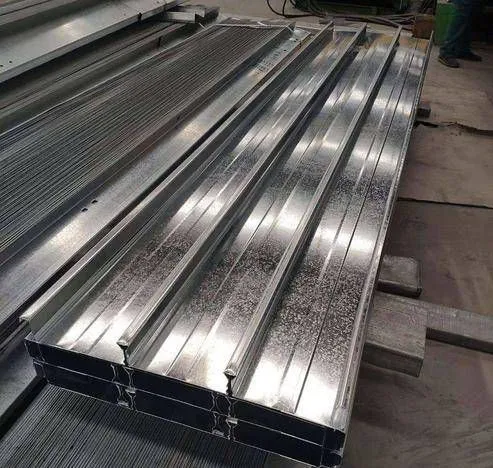

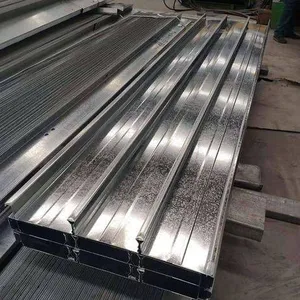

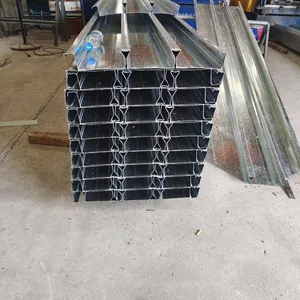

Closed-type floor deckingMainCharacteristics:
The closed-type floor decking is a new high-tech product newly introduced by Hubei Bilantian Bolai Construction Co., Ltd. It is a more advanced composite floor decking system. Experiments have confirmed that it has a stronger bearing capacity and shear resistance than other open-type floor decking systems. The special design of the closed ribs allows the ribs of the steel decking to be completely wrapped by the concrete, just like the steel bars in the cast-in-place slab. Thus, it can maximize the respective characteristics of steel and concrete and is successfully applied in the floor decking system with stress reinforcement. It also has excellent fire resistance.
1、This type of panel has a flat bottom and well - fitted webs. It can provide a variety of ceiling treatment methods according to the different functions and needs of various rooms. For example, it can be directly painted to make a tongue - and - groove ceiling (resembling an aluminum gusset plate), or it can be plastered with putty and then painted with water - based paint to make a flat ceiling. It can also be directly pasted with wall cloth or wallpaper to decorate a colored ceiling, or use the unique slot suspension system of the closed - type composite floor deck to install a ceiling. It can more economically meet the aesthetic needs of the owners.
2、The center of gravity of the cross - section of the closed - type composite floor deck is about15mm from the bottom of the panel, which is smaller than the cross - section parameters of the open - type or necked - in type. When analyzing the structural bearing capacity of the composite floor slab according to the plastic theory, the internal force arm between the center of the resultant force of the concrete pressure and the center of the resultant force of the steel plate tension is larger. This means that the material strength is more fully utilized. Therefore, the closed - type composite floor slab has a greater structural bearing capacity or a higher safety factor.
3、The closed - type composite floor deck can completely replace the tensile steel bars in the positive moment of the floor slab, and it can reach a fire - resistance duration of1.5 hours without spraying fire - proof paint.
4、The special closed - rib shape of the closed - type composite floor deck and the riveted connection on the webs make the concrete have a stronger grip on the floor deck, and the composite floor slab achieves a real composite effect.
5、The composite floor slab with the closed - type composite floor deck can reduce the thickness of the floor slab, reduce the self - weight, and increase the clear height. When using an open - type composite floor deck and spraying fire - proof paint, the minimum slab thickness required is126mm, and using this panel type does not require fireproof paint, with a minimum thickness of only100mm.
6. The unique slot suspension system of the closed-type composite floor deck can provide convenience for the installation of mechanical and electrical pipelines at the bottom of the building slab. This system does not require drilling holes or embedding iron parts at the slab bottom. Just easily insert two cards into the grooves at the slab bottom, and it can provide200kg lifting points for hanging loads, and disassembly is also very convenient.
