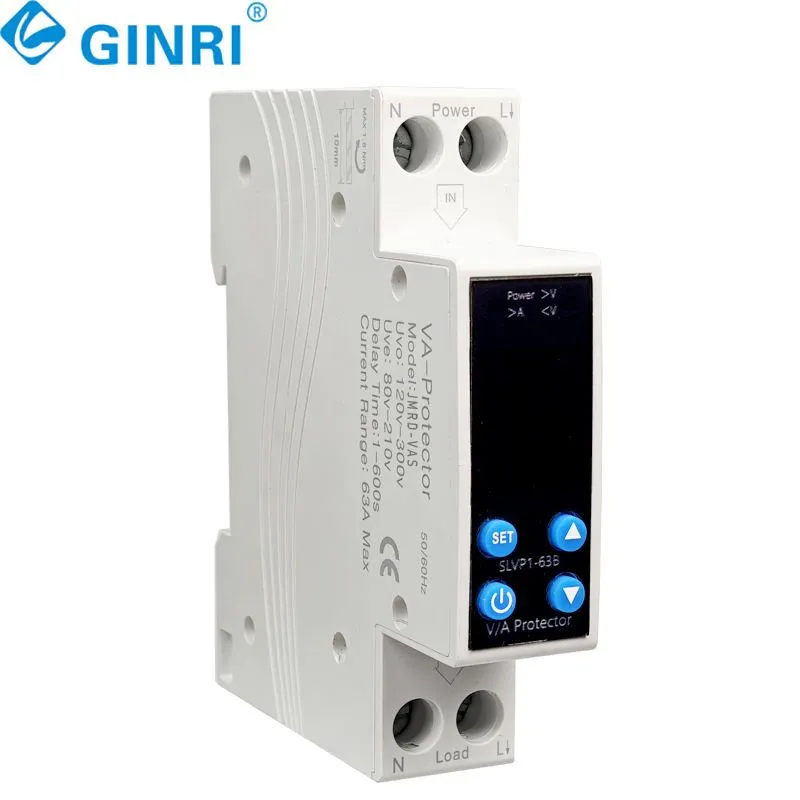

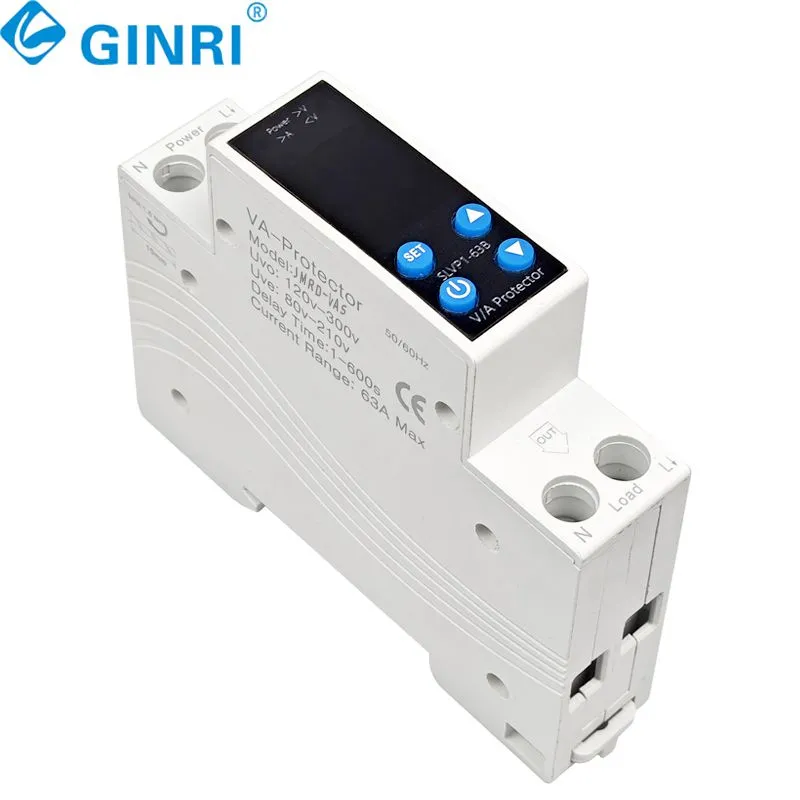

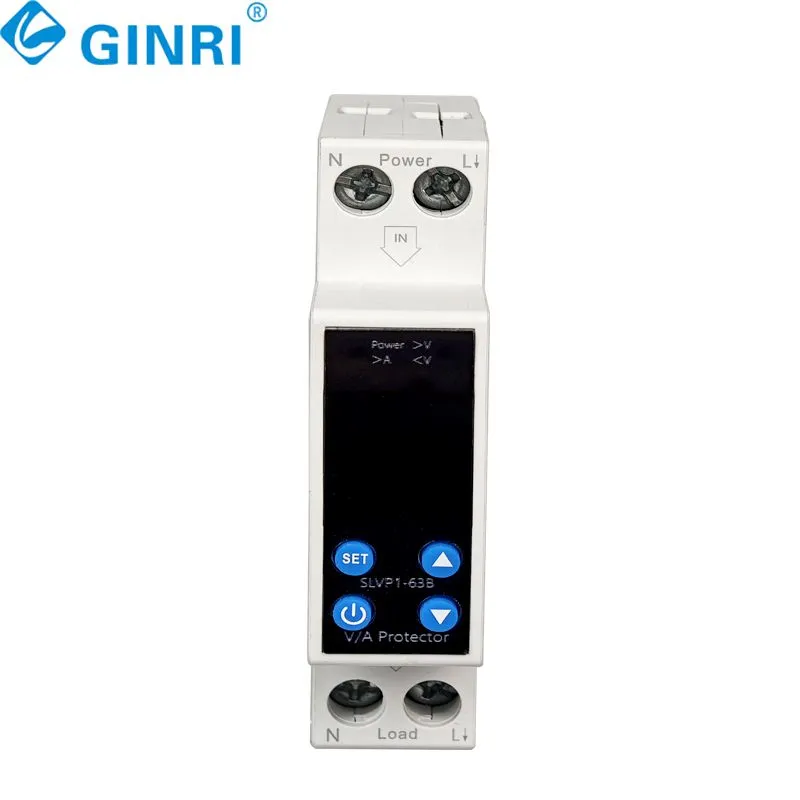

Compact DIN Rail Mount Single Phase Over/Under Voltage Protector, 230V 50Hz
Product Spotlights
Compact DIN rail mount protector for 230V/50Hz systems. Provides precise over & under voltage protection with adjustable trip points & time delay. Features automatic reset, clear LED indicators, and robust construction. Safeguards equipment, enhances safety, and minimizes downtime. Easy to install on standard DIN rails. Ideal for industrial, commercial, and residential electrical panels.
US$ 3.12
≥10 Units
Key Specifications
Get Latest Price
Mounting Type:
DIN Rail Mount
Phase Configuration:
Single Phase
Rated Voltage:
230V
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Single Phase Voltage Protective Relay With LED Digital Display and Adjustable DelayUS$ 3.12MOQ: 10 Units -
Single Phase Voltage Protection Device for Industrial Motor and Pump ApplicationsUS$ 3.12MOQ: 10 Units
-
Mill Test Report Provided Single Phase Voltage Protector, Digital Meter RelayUS$ 3.12MOQ: 10 Units
-
Single Phase Over Voltage Under Voltage Protective Device With Digital Display RelayUS$ 3.12MOQ: 10 Units
-
Single Phase Over Voltage Under Voltage Protective Device With 2-Year WarrantyUS$ 3.12MOQ: 10 Units
Mounting Type
DIN Rail Mount
Phase Configuration
Single Phase
Rated Voltage
230V
Frequency
50Hz
Function
Over Voltage and Under Voltage Protection
Product Type
Compact Voltage Protector
Application
Electrical Panel, Industrial Control
Protection Mode
Automatic Trip and Reset
Operating Temperature Range
-10°C to +55°C (Customizable)
Housing Material
Flame Retardant Plastic
As a professional manufacturer specializing in electrical protection solutions, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents our Compact DIN Rail Mount Single Phase Over/Under Voltage Protector. Designed for 230V 50Hz systems, this device is engineered to provide reliable and precise protection for your valuable electrical equipment against damaging voltage fluctuations. With over a decade of experience and a commitment to quality underscored by our comprehensive management system certifications, we deliver products that ensure operational safety and continuity for our clients worldwide.
This compact protector is an essential safeguard for any electrical installation. It continuously monitors the supply voltage and automatically disconnects the load when the voltage exceeds or falls below preset safety thresholds, preventing potential damage to motors, compressors, HVAC systems, and other sensitive equipment. Its intelligent design allows for automatic reset once the voltage returns to a stable, safe range, minimizing downtime and manual intervention.
Key Features and Technical Advantages:
- Precision Monitoring: Utilizes advanced microprocessing technology for accurate real-time voltage measurement, ensuring fast and reliable response to anomalies.
- Compact DIN Rail Design: Its space-saving form factor allows for easy installation on standard DIN rails within control panels, cabinets, and distribution boards, optimizing panel layout.
- Wide Adjustable Range: Both the over-voltage and under-voltage trip points are user-adjustable, providing flexibility to match specific application requirements and local grid conditions.
- LED Status Indication: Clear visual indicators show power status and trip condition (normal, over-voltage, under-voltage), facilitating quick diagnostics.
- High Reliability: Built with robust components and subjected to rigorous testing, ensuring long-term stability and performance even in demanding industrial environments.
- Time-Delay Function: Incorporates an adjustable time delay for trip and reset actions, preventing nuisance tripping caused by short-term voltage sags or surges.
Detailed Technical Specifications:
| Parameter | Specification |
|---|---|
| Rated Operational Voltage (Ue) | 230V AC |
| Rated Frequency | 50Hz |
| Over-Voltage Trip Range | Adjustable (e.g., 250V - 280V) |
| Under-Voltage Trip Range | Adjustable (e.g., 180V - 210V) |
| Rated Insulation Voltage (Ui) | 400V |
| Rated Impulse Withstand Voltage (Uimp) | 4kV |
| Power Consumption | < 2VA |
| Contact Rating (Relay Output) | 5A, 250V AC |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Mounting | Standard 35mm DIN Rail |
| Housing Material | Flame Retardant Plastic (UL94 V-0) |
| Dimensions (L x W x H) | Approx. 70mm x 18mm x 65mm |
Benefits for Your Business:
- Equipment Longevity: Proactively prevents costly damage to connected appliances and machinery, extending their service life and reducing maintenance costs.
- Enhanced Safety: Mitigates fire risks associated with sustained over-voltage conditions, protecting both personnel and property.
- Operational Efficiency: The automatic reset feature ensures that equipment resumes operation quickly after a voltage event, minimizing production or service interruptions.
- Easy Integration: The DIN rail mounting and standard screw terminal connections make installation straightforward for electricians, saving on labor time.
- Versatile Application: Suitable for a wide range of settings including residential complexes, commercial buildings, workshops, telecom shelters, and industrial control panels.
Frequently Asked Questions (FAQ):
-
Q: What is the primary function of this voltage protector?
A: Its core function is to monitor the single-phase AC supply voltage (230V/50Hz) and automatically cut off power to the load if the voltage rises above (over-voltage) or falls below (under-voltage) the user-defined safe limits, thereby protecting connected equipment. -
Q: How do I set the trip points for over-voltage and under-voltage?
A: The device is equipped with potentiometers or DIP switches (model dependent) for adjusting the trip thresholds. Please refer to the product manual for detailed setting instructions based on your specific model. -
Q: Does it have a manual reset function, or is it fully automatic?
A: It typically features an automatic reset function after the line voltage stabilizes within the normal range for a preset time. Some models may also offer a manual reset option; please confirm the specific features when inquiring. -
Q: Can this protector be used in three-phase systems?
A: This specific model is designed for single-phase systems (Line & Neutral). For three-phase applications, we offer dedicated three-phase voltage monitoring relays. Please inquire for suitable models. -
Q: What is the response time when a voltage fault occurs?
A: The response time is very fast, typically within milliseconds for detection, plus any user-set time delay. This rapid action helps prevent damage from transient spikes or dips. -
Q: Is the relay output contact normally open (NO) or normally closed (NC)?
A: The output contact configuration (1NO/1NC or changeover) is available upon request. Standard models often come with a changeover (SPDT) contact for flexible wiring into control circuits. -
Q: What are the installation requirements?
A: Installation requires a standard 35mm DIN rail inside an enclosure. Connection is via screw terminals for the power supply (L, N) and the output relay contacts. It should be installed by a qualified electrician following local electrical codes. -
Q: Do you provide technical support or customization?
A: Yes, as a manufacturer, we offer comprehensive technical support. We can also discuss customization options such as different voltage ranges, specific trip delays, or special labeling to meet your project's unique needs.
Backed by Jinhua Dika's robust manufacturing capabilities and a quality management system aligned with international standards, this Compact DIN Rail Mount Voltage Protector represents a reliable and cost-effective solution for global markets. With an annual export value demonstrating our strong international presence and products shipped from major Chinese ports ensuring logistical efficiency, we are committed to being your trusted partner in electrical protection. Protect your investments and ensure system reliability – contact us today for pricing, detailed specifications, or to discuss your specific application requirements.
