As a dedicated manufacturer with over a decade of specialization in electrical protection solutions, Jinhua Dika Electrical Equipment Co., Ltd. is proud to introduce our Reliable Voltage Guardian for Residential HVAC Systems. Designed specifically for the demanding North American and global residential markets we serve, this single-phase protection device is engineered to provide a robust defense against voltage surges and transients that commonly threaten the longevity and efficiency of home heating, ventilation, and air conditioning systems. Our commitment to stringent quality management, reflected in our adherence to multiple international standards, ensures that every unit delivers consistent, reliable performance to safeguard your valuable HVAC investment.
Understanding that HVAC systems represent a significant home investment, our Voltage Guardian acts as a first line of defense. It intercepts damaging electrical surges from sources like utility switching, lightning-induced transients, or internal appliance cycling before they reach the sensitive control boards, compressors, and fan motors of your HVAC equipment. By preventing premature component failure, this protector helps avoid costly repair bills, reduces system downtime, and extends the operational life of the entire HVAC unit.
Core Technical Features & Specifications:
- Advanced Surge Suppression Technology: Utilizes robust Metal Oxide Varistor (MOV) technology combined with thermal protection fuses. This design ensures high energy absorption capacity and safe failure mode, disconnecting the unit from the circuit if it ever reaches its end of life, thereby maintaining system safety.
- Nanosecond Response Time: Reacts to voltage spikes in less than 25 nanoseconds, far faster than the surge can travel through your wiring to the HVAC equipment. This virtually instantaneous clamping action limits the let-through voltage to a safe level for protected devices.

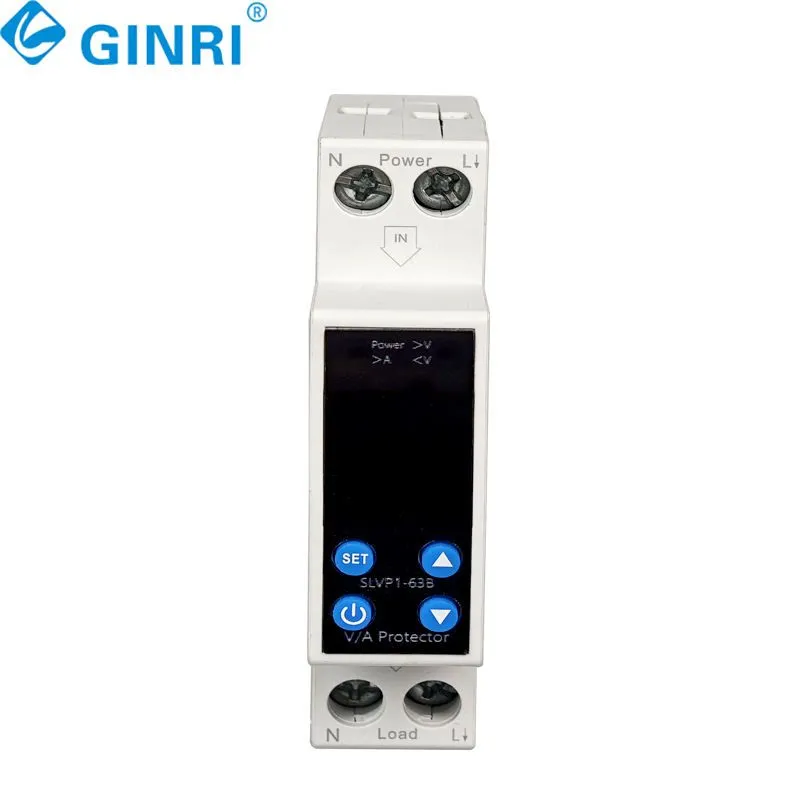

- Clear Operational Status: Features a bright, easy-to-read LED indicator. A green light confirms the device is actively protecting your system. If the internal protection components degrade due to a major surge event, the LED will extinguish, providing a clear visual alert for recommended replacement.

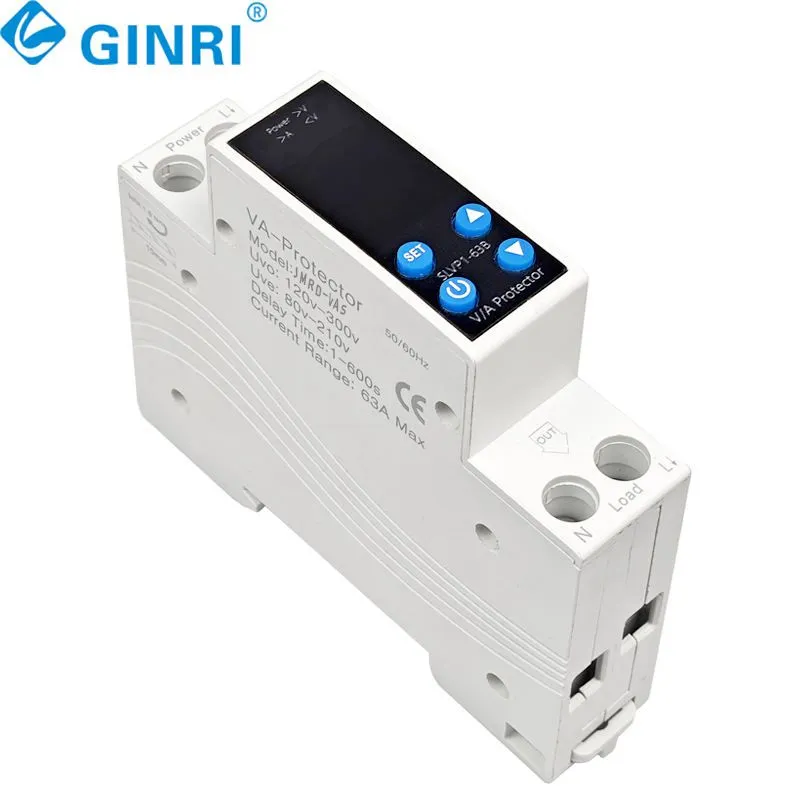

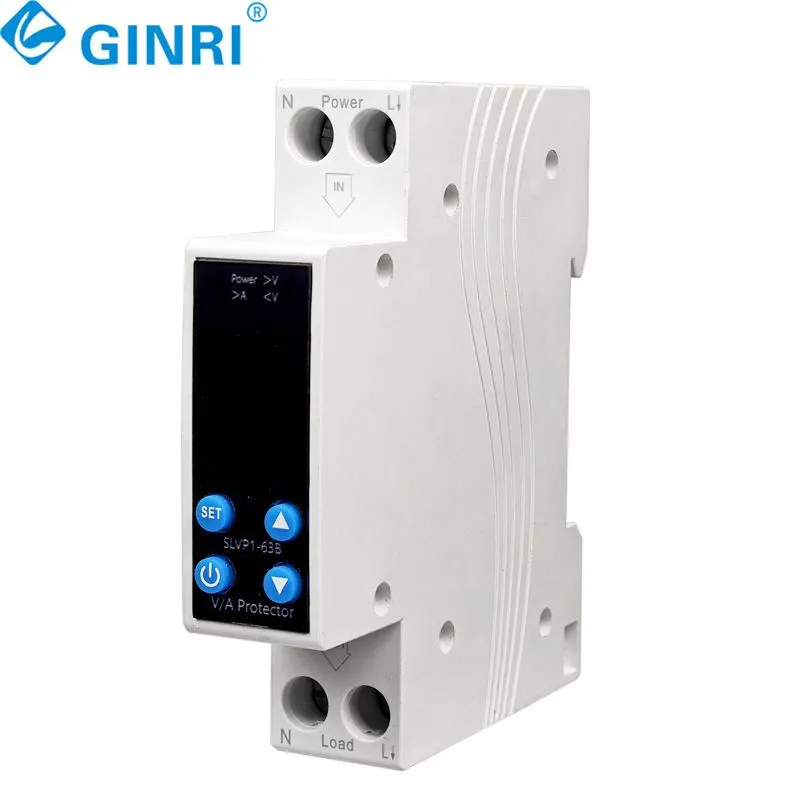

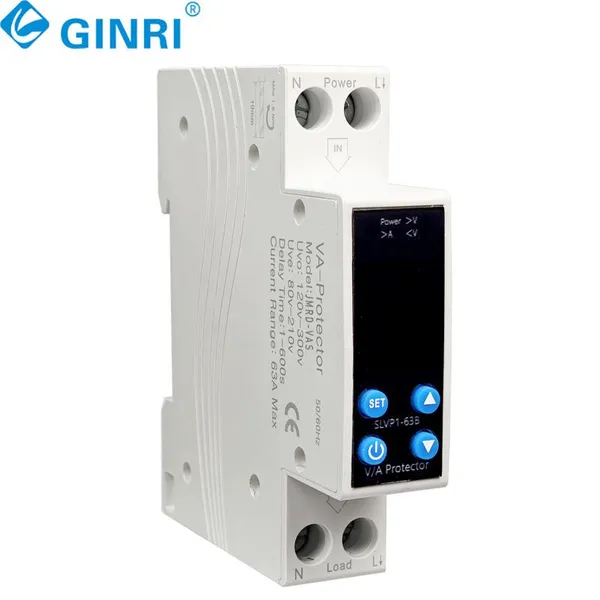

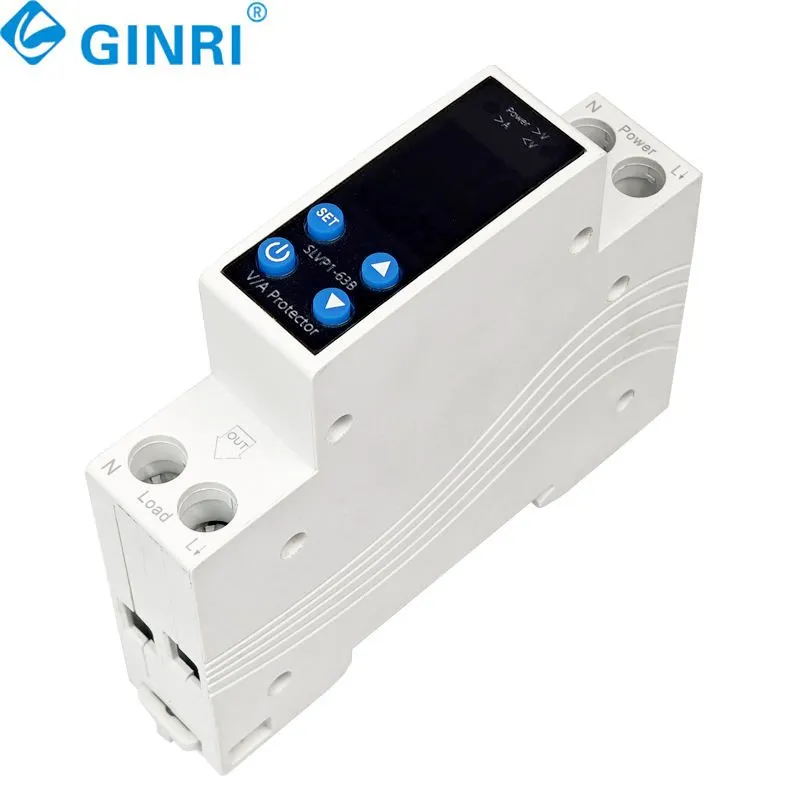

- Versatile and Secure Installation: Designed for easy integration into residential electrical panels or near HVAC units. It features a compact DIN rail mount design for neat panel installation or includes provisions for direct screw mounting. Secure, corrosion-resistant screw terminals ensure reliable, long-term connections.
- Built for Harsh Environments: The enclosure is constructed from high-grade, flame-retardant material (UL94 V-0 rated) and is engineered to operate reliably across a wide temperature range from -25°C to +70°C, ensuring performance in both hot attics and cold garages where HVAC equipment is often located.
The following table outlines key electrical specifications for common models. Custom voltage and current ratings are available upon request to meet specific regional grid standards or project requirements.
| Parameter | Specification | Details |
|---|---|---|
| Nominal Voltage (Un) | 120VAC / 240VAC | Standard models for North American residential systems. |
| Max Continuous Operating Voltage (Uc) | 150VAC / 300VAC | Provides a safety margin above nominal voltage. |
| Voltage Protection Level (Up) | Clamps surge voltage to a safe level for HVAC electronics. | |
| Nominal Discharge Current (In) | 10kA (8/20µs) | Capable of handling typical surge currents. |
| Max Discharge Current (Imax) | 20kA (8/20µs) | Maximum single surge handling capability. |
Tangible Benefits for Homeowners and HVAC Professionals:
- Reduced HVAC Repair Costs: Protects expensive control boards, variable-speed drives, and compressor modules from surge damage, which are among the costliest components to replace.
- Extended Equipment Lifespan: Mitigates the cumulative degrading effect of small, frequent voltage transients, helping the HVAC system achieve its full designed service life.
- Improved System Reliability: Minimizes unexpected breakdowns, especially during peak summer or winter seasons when HVAC systems are most critical.
- Enhanced Energy Efficiency: Surges can disrupt the precise operation of modern, high-efficiency HVAC systems. By providing clean power, the protector helps maintain optimal efficiency ratings.
- Peace of Mind: Offers homeowners and property managers assurance that a major cause of HVAC failure is being actively managed.
Trust in a product backed by a manufacturer with a proven global export footprint, serving markets from North America and Europe to Southeast Asia and Oceania. Jinhua Dika's operational framework is guided by a commitment to quality and consistency. Our product is supported by a comprehensive 3-year manufacturer's warranty, reflecting our confidence in its durability and performance. With shipment flexibility through major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo, we ensure reliable and timely delivery for bulk orders to distributors, HVAC contractors, and electrical wholesalers worldwide. Choose a protection solution built with precision and supported by experience—contact us today to discuss your requirements or to request samples for evaluation.
Frequently Asked Questions (FAQ)
-
Q: Is this device a substitute for a whole-house surge protector installed at the main electrical panel?
A: They serve complementary roles. A whole-house protector defends against large external surges at the service entrance. Our HVAC-specific Voltage Guardian provides targeted, secondary protection right at the HVAC equipment, offering an added layer of defense and clamping voltage specifically tuned for sensitive HVAC electronics. -
Q: Can a homeowner install this, or is an electrician required?
A: Installation involves working inside an electrical panel or disconnect box, which carries risk. We strongly recommend installation by a qualified and licensed electrician or HVAC technician to ensure it is wired correctly and safely according to all local electrical codes. -
Q: How do I know when the surge protector needs to be replaced?
A: The unit features a clear LED status indicator. A lit green LED means it is functional. If the LED is off, it indicates the internal protective components have sacrificed themselves to stop a major surge and the unit should be replaced to restore protection. -
Q: Will this protector work for both my air conditioner and furnace?
A: Yes, if they are powered from the same electrical circuit or branch. It protects the circuit it is installed on. For systems with separate disconnects or circuits for indoor and outdoor units, individual protectors may be recommended for comprehensive coverage. -
Q: What is the expected service life of the protector?
A: Under normal grid conditions with minor, infrequent surges, the device can last for many years. Its lifespan depends on the number and severity of surge events it encounters. The status LED provides the best guide for its operational health. -
Q: Do you offer models for different voltage standards, like 230V/50Hz used in other regions?
A> Absolutely. While our standard models are configured for common North American voltages, we regularly manufacture units for 230V, 400V, and other international standards. Please specify your local voltage and frequency requirements when inquiring. -
Q: Can this device protect against lightning strikes?
A> It is designed to handle induced surges from nearby lightning strikes (secondary effects). However, no device can guarantee protection against a direct lightning strike to the structure or power line. For areas with high lightning activity, a layered protection approach starting at the service entrance is essential. -
Q: What is the lead time for bulk OEM or ODM orders?
A> As a direct manufacturer, we offer flexible production scheduling. Typical lead times for customized bulk orders range from 4 to 6 weeks after final confirmation of specifications, with shipping arranged from the port most convenient for you.
