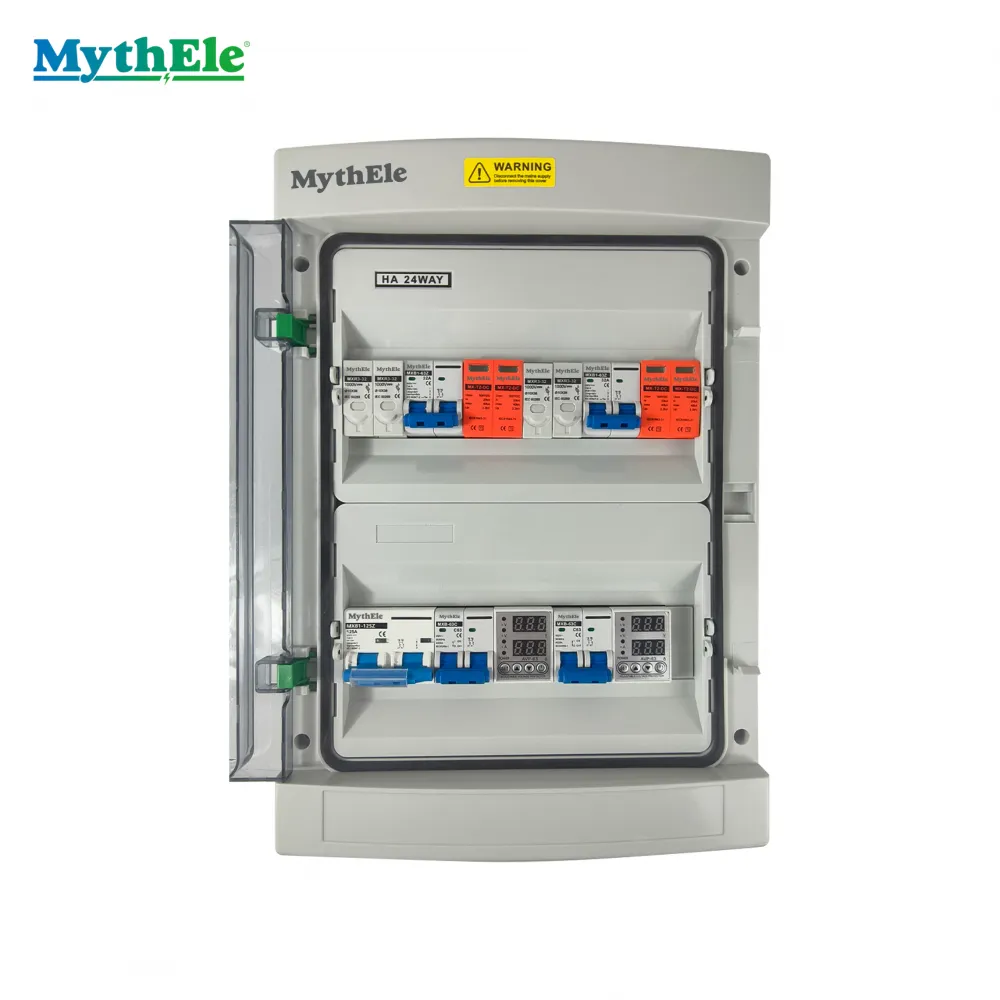

MythEle MXN 2-Input 2-Output Solar Combiner Box for Residential & Commercial PV
Product Spotlights
The MythEle MXN Solar Combiner Box offers reliable 2-input/2-output consolidation for residential and commercial PV systems. It features built-in overcurrent protection, a durable weather-resistant enclosure, and easy installation for enhanced safety and simplified management. Manufactured by an ISO-certified company with global export experience, it provides a cost-effective and scalable solution to protect and optimize your solar energy investment.
US$ 75
≥10 Units
Key Specifications
Get Latest Price
Certification:
ISO9001, Other, ISO14000
Brand:
MythEle
Model:
MXN
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MythEle MXN Customizable Solar Combiner Box With 2 DC Inputs & 2 AC/DC OutputsUS$ 75MOQ: 10 Units -
Customizable MythEle MXN Solar Combiner Box, 2-Input 2-Output DesignUS$ 75MOQ: 10 Units
-
Reliable Solar Combiner Box With Standard-Compliant Components & DocumentationUS$ 75MOQ: 10 Units
-
MythEle MXN Customizable AC&DC Combiner Box for 2-String Solar ArraysUS$ 75MOQ: 10 Units
-
MythEle MXN Solar Combiner Box With Surge Protection & IP65 EnclosureUS$ 75MOQ: 10 Units
Certification
ISO9001, Other, ISO14000
Brand
MythEle
Model
MXN
Configuration
2-Input, 2-Output
Application
Residential & Commercial PV Systems
Port of Shipment
Shanghai, Tianjin, Guangzhou, Ningbo
Main Markets
North America, Southeast Asia, Europe, Africa
Manufacturer
Jinhua Dika Electrical Equipment Co., Ltd.
As a professional manufacturer of electrical equipment, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents the MythEle MXN 2-Input 2-Output Solar Combiner Box. Designed for both residential and commercial photovoltaic (PV) installations, this combiner box is engineered to enhance the safety, efficiency, and manageability of your solar power system. With over a decade of experience in exporting high-quality electrical components to global markets, we understand the critical need for reliable and durable products in solar energy applications. The MythEle MXN combiner box consolidates multiple solar panel strings into a single output, simplifying wiring, protecting against overcurrent, and providing a centralized point for monitoring and maintenance.
Key Features and Technical Specifications:
- Streamlined Design: The 2-input, 2-output configuration is optimized for medium-sized PV arrays, allowing for efficient grouping of panel strings while maintaining system flexibility.
- Enhanced Safety: Incorporates built-in overcurrent protection devices (typically fuses or circuit breakers) for each input channel to safeguard your panels and downstream equipment from electrical faults.

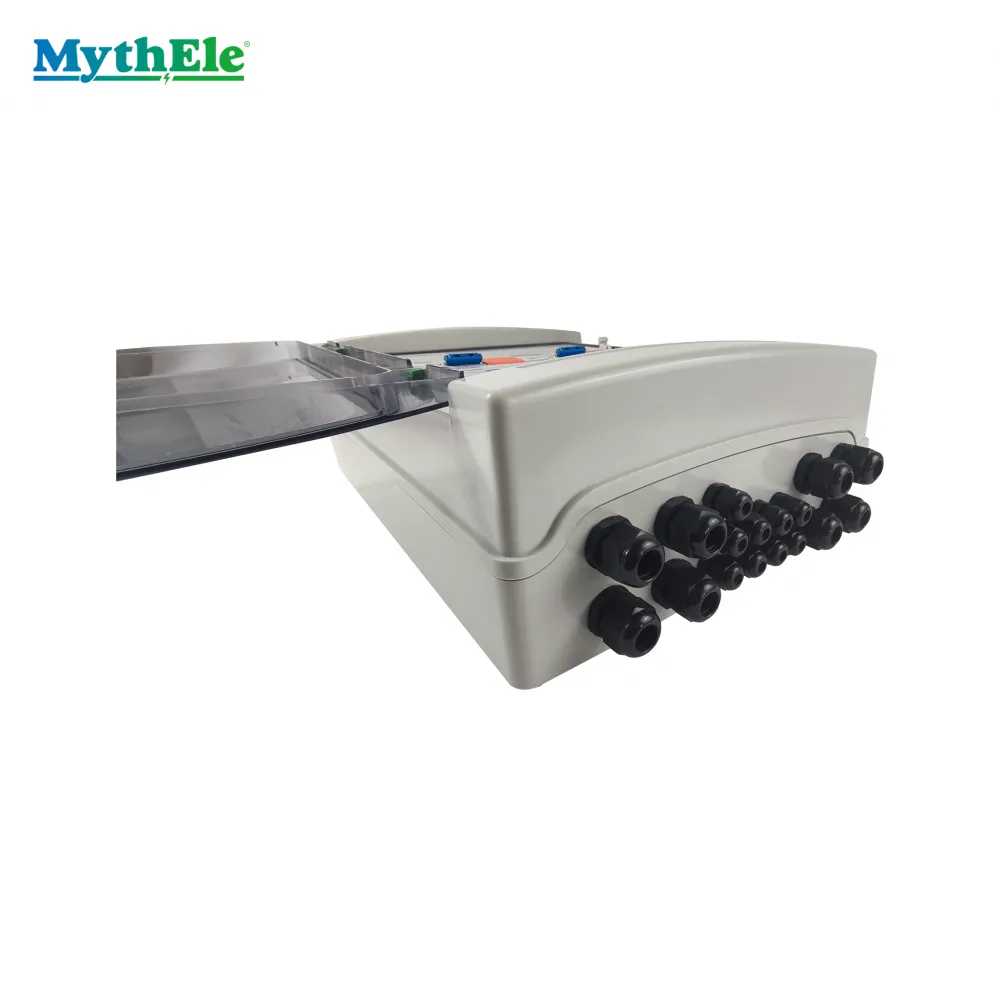

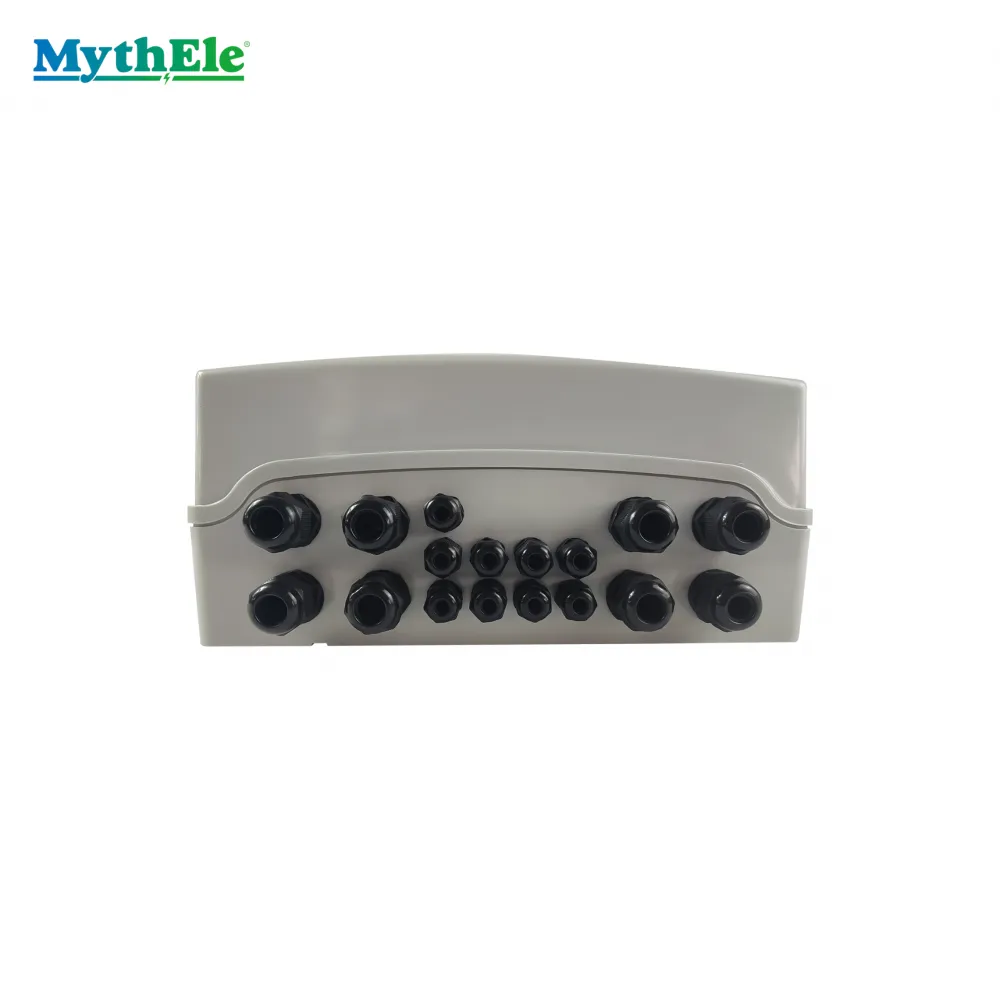

- Durable Construction: The enclosure is made from robust, weather-resistant materials (such as UV-stabilized plastic or coated metal) suitable for long-term outdoor exposure.

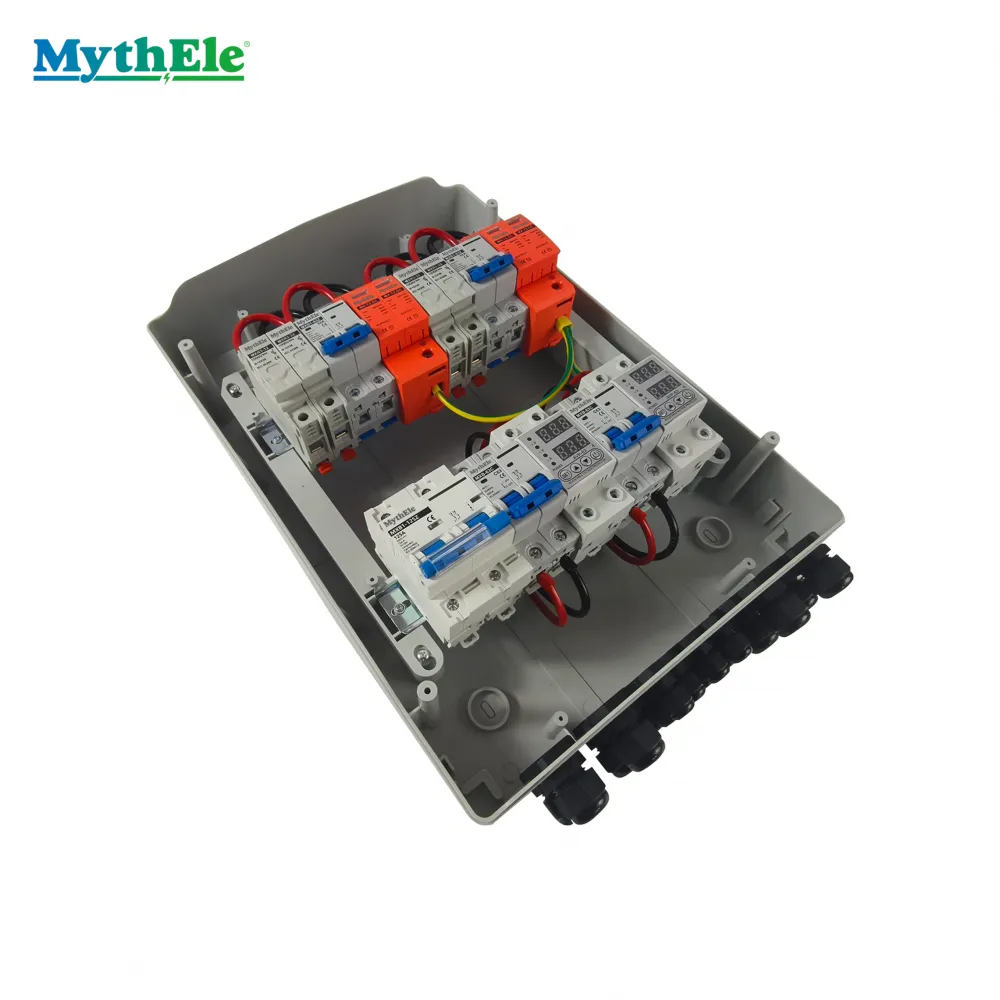

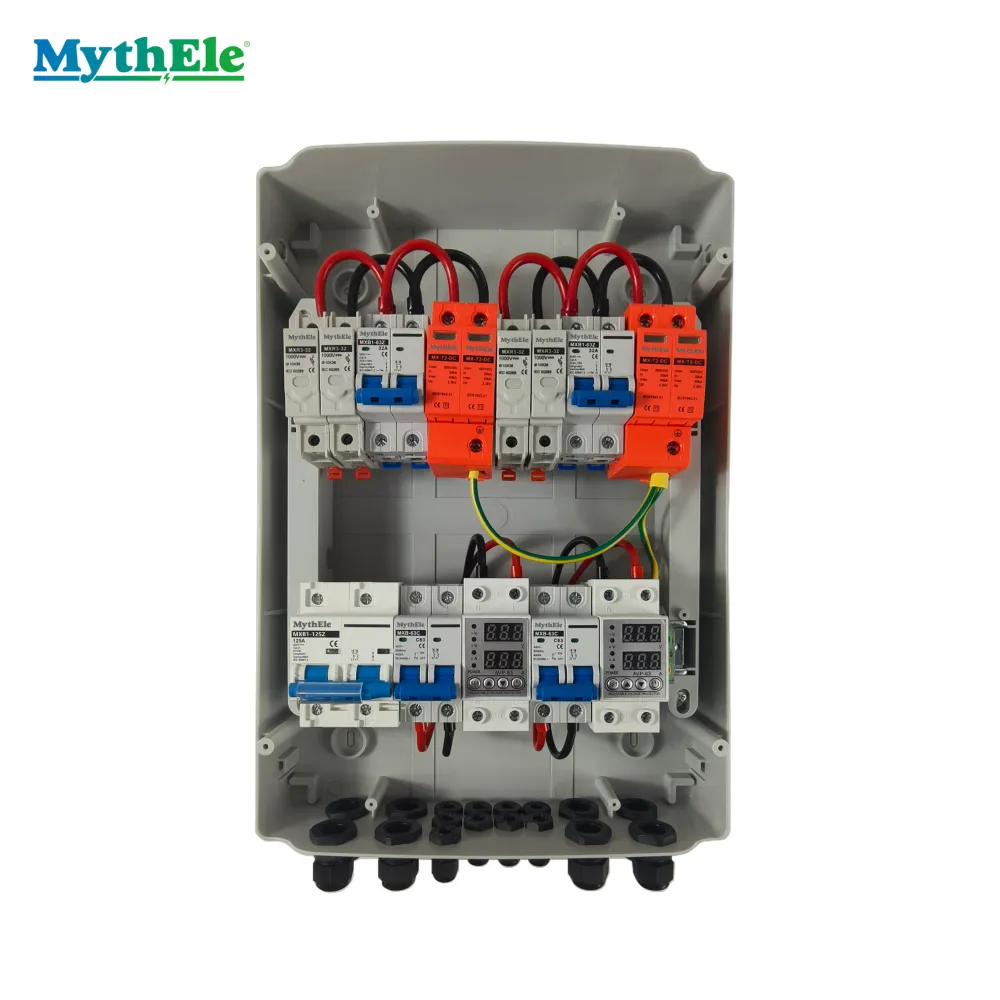

- Easy Installation & Maintenance: Features clearly labeled terminals, accessible wiring compartments, and optional monitoring ports (for voltage or current) to simplify setup and ongoing system checks.
- Compatibility: Designed to work seamlessly with a wide range of solar panels and inverters commonly used in residential and commercial settings.
Technical Parameters Table:
| Parameter | Specification |
| Model | MythEle MXN |
| Input Channels | 2 |
| Output Channels | 2 |
| Max Input Current per Channel | Customizable based on application (e.g., 15A, 20A) |
| Max System Voltage | Up to 1000VDC (typical for residential/commercial) |
| Enclosure Material | Weather-resistant polymer or metal |
| Protection Level (IP Rating) | IP65 or higher (available upon request) |
| Operating Temperature Range | -25°C to +60°C |
| Certifications | ISO9001, ISO14000, OHSAS18001 |
Advantages and Customer Benefits:
- System Reliability: By providing dedicated protection for each string, the combiner box prevents fault propagation, ensuring the continued operation of unaffected strings and maximizing overall system uptime.
- Cost-Effective Management: Consolidating wiring reduces material and labor costs during installation. The centralized design also lowers long-term maintenance expenses by making inspections and repairs more straightforward.
- Scalability and Flexibility: The 2-input/2-output design offers a balance between consolidation and modularity, making it suitable for systems that may expand or require reconfiguration.
- Improved Monitoring: Optional monitoring features allow for real-time performance data collection, enabling proactive maintenance and optimizing energy yield.
Jinhua Dika Electrical Equipment Co., Ltd. stands behind the MythEle MXN Solar Combiner Box with a solid foundation of quality and experience. Our company maintains certifications including ISO9001 for quality management and ISO14000 for environmental management systems, reflecting our commitment to producing reliable and responsibly manufactured products. With an annual export value ranging between US$1 Million and US$1.5 Million, we have successfully supplied our electrical equipment to diverse markets across North America, Southeast Asia, Europe, Africa, and beyond, earning trust from installers and system integrators worldwide. Our products are shipped from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring efficient logistics. The MythEle MXN combiner box embodies this expertise, offering a dependable solution that protects your investment and enhances the performance of your solar installation. We encourage you to contact us for detailed specifications, pricing, or to discuss custom requirements for your specific project.
Frequently Asked Questions (FAQ):
-
Q: What is the primary function of a solar combiner box?
A: A solar combiner box serves as a central connection point where the output cables from multiple strings of solar panels are combined. It provides overcurrent protection for each string and consolidates the wiring into a single or fewer output cables that connect to the inverter, simplifying the system layout and enhancing safety. -
Q: Is the MythEle MXN model suitable for both rooftop residential systems and larger commercial ground-mounted arrays?
A> Yes, the 2-input, 2-output configuration is versatile. For residential systems, it can combine two panel groups. For commercial projects, multiple MXN boxes can be used in parallel to manage larger arrays, making it a flexible component for various scales. -
Q: What kind of overcurrent protection does this box include?
A: The box is designed to house standard overcurrent protection devices like fuses or DC circuit breakers for each input channel. The specific type and rating can be customized or selected based on your system's requirements and local electrical codes. -
Q: Can the enclosure withstand harsh outdoor environments?
A> Absolutely. The enclosure is constructed from materials chosen for durability and weather resistance, such as high-grade polymers or coated metals. It typically features a high IP rating (like IP65) for protection against dust and water ingress, ensuring long-term performance in outdoor installations. -
Q: Are there options for integrating monitoring systems?
A: Yes, the combiner box can be configured with optional features to facilitate monitoring. This may include ports for connecting sensors to measure string voltage or current, allowing for integration with broader PV monitoring platforms. -
Q: What certifications does this product carry, and are they relevant for my market?
A: The product is manufactured under a quality management system certified to ISO9001. It may also conform to other international standards like ISO14000 and OHSAS18001. While it may not carry specific regional marks like UL or CE unless specified, our ISO certifications ensure a consistent, high-quality production process suitable for global markets. -
Q: How does using a combiner box impact the overall efficiency of my PV system?
A: A combiner box itself does not directly convert energy, so it doesn't negatively impact efficiency. Its role is to organize and protect the wiring. Proper use can prevent losses due to faults and makes maintenance easier, indirectly supporting sustained high system performance. -
Q: What is the typical delivery time, and which ports do you ship from?
A: As an experienced exporter, we ship from major Chinese ports including Shanghai, Tianjin, Guangzhou, and Ningbo. Delivery times vary based on destination and order volume, but we strive to ensure efficient logistics to meet project timelines.
