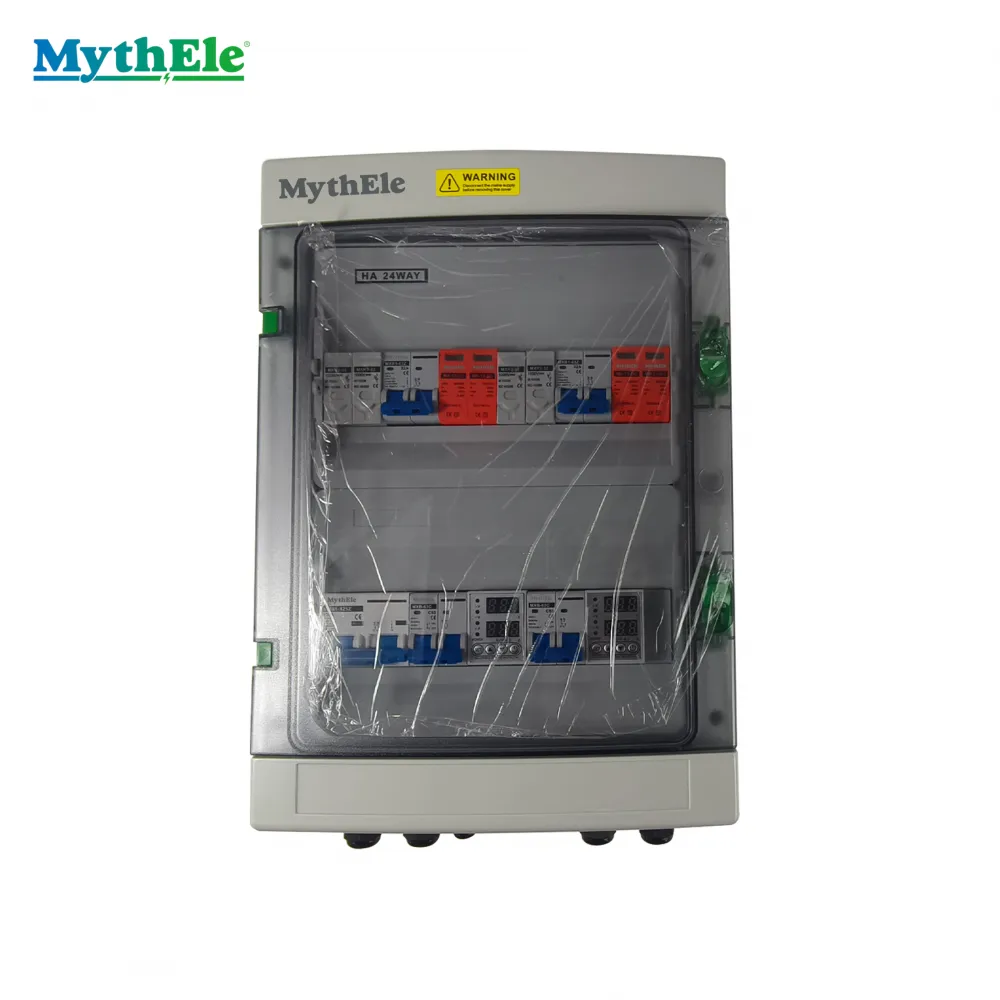

As a leading manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing high-quality, reliable electrical solutions for the global solar energy market. Our Reliable Solar Combiner Box is engineered with precision, incorporating standard-compliant components and comprehensive documentation to ensure seamless integration, safety, and long-term performance in your photovoltaic (PV) systems. We understand that the foundation of a successful solar installation lies in the reliability of every component, which is why our combiner boxes are designed to offer unmatched durability and peace of mind, backed by our commitment to stringent manufacturing standards and a proven track record of serving diverse international markets.
This combiner box serves as a critical junction point in solar arrays, consolidating the output from multiple PV strings into a single DC output for the inverter. Its robust construction and intelligent design address the core needs of system integrators and installers, focusing on safety, ease of installation, and maintenance. Below are the key features and technical specifications that set our product apart:
- Robust and Weatherproof Enclosure: Constructed from high-grade, UV-resistant, and flame-retardant engineering plastics, the box is built to withstand harsh environmental conditions, including extreme temperatures, moisture, and direct sunlight. Its IP65 rating guarantees protection against dust ingress and water jets, making it ideal for outdoor installation.
- Standard-Compliant Internal Components: Every component inside the box, from circuit breakers and fuses to surge protection devices (SPD) and terminals, is selected from reputable suppliers and complies with international electrical standards (e.g., IEC, UL where applicable). This ensures compatibility, safety, and reliability.
- Enhanced Safety Features: Integrated overcurrent protection for each string prevents damage from short circuits or overloads. Optional DC isolators allow for safe disconnection during maintenance. Transparent covers often allow for visual inspection of status indicators without opening the box.
- Streamlined Installation and Documentation: The box features a clear, logical layout with ample wiring space and standardized cable entries (e.g., PG glands). It comes with complete documentation, including detailed wiring diagrams, datasheets for all components, and installation manuals, significantly reducing commissioning time and potential errors.
- Scalable and Flexible Design: Available in various configurations to accommodate different numbers of input strings (e.g., 4-in-1, 6-in-1, 8-in-1, 12-in-1), allowing for customization based on project scale. Options for monitoring via current sensors or data loggers are available upon request.
Here is a summary of typical technical specifications:
| Parameter | Specification |
| Enclosure Material | UV-resistant, Flame-retardant Engineering Plastic |
| Ingress Protection (IP) Rating | IP65 |
| Maximum System Voltage (DC) | Up to 1000V / 1500V (Customizable) |
| Rated Current per String | 10A, 15A, 20A, 25A (Selectable) |
| Number of Input Strings | 4, 6, 8, 12, 16 (Standard models) |
| Surge Protection | Optional Type II SPD |
| Operating Temperature | -25°C to +60°C |
The primary advantage for our clients is risk reduction. By using a combiner box with verified, standard-compliant parts and clear documentation, you minimize the chances of system failure, safety hazards, and costly downtime. It simplifies the procurement and quality assurance process, as you receive a fully assembled, tested unit ready for installation. Furthermore, the durable design translates to lower long-term maintenance costs and a longer service life for your overall PV investment.
Trust is paramount in B2B transactions. Jinhua Dika Electrical is a established manufacturer with a dedicated team of 11-50 professionals and an annual export value ranging between US$1 Million and US$1.5 Million, demonstrating our capacity and global reach. Our products are shipped from major Chinese ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring efficient logistics to key markets across North and South America, Europe, Asia, Africa, and Oceania. Our operational framework is guided by a commitment to quality management and social responsibility, as reflected in our adherence to recognized standards. Choosing our Reliable Solar Combiner Box means partnering with a supplier focused on delivering consistent quality, comprehensive support, and components that form the dependable backbone of your solar energy projects. Contact us today to discuss your specific requirements and receive a detailed quotation.
Frequently Asked Questions (FAQ)
Q1: What does "standard-compliant components" mean for this combiner box?
A1: It means all internal electrical components (breakers, fuses, terminals, etc.) are sourced from certified manufacturers and are designed to meet relevant international performance and safety standards, such as IEC or UL guidelines. This ensures reliability, safety, and often simplifies system approval processes.
Q2: Is the documentation provided in English?
A2: Yes, comprehensive documentation including wiring diagrams, installation manuals, and component datasheets is provided in English as standard. Documentation in other languages may be available upon request for large orders.
Q3: Can this combiner box be used for both residential and commercial solar installations?
A3: Absolutely. We offer models with different numbers of input strings and current ratings. Smaller configurations (e.g., 4-8 strings) are suitable for residential systems, while larger models (e.g., 12-16 strings or more) are designed for commercial and industrial-scale arrays.
Q4: What is the warranty period for this product?
A4: We offer a standard warranty on our combiner boxes. The specific warranty period depends on the model and configuration. Please contact our sales team for detailed warranty terms applicable to your order.
Q5: Do you provide custom configurations, such as integrated monitoring?
A5: Yes, we offer customization services. Features like integrated current monitoring sensors, data logger compartments, or specific branding can be accommodated. Please discuss your project needs with us for a tailored solution.
Q6: How does the IP65 rating benefit the installation?
A6: The IP65 rating signifies that the enclosure is dust-tight and protected against water jets from any direction. This allows for safe and reliable outdoor installation on mounting structures without the need for an additional protective shelter, even in rainy or dusty environments.
Q7: What surge protection options are available?
A7: Our combiner boxes can be equipped with optional Type II Surge Protection Devices (SPDs) to protect your PV strings and downstream equipment from voltage spikes caused by lightning or grid disturbances. The specific SPD rating can be selected based on your site's requirements.
Q8: What is the typical lead time for an order?
A8: Lead times vary based on order quantity and customization. For standard models, we generally maintain stock for prompt shipment. Our sales team can provide an accurate delivery schedule once your requirements are confirmed.
