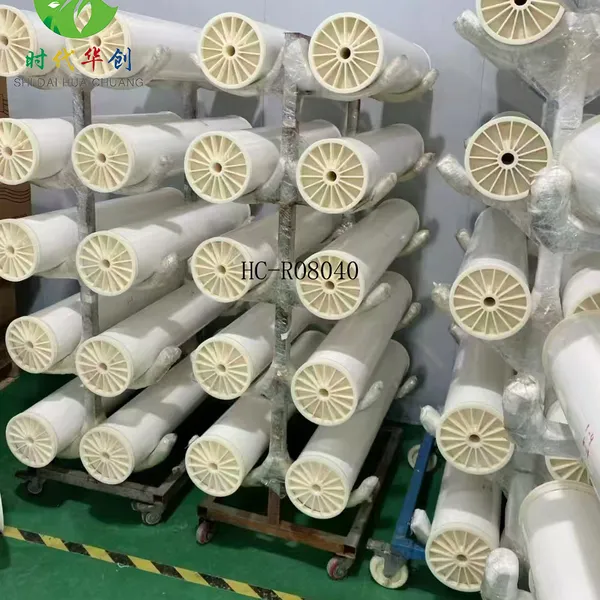

Reverse Osmosis Membrane
Product Spotlights
The ULP series is polyamide reverse osmosis membrane elements developed by Huachuang Company, designed for low-salinity water sources such as tap water, groundwater or surface water. They feature low operating pressure, high permeate flow, and excellent desalination performance. ULP series membrane elements can achieve the same permeate flow and salt rejection as conventional membrane elements under ultra-low operating pressure conditions.
Negotiable
MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other
Usage:
Industrial
Method:
Physical Treatment
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
20 days
Related Products
-
LP Series Reverse Osmosis MembraneNegotiableMOQ: 20 Pieces -
Surmerged Ultrafiltration MembraneUS$ 15 - 17MOQ: 50 Square Meters
-
Reinforced PVDF Hollow Fiber Material MBR Membrane Retrofit for Mitsubishi Style MBR MembraneUS$ 12 - 17MOQ: 500 Square Meters
-
Submerged Ultrafiltration Membrane Retrofit for Zeeweed 500D for Industrial Wastewater SystemNegotiableMOQ: 100 Pieces
-
UF Membrane Retrofit for Zeeweed 700B-6100 for Industrial Wastewater SystemNegotiableMOQ: 20 Pieces
Type
Other
Usage
Industrial
Method
Physical Treatment
Specification
HC-UPL-8040-440
Trademark
Huachuang
Origin
China
General information:
Item |
Value |
Remark |
Active Surface Area(㎡) |
440ft²/41㎡ |
|
Inlet channel width |
28mil |
|
Permeate flow |
12000gdp/45.47m³/day |
|
Stable salt rejection |
99.4% |
|
Minimum salt rejection |
99.3% |
Operation:
Item |
Value |
Remark |
Maximum feed water temperature |
113°F (45°C) |
|
Maximum pressure drop per element |
15 psi (0.1 MPa) |
|
Feed water pH range during chemical cleaning |
2~12 |
|
Maximum feed water SDI₁₅ |
5 |
|
operating pressure |
145 psi ~159.5 psi (1.0Mpa-1.1Mpa) |
|
Feed water pH range for continuous operation |
3~10 |
|
Maximum feed flow rate |
75 gpm (17 m³/h) |
|
Feed water free chlorine concentration |
