Help CenterPA66 Nylon Cable Tie 3.6mm Wide x 150mm Long for Industrial Wiring
Product Spotlights
Related Products
-
Customizable Self-Locking Nylon Cable Ties 3.6mm x 150mm for HVAC InstallationUS$ 0.15 - 0.3MOQ: 15000 Units -
Self-Locking Nylon Cable Tie 3.6mm x 150mm for Secure Wire BundlingUS$ 0.15 - 0.3MOQ: 15000 Units
-
Flame-Retardant Nylon Cable Ties 3.6mm Width x 150mm LengthUS$ 0.15 - 0.3MOQ: 15000 Units
-
3.6mm x 150mm UV-Resistant Nylon Cable Tie With Self-Locking HeadUS$ 0.15 - 0.3MOQ: 15000 Units
-
Bulk Nylon Cable Ties 3.6*150mm for Data Center Cable ManagementUS$ 0.15 - 0.3MOQ: 15000 Units
As a professional manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in producing high-quality, reliable fastening solutions for the global industrial market. Our PA66 Nylon Cable Ties, measuring 3.6mm wide and 150mm long, are engineered to provide superior performance in demanding wiring and bundling applications. We combine advanced manufacturing techniques with stringent quality control, backed by our comprehensive management system certifications, to deliver products that ensure secure, long-lasting organization for your critical electrical and mechanical assemblies.
This specific cable tie is designed for industrial-grade durability and reliability. Constructed from premium PA66 (Nylon 66) material, it offers an excellent balance of strength, flexibility, and resistance to environmental factors. The 3.6mm width provides a robust cross-section for high tensile strength, while the 150mm length is versatile for bundling cables and components of various diameters. The one-piece, self-locking design ensures quick, tool-free installation and a permanent, vibration-resistant hold.
Key Features & Technical Advantages:
- Premium Material: Made from PA66 Nylon, offering high tensile strength, excellent impact resistance, and good chemical stability.
- Wide Temperature Range: Performs reliably in temperatures from -40°C to +85°C, suitable for both indoor and outdoor industrial environments.
- Secure Locking Mechanism: Features a stainless steel pawl embedded in the head for a strong, ratcheting lock that resists back-out and vibration.
- Flame Retardant: Complies with UL94 V-2 rating, providing a degree of flame retardancy for enhanced safety in electrical applications.

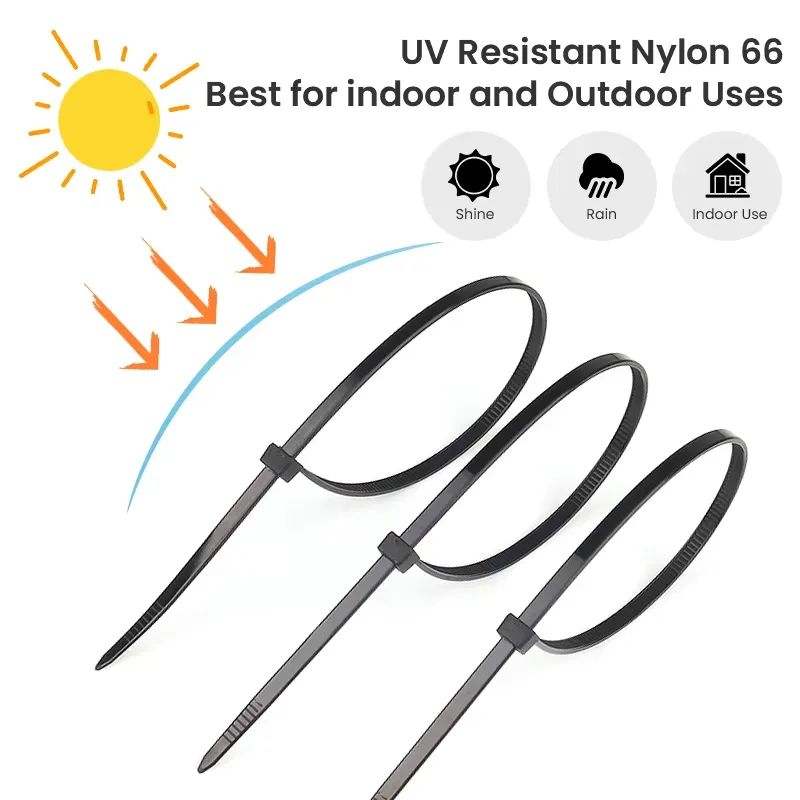

- UV Resistant: The natural nylon material has inherent UV resistance, and black ties offer additional protection for prolonged outdoor use.
- Corrosion & Moisture Resistant: Nylon is inherently resistant to moisture, mildew, and many common chemicals, ensuring longevity.
Detailed Technical Specifications:
| Attribute | Specification |
| Material | PA66 (Nylon 66) |
| Nominal Width | 3.6 mm |
| Nominal Length | 150 mm |
| Minimum Loop Tensile Strength | 18 kg (40 lbs) |
| Head Dimensions (LxW) | Approx. 6.5mm x 3.6mm |
| Operating Temperature | -40°C to +85°C |
| Flammability Rating | UL94 V-2 |
| Standard Color | Natural (White), Black |
Benefits for Your Business:
- Enhanced Reliability: Secure bundling prevents cable damage and connection failures, reducing maintenance costs and downtime.
- Improved Safety: Organized wiring minimizes trip hazards and the risk of short circuits, contributing to a safer workplace.
- Cost-Effective Solution: Durable construction means fewer replacements over time, offering a strong return on investment.
- Versatile Application: Ideal for control panels, machinery wiring, automotive harnesses, data centers, and construction sites.
- Efficient Installation: The simple design allows for fast installation without specialized tools, saving labor time.
Trust in the quality and consistency of Jinhua Dika. With an annual export value reflecting our global reach across North America, Europe, Asia, and beyond, and a manufacturing process guided by recognized standards, we are a reliable partner for your component needs. Our strategic location with access to major ports like Shanghai and Ningbo ensures efficient logistics. Choose our PA66 Nylon Cable Ties for a combination of proven material performance, precise manufacturing, and the support of an established supplier committed to meeting industrial demands.
Frequently Asked Questions (FAQ):
-
What is the main advantage of PA66 material over other plastics for cable ties?
PA66 Nylon offers a superior combination of tensile strength, flexibility, and resistance to impact, abrasion, and chemicals compared to many other polymers, making it the preferred choice for demanding industrial applications. -
Can these cable ties be used outdoors?
Yes. The PA66 material provides good UV and weather resistance. For extended outdoor exposure, the black color option is recommended as it contains carbon black for enhanced UV stabilization. -
What is the maximum bundle diameter this 150mm long tie can secure?
As a general rule, the effective bundling diameter is approximately 1/3 of the tie's total length. Therefore, this 150mm tie is suitable for bundles up to about 50mm (2 inches) in diameter, depending on the required overlap in the head. -
Are these ties reusable?
Standard nylon cable ties are designed for permanent, one-time use. The locking mechanism is typically not releasable without cutting the tie. For reusable applications, please inquire about releasable tie options. -
Do you offer custom colors or printing/logos on the ties?
Yes, custom color matching and imprinting of logos, part numbers, or barcodes are available upon request for larger quantity orders. Please contact us to discuss your specific requirements. -
What packaging options are available?
We offer various packaging solutions including bulk bags of 1000 pieces, boxes, or custom packaging per your specifications to facilitate handling and inventory management. -
How does the UL94 V-2 rating benefit my application?
The UL94 V-2 rating indicates the material self-extinguishes within a specified time after the flame is removed in a vertical burn test. This provides an added layer of safety in electrical installations by reducing flame propagation risk. -
What is your minimum order quantity (MOQ)?
Our standard MOQ is one carton. However, we are flexible and willing to discuss sample orders or trial quantities to help you evaluate our product quality.
