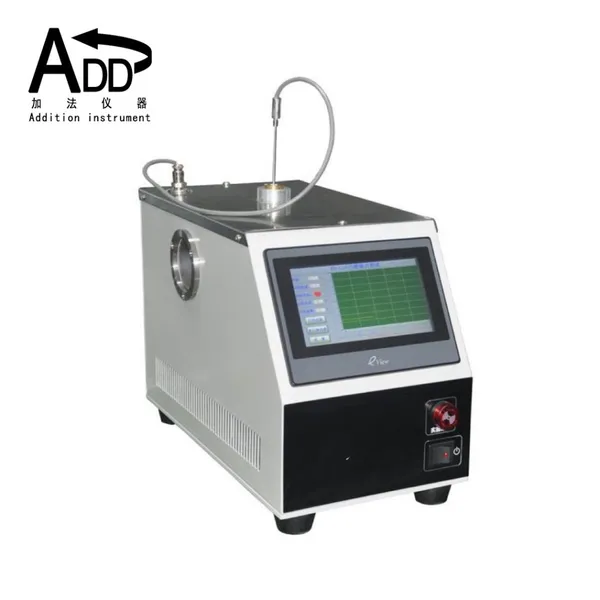

Automatic Dropping Point of Waxes Tester
ASTM D3954
Product Model: JF0800Z
Product Introduction
This instrument is suitable for detecting the dropping point of waxes. The instrument uses touch LCD screen automatic control, automatic results, easy to operate. This instrument is suitable for testing paraffin waxes, microcrystalline wax, polyethylene wax, blended wax and natural wax, including all non-liquid wax drops.
The test principle is that the sample is placed in the cup and heated in the air at a constant rate. When the sample suspended at the bottom of the cup flows down 19mm, the temperature when the photoelectric detection beam is interrupted is the drop point of the sample.
Technical Parameter
1. Applicable standard: ASTM D3954, SH/T0800
2. Temperature control range: 25℃～300℃
3. Temperature control accuracy: 0.1℃
4. Detection method: Automatic test, automatic result
5. Display mode: LCD touch screen display
6. Cooling method: Forced air cooling
7. Heating method: Heat pipe heating
8. Working unit: 1 unit
9. Working power supply: AC220,240V 50,60HZ
10. Instrument size: 550*300*600mm
11. Net weight: 30KG
12. HS Code: 9027899090
Main Feature
1. Touch LCD control, can operate directly on LCD screen.
2. Metal bath heating, quick heating and easy operation.
3. Automatically detect the dropping point of the sample, no need for a special person to monitor the experimental process, and automatically notify after the end of the experiment.
4. High-precision sensor, which can capture the process of dropping and obtain experimental results in time.
5. Using the touch screen display, the reading is clear and the operation is convenient.
6. Use high-precision PT100 temperature sensor, with high measurement accuracy, ±0.1°C.
7. With over temperature limit function.
