Why Your A0 Blueprints Keep Getting Damaged
If you work in an architecture firm, you already know the problem. A0 drawings (841×1189mm) don’t fit in standard filing cabinets. Rolling them up saves space but creates creases. Leaving them flat on desks eats workspace and invites coffee spills. Vertical racks seem like a good idea until the paper edges curl and the drawings become hard to read.

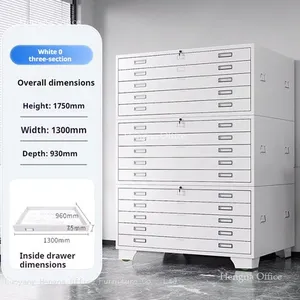

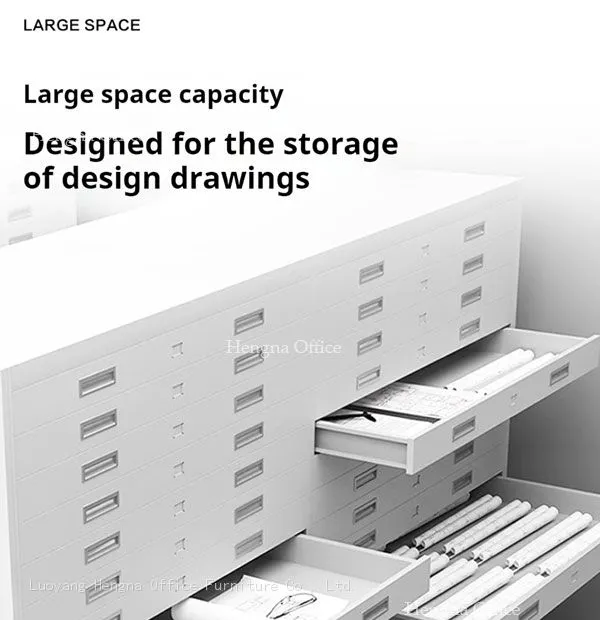

This A0 flat file cabinet solves the storage problem properly. Five full-extension drawers, each with 1205×850×75mm interior clearance, hold 80-100 sheets of standard-weight paper. Three sections stack to 1750mm tall, giving you 15 drawers in under 1.3 square meters of floor space. That beats spreading drawings across every flat surface in the office.
A0 Flat File Cabinet — Key Specifications
| Specification | Detail |
|---|---|
| Drawer interior | 1205 × 850 × 75mm |
| Single section exterior | H550 × W1300 × D930mm |

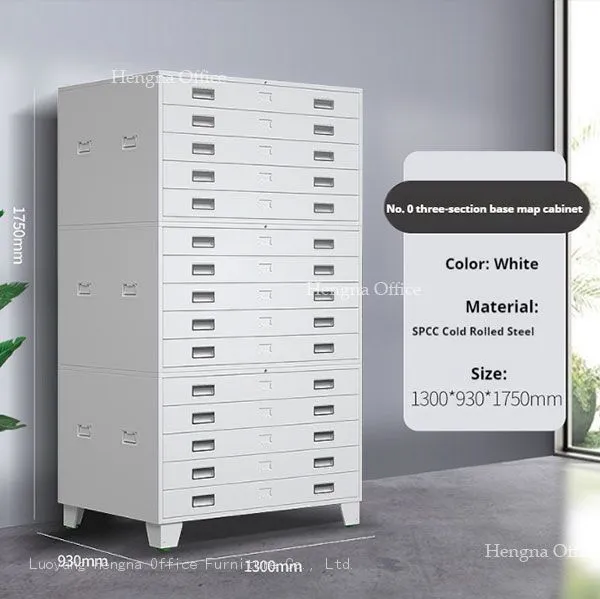

| 3-section stack height | 1750mm |
| Drawers per section | 5 |
| Drawer load capacity | ~15kg per drawer |
| Single section weight | ~48kg |
| Material | SPCC cold-rolled steel |
| Surface | Electrostatic powder coating (matte white) |
| Lock | Gang lock (1 key for 5 drawers) |
| Casters | 4 swivel wheels, 2 with brakes |
| Label slots | 1 per drawer front |
The drawer interior is 1205mm wide — about 60mm wider than A0 paper on each side. That gap matters. It gives your fingers room to grab the drawing without pinching or bending the corners.
How to Organize 5 Drawers for Architecture Projects
Most firms use a consistent system across their flat file cabinets. Here’s what works:
Top 2 drawers: Current project — latest revision drawings
Middle drawer: Change orders, review submissions, redlines
Bottom 2 drawers: Archived drawings from completed projects
Each drawer has a label slot on the front. Slide in a card with the project number and phase. No more opening drawers one by one to find what you need.

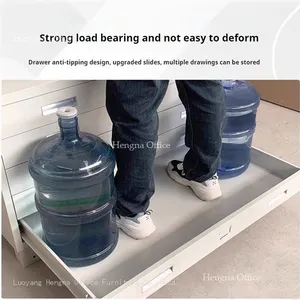

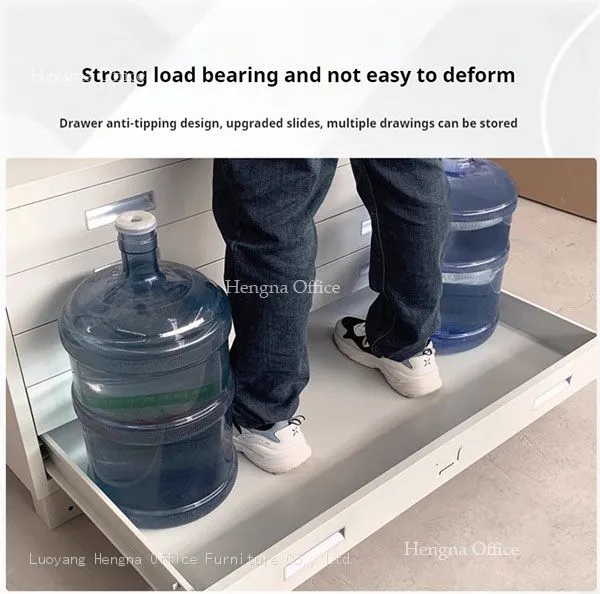

The full-extension slides keep drawers level when pulled out, even at full load. Cheaper cabinets use lighter slides that tilt backward under weight — drawings slide out the back, scatter on the floor, and you spend 30 minutes re-sorting.
Lockable Wheels — Why Casters Matter in an Architecture Firm
This cabinet sits on 4 swivel casters (2 with brakes). That’s not a gimmick.
Client meetings: roll the cabinet to the conference room, pull out the relevant drawings for the client, roll it back when you’re done. No carrying rolled-up drawings down the hallway.
Shared workstations: in open-plan offices, 2-3 designers can share one cabinet. Whoever needs it rolls it to their desk. When they’re done, it goes back against the wall.
The brakes: wax-polished office floors are slippery. Without brakes, someone leans on the cabinet and it rolls away. The 2 locking casters keep it stationary when you want it stationary.
Fixed-base cabinets are fine if your layout never changes. But architecture firms reconfigure their spaces constantly for different project teams. A mobile flat file cabinet adapts to your workflow instead of dictating it.

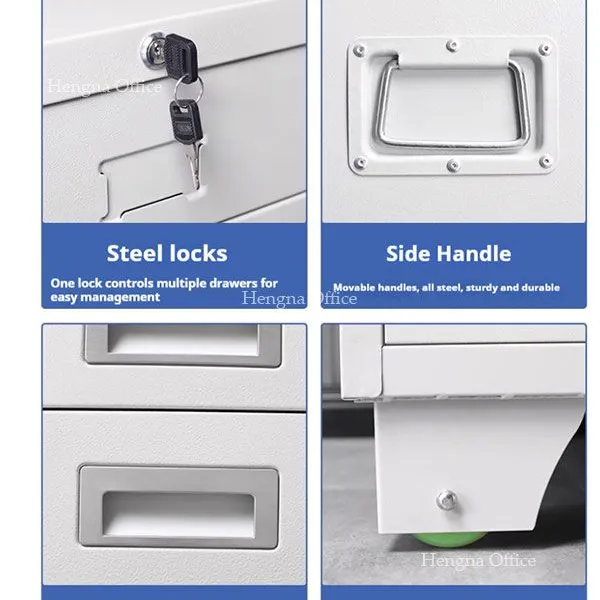

Gang Lock vs Individual Locks
One key operates all 5 drawers. Turn once to lock, once to unlock. At the end of the day, lock up and hand the key to the office manager. In the morning, unlock and get to work.
Individual drawer locks require 5 turns to lock, 5 turns to unlock. That’s 10 extra actions every single day. It adds up, and people start skipping it. If your firm needs different people accessing different drawers, we can customize with individual lock cylinders.
Steel Construction and Surface Finish
SPCC cold-rolled steel, 0.8mm standard thickness. Electrostatic powder coating, not spray paint. Powder coating is harder, resists scratching, and won’t chip when cabinets bump against each other during rearrangement.
Matte white finish. Not gloss white — gloss reflects overhead fluorescent lights and creates glare. Matte white is the standard in architecture firms and archives for a reason.
Need a heavier build? 1.0mm thickness is available for workshops and high-traffic environments. It adds about 15% to the weight and cost, but the extra rigidity is worth it if the cabinet gets moved daily.
Moving the Cabinet Through Doorways
Single section: H550 × W1300 × D930mm. At 1.3 meters wide, it fits through standard office doors. If your doorways are narrower, the sections separate — carry them in one at a time (each is only 550mm tall) and stack them in place. The casters come with a locking pin. Remove the pin and the caster assembly detaches, reducing height by another 50mm for low thresholds.
Who Should Buy This A0 Flat File Cabinet
Architecture firms storing active project drawings and competition entries
Engineering companies managing structural, mechanical, and electrical plans
Urban planning offices archiving city maps and zoning drawings
University architecture schools storing student thesis drawings
Advertising agencies keeping large-format print proofs
Libraries and archives preserving historical maps and posters
Who Should NOT Buy This
Storing A3 or A4 documents — the drawers are too wide, you’re paying for space you won’t use
Fire-rated storage requirements — this is a standard steel cabinet, not a fireproof safe
Heavy tool or parts storage — drawers are rated for 15kg of paper, not hardware
FAQ
Does this cabinet hold A1 drawings too?
Yes. A1 paper (594×841mm) fits with plenty of room. The drawers are sized for A0, so smaller formats work fine — you just have extra space around the sheets.
Can I stack more than 3 sections?
Technically yes, but we don’t recommend more than 3 for stability. At 3 sections (1750mm), the cabinet is already at a comfortable working height. Going higher makes the top drawers hard to reach and the whole unit less stable on casters.
How many drawings fit in one drawer?
Approximately 80-100 sheets of standard 80gsm paper. Heavier stock (like tracing paper or vellum) takes up more space — figure 40-60 sheets per drawer.
Is assembly required?
Minimal. The sections stack with alignment pins. The casters bolt onto the bottom section. Allow about 15 minutes with a screwdriver. No special tools.
Can I get different colors?
Yes. Matte white is standard, but custom RAL colors are available for orders of 10+ sections. Common choices include light grey (RAL 7035) and signal blue (RAL 5005).
Do the drawers have dividers?
Standard configuration does not include dividers, but adjustable partition brackets can be added. They slide into slots inside the drawer, letting you separate different drawing sets within the same drawer.
Ordering Information
Minimum order: 1 section (sample orders welcome). FOB price: $200-350/section depending on quantity and customization. Lead time: 15-20 days for samples, 30-40 days for production. 40HQ container: 50-60 sections. Customizable: color, lock type, drawer count, label slot design.
Contact us for a quotation or product catalog.
