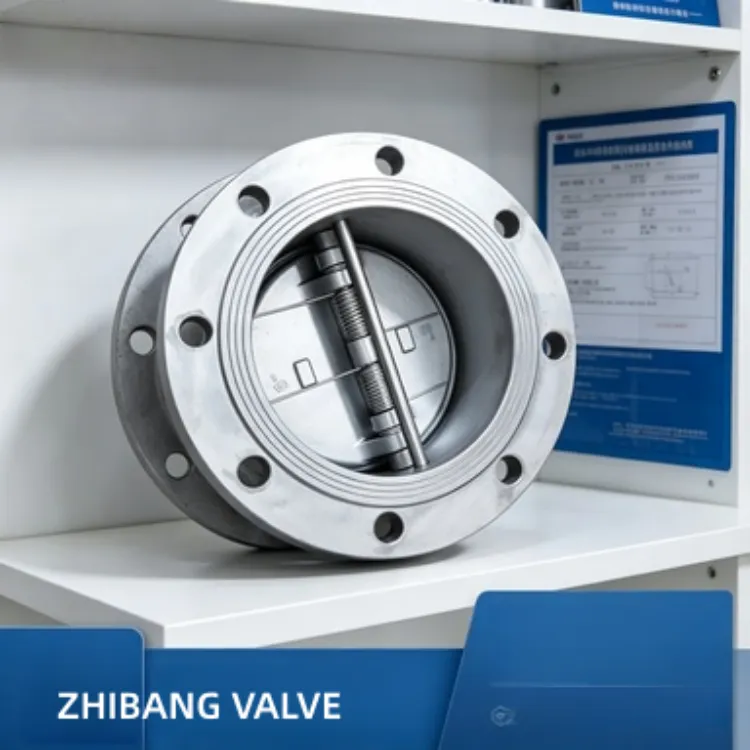

As a professional manufacturer with ISO9001 certification, Shanghai Zhibang Valve Manufacture Co., Ltd. is proud to introduce the CBT4303 Wafer Check Valve, engineered specifically for the demanding environment of seawater cooling systems. Since our establishment in 2016, we have focused on developing robust fluid control solutions for global markets, including North America, Southeast Asia, Europe, and beyond. This valve is a result of our commitment to solving the critical challenge of corrosion in marine applications, offering a reliable and maintenance-friendly solution for power plants, shipbuilding, offshore platforms, and coastal industrial facilities. Its primary value lies in preventing reverse flow while withstanding the harsh, corrosive effects of seawater, thereby protecting expensive pumps and system components from damage and ensuring uninterrupted cooling operations.
The CBT4303 is designed with a focus on durability, ease of installation, and long-term performance in saline environments. Here are its core features and benefits:
- Superior Anti-corrosion Protection: The valve body is made from high-grade ductile iron and features a thick, baked-on epoxy coating (often blue or red) that provides a formidable barrier against saltwater corrosion. The disc is lined with nitrile rubber (NBR), which is resistant to seawater and offers excellent sealing properties.
- Compact Wafer Design: Its wafer-style construction allows for installation between two pipeline flanges using through-bolts. This design saves significant space and weight compared to lug or flanged check valves, making it ideal for systems where space is at a premium.
- Spring-Assisted, Quick Closing Action: The valve incorporates a torsion spring mechanism that ensures rapid and positive closure upon flow cessation. This minimizes water hammer and slamming, protecting the pipeline from pressure surges and preventing reverse flow effectively.
- Bubble-Tight Sealing: The soft rubber seat ensures a bubble-tight seal in the closed position, preventing any backflow or leakage, which is crucial for maintaining system efficiency and preventing seawater contamination.
- Low Pressure Drop & High Flow Capacity: The streamlined disc and body design create minimal flow resistance when open, ensuring efficient cooling water circulation and reducing pump energy consumption.
- Versatile Installation: The valve can be installed in both horizontal and vertical pipelines (with upward flow), providing flexibility in system design and layout.
- Low Maintenance: With no external hinges or moving parts exposed to the environment, and with corrosion-resistant materials, the valve requires minimal maintenance over its extended service life.
Below is a summary of key technical specifications for the CBT4303 series:
| Parameter | Specification |
|---|---|
| Design Standard | API 594, BS 5153 |
| Face-to-Face | Per API 594 / ASME B16.10 |
| Flange Connection | ANSI B16.5, DIN, JIS, GB (Available on request) |
| Test & Inspection | Shell Test, Seat Leakage Test per API 598 |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) for standard NBR seat |
| Optional Features | External lever & weight, different seat materials (EPDM, FKM), position indicator |
The advantages of choosing the Zhibang CBT4303 translate into direct benefits for your operation: reduced downtime due to valve failure, lower lifetime costs from decreased maintenance and replacement needs, enhanced system safety by preventing reverse flow and water hammer, and improved operational efficiency through reliable cooling water supply.
Backed by our ISO9001 certified quality management system and an annual export value ranging between US$1-1.5 million, Shanghai Zhibang Valve delivers products that meet international standards and customer expectations. We ship efficiently from major Chinese ports like Shanghai, Guangzhou, and Hong Kong, ensuring timely delivery to your project site anywhere in the world. Our presence in diverse markets from North America to Africa and Oceania is a testament to the reliability of our valves. For your next seawater cooling system project, choose a valve built to last. Contact us today to discuss your specifications, request a detailed quote, or learn more about our full range of industrial valves. Let us provide you with a corrosion-resistant solution that safeguards your critical cooling infrastructure.
Frequently Asked Questions (FAQ)
-
Q: What makes this check valve suitable for seawater applications compared to a standard one?
A: The key difference is the enhanced corrosion protection. The CBT4303 features an epoxy-coated ductile iron body and a seawater-resistant nitrile rubber (NBR) disc lining, materials specifically chosen to withstand the highly corrosive nature of saltwater, whereas standard valves may use materials prone to rapid degradation. -
Q: Can this valve be installed in vertical pipelines?
A: Yes, it can be installed in vertical pipelines provided the flow direction is upward. The spring-assisted mechanism ensures proper closure against gravity. For downward flow vertical installation, consultation with our engineers is recommended. -
Q: What is the pressure rating of the standard CBT4303 valve?
A: The standard pressure ratings are PN10 and PN16 (equivalent to Class 150). Higher pressure ratings like PN25/Class 300 are available as a custom option upon request. -
Q: How do I install a wafer-type check valve?
A: Installation is straightforward. The valve is placed between two pipeline flanges. The flange bolts are passed through the bolt holes of both flanges and the valve, then tightened evenly. It is crucial to ensure the flow direction arrow on the valve body aligns with the intended media flow. -
Q: What maintenance does this valve require?
A: It is designed for low maintenance. Periodic visual inspection of the external coating and checking for any leaks during system shutdowns is generally sufficient. The internal components are protected by the coating and seat, requiring intervention only in case of a detected seal failure. -
Q: Are other seat materials available besides NBR?
A: Absolutely. While NBR is standard for seawater, we offer EPDM for a wider temperature range or FKM (Viton) for higher chemical resistance. The choice depends on your specific water chemistry and temperature conditions. -
Q: Do you offer larger sizes than DN600 (24")?
A: Our standard production range covers DN50 to DN600. For sizes larger than DN600, we can evaluate custom manufacturing. Please contact our sales team with your specific size and pressure requirements for feasibility and lead time. -
Q: What is your lead time for an order of these valves?
A: Lead time varies based on order quantity, size, and customization. For standard sizes and materials in moderate quantities, typical lead time is 4-6 weeks. We provide a confirmed schedule upon receipt of your official purchase order.
