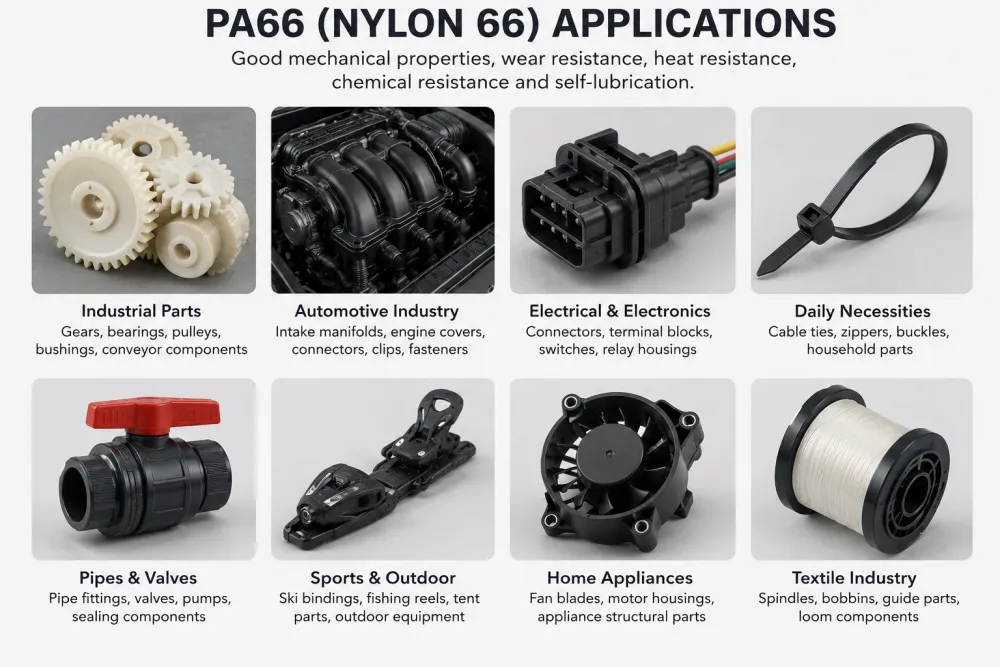

As a dedicated manufacturer of high-performance engineering plastics, Shanghai Wenqin Plastics Co., Ltd. is proud to present our Nylon 66 Resin 74G33J, a premium-grade material engineered specifically for demanding applications where precision and reliability are non-negotiable. With a focus on serving global markets from North America to Southeast Asia, we understand the critical need for materials that deliver consistent performance under stress. This 33% glass fiber reinforced Nylon 66 compound is our solution for manufacturers seeking to produce precision gears and components with exceptional dimensional stability, reduced warpage, and long-term durability, directly addressing the core challenges in automotive, industrial machinery, and electrical applications.
This advanced engineering plastic is formulated to meet the rigorous demands of high-precision molding and functional performance. The integration of 33% glass fiber reinforcement transforms standard Nylon 66, imparting a suite of enhanced properties that are crucial for gear manufacturing and other structural parts.
- Superior Dimensional Stability and Low Warpage: The primary advantage of our 74G33J grade is its outstanding ability to maintain precise shapes and tolerances. The glass fibers significantly reduce the material's tendency to shrink and warp during and after the injection molding process and when exposed to temperature fluctuations. This ensures that manufactured gears maintain their critical tooth profiles and meshing accuracy, leading to smoother operation, reduced noise, and higher efficiency in the final assembly.
- Enhanced Mechanical Strength and Stiffness: The glass fiber reinforcement provides a substantial increase in tensile strength, flexural modulus, and load-bearing capacity. Gears made from this material can withstand higher torques and stresses without deforming, contributing to the longevity and reliability of the transmission system.
- Excellent Thermal and Chemical Resistance: Nylon 66 inherently offers good resistance to heat and a wide range of chemicals, including oils, greases, and many solvents. The 74G33J grade maintains this robustness, allowing components to perform reliably in under-the-hood automotive environments or in industrial settings with exposure to lubricants.
- Good Wear and Friction Properties: The material exhibits favorable wear resistance and a low coefficient of friction, which is essential for gear applications. This minimizes surface wear over time, reduces energy loss due to friction, and helps maintain performance over the component's lifecycle.
To provide a clear overview of its capabilities, here are some key technical specifications of our Nylon 66 74G33J resin:
| Property | Test Method | Typical Value | Unit |
| Tensile Strength | ISO 527 | 180 - 200 | MPa |
| Flexural Modulus | ISO 178 | 9000 - 10000 | MPa |
| Heat Deflection Temperature (1.8 MPa) | ISO 75 | 255 | °C |
| Mold Shrinkage (Flow Direction) | - | 0.3 - 0.6 | % |
| Density | ISO 1183 | 1.36 | g/cm³ |
For our customers, the benefits translate into tangible advantages for their production and end-products:
- Improved Production Yield: Predictable shrinkage and low warpage mean fewer rejected parts and less post-molding correction, streamlining your manufacturing process and reducing waste.
- Design Freedom and Part Consolidation: The high strength-to-weight ratio allows for the design of thinner, lighter, yet strong gear geometries, potentially replacing metal parts and enabling part consolidation.
- Cost-Effective Performance: By offering a balance of performance, processability, and durability, this material provides a cost-effective alternative to more expensive specialty polymers or metals for many applications.
- Consistent Quality: Our rigorous production controls ensure batch-to-batch consistency, which is vital for maintaining the precision required in gear manufacturing.
Backed by Shanghai Wenqin Plastics' commitment to quality, evidenced by our adherence to management system standards, this Nylon 66 74G33J resin is more than just a material—it's a reliable component of your success. Our strategic location in Shanghai and shipment ports facilitate efficient logistics to our main markets worldwide. We understand that your gears are the heart of motion in countless machines. By choosing our resin, you are selecting a partner dedicated to providing the material stability and performance that your precision applications demand. Contact us today to discuss how this grade can be integrated into your next project or to request samples for testing and evaluation.
FAQ (Frequently Asked Questions)
Q1: What makes the 74G33J grade specifically suitable for precision gears compared to standard Nylon 66?
A1: The 33% glass fiber reinforcement is key. It dramatically increases stiffness and reduces the coefficient of thermal expansion and molding shrinkage. This results in gears that maintain their exact shape and tolerances under load and temperature changes, ensuring quiet, efficient, and reliable operation.
Q2: Can this material be used for gears in automotive applications?
A2: Yes, it is an excellent candidate. Its combination of high heat resistance (HDT @255°C), strength, and resistance to oils and greases makes it suitable for various under-the-hood and transmission components, provided it meets the specific OEM material specifications.
Q3: What are the typical processing conditions for injection molding this resin?
A3: Recommended melt temperature ranges from 280°C to 300°C, with a mold temperature of 80°C to 100°C. Due to the glass fiber content, it is advisable to use hardened steel molds to resist abrasion. Drying the resin thoroughly before processing (e.g., 4-6 hours at 80°C) is crucial to achieve optimal properties.
Q4: Is the color of the material customizable?
A4: The standard color is natural (beige). However, color masterbatches can be added during compounding to achieve specific colors according to customer requirements. This is a common customization we offer.
Q5: How does the dimensional stability of this grade impact gear noise?
A5: Superior dimensional stability ensures that gear teeth maintain their designed profile and meshing alignment. This prevents misalignment, uneven load distribution, and vibration, which are primary sources of gear noise. The result is smoother, quieter gear operation.
Q6: What certifications are associated with your production of this material?
A6> Our manufacturing processes are guided by a commitment to quality management. Relevant certifications for materials used in automotive and industrial sectors, such as IATF 16949, can be supported upon request and are integral to our operational standards.
Q7: What is the moisture absorption rate, and how does it affect the finished part?
A7> Like all polyamides, Nylon 66 absorbs moisture from the atmosphere, which can act as a plasticizer, increasing toughness but slightly reducing stiffness. For precision gears, it is often recommended to condition the parts to a specific moisture level for stable performance in the intended environment. The glass fiber reduces the overall percentage of moisture absorption compared to unfilled Nylon 66.
Q8: Do you provide technical data sheets and material samples for testing?
A8> Absolutely. We encourage potential customers to test our material in their specific application. We can provide comprehensive technical data sheets and arrange for sample quantities to be shipped for your evaluation and trial runs.
