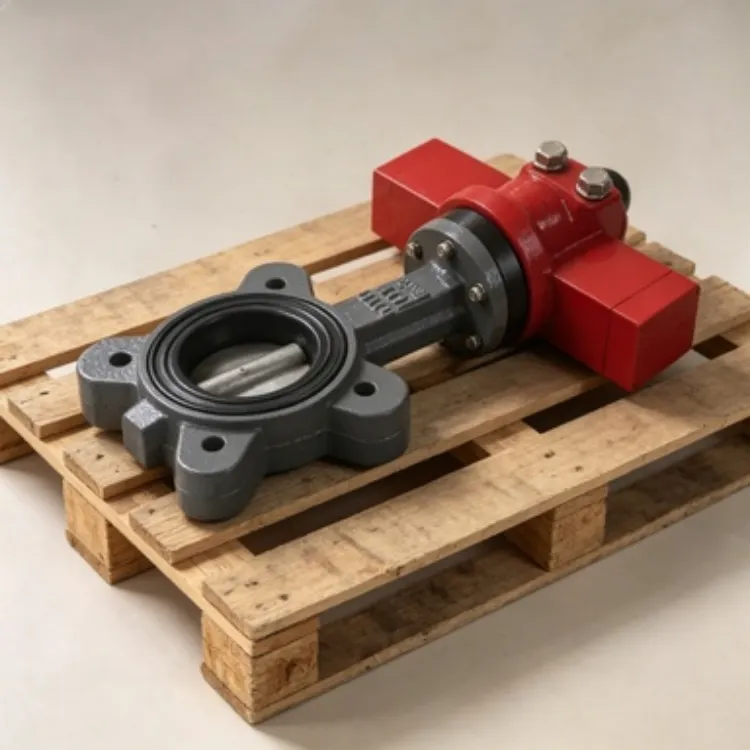

As a professional valve manufacturer with extensive experience in the marine sector, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly presents our specialized PTFE Seated Marine Butterfly Valve. Engineered specifically for the demanding conditions of offshore platforms, this valve is built to deliver reliable, long-lasting performance in critical seawater, ballast, and fire safety systems. Our commitment to quality, backed by ISO9001 certification, ensures that every valve meets the rigorous standards required for offshore operations. We understand that downtime is not an option in offshore environments, which is why our design prioritizes durability, corrosion resistance, and ease of maintenance.
The core of this valve's superior performance lies in its PTFE (Polytetrafluoroethylene) seat. This material offers exceptional chemical inertness, a low coefficient of friction, and excellent resistance to a wide range of corrosive media, including seawater, chlorinated water, and various chemicals found on offshore platforms. The combination of a resilient PTFE seat with a robust, corrosion-resistant disc and body creates a bubble-tight seal that ensures zero leakage, a critical factor for safety and environmental protection.
Key Technical Features & Advantages:
- Superior Corrosion Resistance: The PTFE seat and stainless steel components are specifically selected to withstand prolonged exposure to saltwater, marine atmospheres, and other corrosive agents, significantly extending service life.
- Bubble-Tight Sealing: The precision-engineered PTFE seat provides excellent sealing performance across the entire pressure and temperature range, preventing costly leaks and ensuring system integrity.
- Low Torque Operation: The low-friction PTFE seat allows for smooth, easy operation with reduced actuation torque. This translates to smaller, more cost-effective actuators and less strain on operating mechanisms.
- Bi-Directional Flow Capability: Designed for bidirectional shut-off, the valve performs reliably regardless of flow direction, offering flexibility in pipeline design and installation.
- Compact & Lightweight Design: The wafer-style body provides a space-saving and weight-reducing solution compared to gate or globe valves, which is a crucial advantage in offshore platform construction where space and weight are at a premium.
- Easy Installation & Maintenance: The wafer or lug design allows for quick installation between pipeline flanges. The seat is often replaceable, minimizing downtime and maintenance costs over the valve's lifespan.
Technical Specifications Table:
| Design Standard | ISO 5752, API 609, BS 5155 |
| Pressure Rating | PN10, PN16 (150 LB) |
| Temperature Range (with PTFE seat) | -20°C to +180°C |
| Body Material Options | Ductile Iron (Epoxy Coated), Cast Steel WCB, Stainless Steel CF8/CF8M |
| Disc Material Options | Stainless Steel 316, Ductile Iron with Nickel Plating |
| Seat Material | Virgin PTFE (Polytetrafluoroethylene) |
| Stem Material | Stainless Steel 17-4PH or equivalent |
| Operation | Lever, Worm Gear, Electric/Pneumatic Actuator (available upon request) |
Application Benefits for Offshore Platforms:
- Seawater Cooling Systems: Reliably controls the flow of raw seawater for heat exchangers and cooling circuits. The corrosion-resistant materials prevent failure due to saltwater exposure.
- Ballast Water Management: Provides efficient and leak-proof control for ballast tank filling and discharge operations, crucial for vessel stability.
- Bilge & Drain Systems: Handles oily water mixtures and general drainage with a material combination resistant to various fluids.
- Fire Fighting Systems: Used in seawater fire main lines, offering quick operation and reliable shut-off in emergency situations.
- General Service Lines: Suitable for various utility lines carrying fresh water, air, or mild chemicals on the platform.
Frequently Asked Questions (FAQ):
-
Q: Why is PTFE the preferred seat material for marine butterfly valves?
A: PTFE is highly inert, meaning it does not react with seawater, chlorides, or most chemicals. It has an extremely low coefficient of friction, ensures excellent sealing, and maintains flexibility across a wide temperature range, making it ideal for the harsh marine environment. -
Q: Can this valve be used for both on/off service and throttling in offshore applications?
A: While primarily designed for reliable on/off (isolation) service, the PTFE seated design with a contoured disc can be used for moderate throttling applications. For precise flow control, especially with actuators, it's recommended to consult our engineers for specific guidance based on your system parameters. -
Q: What are the main differences between wafer and lug body designs for offshore use?
A: A wafer valve is installed between two flanges using long bolts and is suitable for systems where the pipeline is supported. A lug-style valve has threaded inserts (lugs) allowing it to be bolted directly to each flange, enabling the valve to be a pipeline support point and allowing downstream isolation. The choice depends on your piping design requirements. -
Q: What surface treatments do you offer for valves in offshore saltwater service?
A> For ductile iron bodies, we typically apply a high-performance epoxy coating (e.g., 250-300 microns) meeting NORSOK M-501 or equivalent standards. For carbon steel, options include hot-dip galvanizing or specialized paint systems. Stainless steel valves are passivated for enhanced corrosion resistance. -
Q: Are your valves suitable for potable water lines on offshore living quarters?
A: Yes, with the appropriate material certifications (available upon request). Valves with stainless steel bodies (CF8/CF8M) and PTFE seats are commonly used for potable water as the materials are non-toxic and meet relevant hygiene standards. -
Q: What is your lead time for standard and customized orders?
A: Standard sizes and configurations typically have a shorter lead time. For customized requirements like special materials, actuators, or coatings, lead time will vary. We provide accurate timelines upon receipt of detailed specifications to ensure on-time delivery for your project schedule. -
Q: Do you provide documentation packages with the valves?
A: Yes. Our standard delivery includes essential documentation such as a Material Test Certificate (MTC), Certificate of Conformity, pressure test reports, and operation/maintenance manuals. Additional certification like NACE MR0175 for sour service is available upon request.
Trust in a manufacturer with a proven track record. Since our establishment in 2016, Shanghai Zhibang Valve has consistently delivered high-quality fluid control solutions, exporting to key maritime and industrial markets across North America, Europe, Southeast Asia, and beyond. Our ISO9001 certified quality management system underpins every stage of production, from material sourcing to final testing. This valve represents a reliable, cost-effective solution designed to withstand the test of time and the elements on your offshore platform. Contact us today to discuss your specific application requirements, request detailed technical data sheets, or to receive a competitive quotation. Let our expertise in marine valves contribute to the safety and efficiency of your offshore operations.
