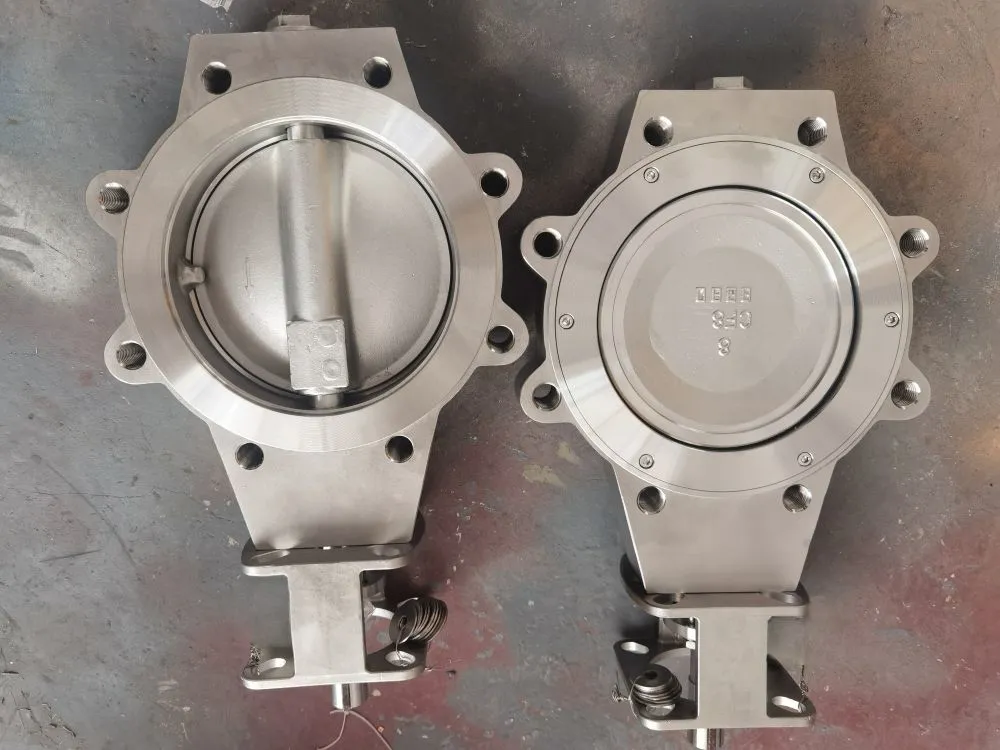

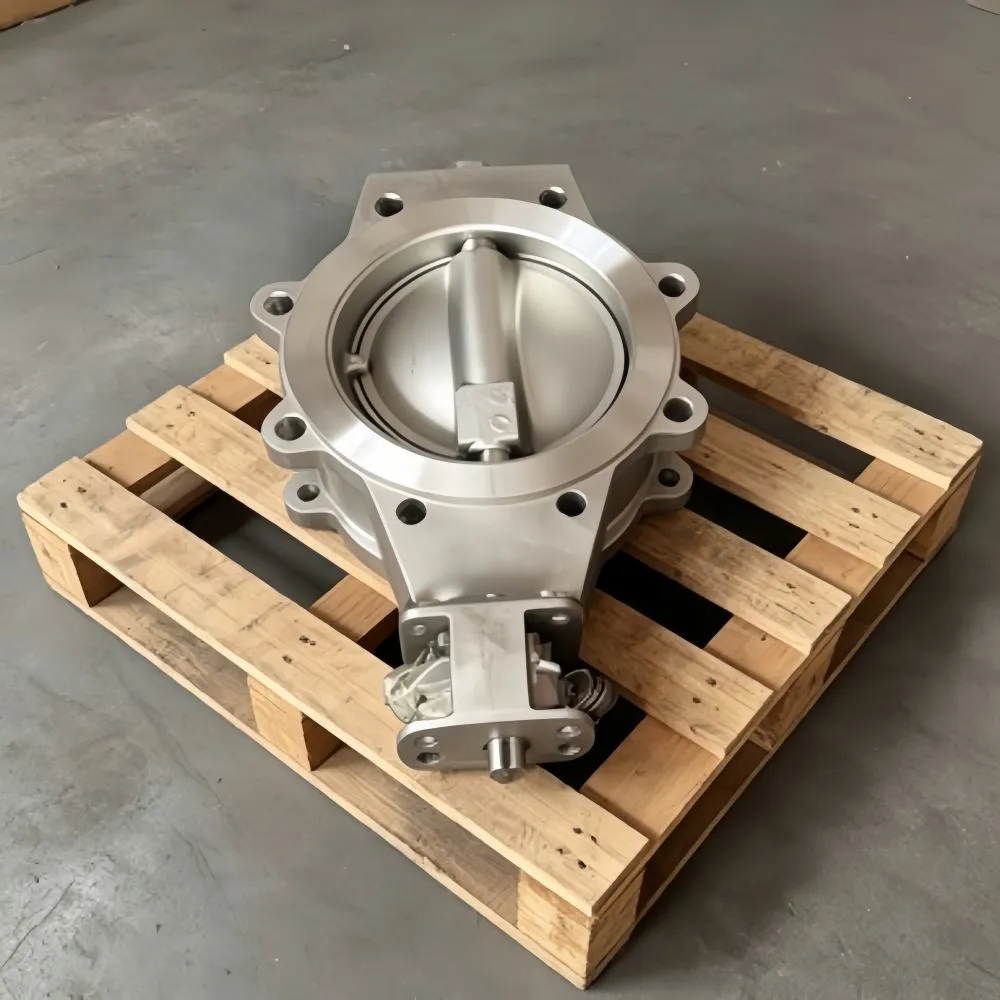

As a specialized manufacturer with ISO9001 certified quality management, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly presents our high-performance Butterfly Check Valve engineered specifically for demanding seawater pipeline applications in shipbuilding and offshore platforms. Since our establishment in 2016, we have focused on developing reliable flow control solutions for the global marine industry. This valve is designed to prevent seawater backflow efficiently, ensuring system integrity and operational safety in harsh marine environments. Its robust construction and thoughtful design address the unique challenges of saltwater corrosion, variable pressures, and space constraints onboard vessels and offshore structures.
The core value of this valve lies in its ability to provide dependable, maintenance-free check functionality while minimizing weight and installation footprint—critical factors in marine applications. We understand that every component on a ship or platform must contribute to overall reliability and longevity. Our Butterfly Check Valve is a result of this philosophy, combining proven engineering principles with material science tailored for seawater service.
Key Features & Technical Advantages:
- Compact Wafer/Lug Design: Ideal for space-limited piping layouts on ships and platforms. Requires no extra flange bolts for installation, saving time and weight.
- Corrosion-Resistant Material Selection: Available in grades specifically chosen for seawater compatibility, including duplex stainless steels and coated alloys.
- Non-Slam, Low Pressure Drop Operation: The butterfly disc design allows smooth flow and closes gently upon flow reversal, reducing water hammer risk and energy loss.
- Robust Sealing Mechanism: Utilizes durable elastomers like EPDM or NBR, resistant to seawater degradation, ensuring long-term leak-free performance.
- Broad Size & Pressure Compatibility: Covers common pipeline dimensions from DN50 to DN600 and standard marine pressure classes.
- Bi-Directional Installation Capability: Can be installed in horizontal or vertical pipelines without performance compromise.
- Minimal Maintenance Requirement: Simple design with few moving parts reduces the need for onboard servicing.
Detailed Specifications & Configuration Options:
| Parameter | Standard Range / Options |
| Body Material | Cast Iron (GG25), Stainless Steel (304/316), Bronze, Duplex Steel (Optional) |
| Disc Material | Stainless Steel, Bronze, Coated Steel (Same as body or different) |
| Seal Material | EPDM (Standard for seawater), NBR, PTFE (Available upon request) |
| Size (DN) | 50, 80, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600 |
| Pressure Rating | PN10, PN16, ANSI Class 125, ANSI Class 150 |
| End Connection | Wafer Type (Standard), Lug Type (Optional), Flange Standards: ANSI, DIN, JIS, GB |
| Test Standards | Shell Test, Seat Test per API 598 or equivalent |
Benefits for Shipbuilders & Offshore Operators:
- Enhanced System Safety: Prevents backflow in seawater cooling, ballast, firefighting, or supply lines, protecting pumps and equipment.
- Weight & Space Optimization: The wafer design is significantly lighter and more compact than traditional swing check valves, contributing to vessel weight management.
- Reduced Installation Cost & Time: Easier to fit into existing pipework, often without disassembly, lowering labor hours during construction or retrofit.
- Long Service Life in Seawater: Material and seal choices are validated for corrosion and biofouling resistance, extending valve life and reducing replacement frequency.
- Improved Flow Efficiency: Low pressure drop design helps maintain pump efficiency and reduces energy consumption over the system's lifetime.
- Global Compliance Flexibility: Manufactured to meet common international marine standards, suitable for projects worldwide.
Our commitment to quality is backed by our ISO9001 certification and proven by our annual export value of US$1 Million to US$1.5 Million, serving main markets across North America, South America, Europe, Asia, Africa, and Oceania. We ship from major ports like Shanghai, Guangzhou, Hongkong, and Beijing, ensuring reliable logistics for your global projects. This valve is not just a component; it's a reliability investment for your marine seawater system. Its design directly addresses the operational and maintenance challenges faced by shipyards and offshore platform operators. By choosing our Butterfly Check Valve, you are selecting a product born from manufacturer expertise, focused on solving real-world marine engineering problems. Contact us to discuss your specific seawater pipeline requirements, receive detailed technical data, or request a quotation tailored to your project's size, material, and pressure needs.
Frequently Asked Questions (FAQ):
Q1: What is the main advantage of a butterfly check valve over a traditional swing check valve for seawater applications?
A: The primary advantages are its compact wafer/lug design (saving space and weight), lower pressure drop, and gentler closing action (non-slam), which are particularly valuable in the constrained and weight-sensitive environments of ships and offshore platforms.
Q2: Which material is recommended for long-term seawater service?
A: For prolonged exposure to seawater, we generally recommend stainless steel 316/316L or duplex stainless steels due to their superior resistance to chloride-induced corrosion. Bronze is also a reliable traditional choice. The optimal selection depends on specific water chemistry, temperature, and budget.
Q3: Can this valve be installed in vertical pipelines?
A: Yes, our butterfly check valve design is suitable for both horizontal and vertical installation orientations. Its operation is not dependent on gravity, making it versatile for various piping layouts onboard.
Q4: What is the typical maintenance interval for this valve in seawater?
A: Due to its simple design and seawater-resistant materials, this valve typically requires minimal routine maintenance. Inspection intervals can align with major system reviews, often annually or during scheduled dry-docking periods.
Q5: Are custom sizes or pressure ratings available?
A: Yes, as a manufacturer, we offer customization. While our standard range covers DN50 to DN600 and common pressure ratings, we can produce valves in other dimensions or for higher pressure classes based on your project specifications.
Q6: What flange standards do you support?
A: We can manufacture valves with flange connections conforming to ANSI, DIN, JIS, and GB standards. The specific standard and facing details should be specified at the time of order to ensure compatibility with your existing piping.
Q7: How do you ensure the valve's sealing performance against seawater?
A> We use elastomer seals like EPDM, which are known for their durability and resistance to seawater. Each valve undergoes seat leakage tests per recognized standards (e.g., API 598) before shipment to verify sealing integrity.
Q8: What is your lead time for standard sizes?
A: Lead times vary based on size, material, and order quantity. For standard configurations from our catalog, typical production lead times range from 4 to 8 weeks. We provide accurate timelines upon order confirmation.
