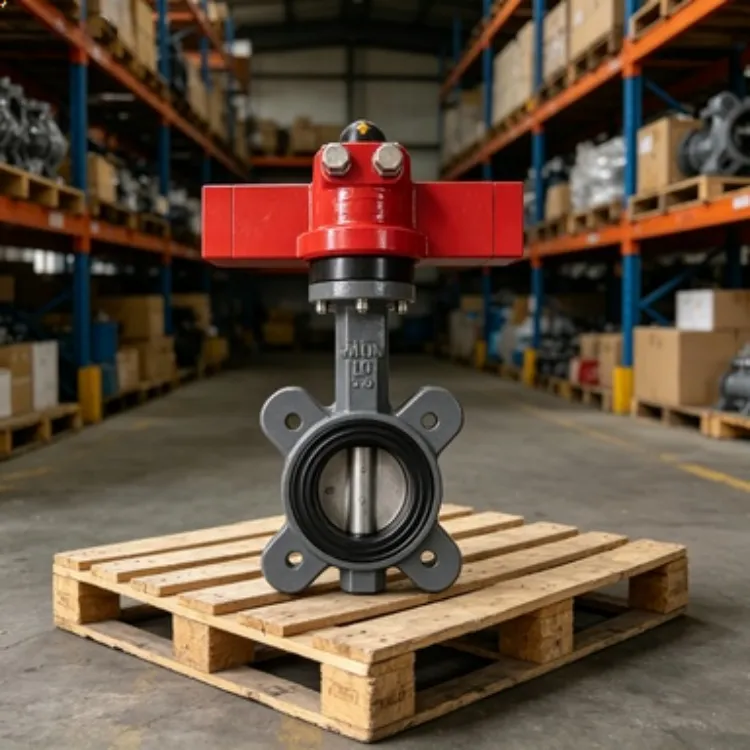

As a leading manufacturer since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in providing high-performance, reliable fluid control solutions for the global marine industry. Our DN400 Marine Butterfly Valve is engineered specifically for the demanding environments of ballast and bilge system pipework, offering a robust and efficient solution for managing seawater flow. This valve is designed to deliver superior sealing performance, corrosion resistance, and long-term durability, ensuring the safety and operational efficiency of your vessel. With an annual export value exceeding US$1 million, we have built a strong reputation for quality and reliability across markets in North America, Europe, Asia, and beyond.
The core value of this valve lies in its ability to provide precise flow control and reliable shut-off in critical marine applications. Its compact design and lightweight construction make it an ideal choice for space-constrained shipboard installations, while its robust build ensures it can withstand the harsh conditions of marine service, including exposure to saltwater, variable pressures, and mechanical stress.
Key Features & Technical Advantages:
- Optimized for Marine Service: Specifically designed for ballast and bilge systems, handling seawater, slush, and other fluids common in shipboard operations.
- Superior Corrosion Resistance: Available in material combinations like Stainless Steel 316 disc and EPDM seat to combat the corrosive effects of seawater, extending service life.
- Excellent Sealing Performance: The precision-machined disc and resilient seat ensure bubble-tight shut-off, preventing leaks and ensuring system integrity.
- Low Torque Operation: Streamlined disc design reduces operating torque, allowing for easier manual operation or enabling the use of smaller, more cost-effective actuators.
- Bi-Directional Flow Capability: Can be installed to handle flow in either direction, providing flexibility in piping system design and installation.
- Minimal Pressure Drop: When fully open, the disc presents minimal obstruction to flow, optimizing system efficiency and reducing pump energy consumption.
- Easy Maintenance & Inspection: Many models feature a design that allows for seat replacement without removing the valve body from the pipeline, significantly reducing downtime.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Nominal Diameter (DN) | 400 |
| Pressure Rating (PN) | PN10, PN16, PN25 (Standard: PN16) |
| Connection Standard | ISO 5752, DIN, ANSI, JIS, GB (Customizable) |
| Body Material | Cast Iron (GG25), Ductile Iron (GGG40), Stainless Steel (CF8M/316) |
| Disc Material | Stainless Steel 316, Nickel Plated Cast Iron, Aluminum Bronze |
| Seat Material | EPDM (Standard for seawater), NBR, Viton (FKM) |
| Operation | Lever, Worm Gear, Electric Actuator, Pneumatic Actuator |
| Temperature Range | -10°C to +120°C (Depends on seat material) |
| Flow Characteristic | Approximately Equal Percentage |
Benefits for Your Operations:
- Enhanced Vessel Safety: Reliable operation in ballast and bilge systems is critical for stability and emergency pumping. Our valve's tight seal ensures system readiness.
- Reduced Lifecycle Cost: The corrosion-resistant materials and durable construction minimize maintenance needs and replacement frequency, lowering total cost of ownership.
- Operational Efficiency: Quick quarter-turn operation allows for fast response in controlling ballast water or activating bilge pumps.
- Global Compliance Support: Manufactured under an ISO9001 certified quality management system, our valves are designed to meet international marine standards, aiding in vessel certification.
- Flexible Integration: Available with various end connections and actuator options, the valve can be seamlessly integrated into new builds or retrofit into existing shipboard piping.
Frequently Asked Questions (FAQ):
-
Q: Is this DN400 valve suitable for handling seawater in ballast systems?
A: Absolutely. It is specifically designed for marine applications. Using materials like Stainless Steel 316 and EPDM seats, it offers excellent resistance to seawater corrosion and biofouling, making it a reliable choice for ballast and other seawater systems. -
Q: What types of actuators can be fitted to this butterfly valve?
A: The valve is compatible with a wide range of actuators. You can choose from manual levers or gear operators for local control, or opt for electric or pneumatic actuators for remote, automated operation. We can supply the valve as a complete package with the actuator pre-assembled and tested. -
Q: Can the valve seat be replaced in place, or must the entire valve be removed?
A: Many of our DN400 marine butterfly valve models feature a "replaceable seat" design. This allows the resilient seat ring to be exchanged without cutting the valve out of the pipeline, which is a significant advantage for maintenance and reduces vessel downtime. -
Q: What pressure rating (PN) is recommended for typical bilge system applications?
A: For most bilge and ballast system applications onboard ships, a pressure rating of PN16 is standard and sufficient. However, we also offer PN10 and PN25 ratings to meet specific system design pressures or client specifications. -
Q: Do you provide valves with specific flange standards like ANSI or JIS?
A: Yes, we do. While ISO/DIN flanges are common, we understand the global nature of shipbuilding. We can manufacture the valve with flange dimensions and drilling patterns to match ANSI, JIS, GB, or other international standards upon request. -
Q: What is the lead time for an order of DN400 valves with electric actuators?
A: Lead times vary based on order quantity, material selection, and actuator specifications. For standard configurations, we typically maintain stock or can produce within a few weeks. We provide accurate lead time estimates upon receipt of your detailed inquiry or order. -
Q: How does your ISO9001 certification benefit me as a buyer?
A: Our ISO9001 certification is a testament to our commitment to consistent quality. It means every valve undergoes defined production, inspection, and testing procedures. This gives you confidence in receiving a product that meets its specified performance criteria reliably, batch after batch. -
Q: What are your main shipping ports, and do you handle export documentation?
A: We primarily ship from major Chinese ports including Shanghai, Guangzhou, Hong Kong, and Beijing. As an experienced exporter serving markets worldwide, we handle all necessary export documentation, packing, and logistics to ensure smooth delivery to your designated port.
Backed by nearly a decade of manufacturing expertise and a quality system certified to ISO9001, Shanghai Zhibang Valve delivers products you can trust for mission-critical marine applications. Our annual export volume of US$1-1.5 million to diverse regions including North America, Europe, Southeast Asia, and the Middle East is a strong indicator of the global confidence in our valves. We combine this proven track record with a customer-centric approach, offering technical support and customization to meet your exact project requirements.
Choosing our DN400 Marine Butterfly Valve means investing in a component that enhances the reliability, safety, and efficiency of your vessel's essential systems. Its robust construction tailored for harsh marine environments translates to fewer failures, lower maintenance costs, and greater operational peace of mind.
Contact us today to discuss your specific ballast or bilge system valve needs. Our technical team is ready to provide detailed specifications, quotations, and support to ensure you get the optimal valve solution for your application.
