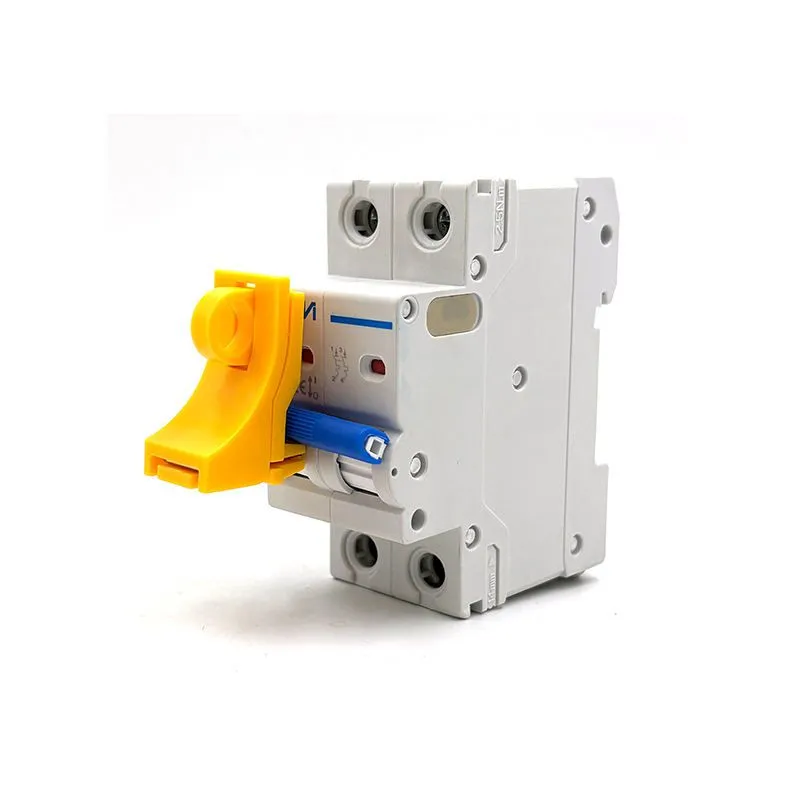

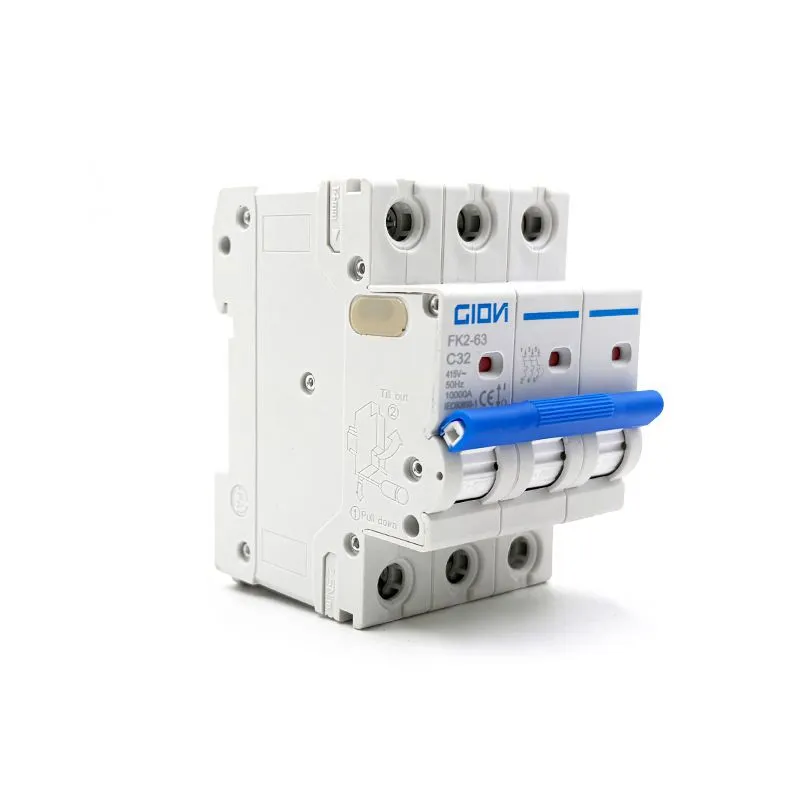

As a dedicated manufacturer, Jinhua Dika Electrical Equipment Co., Ltd. specializes in providing reliable and efficient electrical protection solutions for industrial applications. Our White FK6-63 Miniature Circuit Breaker is engineered to deliver precise overcurrent and short-circuit protection for your control panel wiring, ensuring the safety and longevity of your valuable equipment. With a commitment to quality backed by a comprehensive management system, we offer a product that combines robust performance with a compact design, making it an ideal choice for modern industrial installations.
Product Overview & Key Advantages
This miniature circuit breaker is designed for the demanding environment of industrial control panels. Its primary function is to automatically interrupt electrical flow in the event of an overload or short circuit, preventing potential damage to wiring and connected devices.
- Compact Design: The FK6-63 model features a miniature footprint, allowing for high-density installation on DIN rails within control panels, saving valuable space.
- Reliable Protection: It offers accurate and rapid tripping characteristics (typically Type C or B, customizable), ensuring sensitive equipment is protected from electrical faults.
- Durable Construction: Manufactured with high-quality thermoplastics and precision metal components for excellent mechanical and electrical endurance.
- Easy Installation & Maintenance: Features a clear ON/OFF indication, trip-free mechanism, and standard DIN rail mounting for quick and secure fitting.
- Wide Compatibility: Suitable for a broad range of industrial control circuits, including motor feeders, lighting, and distribution boards.
Detailed Technical Specifications
The following table outlines the core technical parameters of the White FK6-63 Miniature Circuit Breaker. Please note that specific configurations are available upon request.
| Parameter | Specification |
|---|---|
| Product Model | FK6-63 |
| Rated Operational Current (In) | 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Number of Poles | 1P, 2P, 3P, 4P |
| Rated Voltage (Ue) | 230/400V AC |
| Rated Breaking Capacity (Icn) | 6kA at 230/400V AC |
| Tripping Characteristic | Type C (Standard), Type B (Optional) |
| Electrical Life | ≥ 10,000 cycles |
| Mechanical Life | ≥ 20,000 cycles |
| Mounting | Standard 35mm DIN Rail (EN 60715) |
| Terminal Connection | Screw Clamp Terminal, suitable for solid and stranded conductors |
Benefits for Your Business
- Enhanced System Safety: Protects your industrial machinery and control systems from costly downtime caused by electrical faults.
- Space Optimization: The compact white housing allows for neat, organized panel layouts, improving both aesthetics and serviceability.
- Operational Cost Savings: High durability and long electrical life reduce the frequency of replacements and maintenance.
- Global Compliance: Designed to meet international standards like IEC/EN 60898-1, facilitating use in various global markets.
Trust and Quality Assurance
Jinhua Dika Electrical Equipment Co., Ltd. operates with a strong foundation in quality management, as reflected in our adherence to standards such as ISO 9001. With an annual export value ranging between US$1 Million and US$1.5 Million, we have established a trusted presence in markets across North America, South America, Europe, Asia, Africa, and Oceania. Our products are shipped from major ports including Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring efficient logistics. Choosing our White FK6-63 MCB means partnering with a manufacturer committed to reliability, backed by a proven track record of serving a diverse international clientele. Contact us today to discuss your specific requirements and secure a dependable component for your industrial control systems.
Frequently Asked Questions (FAQ)
-
What is the main application of this circuit breaker?
This MCB is primarily designed for overcurrent protection in industrial control panel wiring, safeguarding circuits for motors, PLCs, sensors, and other control devices. -
Can I use this breaker for residential applications?
While it meets safety standards, its design and characteristics are optimized for industrial environments. For residential use, we recommend consulting our product line for domestic-rated MCBs. -
What does the 'FK6-63' model number indicate?
'FK' is the series designation, '6' indicates a breaking capacity of 6kA, and '63' denotes the maximum rated current of 63 Amperes for this series. -
Is the white color purely aesthetic?
The white housing offers a clean, professional appearance for control panels. It also aids in heat dissipation and can be beneficial for visibility and labeling in well-lit industrial settings. -
How do I select the correct current rating?
The current rating should be selected based on the full load current of the circuit it protects, typically with a small margin. Our technical team can assist you with the correct selection. -
Are these breakers suitable for DC circuits?
This specific model is rated for AC applications. For DC circuit protection, please inquire about our specialized DC miniature circuit breakers. -
What is the delivery lead time?
Standard models are typically available from stock. For large or customized orders, lead times vary and can be confirmed upon request. -
Do you provide technical support for panel design?
Yes, we offer technical support and can provide guidance on integrating our MCBs into your control panel designs for optimal performance and safety.
