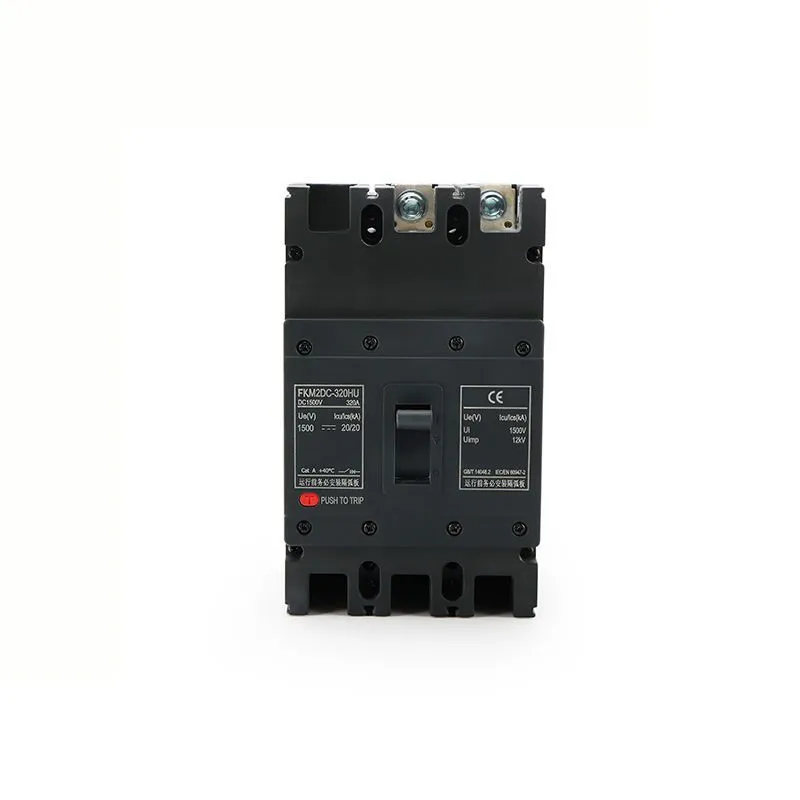

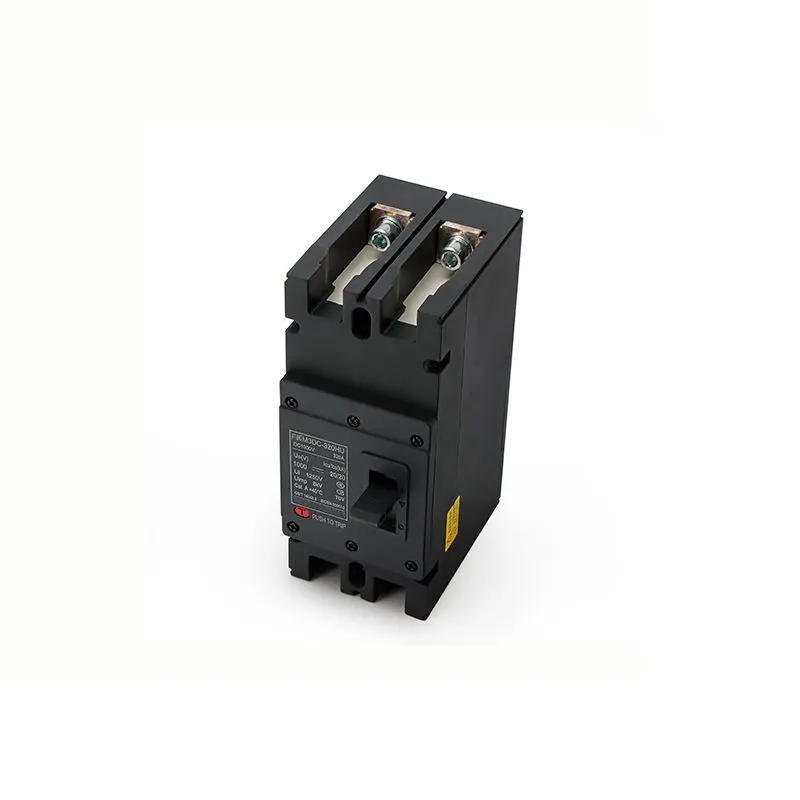

Help CenterFKM2DC Circuit Breaker for Motor Protection and Control Applications
Product Spotlights
Related Products
-
FKM2DC Customizable MCCB With 2-Year Warranty and Technical SupportUS$ 29 - 39MOQ: 10 Pieces -
FKM2DC Multifunctional MCCB 2-3P 100-630A Customizable Circuit BreakerUS$ 29 - 39MOQ: 10 Pieces
-
FKM2DC 2-3P Low-voltage Molded Case Circuit Breaker Customizable Trip SettingsUS$ 29 - 39MOQ: 10 Pieces
-
FKM2DC MCCB for Industrial Panel Boards and Power Distribution SystemsUS$ 29 - 39MOQ: 10 Pieces
-
FKM1 Miniature Molded Case Circuit Breaker With 2-4 Pole Plastic ConstructionUS$ 8 - 190MOQ: 10 Pieces
As a professional manufacturer of electrical protection devices, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents the FKM2DC Circuit Breaker, engineered specifically for demanding motor protection and control applications. With over a decade of experience and a robust export presence across global markets, we understand the critical need for reliable circuit interruption. The FKM2DC series embodies our commitment to quality and safety, offering a robust solution designed to safeguard motors from overloads, short-circuits, and phase failures, thereby minimizing downtime and protecting your valuable assets.
The FKM2DC is more than just a switch; it's an integrated protection device. Its advanced thermal-magnetic trip unit provides precise and reliable disconnection, ensuring motors operate within safe parameters. This not only extends the lifespan of your equipment but also enhances overall system safety. For engineers and procurement managers in industries ranging from manufacturing and HVAC to water treatment and material handling, the FKM2DC offers a dependable, high-performance component that simplifies panel design and reduces maintenance costs.
Core Features & Technical Advantages:
- Dedicated Motor Protection: Features precise thermal and magnetic settings calibrated for motor starting currents (Inrush), preventing nuisance tripping while ensuring fast response to genuine faults.
- High Breaking Capacity: Designed to safely interrupt high fault currents, limiting let-through energy and protecting downstream components.
- Flexible Configuration: Available in 2, 3, and 4-pole versions to suit various three-phase and single-phase motor configurations.
- Clear Status Indication: Integrated visual indicators for ON/OFF and tripped status, facilitating quick troubleshooting.
- Robust Construction: The molded case is made from high-grade, flame-retardant materials, ensuring durability in harsh industrial environments.
- Easy Installation & Maintenance: Designed for straightforward mounting and connection, with optional accessories like auxiliary contacts, shunt trips, and undervoltage releases for enhanced functionality.
Technical Specifications Overview:
| Parameter | Description / Value |
| Standard | Complies with IEC/EN 60947-2 |
| Rated Operational Voltage (Ue) | Up to 690V AC |
| Rated Current (In) | Wide range available upon request |
| Utilization Category | A (for general circuit protection) & B (for motor circuit protection) |
| Trip Unit | Fixed thermal-magnetic, adjustable magnetic setting optional |
| Mounting | Fixed or Plug-in (optional) |
| Terminals | Screw-type terminals suitable for copper or aluminum conductors |
Benefits for Your Operation:
- Enhanced System Uptime: Reliable protection reduces unexpected motor failures, keeping production lines running smoothly.
- Cost Savings: Prevents costly damage to motors and associated machinery, reducing repair and replacement expenses.
- Safety Compliance: Helps meet electrical safety standards for industrial equipment, protecting personnel and facilities.
- Design Flexibility: The availability of multiple poles and accessory modules allows for tailored solutions in control panel design.
- Global Compatibility: Designed to international standards, making it suitable for integration into equipment destined for diverse global markets.
Trust in a product backed by a manufacturer with a proven track record. Jinhua Dika Electrical Equipment Co., Ltd. operates a comprehensive quality management system and holds relevant international certifications, ensuring that every FKM2DC Circuit Breaker meets stringent production controls. With an annual export value ranging between US$1 Million and US$1.5 Million and a presence in key markets from North America and Europe to Southeast Asia and Africa, our products are trusted worldwide. Our strategic location with multiple shipment ports (Shanghai, Tianjin, Guangzhou, Ningbo) ensures efficient and reliable logistics. Choose the FKM2DC for a protection solution that combines robust performance with the reliability of an established manufacturer. Contact us today to discuss your specific requirements, request a detailed datasheet, or place a sample order.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the FKM2DC Circuit Breaker?
A: Its primary function is to provide reliable overload and short-circuit protection specifically for electric motors, isolating them from the power supply in case of a fault to prevent damage. -
Q: Can this breaker be used as a main circuit isolator for a motor?
A: Yes, the FKM2DC is suitable for use as both a protective device and a manual isolator/disconnector for motor circuits, provided its rated operational voltage and current match the application. -
Q: How do I select the correct rated current (In) for my motor?
A: The breaker's rated current should be selected based on the motor's full-load current (FLC) as stated on its nameplate, typically choosing a value slightly higher to accommodate normal starting inrush currents without nuisance tripping. -
Q: Are auxiliary contacts available for remote signaling?
A: Yes, auxiliary contact modules are available as optional accessories. They can be easily mounted on the side of the breaker to provide signals for remote monitoring of the breaker's status (ON/OFF/Tripped). -
Q: Is the FKM2DC suitable for use in DC motor circuits?
A: The "DC" in the model name refers to the frame size designation. For specific application in DC circuits, please consult our technical team, as voltage and breaking capacity ratings differ for DC. -
Q: What is the typical delivery lead time for an order?
A: Lead times vary based on order quantity and specific configuration. Standard configurations often have shorter lead times. We recommend contacting our sales team for an accurate delivery estimate. -
Q: Do you provide technical support for panel design integration?
A: Absolutely. Our technical team can provide guidance on integrating the FKM2DC into your control panel designs, including recommendations for coordination with other protective devices like contactors and overload relays. -
Q: Are your products certified for use in my country/region?
A: The FKM2DC is designed to comply with international standards (IEC/EN). For specific national certifications required in your target market, please inquire with our sales department for detailed compliance information.
