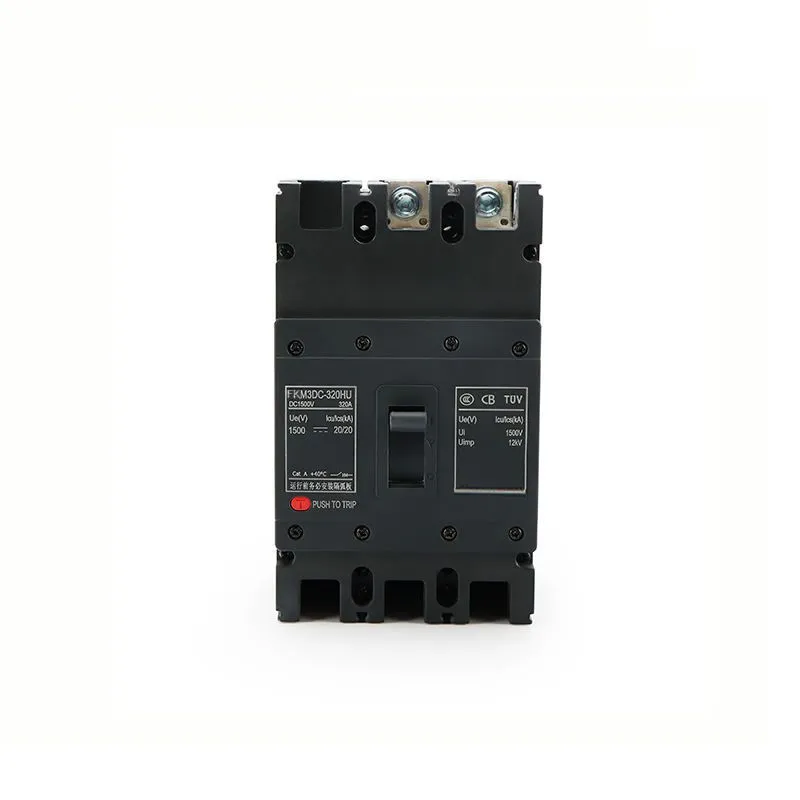

Help CenterFKM2DC 2-3P Low-voltage Molded Case Circuit Breaker Customizable Trip Settings
Product Spotlights
Related Products
-
FKM2DC MCCB for Industrial Panel Boards and Power Distribution SystemsUS$ 29 - 39MOQ: 10 Pieces -
FKM1 Miniature Molded Case Circuit Breaker With 2-4 Pole Plastic ConstructionUS$ 8 - 190MOQ: 10 Pieces
-
FKM1 Plastic Miniature Circuit Breaker With Warranty and Technical SupportUS$ 8 - 190MOQ: 10 Pieces
-
Plastic Miniature Circuit Breaker FKM1 Molded Case 2-4P ConfigurationUS$ 8 - 190MOQ: 10 Pieces
-
FKM1 Molded Case Circuit Breaker 2-4P for Industrial Distribution SystemsUS$ 8 - 190MOQ: 10 Pieces
As a leading manufacturer in the electrical equipment industry, Jinhua Dika Electrical Equipment Co., Ltd. proudly presents the FKM2DC series, a robust and intelligent solution for modern low-voltage power distribution. With over a decade of expertise and a commitment to quality underscored by our ISO 9001 management system, we design the FKM2DC 2-3P Molded Case Circuit Breaker to offer unparalleled protection and flexibility. This breaker is engineered to safeguard your electrical circuits from overloads and short circuits while providing customizable trip settings to match your specific application requirements precisely. Our global presence, serving markets from North America to Southeast Asia, is a testament to the reliability and performance our customers trust. Discover how the FKM2DC can enhance the safety and efficiency of your electrical infrastructure.
The FKM2DC series is built for performance and durability in demanding environments. Its core functionality revolves around providing reliable circuit protection with the added advantage of adjustable protection parameters.
- Customizable Protection: The standout feature of the FKM2DC is its customizable thermal-magnetic trip unit. Unlike standard breakers with fixed settings, this allows engineers to fine-tune the overload (Ir) and short-circuit (Im) protection bands. This ensures optimal coordination with downstream equipment, preventing nuisance tripping while maintaining critical protection.
- Robust Construction: Housed in a high-strength molded case, the breaker offers excellent insulation, mechanical endurance, and resistance to environmental factors, ensuring long-term operational stability.
- Clear Status Indication: Features a clear ON/OFF position indicator and a trip flag (red) for immediate visual confirmation of the breaker's status, facilitating quick troubleshooting.
- Easy Installation & Connection: Designed for straightforward fixed mounting. It provides secure screw-type terminals for reliable cable connections, reducing installation time and effort.
- Wide Application Scope: Ideal for use as a main incoming feeder, distribution feeder, or motor protection unit in commercial buildings, industrial plants, infrastructure projects, and OEM panel builds.
To provide a clear overview of its capabilities, here are some key technical specifications for the FKM2DC series. Please note that specific ratings like current and breaking capacity are customizable to project needs.
| Parameter | Specification |
|---|---|
| Pole Configuration | 2-Pole, 3-Pole |
| Rated Insulation Voltage (Ui) | 800V |
| Rated Operational Voltage (Ue) | 400V AC, 50/60Hz |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | Customizable (e.g., 25kA, 36kA, 50kA) |
| Rated Frame Current (Inm) | Customizable (e.g., 100A, 250A frame) |
| Trip Unit | Thermal-magnetic, with adjustable settings |
| Electrical Life | High number of operations at rated current |
| Mechanical Life | High number of operations |
| Standards | IEC/EN 60947-2 |
Choosing the FKM2DC brings significant advantages to your projects. The customizable trip settings eliminate the need for over-sizing breakers or compromising on protection, leading to a more optimized and cost-effective design. Its high breaking capacity options ensure it can handle fault currents in various network conditions, protecting valuable assets. The durable design translates to lower maintenance costs and reduced downtime. For panel builders and system integrators, this flexibility means one product can be adapted to multiple applications, simplifying inventory management.
Backed by Jinhua Dika's robust manufacturing capabilities and a comprehensive quality management system, the FKM2DC is a product you can specify with confidence. Our annual export value of US$1-1.5 million and presence across continents—from Eastern Europe to Oceania—demonstrate our ability to meet diverse international standards and client expectations. We ship efficiently from major ports like Shanghai, Tianjin, Guangzhou, and Ningbo, ensuring timely delivery. When you choose the FKM2DC, you're not just buying a circuit breaker; you're partnering with a dedicated manufacturer committed to providing reliable, adaptable protection solutions. Contact us today to discuss how we can customize the FKM2DC to perfectly fit your electrical protection needs.
Frequently Asked Questions (FAQ)
-
What does "customizable trip settings" mean for this breaker?
It means the overload (thermal) and short-circuit (magnetic) trip thresholds can be adjusted within a defined range. This allows you to set the protection curve to match the specific characteristics of the load it is protecting, improving selectivity and preventing unnecessary power interruptions. -
Can I get the FKM2DC with a specific current rating, like 150A?
Yes. As a manufacturer, we offer customization. You can request specific rated currents within the available frame sizes. Please provide your required specifications during inquiry. -
Is this breaker suitable for motor protection?
Yes, the adjustable thermal-magnetic trip unit makes it suitable for protecting motors against overloads and short circuits. The thermal setting can be matched to the motor's full load current, providing reliable running overload protection. -
What are the standard delivery ports, and what is the typical lead time?
We primarily ship from Shanghai, Tianjin, Guangzhou, and Ningbo ports. The lead time depends on the order quantity and customization level. Standard configurations typically have a shorter lead time, which we can confirm upon order confirmation. -
Do you provide technical support or datasheets for integration into our panel designs?
Absolutely. We provide detailed technical datasheets, dimension drawings, and characteristic curves. Our technical team is available to support integration questions to ensure proper application. -
How does the FKM2DC compare to fixed-trip breakers in terms of cost?
While the initial unit cost may be higher due to its adjustable features, the FKM2DC can offer better long-term value. It reduces the need to stock multiple fixed-rated breakers and allows for precise system tuning, which can prevent costly downtime. -
Are spare parts or additional accessories available for this model?
Yes, we supply a range of accessories such as auxiliary contacts, shunt trips, and under-voltage releases that are compatible with the FKM2DC series, allowing for enhanced functionality. -
What quality certifications are associated with your manufacturing process?
Our production is governed by a certified ISO 9001 quality management system, ensuring consistent product quality and reliable performance from batch to batch.
