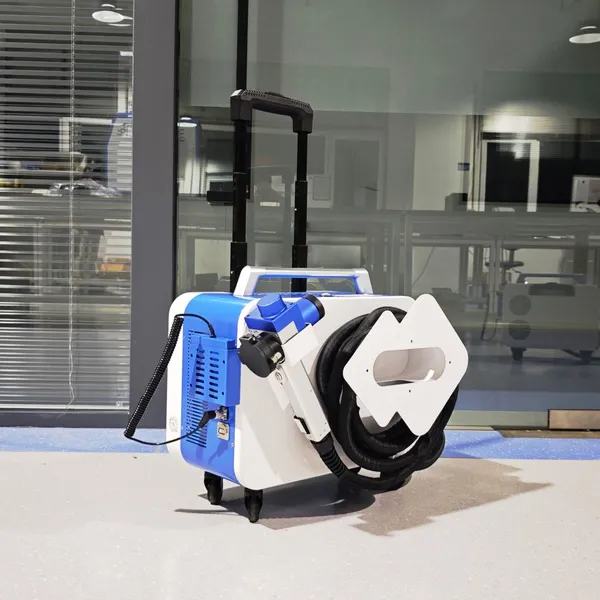

Using MOPA pulsed fiber laser, a variety of pulse waveform selection, to meet the cleaning of different materials. The single pulse energy is large, the cleaning efficiency is high, the spot energy distribution is uniform, and the cleaning does not damage the substrate. The chassis structure is easy to integrate and has a large processing range. It can non-destructively remove oil, corrosion, paint and other pollutants on the metal surface, which is green environmental protection pollution-free.
Specification
Model |

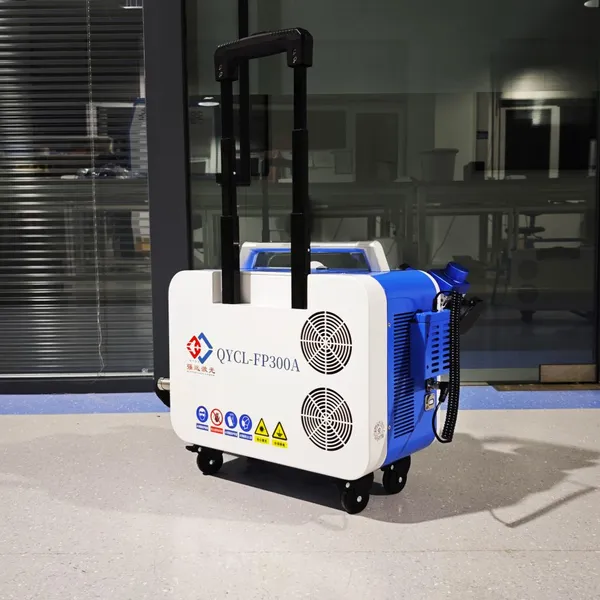

QYCL-FP200A |
QYCL-FP300A |
QYCL-FP500A |
QYCL-FP1000A |
Average laser power (w) |
200 |
300 |
500~520 |
1000 |
Single pulse energy (mj) |
5/15 |
50 |
50 |
100 |
Rated power (kw) |
0.7 |
1 |
7.5 |
10 |
Power adjustment range (%) |
10-100 |
|||
Width of scanning (mm) |
10-100 |
|||
Focal length (mm) |
160/254/330/420 |
100/160/254/330/420 | ||
Central wavelength (nm) |
1060~1070 |
|||
Cooling method |
Air-cooled |
Water-cooled | ||
Fiber length (m) |
5 |
10 | ||
Output method |
QCS |
QBH | ||
Type of laser source |
Pulsed fiber laser |
|||
Dimension of machine (mm) |
500*438*302 |
1240*510*1040 | ||
Weight of machine (kg) |
19 |
205 |
235 | |
Power supply (v) |
220 |
380 |
||
Fearures
Portable design: compact structure, wearable, ergonomic, single person operation.
High efficiency cleaning: laser cleaning has high efficiency and saves time.
Non contact cleaning: laser cleaning without grinding and non-contact.
No pollution: it can easily solve the environmental pollution caused by chemical cleaning without using any chemical agent and cleaning solution.
Strong expansibility: replaceable field mirror, changing focal depth, wider laser cleaning format.
Application
Our Service:
1. 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. One-year warranty is provided. (the detailed reference will be written into the final contract.)
3. Professional staff for installation and training if needed.
4.Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, dvd, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
Company Profile:
Shandong Qiangyuan Laser of SDIIT Ltd. (SDQY Laser) founded by Laser Institute of Shandong Academy of Science since 1978. A leading enterprise focusing on the R&D, manufacturing, sales and service of laser cleaning, welding, cutting, cladding machines and solutions.
SDQY Laser has a multi-disciplinary doctoral innovation team composed of optical, mechanical, electronic, computer, materials science and other specialties. We has more than 50 core independent intellectual property rights at domestic and abroad in laser key core devices, process methods, intelligent control, complete automation solutions. The related products are widely used in aerospace, rail transit, tire mold and other industries.
