Backpack 50W 100W Pulse Laser Cleaning Tool Machine for Surface Restoration

Backpack 50W 100W Pulse Laser Cleaning Tool Machine for Surface Restoration photo-1
Backpack 50W 100W Pulse Laser Cleaning Tool Machine for Surface Restoration photo-2
Backpack 50W 100W Pulse Laser Cleaning Tool Machine for Surface Restoration photo-3
Backpack 50W 100W Pulse Laser Cleaning Tool Machine for Surface Restoration photo-4

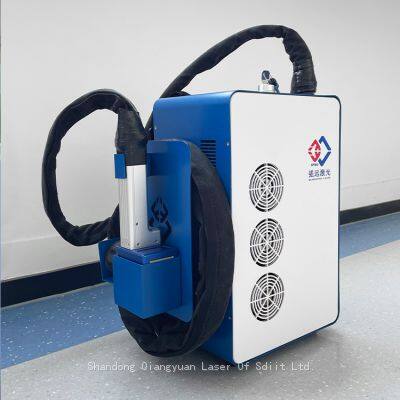

Backpack 50W 100W Pulse Laser Cleaning Tool Machine for Surface Restoration photo-5
US$ 5200 - 6300 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
QIANGYUAN LASER
Place of Origin:
China
Model Number:
QYCL-FP50B, QYCL-FP100B
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Brand Name QIANGYUAN LASER
Place of Origin China
Model Number QYCL-FP50B, QYCL-FP100B
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas
CNC or Not Yes
Applicable Material Metal, Paper, Plywood, Rubber, Stone, Wood
Laser Type Fiber Laser
Backpack 50w 100w Pulse Laser Cleaning Tool Machine for Surface Restoration
Enlisting Agents

Product Description

With battery, only 14/16KG, good for outdoor rust, coating, dirt removal! It comes with 50w/100w Pulse fiber laser source. When aimed at the metal surface, the dirt layer and any oxides underneath will absorb the energy and evaporate, along with thermal pressure and shock waves to sublimate the rust and separates it from the metal without damaging the piece.


Product Parameters

ModelQYCL-FP50BQYCL-FP100B
Laser power (w)50100
Single pulse energy (mj)1.11.6
Weight of hand-held head (kg)1
Rated power (kw)0.50.6
Power adjustment range (%)10-100
Width of scanning (mm)100*100
Focal length (mm)100/160/260
Central wavelength (nm)1060~1070
Cooling methodAir Cooling
Fiber length (m)3
Type of laser sourcePulsed fiber laser
BatteryLithium battery(24V 25Ah)
Battery life2.81.6
Dimension of machine (mm)260*190*415
Weight of machine (kg)14±0.516±0.5
Power supply220V


Detailed Photos


Backpack structure design
Small size, light, easy to carry, battery /external power supply two modes can be selected freely, it's not only suitable for small spaces, high altitude, field operations, etc., but also suitable for factory workshop operations.

Portable cleaning terminal

2D galvanometer structure, 8 kinds of graphics can be replaced, small cleaning head is small and light, alarm timely, safe and reliable.



Rechargeable battery structure

Built-in Korean Samsung high-capacity battery and protection circuit, safety and reliable, it can work at full power 2.5 hours or more. Snap-on installation and the power display can observe the power at any time.

Open functional design
Anti-mis-touch design, support parameter power-off save and process parameter custom storage function.


Features

1) Backpack systel, supply with battery, compact structure and light weight, suitable for outdoor cleaning.
2) Hand-held operation, light scanning head, easy to operate for a long time.
3) Save Energy, protect the environment, no secondary waste.
4) Non-contact cleaning, no damage on matrix material after cleaning.
5) Off-line operation, no need computer and any edition for the file.
6) Cleaning width can be adjustable from 10-100mm easily.
7) No consumption, almost free maintenance.


Application

1. Removal of the coat layer on the surface of metal or glass, and quick paint removal.
2. Quick removal of rust and various oxides.
3. Removal of grease, resin, gum, dust, stains and production residues.
4. Surface roughening of metal and glass.
5. Removal of paint, rust, oil stains, oxides and residues produced by welding before welding or adhesion.
6. Removal of oil stains of precision parts after production and processing.
7. Quick cleaning for maintenance of nuclear power parts.
8. Oxide treatment, paint removal and rust removal during the production or maintenance of aeronautic and astronautic weapons and vessels.
9. Metal surface cleaning in small space.
10. Cultural relic cleaning, rock cleaning, building exterior surface cleaning, steel structure anti-corrosion engineering.
11. Mold cleaning, such as tire mold, electronic mold and fold mold.

Company Profile


FAQ

Q1: Can you give us a better price?
A1: The more products you buy, the more discounts you get.

Q2: Can I make a OEM order?
A2: We can supply different sizes.our products can be customized.But you need to tell us more detailed requirements.

Q3: How does your factory do regarding quality control?
A3: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the verv end.

Q4: What's your MOQ order?
A4: Usually it's a minimum order. If you need more, we can negotiate a discount.

Q5: How to find the right product?
A5: You can provide us with photos or your requirements, and we can give you Suggestions as appropriate.
