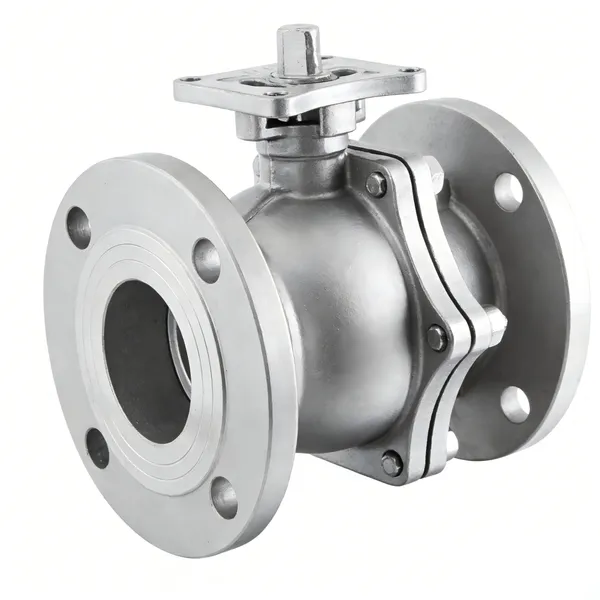

150Ibs Flanged Ball Valve with ISO5211 Direct Mounting Pad
API608 Industrial Flanged Ball Valve for Oil & Gas Pipeline Systems
Manufacturer: Shaanxi Gold-Stone
Website: gs-pipeline
Product Overview
The 150Ibs Flanged Ball Valve with ISO5211 Direct Mounting Pad is a high-performance industrial valve engineered for reliable shut-off and fluid control in pipeline systems.
· Floating Ball Design: The ball moves slightly under pressure, pressing against the downstream seat to ensure bubble-tight sealing.
· ISO5211 Direct Mounting Pad: Allows direct installation of pneumatic or electric actuators, facilitating automation without brackets.
· Compliance: Manufactured according to ASME B16.34 and API608, fully compatible with global industrial pipeline systems.
Key Features
· Floating Ball Structure: Tight shut-off using system pressure.
· ISO5211 Actuator Mounting Pad: Standardized interface for lever, gear, pneumatic, and electric actuators.
· Blow-Out Proof Stem: Internal stem design prevents accidental ejection.
· Anti-Static Device: Maintains electrical continuity to prevent static buildup.
· Optional Fire Safe Design: API607 4th Edition for maintaining sealing under fire.
Technical Data Sheet
Parameter |
Specification |
Valve Type |
150Ibs Flanged Ball Valve with ISO5211 Direct Mounting Pad |
Pressure Rating |
150Ibs (PN16 equivalent) |
Size Range |
1/2" – 12" |
Connection |
Flanged (ANSI flange compatible) |
Mounting Pad |
ISO5211 Direct Mount |
Face-to-Face Dimension |
ANSI B16.10 |
Fire Safe Standard |
API607 4th Edition (Optional) |
Design & Manufacture |
ASME B16.34, API608 |
Operation |
Hand Lever / Gear / Pneumatic / Electric |
Testing & Inspection |
API598 (100% inspection before delivery) |
Materials
Component |
Material Options |
Valve Body |
WCB, CF8, CF8M, CF3M |
Ball |
Stainless Steel (precision machined) |
Stem |
Stainless Steel (blow-out proof, high strength) |
Seat |
PTFE / Reinforced PTFE (optional metal seat for high temperature) |
Operation Modes
· Hand Lever Operation: Simple manual control for small to medium valves.
· Gear Operation: Labor-saving and precise torque for large valves (6–12 inches).
· Pneumatic Actuator: Automatic valve operation, high-cycle industrial processes.
· Electric Actuator: Remote control and integration with SCADA/automation systems.
Safety Features
· Blow-Out Proof Stem: Prevents stem ejection under high pressure.
· Anti-Static Devices: Safely dissipates static electricity.
· Optional API607 Fire-Safe Design: Maintains sealing during fire conditions.
Typical Applications
· Oil & Gas Pipelines (USA, Middle East, Europe)
· Petrochemical Plants (USA, Germany, China)
· Chemical Production Systems (USA, Belgium, Japan)
· Water Treatment Facilities (USA, Germany, Netherlands)
· Industrial Fluid Control Systems (Global Industrial Markets)
FAQ – 150Ibs Flanged Ball Valve
Q1: What does 150Ibs mean?
A1: The American pressure rating, equivalent to PN16, designed for medium-pressure pipelines.
Q2: What is the function of the ISO5211 mounting pad?
A2: Provides a standardized interface for actuators; allows direct mounting, saving installation time and cost.
Q3: What are blow-out proof stem and anti-static devices?
A3: Prevent stem ejection under high pressure and maintain electrical continuity to avoid static buildup.
Q4: When should I choose the optional fire safe design?
A4: For fire-risk industrial scenarios, e.g., petrochemical, oil & gas, and chemical plants.
Q5: Which actuation options are suitable for large valves?
A5: Gear, pneumatic, or electric actuators are recommended for large-diameter valves (6–12 inches).
Why Choose Shaanxi Gold-Stone?
· Compliance with ASME B16.34, API608, API607, ANSI B16.10 standards
· ISO5211 automation-ready design
· Multiple corrosion-resistant materials (CF3M, CF8M, CF8, WCB)
· Optional fire-safe certification
· Full material traceability (EN 10204 3.1 MTC)
· OEM and project customization
· 100% inspection before delivery
· Reliable global export supply
Request a Technical Quote
Get 2D/3D CAD drawings, torque sheets, material certificates, and bulk pricing:
Contact Shaanxi Gold-Stone Sales Team
