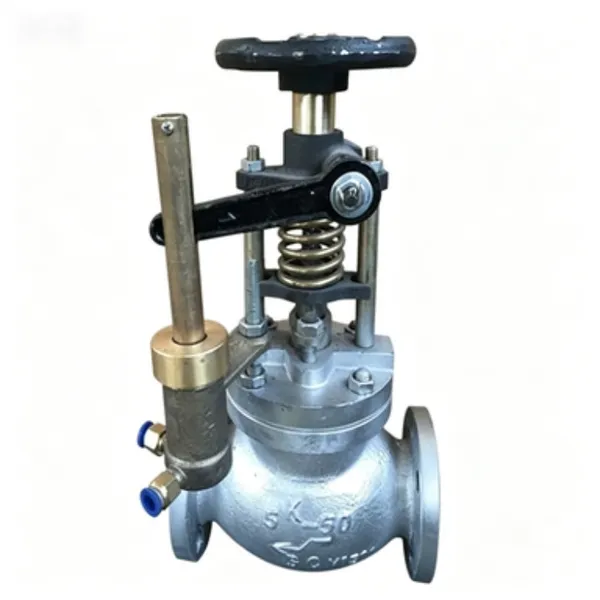

As a leading manufacturer, Shanghai Zhibang Valve Manufacture Co., Ltd. specializes in producing high-performance industrial valves, including the JIS F7399 WCB Cast Steel Straight Pneumatic Quick Closing Valve with 316 Stainless Steel Trim. Established in 2016, we leverage our expertise and ISO9001-certified quality management system to deliver reliable solutions for global markets. This valve is engineered for rapid isolation in critical processes, offering durability and precise control. Our commitment to quality and timely delivery through major ports like Shanghai, Guangzhou, Hongkong, and Beijing ensures you receive a product that meets stringent industrial standards.
This valve is designed for applications requiring immediate shut-off to prevent leaks, spills, or process interruptions. Its robust construction and pneumatic actuation provide a reliable solution for various industries.
- Core Design & Construction: The valve body is made from JIS F7399 WCB Cast Steel, known for its excellent strength and pressure resistance. The internal trim components, including the seat and disc, utilize 316 Stainless Steel, which offers superior corrosion resistance, especially against chlorides and other aggressive media, enhancing longevity in harsh environments.
- Quick Closing Mechanism: The pneumatic actuator enables fast, positive closing action. Upon receiving a signal, the valve closes swiftly, minimizing response time for emergency shutdowns or routine process control.
- Straight Flow Path Design: The straight-through configuration minimizes flow resistance and turbulence, promoting efficient fluid passage and reducing potential for pressure drop across the valve.
- Operational Benefits: Pneumatic operation allows for remote and automated control, integrating seamlessly into PLC or SCADA systems. This reduces manual intervention, improves safety, and enhances process automation efficiency.
- Versatile Applications: Suitable for a wide range of industries including chemical processing, oil & gas, power generation, water treatment, and marine systems where quick isolation is paramount.
Key technical specifications and features are summarized below. Specific ratings for pressure and temperature can be customized based on your project requirements.
| Feature | Description |
| Body Material Standard | JIS F7399 WCB Cast Steel |
| Trim Material | 316 Stainless Steel |
| Connection / Port Type | Straight (Through Port) |
| Actuation Type | Pneumatic (Air Operated) |
| Primary Function | Quick Closing / Shut-off |
| Sealing Options | Soft Seal or Metal Seal (Available upon request) |
| Pressure Class | Customizable (e.g., JIS 10K, 20K) |
| Temperature Range | Customizable based on trim and seal selection |
| Compatible Fluids | Water, Oil, Gas, Chemicals, Steam (dependent on trim) |
| Control Signal | Standard pneumatic pressure (e.g., 0.4-0.6 MPa) |
The combination of a sturdy cast steel body and corrosion-resistant stainless steel trim ensures this valve withstands demanding operating conditions. The pneumatic quick-closing feature provides a significant safety advantage, allowing for immediate response to abnormal conditions. For clients, this translates into reduced risk of operational incidents, lower maintenance costs due to durable materials, and improved system automation capability.
Shanghai Zhibang Valve Manufacture Co., Ltd. supports a robust global supply chain, exporting to markets across North America, South America, Europe, Asia, Africa, and Oceania. With an annual export value ranging between US$1 Million and US$1.5 Million, our products have proven their reliability worldwide. Our ISO9001 certification underpins a consistent quality assurance process. Choosing our JIS F7399 Pneumatic Quick Closing Valve means partnering with an experienced manufacturer dedicated to providing valves that enhance your system's safety, efficiency, and longevity. Contact us today to discuss your specific requirements and explore how this valve can benefit your operations.
FAQ
Q1: What is the main advantage of a pneumatic quick closing valve?
A: The primary advantage is its rapid shut-off capability, which is crucial for emergency situations or precise process control. Pneumatic actuation allows for fast, automated response, enhancing safety and operational efficiency.
Q2: Why is 316 stainless steel used for the trim?
A: 316 stainless steel offers excellent resistance to corrosion, particularly from chlorides and acidic environments. This makes the valve suitable for handling a wider range of aggressive fluids compared to standard stainless steels.
Q3: Can this valve be used for steam applications?
A: Yes, with appropriate trim and seal material selection, this valve can be configured for steam service. The specific temperature and pressure ratings should be confirmed based on your steam conditions.
Q4: What does "JIS F7399 WCB" refer to?
A> JIS F7399 is a Japanese Industrial Standard for steel castings for valves. "WCB" is a grade designation within that standard, indicating a carbon steel casting with specified mechanical properties suitable for valve bodies.
Q5: Is the valve suitable for remote operation?
A: Absolutely. The pneumatic actuator is designed for integration into control systems. It can be operated remotely via electrical signals to a solenoid valve controlling the pneumatic supply.
Q6: What are the typical port connections for this valve?
A: This is a straight valve, typically with flanged ends according to JIS or other standards like ANSI. The exact flange dimensions (size, facing) can be customized to match your piping system.
Q7: How does the quick closing mechanism work?
A: The pneumatic actuator is designed to rapidly move the valve disc to the closed position when the air supply is activated (or cut off, depending on design). This action is much faster than manually operated valves or some other automated types.
Q8: Can I get valves with different pressure ratings?
A: Yes. As a manufacturer, we can produce valves to meet various pressure class requirements, such as JIS 10K, 20K, or equivalents. Please specify your needed pressure rating during inquiry.
