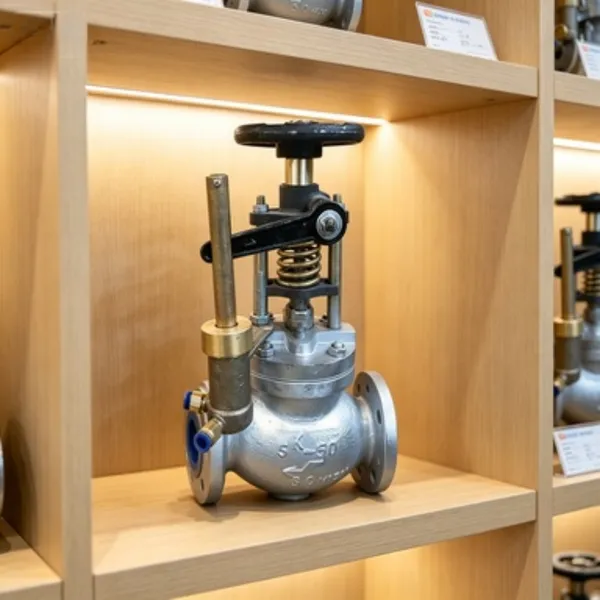

Shanghai Zhibang Valve Manufacture Co., Ltd., established in 2016, is a dedicated manufacturer specializing in high-performance valves for demanding industrial applications. Our JIS F7399 WCB Cast Steel Pneumatic Quick Closing Valve is engineered specifically for the rigorous requirements of shipboard pipeline systems. This valve combines robust construction with rapid actuation, providing a reliable solution for critical flow control and emergency shut-off scenarios in marine environments. With an annual export value reflecting our global reach and adherence to ISO9001 quality management systems, we deliver products that meet international standards for durability and performance.
The core value of this valve lies in its ability to ensure operational safety and system integrity. Designed per the Japanese Industrial Standard (JIS) F7399 for marine valves, it guarantees compatibility and reliability in shipboard applications. The pneumatic quick-closing mechanism allows for immediate response to control signals or emergency situations, minimizing risk and potential damage. Constructed from WCB cast steel, the valve body offers excellent resistance to corrosion and mechanical stress, suitable for handling various fluids onboard, including seawater, fuel, and ballast water.
Key Features and Technical Specifications:
- Robust Material Construction: The valve body and major components are made from ASTM A216 Grade WCB cast steel, known for its good tensile strength and corrosion resistance in marine atmospheres.
- JIS F7399 Compliance: Manufactured according to this specific standard for ship valves, ensuring design, dimensions, and performance criteria are met for maritime use.
- Pneumatic Quick-Actuating Design: Utilizes a pneumatic actuator for fast opening and closing operations. The closing time can be customized based on system requirements.
- Flanged Connection: Typically features flanged ends (standard dimensions per JIS or other standards like ANSI/JIS/ISO) for secure and leak-resistant integration into pipeline systems.
- Enhanced Safety Function: The quick-closing feature is vital for emergency isolation, helping to prevent spillage, contain fires, or manage sudden pressure changes.
- Optional Manual Override: Many models include a manual override mechanism, allowing operation even if the pneumatic power source is unavailable.
- Position Indicator: Often equipped with a visual indicator to show the valve's open/closed status clearly.
- Customizable Configurations: Available in various sizes, pressure classes, and with optional accessories like solenoid valves, limit switches, or local control panels.
Below is a table summarizing typical parameters (specific values are customizable upon request):
| Parameter | Typical Range / Description |
| Body Material | ASTM A216 WCB Cast Steel |
| Standard | JIS F7399 |
| Actuation Method | Pneumatic (Quick Closing) |
| Connection | Flanged (Standard) |
| Size (Nominal Diameter) | Customizable (e.g., 50mm to 300mm) |
| Pressure Rating | Available upon request (e.g., 10K, 20K JIS) |
| Temperature Range | Available upon request |
| Optional Features | Manual Override, Position Indicator |
Advantages and Customer Benefits:
- Marine-Specific Reliability: Compliance with JIS F7399 ensures the valve is purpose-built for shipboard conditions, offering long-term reliability and reducing failure risks.
- Fast Emergency Response: The pneumatic quick-closing action provides a crucial safety layer, enabling rapid isolation of pipelines to mitigate accidents.
- Durable Construction: WCB cast steel withstands harsh marine environments, including exposure to saltwater and variable pressures, leading to reduced maintenance needs.
- System Integration Ease: Standard flanged connections facilitate straightforward installation and replacement within existing shipboard piping networks.
- Operational Flexibility: With customizable sizes, pressure ratings, and optional features, the valve can be tailored to fit specific project requirements.
- Global Supply Capability: Supported by Shanghai Zhibang's established export channels from major ports like Shanghai, Guangzhou, Hong Kong, and Beijing, ensuring timely delivery to worldwide markets.
Shanghai Zhibang Valve Manufacture Co., Ltd. has built a strong reputation since 2016, with an annual export value between US$1 Million and US$1.5 Million, serving diverse markets across North America, South America, Europe, Asia, Africa, and Oceania. Our ISO9001 certification underpins a consistent commitment to quality control in every manufacturing process. This JIS F7399 WCB Cast Steel Pneumatic Quick Closing Valve embodies our expertise in producing specialized valves for critical applications. By choosing our product, you gain a component designed for maritime safety, durability, and performance, backed by a manufacturer with proven global export experience and quality assurance. Contact us to discuss your specific requirements and ensure your shipboard systems are equipped with reliable, high-quality valves.
Frequently Asked Questions (FAQ):
-
Q: What does "JIS F7399" mean for this valve?
A: JIS F7399 is a Japanese Industrial Standard specifically for valves used on ships. It defines requirements for design, materials, dimensions, testing, and performance to ensure suitability and safety in marine applications. Our valve is manufactured to comply with this standard. -
Q: How fast is the "quick closing" operation?
A: The closing time depends on the specific pneumatic actuator configuration and system pressure. Typically, it can be designed to close within a few seconds. The exact time can be customized based on your project's safety and operational requirements. -
Q: Can this valve be operated manually if the pneumatic system fails?
A> Yes, many models of this valve include an optional manual override feature. This allows personnel to open or close the valve using a handwheel or lever in case the pneumatic power is lost, ensuring operational continuity. -
Q: What fluids is this valve suitable for handling on a ship?
A> The WCB cast steel construction makes it suitable for a range of fluids common in shipboard systems, including seawater, fuel oil, lubricating oil, ballast water, and other non-aggressive liquids. Specific compatibility for certain chemicals should be confirmed based on the fluid properties. -
Q: What are the available sizes and pressure ratings?
A> Size (nominal diameter) and pressure rating are customizable. Common sizes range from 50mm to 300mm or larger. Pressure ratings typically follow JIS classifications (e.g., 10K, 20K). We can provide valves matching your pipeline specifications upon request. -
Q: Does the valve come with any certifications besides JIS F7399?
A> Our manufacturing process is certified under ISO9001 for quality management. The valve itself is produced to meet JIS F7399. Other specific product certifications (like CE for certain markets) may be available upon request and depend on the order specifications. -
Q: What is the typical lead time for ordering this valve?
A> Lead time varies based on order quantity, customization requirements, and current production schedule. As an established manufacturer with efficient logistics from major Chinese ports, we strive to offer competitive lead times. Please inquire for a specific estimate. -
Q: Can you provide technical support for installation and integration?
A> Yes, we offer technical documentation and support. Our team can assist with installation guidelines, actuator configuration details, and compatibility questions to ensure smooth integration into your shipboard pipeline system.
