Help CenterDK-SF40L Series Battery Pack Charge-Discharge Tester
Product Spotlights
Compatible with all common lead-acid, lithium iron phosphate and ternary battery packs for e-bikes and energy storage systems.
2. 0.5–40A High Precision Discharge / 0.5–20A Charge
Supports high-current testing, provides accurate capacity analysis and improves battery grading efficiency.
3. AC220V Plug-and-Play
No 380V industrial power required. Easy to use for repair shops, workshops and small factories.
Related Products
-
DEKANG SF100S 6‑Channel Lead‑Acid Lithium Battery Charge‑Discharge Tester Equalizer Pulse Repair Machine With IoTUS$ 380 - 450MOQ: 1 Piece -
DEKANG SF540‑6 6‑Channel Lead‑Acid Battery Capacity Tester Discharge Detector Battery Discharge Testing EquipmentUS$ 870 - 900MOQ: 1 Piece
-
DEKANG DT2010‑8(DSF2010‑8) 8‑Channel Modular Battery Charge‑Discharge Internal Resistance Capacity Grading Balancing TesterUS$ 1076 - 1200MOQ: 1 Piece
-
DeKang 20‑Channel Multi‑Function Battery Equalizer & Capacity SorterUS$ 588 - 610MOQ: 1 Piece
-
DeKang 5050 High-Precision 1V–5V Multi-Channel Battery Test & Balancing InstrumentUS$ 984 - 1000MOQ: 1 Piece

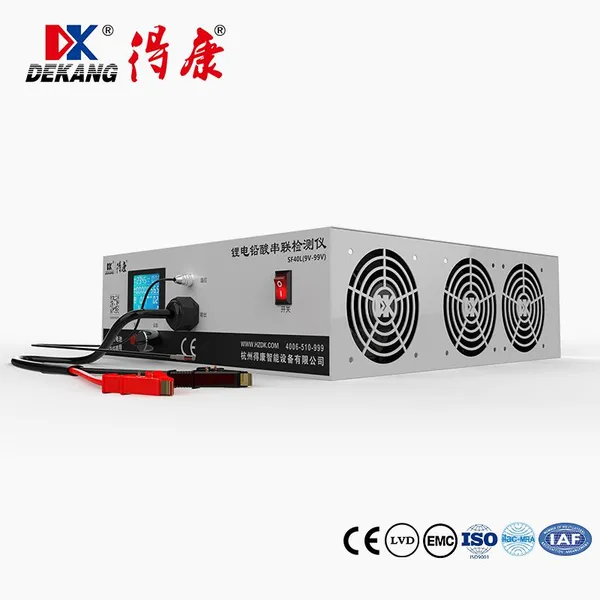

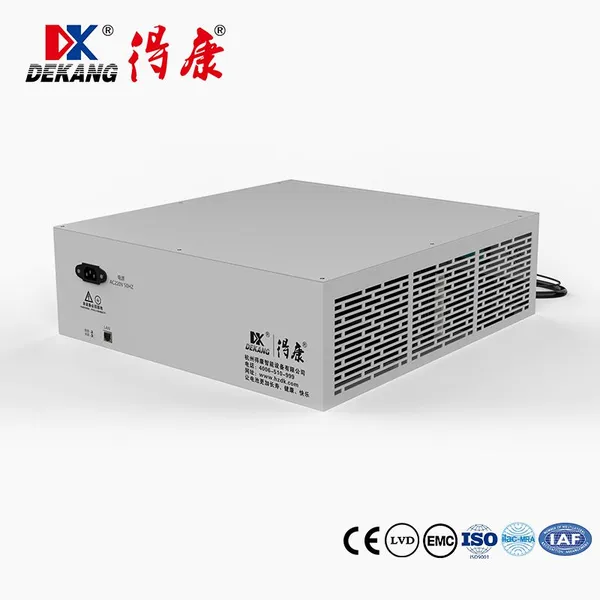

DK-SF40L is an all-in-one battery tester from DEKANG, powered by AC220V. It covers 9–99V battery packs, supporting lead-acid, NCM and LiFePO4 batteries.
With 0.5~20A charging and 0.5~40A discharging adjustable current, it works in three modes: charge, discharge and auto cycle aging for battery grading and maintenance.

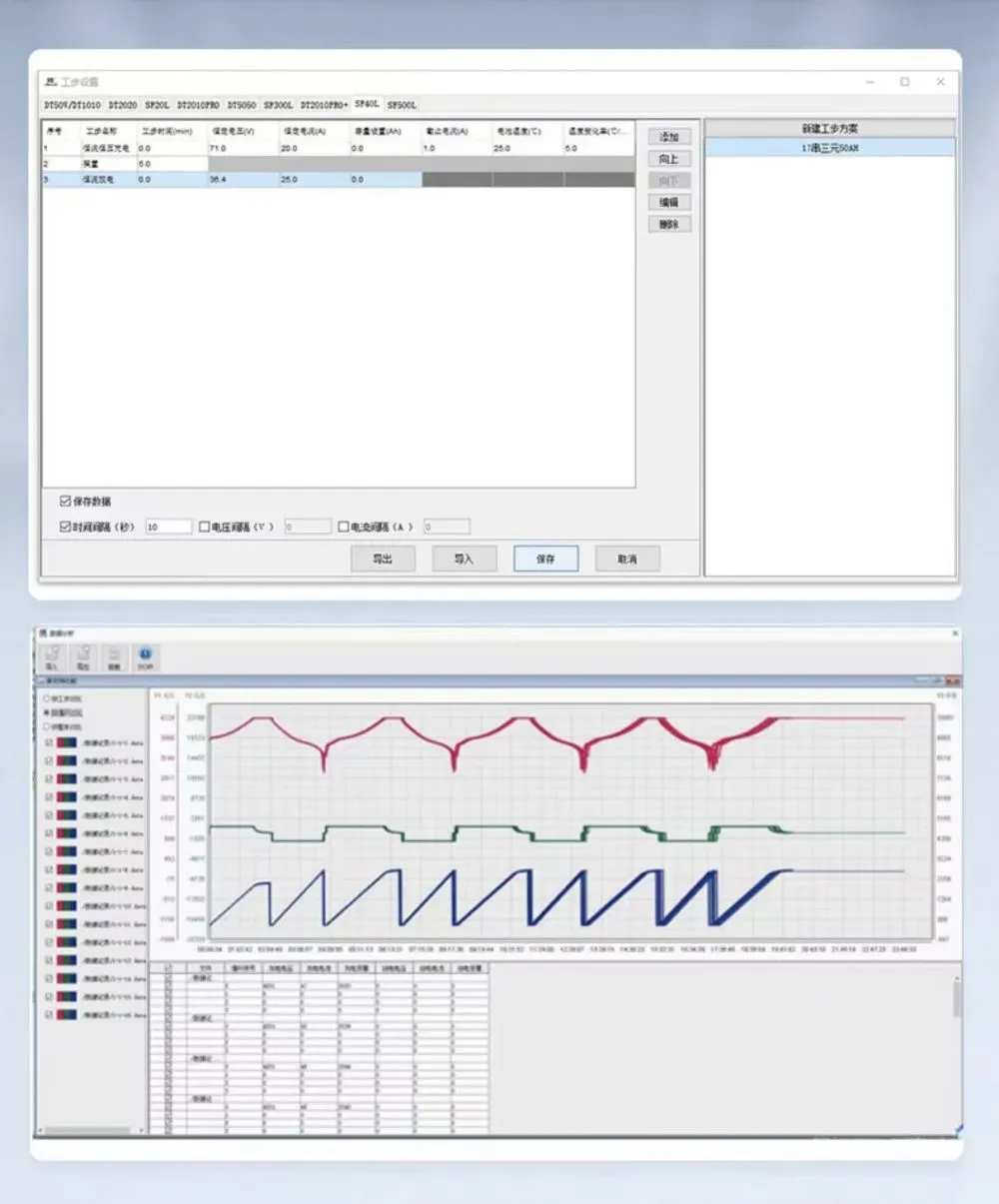

It connects to PC to record test curves and export reports. Complete multi-protection prevents reverse connection, overvoltage, overcurrent and overheat. Lightweight 15kg design suits repair stores and small battery factories.
Working voltage range: 9V~99VDC, compatible with 12V/24V/36V/48V/60V/72V/84V assembled batteries
• Adjustable current: Charge 0.5~20A, Discharge 0.5~40A with 0.1A fine tuning, test precision ±0.03V/±0.03A

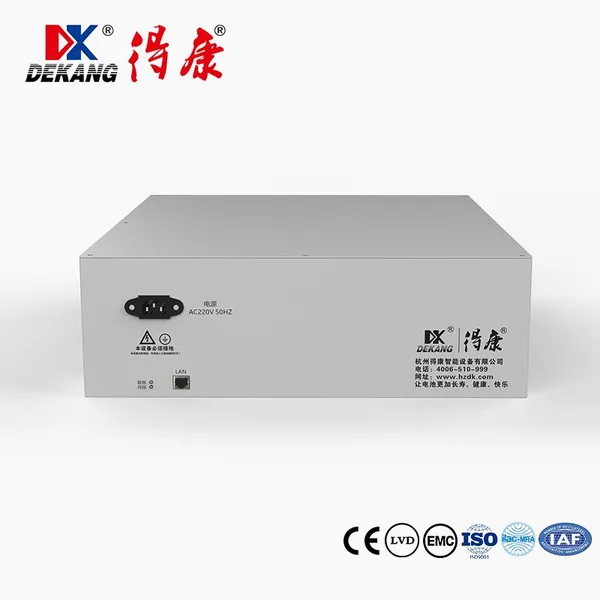

• Power input: Standard AC220V household power, no 380V industrial electricity required
• Max customizable auto cycle: 16 rounds for unattended aging test

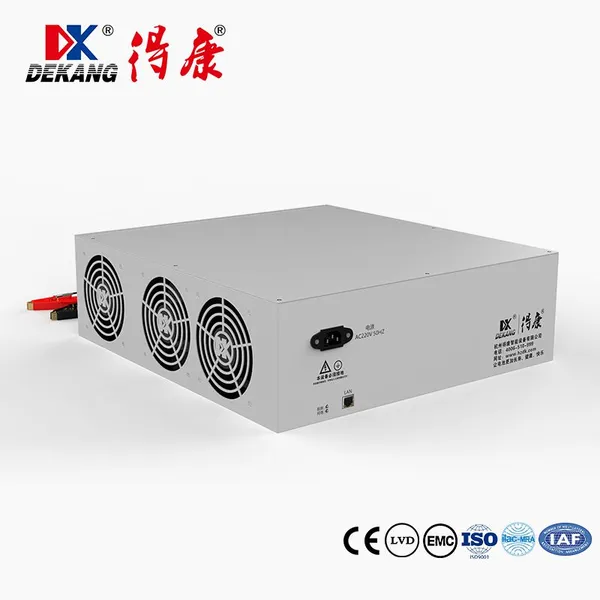

• Net weight: 15kg, compact dimension with dual cooling fans for continuous stable operation
