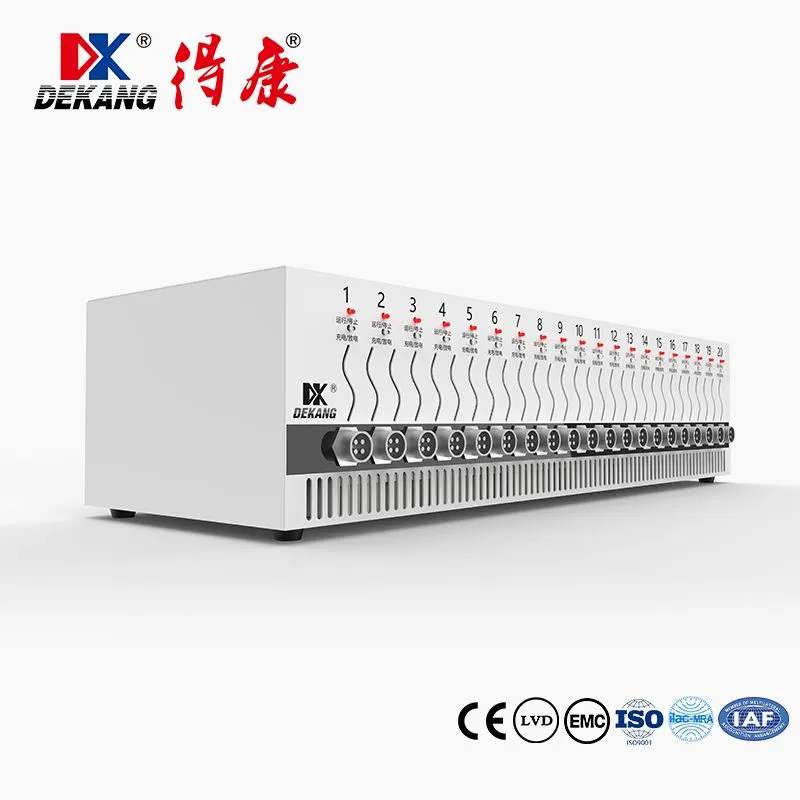

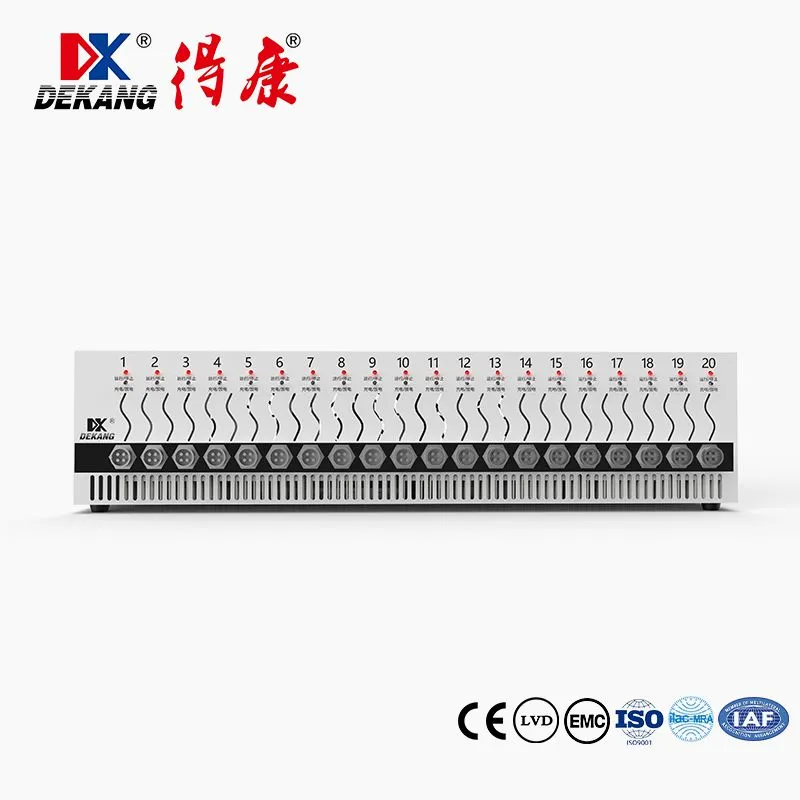

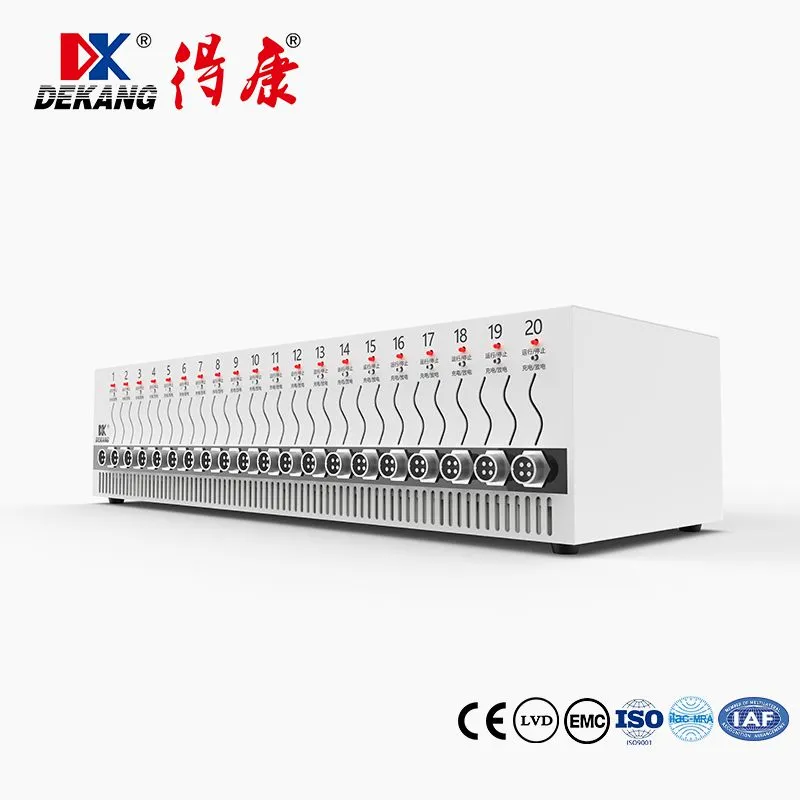

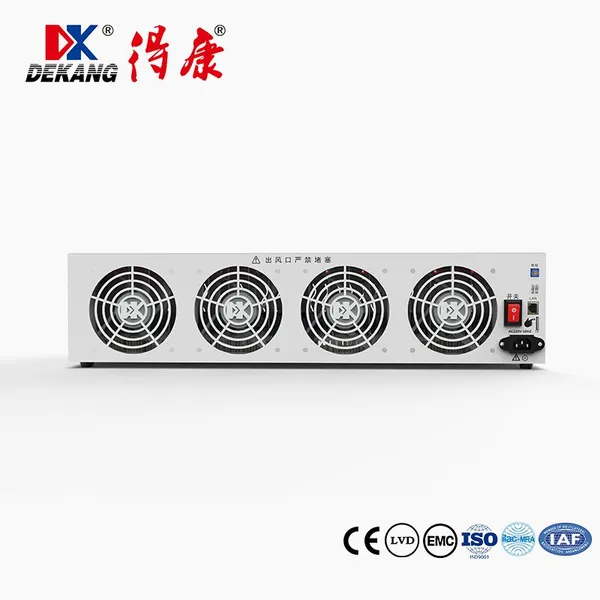

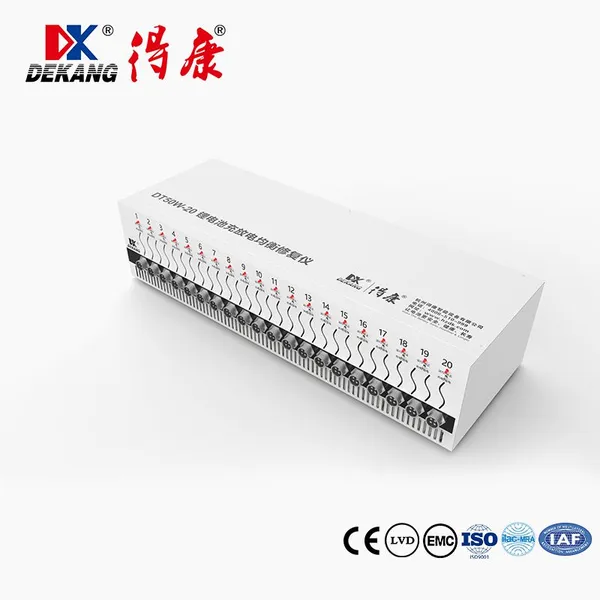

Help CenterDeKang 20‑Channel Multi‑Function Battery Equalizer & Capacity Sorter
Product Spotlights
Built‑in high‑precision sampling chip, accurate voltage monitoring ensures consistent cell voltage after balancing.Widely compatible with Li‑ion, LiFePO4 and ternary lithium battery packs for new energy storage, e‑bike and power battery maintenance.lntelligent constant‑current equalization mode, fast balancing speed and stable operation without cell damage
Related Products
-
DeKang 5050 High-Precision 1V–5V Multi-Channel Battery Test & Balancing InstrumentUS$ 984 - 1000MOQ: 1 Piece -
DK-SF50L Series Battery Pack Charge-Discharge TesterUS$ 899 - 940MOQ: 1 Piece
-
DK-SF40L Series Battery Pack Charge-Discharge TesterUS$ 480 - 500MOQ: 1 Piece
-
DEKANG SF100S 6‑Channel Lead‑Acid Lithium Battery Charge‑Discharge Tester Equalizer Pulse Repair Machine With IoTUS$ 380 - 450MOQ: 1 Piece
-
DEKANG SF540‑6 6‑Channel Lead‑Acid Battery Capacity Tester Discharge Detector Battery Discharge Testing EquipmentUS$ 870 - 900MOQ: 1 Piece
• 20 independent channels
Each channel runs separately; no interference between channels. Supports individual control and simultaneous operation of 20 cells.
• Modular & stable design
Industrial module structure, high safety isolation, supports series battery pack direct connection without wrong‑connection damage.
• High precision & efficiency
High‑accuracy voltage & current sampling; fast active balancing to improve cell consistency and prolong battery life.
• Full compatibility
Works with ternary lithium, LiFePO4, 18650, pouch cells, square cells and large‑format cells.
• Intelligent PC software
Real‑time curve display, data recording, automatic grouping, export reports and one‑key management.
• Multiple protections
Over‑voltage, over‑current, over‑temperature, reverse connection and short‑circuit protection for safe long‑time running.
1. Cell capacity grading (C/GC testing)
Full charge → full discharge → automatic capacity calculation for sorting good/bad cells.
2. High‑efficiency balancing
Balances voltage differences between cells; improves pack performance and cycle life.
3. Programmable charge/discharge steps
CC/CV charge, CC discharge, rest, cycle (up to 5000 cycles) supported.
4. Automatic battery grouping
Group by capacity range, voltage range; indicator lights for quick identification.
5. Data analysis & export
Real‑time voltage/current/capacity curves; DCIR internal resistance comparison; export to Excel.
6. Multi‑device cascade
Connect multiple units via PC for large‑scale production testing.
4. Key Specifications
• Channels：20 independent channels
• Voltage range：1V–5V per channel
• Charge current：0.1–10A adjustable
• Discharge current：0.1–10A adjustable
• Voltage accuracy：±0.02V
• Current accuracy：±0.02A
• Input power：AC 200–245V 50/60Hz
• Display：PC real‑time monitoring + status indicator lights
• Compatible batteries：Ternary Li‑ion, LiFePO4, 18650, pouch, square & large cells
• Applications：Battery repair, pack assembly, capacity sorting, cycle testing, energy storage maintenance
5. Typical Applications
• Battery repair shops：cell detection, capacity recovery, balancing & repair
• Battery pack factories：consistency sorting, grouping, pre‑assembly testing
• Energy storage & EV maintenance：battery pack diagnosis, balancing & performance recovery
• Recycling & second‑use：cell screening, capacity grading, reuse matching
6. Why Choose the New DeKang 20‑Channel
• High efficiency：20‑channel simultaneous operation greatly improves productivity
• Stable & durable：industrial design for long‑term heavy use
• Easy to use：user‑friendly software, simple wiring, clear status display
• Cost‑effective：all‑in‑one machine reduces need for multiple devices
• Made in China：stable quality, complete after‑sales support
