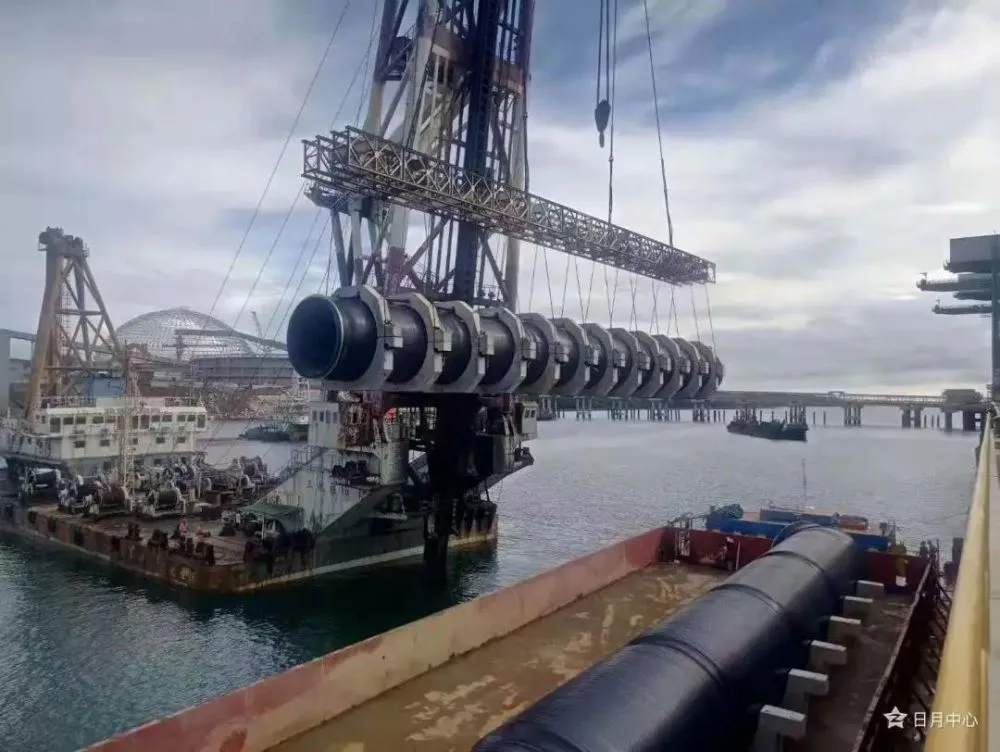

As a specialized manufacturer with over a decade of experience, Qingdao Yongke Machinery is dedicated to providing robust and efficient solutions for the global pipeline industry. Our Large Diameter HDPE Sea Intake Outfall Structured Wall Pipe Making Machine represents our commitment to engineering excellence, designed specifically for the demanding requirements of marine and coastal infrastructure projects. This advanced production line enables the reliable manufacturing of high-performance pipes that are essential for seawater cooling systems, desalination plants, and wastewater outfalls.
The core value of this machine lies in its ability to produce large-diameter, structured-wall HDPE pipes with superior dimensional stability, corrosion resistance, and long-term durability. These pipes are critical components in applications where failure is not an option. By integrating precision extrusion with advanced corrugation forming technology, we deliver a turnkey manufacturing solution that helps our clients build resilient and sustainable water management systems.
With a factory spanning over 10,000 square meters and a strong export presence across continents, we understand the diverse needs of international markets. Our machinery is built to empower pipe producers, enabling them to meet stringent project specifications and contribute to vital coastal and industrial developments worldwide.
Key Product Features & Technical Advantages:
High-Precision Extrusion: Equipped with a high-output, single or twin-screw extruder specifically configured for HDPE. The screw and barrel are designed for optimal melting and mixing, ensuring consistent material flow and excellent pipe wall homogeneity.

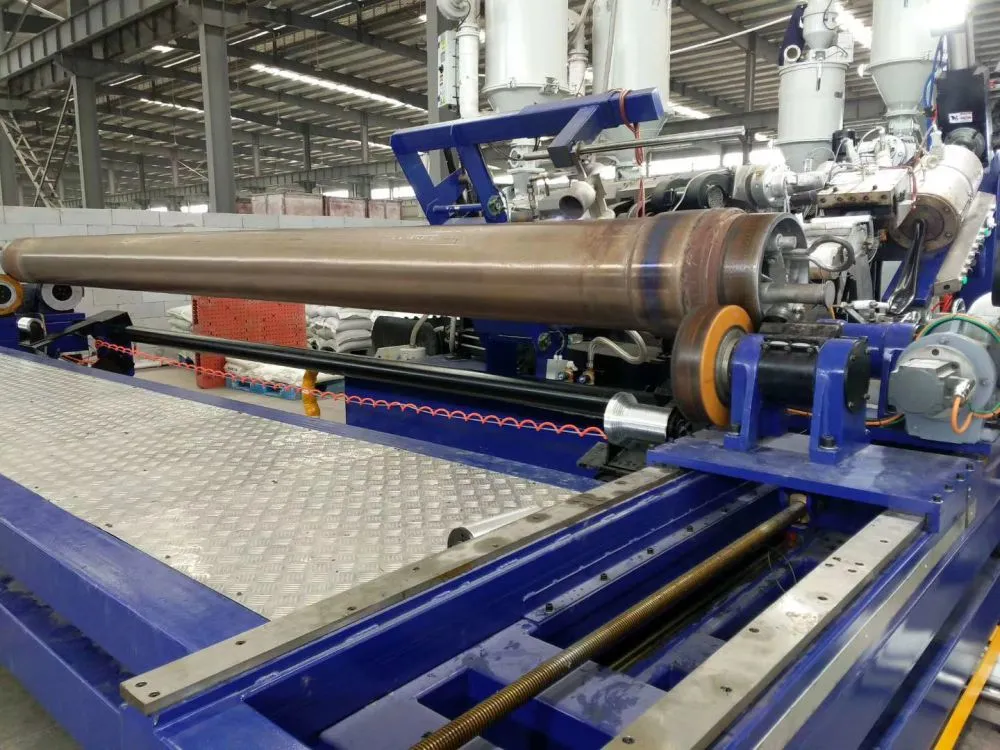

Structured Wall Forming Technology: The heart of the machine is its precision corrugator or modular molding system. It forms the pipe's external structural ribs or profiles while the inner wall remains smooth. This design significantly enhances the pipe's ring stiffness and pressure resistance while optimizing material usage.
Advanced Sizing & Cooling: A multi-stage vacuum sizing tank and controlled water cooling system ensure precise pipe diameter control and rapid, uniform cooling. This process is crucial for preventing deformation and achieving the required mechanical properties in large-diameter pipes.
Fully Automated Control: The entire production process is managed by a centralized PLC system with an intuitive HMI (Human-Machine Interface). Operators can monitor and adjust key parameters like temperature, speed, and vacuum in real-time, ensuring consistent product quality and reducing manual intervention.
Robust Haul-Off & Cutting: A heavy-duty caterpillar haul-off unit provides stable traction for the large, heavy pipe. It is synchronized with an automatic traveling saw or cutter that delivers clean, square cuts to the required pipe length.
Durability & Low Maintenance: Critical components are manufactured from high-grade alloys and treated for wear resistance. The machine's robust frame and construction ensure stable operation under continuous production conditions, minimizing downtime and maintenance costs.
Technical Specifications Overview:
| Parameter | Description / Typical Range |
| Applicable Pipe Material | High-Density Polyethylene (HDPE), PE100, PE100-RC |
| Production Pipe Diameter (OD) | Customizable, commonly from 800 mm to 3000 mm |
| Wall Structure Type | Double Wall Corrugated, Structured Rib Wall, or other profiles |
| Extruder Configuration | Single or Twin Screw, L/D ratio optimized for HDPE |
| Drive System | AC Variable Frequency Drive (VFD) for precise speed control |
| Control System | PLC with Color Touchscreen HMI |
| Cooling Method | Spray Cooling or Vacuum Water Bath Cooling |
Note: The above specifications are indicative. Exact configurations, output rates, and dimensions are tailored based on the specific pipe product requirements and customer production goals.
Benefits for Your Pipe Production Business:
Produce High-Value Products: Manufacture large-diameter, structured-wall HDPE pipes that command premium prices in the marine, municipal, and industrial markets.
Superior Product Quality: Achieve consistent pipe dimensions, excellent surface finish, and enhanced mechanical properties (ring stiffness, impact resistance) that meet or exceed international standards for marine applications.
Operational Efficiency: High degree of automation reduces labor dependency and human error, leading to smoother operation and predictable output.
Material & Energy Savings: The structured wall design uses material efficiently, reducing raw material costs per meter of pipe. Modern drive and heating systems are designed for energy efficiency.
Competitive Edge: Equip your factory with the capability to bid on and fulfill contracts for major coastal, power plant, and desalination projects that require large-diameter intake/outfall pipes.
Reliable Support: Backed by our engineering team's expertise, we provide comprehensive technical support, from installation and commissioning to operator training and spare parts supply.
Trust in a manufacturer with a proven global track record. Since our establishment in 2010, Qingdao Yongke Machinery has grown to serve clients across North America, South America, Europe, Asia, Africa, and Oceania, with an annual export value consistently ranging between US$1-1.5 Million. Our operations are backed by a dedicated team of 51-100 professionals working from our 10,000-30,000 square meter facility. Our commitment to quality management, environmental responsibility, and occupational health and safety is formally recognized through our ISO9001, ISO14000, and OHSAS18001 certifications. We ship reliably from the Port of Qingdao, ensuring timely delivery to your project site.
This Large Diameter HDPE Sea Intake Outfall Pipe Making Machine is more than just equipment; it's a partnership in building infrastructure that lasts. It combines rugged construction with intelligent control to deliver the performance you need for demanding production schedules. By investing in this technology, you are investing in the future capacity and reputation of your pipe manufacturing business.
Take the next step in expanding your production capabilities. Contact us today to discuss your specific pipe size requirements, desired output, and project timeline. Our engineering team is ready to provide a detailed proposal and help you configure the optimal machine solution for your success in the large-diameter HDPE pipe market.
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of a "structured wall" design for sea intake/outfall pipes?
A: The structured wall (e.g., corrugated or ribbed) provides significantly higher ring stiffness and resistance to external pressure compared to a solid wall of the same material weight. This is crucial for withstanding soil loads, water pressure, and installation stresses in submerged or buried marine applications, while also offering excellent flexibility and resistance to cracking.
Q2: Can this machine produce pipes for other applications besides marine use?

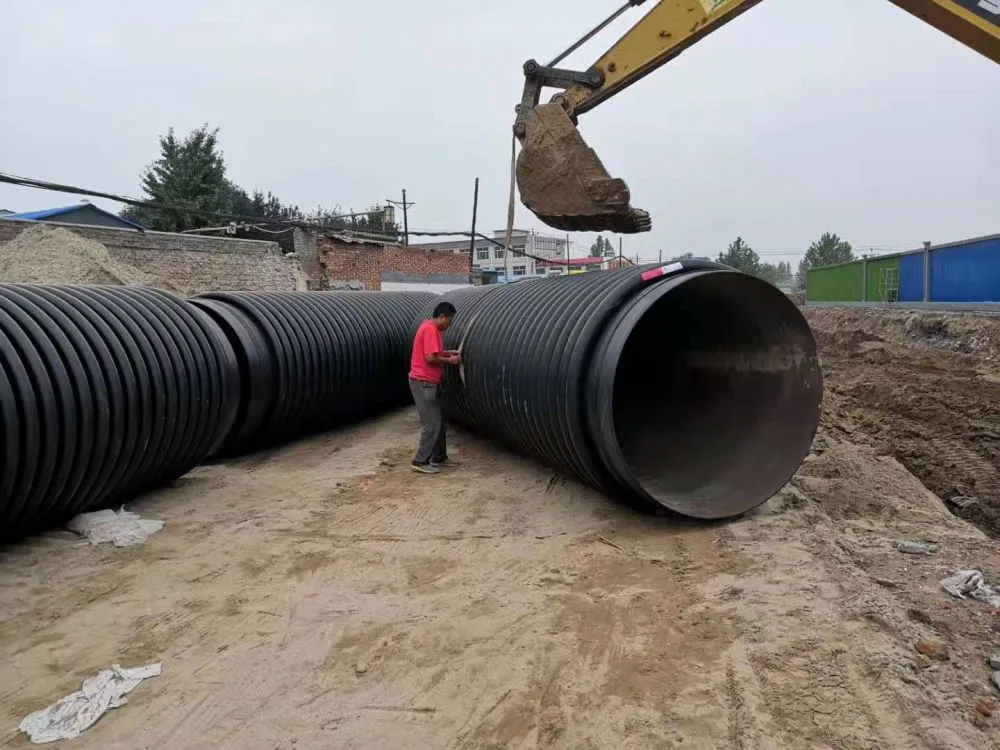

A: Absolutely. While optimized for the demanding specs of seawater systems, the pipes produced are also highly suitable for municipal stormwater and sewer systems, industrial effluent discharge, land drainage, and other applications requiring large-diameter, corrosion-resistant, and durable piping solutions.
Q3: What is the typical production output or speed of this machine?
A: Production speed (kg/hr or meters/hr) is highly dependent on the final pipe diameter, wall thickness, and profile complexity. Larger diameters generally have lower linear output. We design and configure each machine line based on the client's target output, providing detailed capacity projections during the proposal stage.
Q4: Do you provide the molds/dies for the specific pipe profile?
A: Yes, as a complete solution provider, we engineer and supply the entire tooling package, including the extrusion die head and the corrugation/molding modules. These are custom-manufactured to produce the exact pipe profile and dimensions you require.
Q5: What kind of training and after-sales support do you offer?
A: We provide comprehensive support including detailed machine manuals, on-site installation supervision and commissioning by our engineers, and thorough operational and maintenance training for your technicians. We also maintain a stock of commonly used spare parts and offer remote technical assistance.
Q6: How energy-efficient is this production line?
A: The machine incorporates several energy-saving features. The extruder uses modern screw designs for efficient plastication, heaters are well-insulated, and the main drives use high-efficiency AC motors with variable frequency control. The specific energy consumption can be discussed based on your production parameters.
Q7: Can the machine handle recycled HDPE material?
A: The machine can be configured to process a certain percentage of high-quality post-industrial recycled HDPE granulate blended with virgin material, subject to the specific requirements for the final pipe's performance and certification. The extruder configuration and filtration system can be adapted accordingly.
Q8: What is the lead time for manufacturing and delivering such a machine?
A: Lead time varies based on machine complexity, customization level, and current production schedule. Generally, it ranges from 3 to 6 months from order confirmation to shipment from Qingdao port. A more precise timeline is provided upon finalization of the technical specification.
