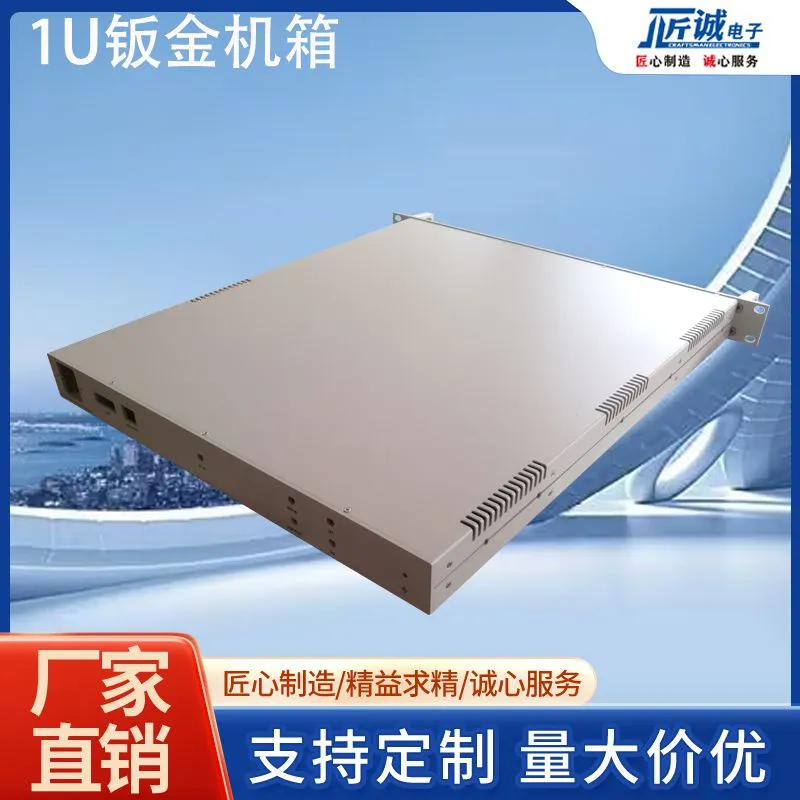

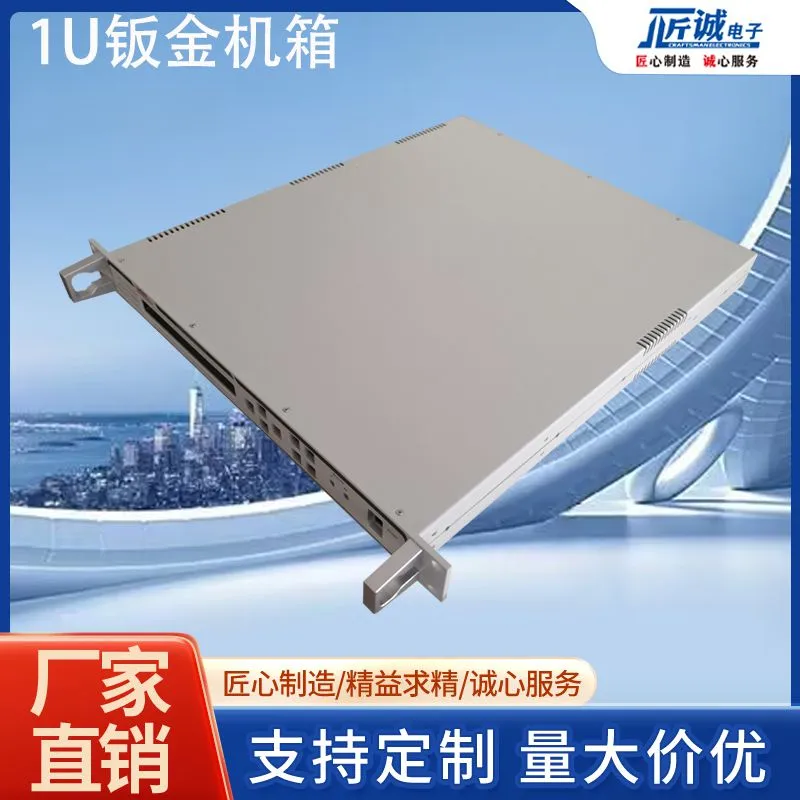

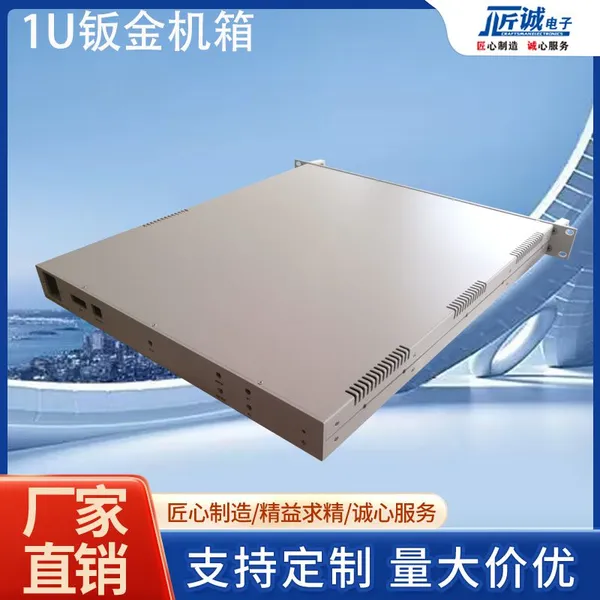

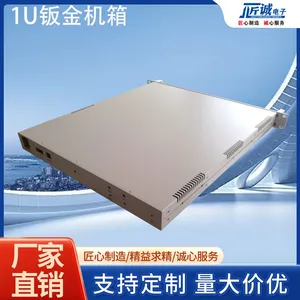

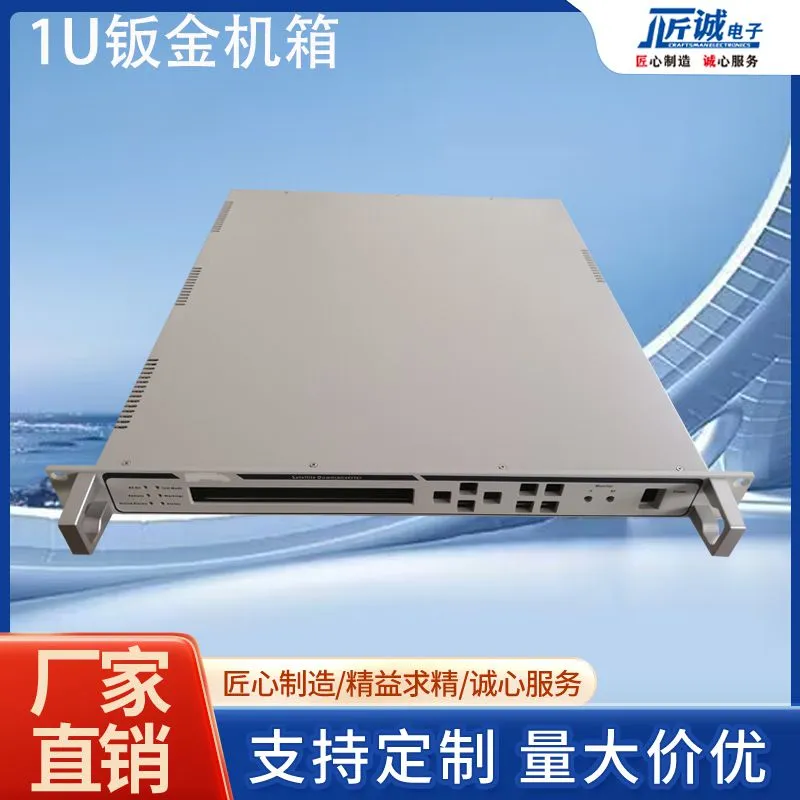

Product Name: 1U Sheet Metal Chassis
Product Category: Sheet Metal Chassis Series
Material: Aluminum Plate
Surface Treatment: Painted Ice Gray
Dimensions: 1U-3U (H) * 19" (W) * 80-550mm (D)
RoHS Requirement: Compliant with RoHS
Installation Method: Rack-mount / Desktop / Portable
Protection Rating: IP20, in accordance with IEC60529
EMC Test: VG 95373 Part 15
Service Method: Customer Customization
Application Fields: Rail Transit, Broadcasting & TV, Power, Communications, Education, Defense, Industrial Automation, etc.
Compliance Standards: GB3047.1-86 and IEC297-3
The design of this product partially complies with the basic dimensions for subracks and plug-in units in racks and cabinets as specified in Part 2 of GB 3047.1-86 "Basic Dimension Series for Panels, Racks, and Cabinets," as well as the international standard IEC297-3 "Mechanical Structures for Electronic Equipment: Dimensions of Cabinets and Racks – Part 3: Subracks and Associated Plug-in Units for the 482.6 mm (19 in) Series."
Structural Features
Every product is developed under a project-based operation mechanism, tailored to meet specific customer needs.
The product complies with the 19-inch standard and adopts a combination of profiles and plates for easy assembly, fully embodying the characteristics and advantages of standardization and serialization. This facilitates later maintenance.
Excellent electromagnetic shielding performance. Special functional requirements such as EMC (electromagnetic shielding and interference protection) and ESD (hot-swappable maintenance) are validated through design and functional product testing certifications.
Reliable design for resistance to intense vibration, shock, and load-bearing.
Superior heat dissipation performance and environmental protection design (IP protection rating).
Effective lightweight design: The product uses aluminum alloy material, which is lightweight and highly effective. It offers diverse surface treatment options such as brushed oxidation, sandblasted oxidation, painting, and powder coating, resulting in an attractive appearance and high-end finish.
The product complies with RoHS certification, with all raw materials, processing techniques, and production environments meeting RoHS requirements.
