Market Demand for PXI Express Systems
The standard platform PXI Express (developed by the PXI System Alliance) is an upgraded version of the PXI platform. Adopting the PCI Express bus and CompactPCI Express architecture, it is widely used in PC-based high-performance test and measurement environments in industrial and scientific research fields.
Based on PC architecture, PXI Express is specially defined for measurement and automation systems, which puts forward high requirements for synchronization performance, flexibility and scalability of measurement systems. Compared with traditional PXI, the core innovations of PXI Express lie in higher data transmission rate, improved timing and synchronization functions, and backward compatibility. The steady growth in actual deployment of PXI Express systems is a direct result of these technical upgrades. In addition, more and more customers prefer customized systems. The combination of these two factors gives rise to the demand for customized PXI Express systems, which requires manufacturers to have high design and production flexibility.
Product Introduction

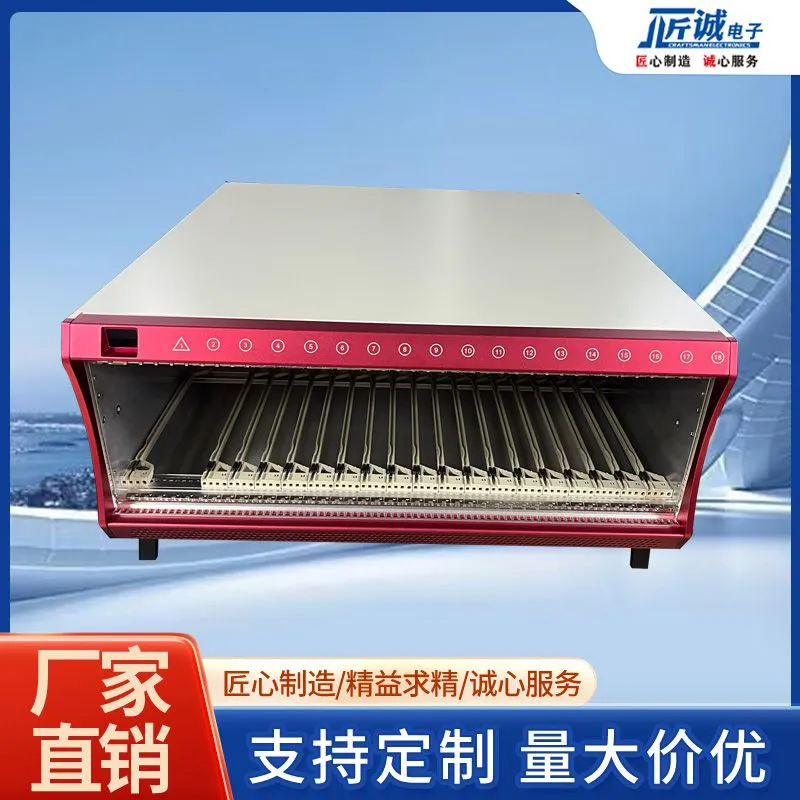

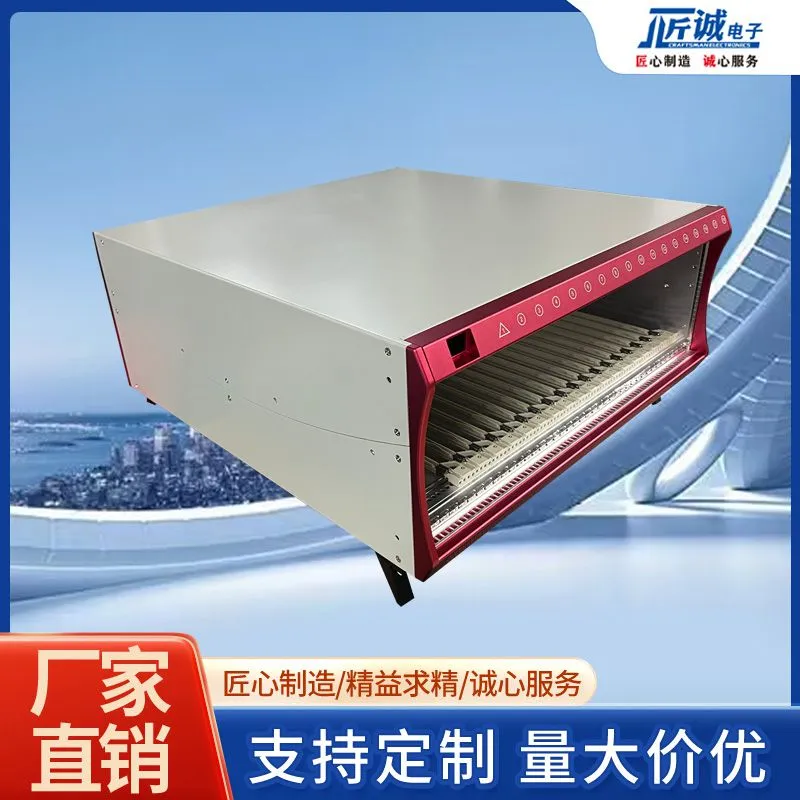

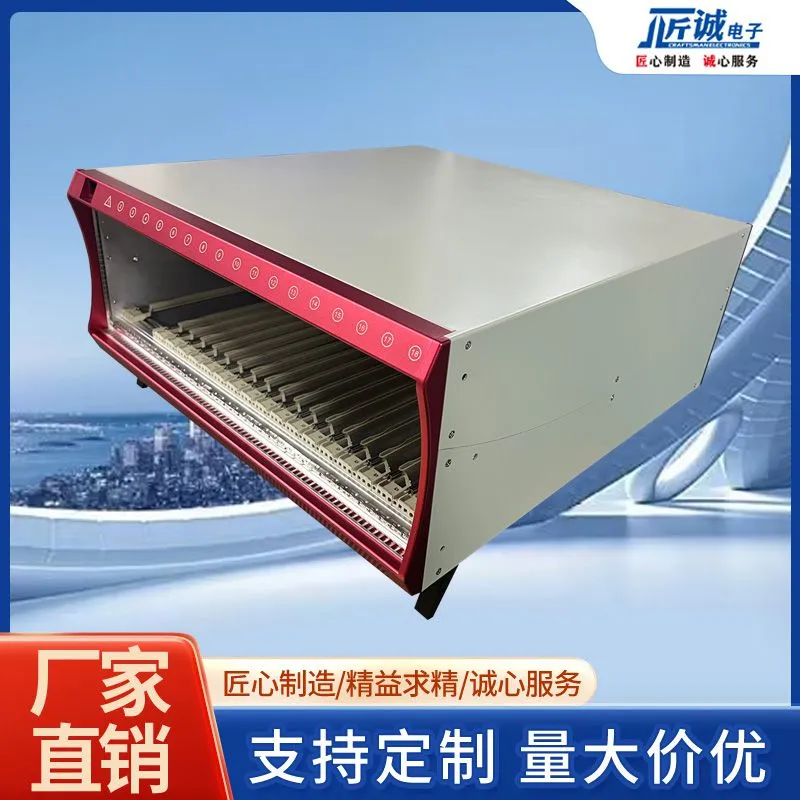

Product Focus: PXI Express Chassis Architecture - Built based on the modular design concept, Jiangcheng Electronics has customized 2-slot PXI chassis, 5-slot PXI chassis, 8-slot PXI chassis, 10-slot PXI chassis, 14-slot PXI chassis, and 18-slot PXI chassis for customers. Among them, 8-slot and 18-slot PXI chassis account for the largest demand, and have successfully passed various performance inspections of scientific research institutes.
Product Name: Rack-mounted 4U PXIe Chassis | Product Type: Subrack Series
Product Material: Aluminum Profile + Aluminum Plate | Product Dimensions: 4U (height) * 36HP-84HP (width) * 350-550 (depth)
Surface Treatment: Anodizing/Painting/Powder Coating | ROHS Compliance: Meets ROHS requirements
Installation Method: Portable/Desktop/Rack-mounted | Protection Grade: IP20, refer to IEC60529
EMC Test Standard: VG 95373 Part 15 | Service Mode: Customer Customization
Application Fields: National defense, industrial automation, measurement and control and other fields
Implementation Standards: GB3047.1-86 and IEC297-3
This product design partially complies with the basic dimensions of subracks and plug-ins in racks/cabinets specified in Part 2 of GB 3047.1-86 "Basic Dimension Series for Panels, Racks and Cabinets", and also meets the international standard IEC297-3 "Mechanical Structure Dimensions for 482.6mm (19in) Series - Part 3: Subracks and Corresponding Plug-ins".
Product Structure
Every product of our company is developed under a project-based operation mechanism, and tailor-made to meet customers' specific needs. During the design of the rack-mounted 4U PXIe chassis, additional costs are required to meet the requirements for durability, EMC performance, heat dissipation and noise control. Compared with many other system specifications, the rack-mounted 4U PXIe chassis has significantly more components and a more complex structure.
The product complies with the 19-inch standard, adopts a splicing method of profiles and plates, which is easy to assemble, and fully reflects the characteristics and advantages of standardization, modularization and serialization.
It adopts a modular card insertion structure with good expandability. The capacity can be expanded according to customer needs, and later maintenance is convenient.
It has excellent electromagnetic shielding performance. Special functional requirements such as EMC (electromagnetic shielding anti-interference) and ESD (hot-swappable maintenance) have passed product testing and certification in both design and function.
It features reliable vibration resistance, impact resistance and load-bearing design, with outstanding performance in rail transit applications.
It delivers excellent heat dissipation performance (uniform heat dissipation is an essential element for stable system operation) and professional environmental protection design (meets IP protection level requirements).
Effective lightweight design: The product is made of aluminum alloy, which is lightweight and has reliable performance. It also supports various surface treatment options such as brushed anodizing, sandblasted anodizing, painting, and powder coating, with high-end appearance and quality.
All products meet ROHS certification, and the raw materials, processing technology and processing environment all comply with ROHS certification requirements.
In conclusion, the requirements for durability, EMC performance and noise vary greatly depending on the application scenarios of the system, including but not limited to medical technology, rail transit, aviation and other fields. Reusing mature designs that have been widely verified in the past is a reliable solution that can greatly reduce development risks. In addition, it is often necessary to change the color of the chassis or adjust the front/rear panels in practical applications, which requires chassis manufacturers to have high design flexibility. Shenzhen Jiangcheng Electronics Co., Ltd. can provide a large number of verified modular standard chassis, subracks and other series of products.
