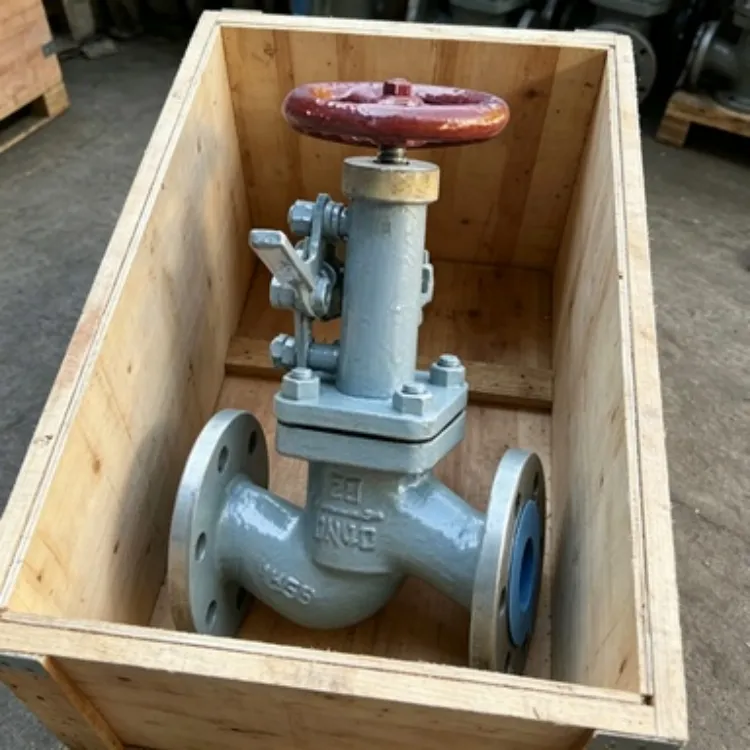

As a professional valve manufacturer established in 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. is dedicated to providing reliable and high-performance fluid control solutions for the global maritime industry. Our GB/T5744-1993 Marine Quick Closing Valve is engineered to meet stringent safety requirements, offering rapid isolation in critical situations to protect personnel, equipment, and the marine environment. With an annual export value demonstrating our global reach, we combine rigorous manufacturing standards under ISO9001 with comprehensive technical support to deliver a product you can trust for your most demanding applications.
This valve is specifically designed for marine and offshore systems where immediate flow shut-off is essential for safety. Its quick-closing mechanism allows for fast operation, significantly reducing the risk in emergency scenarios such as fire or pipeline rupture. The valve construction ensures durability in harsh marine conditions, including exposure to saltwater and variable temperatures.
- Enhanced Safety: The primary function is to provide a fail-safe, rapid closure to isolate sections of a piping system, crucial for fire protection and spill prevention on vessels and offshore platforms.
- Robust Construction: Manufactured from materials like cast steel, ductile iron, or stainless steel to resist corrosion and withstand the pressures and mechanical stresses encountered in marine environments.
- Standard Compliance: Designed and produced in strict accordance with the Chinese national standard GB/T5744-1993, which specifies requirements for marine quick-closing valves, ensuring interoperability and reliability.
- Reliable Sealing: Features a tight-sealing mechanism that prevents leakage after closure, maintaining system integrity under pressure.
- Ease of Operation: The manual operating mechanism is designed for quick and decisive action, often featuring a lever or wheel that can be easily accessed and operated by crew members.
- Versatile Installation: Suitable for various fluid services onboard, including fuel oil lines, lubricating oil systems, cargo lines, and fire-fighting systems.
Below is a summary of typical technical specifications. Custom configurations regarding material, pressure rating, and size are available to meet specific project requirements.
| Parameter | Specification / Option |
|---|---|
| Design Standard | GB/T5744-1993 |
| Nominal Pressure (PN) | PN10, PN16, PN25, PN40 |
| Nominal Diameter (DN) | DN50, DN65, DN80, DN100, DN150, DN200, DN250, DN300 |
| Main Body Material | Cast Steel (WCB), Ductile Iron, Stainless Steel (CF8/CF8M) |
| Seat Material | Stainless Steel, Reinforced PTFE |
| Connection Standard | Flanged per GB, ANSI, JIS, or DIN standards |
| Operating Temperature | -20°C to +425°C (varies by material) |
| Operation Type | Manual Quick-Acting Lever or Handwheel |
The valve's design focuses on delivering tangible benefits to shipyards, vessel operators, and offshore engineering firms. By integrating this valve into your system, you gain a critical safety component that helps ensure regulatory compliance, minimizes downtime due to emergencies, and protects valuable assets. The quick-closing action can be the decisive factor in controlling an incident before it escalates. Furthermore, our valves are built for longevity with minimal maintenance requirements, contributing to lower total cost of ownership over the valve's service life.
Shanghai Zhibang Valve backs every GB/T5744-1993 Marine Quick Closing Valve with the assurance of our ISO9001-certified quality management system and our proven track record of supplying markets across North America, South America, Europe, Asia, Africa, and Oceania. Our annual export volume reflects the consistent trust placed in our products by international clients. We offer flexible shipment from major Chinese ports including Shanghai, Guangzhou, and Hong Kong. Most importantly, our commitment extends beyond the sale—we provide dedicated installation technical support to ensure your valve is integrated correctly and performs as intended. Choose a partner committed to safety, quality, and support. Contact us today to discuss your specifications or request a detailed quotation.
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of a marine quick-closing valve?
A1: Its primary purpose is to allow for the rapid manual shut-off of fluid flow in a pipeline during an emergency, such as a fire or a leak, to prevent the spread of hazard and protect the ship's systems and personnel.
Q2: How does the GB/T5744-1993 standard affect the valve's design?
A2: This Chinese national standard specifies critical design, material, performance, and testing requirements for marine quick-closing valves. Compliance ensures the valve meets defined safety, strength, and operational criteria suitable for marine applications.
Q3: Can this valve be used for services other than oil or fuel?
A3: Yes. While commonly used for oil fuel lines, it can be configured with appropriate materials for various media, including seawater, lubricating oil, chemicals, or other fluids onboard, depending on the specific model and material selection.
Q4: What types of connection ends are available?
A4: Flanged connections are standard. We can supply valves with flanges machined to various standards such as GB, ANSI, JIS, or DIN to match your existing pipeline specifications.
Q5: Is the closing action truly "quick"? How is it achieved?
A5: Yes. The valve employs a mechanism, typically a lever or a rapid-thread handwheel, that requires only a quarter-turn or a few quick turns to move the closure element from fully open to fully sealed, enabling shutdown in seconds.
Q6: What does "installation technical support" include?
A6: Our support can include providing detailed installation drawings, torque specifications for bolts, guidance on proper gasket selection and alignment, and answering technical queries during the installation process to ensure optimal performance.
Q7: Are spare parts readily available?
A7: Yes. As the manufacturer, we maintain an inventory of critical spare parts like seals, gaskets, and lever mechanisms. Availability is confirmed upon request, ensuring you can maintain your valves effectively.
Q8: What is the typical delivery time for an order?
A8: Delivery time depends on the order quantity, specification, and current production schedule. Standard specifications may have shorter lead times, while customized orders require additional engineering. We provide estimated timelines upon order confirmation.
