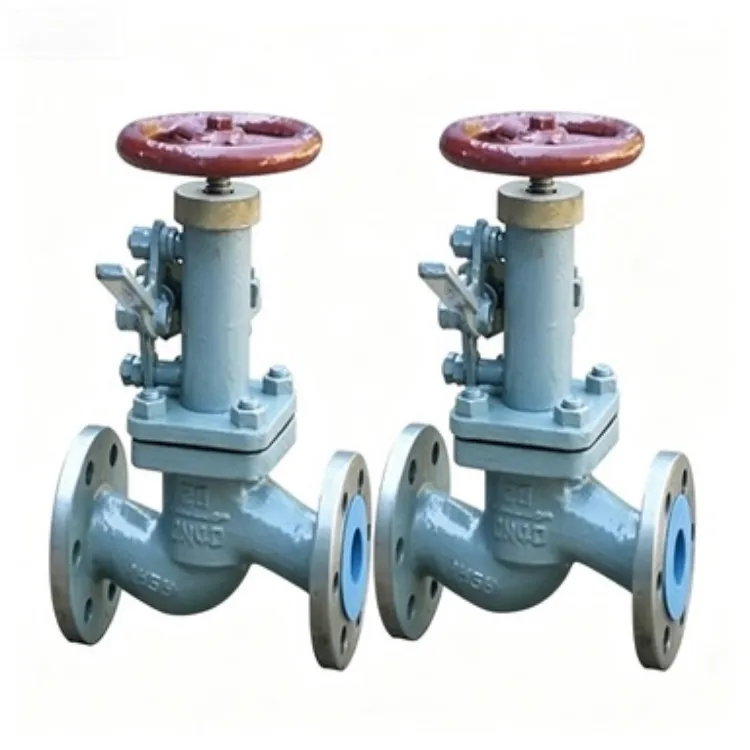

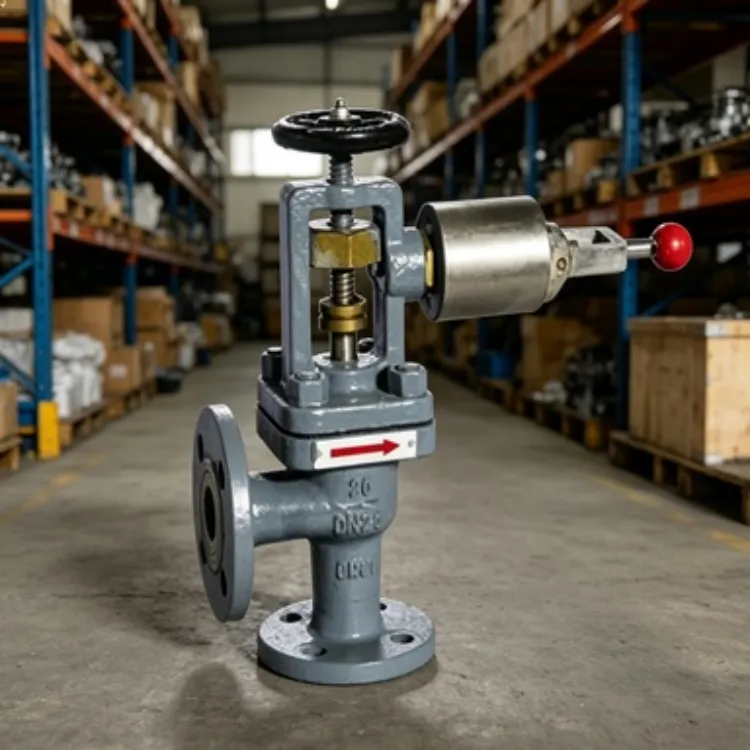

Help CenterGB/T5744-1993 Marine Quick Closing Valve for Bilge Pump Emergency Shutdown
Product Spotlights
Related Products
-
GB/T5744-1993 Marine Quick Closing Valve, Manual Reset, Stainless Steel ConstructionNegotiableMOQ: 1 Unit -
CCS Approved GB/T5744-1993 Quick Closing Valve Straight/Angle Type Marine Emergency Safety ValveNegotiableMOQ: 1 Unit
-
GB/T5744-1993 Marine Quick Closing Valve, Pressure Rating PN16NegotiableMOQ: 1 Unit
-
GB/T5744-1993 Marine Quick Closing Valve, Brass Material, DN50 SizeNegotiableMOQ: 1 Unit
-
GB/T5744-1993 Marine Quick Closing Valve Compliant With Marine Safety StandardsNegotiableMOQ: 1 Unit
As a professional manufacturer with a strong foundation in the marine valve industry since 2016, Shanghai Zhibang Valve Manufacture Co., Ltd. proudly presents our GB/T5744-1993 compliant Marine Quick Closing Valve. Engineered specifically for bilge pump emergency shutdown systems, this valve is a critical safety component designed to prevent flooding and ensure vessel integrity. Our commitment to the ISO9001 quality management system guarantees that every valve delivers reliable performance under the most demanding maritime conditions, providing shipowners and naval architects with a trusted solution for essential safety protocols.
This valve is meticulously crafted to meet the stringent requirements of marine applications, offering instant shut-off capability when every second counts. Its design prioritizes operational readiness and failsafe functionality, making it an indispensable part of any vessel's bilge management system. We understand the global nature of the maritime industry, which is why our products are trusted in markets from North America and Europe to Southeast Asia and Africa, shipped efficiently from major ports like Shanghai, Guangzhou, and Hong Kong.
Key Features and Technical Advantages:
- Rapid Emergency Response: The quick-closing mechanism allows for near-instantaneous valve closure via a manual lever, crucial for isolating a compromised bilge pump line and preventing catastrophic water ingress.
- Robust Construction for Harsh Environments: Manufactured from marine-grade materials such as cast steel or bronze, the valve body offers exceptional corrosion resistance against seawater, ensuring long service life and minimal maintenance.
- Positive Seal Guarantee: Utilizes high-quality sealing elements like Nitrile Rubber or EPDM, providing a bubble-tight seal when closed, effectively blocking water flow under system pressure.
- Standard-Compliant Design: Fully conforms to the Chinese National Standard GB/T5744-1993 for marine quick-closing valves, ensuring compatibility with international shipbuilding and repair specifications.
- Versatile Installation: Available in a wide range of sizes (DN25 to DN200) and standard flanged connections, facilitating easy integration into existing bilge piping systems onboard various vessel types.
- Fail-Safe Operation: The simple, robust lever mechanism requires minimal operator training and provides a clear, visual indication of the valve's status (open/closed), enhancing onboard safety procedures.
Technical Specifications Table:
| Parameter | Specification |
|---|---|
| Design Standard | GB/T5744-1993 |
| Nominal Pressure (PN) | PN10, PN16 (Class 150 available) |
| Nominal Diameter (DN) | DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200 |
| Body Material Options | Cast Steel (WCB), Ductile Iron, Bronze |
| Seal Material Options | NBR (Nitrile), EPDM, Viton (FKM) |
| Connection Standard | Flanged per JIS, ANSI, DIN; Threaded connections optional |
| Operation Temperature | -20°C to +120°C (dependent on seal material) |
| Operation | Manual Quick-Close Lever |
| Surface Treatment | Epoxy Coating, Hot-Dip Galvanizing (optional) |
Benefits for Our Clients:
- Enhanced Vessel Safety: Provides a reliable last line of defense in bilge system emergencies, directly contributing to the safety of the crew, cargo, and the vessel itself.
- Regulatory Compliance: Helps ship operators and builders meet international and national safety regulations concerning bilge system isolation and emergency shutdown capabilities.
- Reduced Operational Risk: Minimizes the potential for extensive water damage and costly repairs by enabling swift isolation of leaks or pump failures.
- Durability & Low Lifetime Cost: The use of corrosion-resistant materials and robust construction translates to fewer replacements and lower long-term maintenance expenses.
- Global Supply Chain Support: With an annual export value reflecting our international reach, we offer reliable logistics from multiple Chinese ports, ensuring timely delivery to shipyards and marine suppliers worldwide.
Shanghai Zhibang's commitment to quality is evidenced by our ISO9001 certification, a system that governs our entire manufacturing process from raw material inspection to final testing. With nearly a decade of experience since our establishment in 2016 and a consistent annual export value, we have built a reputation as a dependable partner for marine components across continents. Our valve's adherence to the GB/T5744-1993 standard is not just a claim but a verifiable guarantee of its suitability for critical marine safety applications. Choosing our Marine Quick Closing Valve means investing in a product backed by rigorous manufacturing standards, proven global performance, and a manufacturer dedicated to maritime safety. For detailed quotations, specific material selections, or to discuss your project requirements, please contact our sales team.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of this quick-closing valve?
A1: Its primary function is to provide an immediate manual shut-off for a bilge pump discharge line in an emergency situation, such as a pipe rupture or pump malfunction, to prevent uncontrolled flooding in the vessel's compartments.
Q2: How does the quick-closing mechanism work?
A2: The valve features a lever-operated mechanism. In an emergency, an operator can swiftly pull the lever, which directly actuates the valve disc to rotate 90 degrees, moving from the fully open to the fully closed position in a very short time, effectively stopping the flow.
Q3: Is this valve suitable for freshwater systems as well?
A3: While designed for marine (seawater) bilge service, its construction materials make it equally suitable for demanding freshwater applications, industrial water lines, or other fluid systems requiring rapid emergency isolation.
Q4: Can you provide valves with different end connections?
A4: Yes. While flanged ends are standard per common marine practice, we can supply valves with threaded (NPT, BSP) ends or other connection types based on your specific piping system design and request.
Q5: What maintenance does this valve require?
A5: Maintenance is minimal. It primarily involves periodic operational checks to ensure the lever moves freely and the valve closes fully. The sealing elements may require inspection or replacement after extended service, depending on usage conditions.
Q6: Do you offer customization for specific pressure ratings or sizes?
A6: Absolutely. We can engineer valves to meet non-standard pressure ratings (higher or lower) and can discuss custom sizes outside our standard range to fit unique project specifications.
Q7: How do I select the appropriate seal material?
A7: Seal material selection depends on the fluid media and temperature. NBR is common for general water, EPDM offers better resistance to mild chemicals and higher temperatures, while Viton is for more aggressive fluids. Our technical team can assist in the selection.
Q8: What is the lead time for an order?
A8: Lead times vary based on order quantity, material availability, and specifications. Standard configurations typically have shorter lead times. We provide accurate delivery estimates upon receipt of your detailed inquiry or purchase order.
