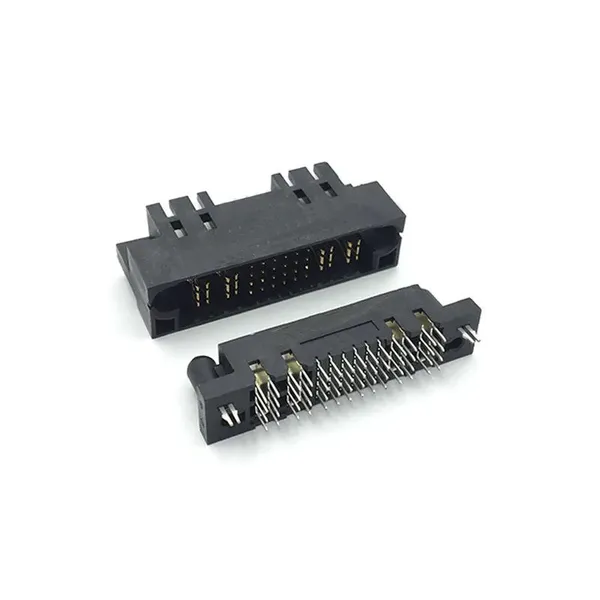

Fci Amphenol 10127397-03h1510lf PCB Board to Board Power Supply Distribution System 4pin 24signal Power Blade Connector for Rectifier Module
| Name | Material | |
| Female 4power+24signal | PET+Copper | |
| Male 5power+24signal | PET+Copper |
Attribute |
Value |
Component Type |
Power Supply Connectors |
Gender |
Male/Female |
Header Pin Pattern (Left to Right) |
Power/Signal/Power |
Number of Contacts (Signal) |
24 |
Number of Rows (Power) |
4 |
Number of Rows (Signal) |
4 |
Number of Rows (Power) |
1 |
Orientation |
Right Angle |
Termination Style |
Solder |
Pitch (Power) |
6.35mm (0.250in) |
Pitch (Signal) |
2.54mm (0.100in) |
Current Rating |
40A max. for One Powered Contact |
Resistance (Contact) |
Maximum for mated pair is 2m |
Dielectric Withstanding Voltage |
2500V DC for power |
Voltage Rating |
250V |
Color - Housing |
Black |
Operating Temperature Range |
-40°C to +125°C |
Material Housing |
PPA, glass fiber reinforce, UL94V-0 |
Durability (Mating cycles) |
250 Mating Cycles |
Solder process |
High Temp Solder Process |
Plating Contact area |
0.76μm (29.921μin) Gold |
Tail Plating (Power) |
1.98μm (78μin) Tin |
Tail Plating (Signal) |
1.98μm (78μin) Tin |
Guide Feature |
Guide Pin Pocket |
Polarization Feature |
Yes |
Retention Feature |
Board Lock |
Packaging |
Tray |
FEATURES & BENEFITS
1. High power contact option (up to 50A/contact; 30°C temperature rise in still air) for cost-effective power
2.Delivery in 1U and 2U power supplies or power distribution applications
3.Low power contact option (up to 40A/contact; 30°C temperature rise in still air) for applications with multiple voltages and lower power requirements
4. Highly vented housing design maximizes heat dissipation for effective system cooling
5. Half-bullet guides offer a reduced connector footprint
6. Large operating temperature range (-40°C to +125°C) for extreme environments
7. Right angle and co-planar options are available with both power contacts for power distribution and signal contacts for power control
8. Number and placement of power and signal contacts are highly configurable for customer's power needs
9. Solder or press-fit tails are available for termination flexibility
10.Compatible with lead-free processing temperatures
TARGET MARKETS/APPLICATIONS
1. AC/DC pluggable power supplies in data, telecom & datacom/networking equipment
2. Industrial PCs
3. Industrial controls & instrumentation
4. Medical equimpent
TECHNICAL INFORMATION MATERIALS
1.Housing : PBTUL94V-0 (High performance thermoplastic PPA+15% glassfiber, UL 94-0)
2. High-temperature thermoplastic (UL 94 V-0), black
3.Power contact base metal
4. High-conductivity copper alloy
5. Contact finish: Separable interface: 30μin. (0.76μm) performance -based plating over nickel Contact A: Phosphor Bronze; Gold plating over Nickel on contact area;Tin Plating on Solder Tail. Contact B: Brass; Gold plating over Nickel on contact area Tin Plating on Solder Tail.
6. Board connector solder tail area: Matte tin over nickel Shell: Brass;Tin Plating on Solder Tail.
ELECTRICAL PERFORMANCE
1. High power current rating: Up to 50A/contact (30°C T-rise in still air)
2. Low power current rating: Up to 40A/contact (30°C T-rise in still air)
3. Operating Voltage • High power contacts: 912V max. (fully loaded) • Low power/signal contacts: 124V max. (fully loaded) • Dielectric withstanding voltage • High power contacts: 2500V • Low power/signal contacts: 1000V
4. Insulation resistance • High/low power contacts: > 2,000MΩ initially as well as after environmental exposure • Signal contacts: > 500MΩ initially as well as after environmental exposure
5. Contact resistance • High power contacts: ≤0.7mΩ initially and after environmental exposure • Low power contacts: ≤1.5mΩ initially and after environmental exposure • Signal contacts: ≤20mΩ initially and after environmental exposure
Environmental Operating Temperature: -45°C to +105°C Power blade connetor blade power connector powerblade connector healthy connector mass health connector wire connector health connector battery terminal connector
